Electronic Engine Controls - TD4 2.2L Diesel - Intake Air Temperature (IAT)
Sensor

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

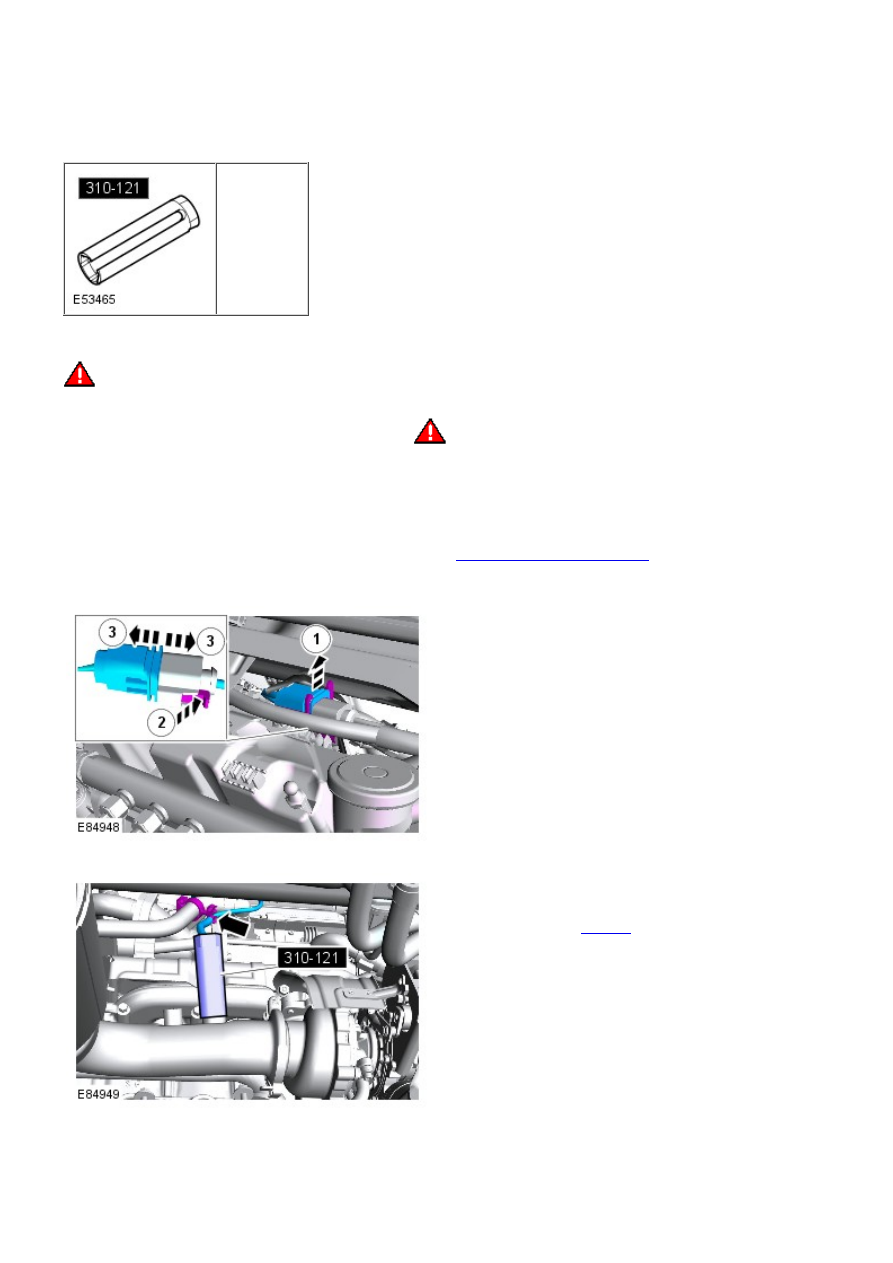

2.

3.

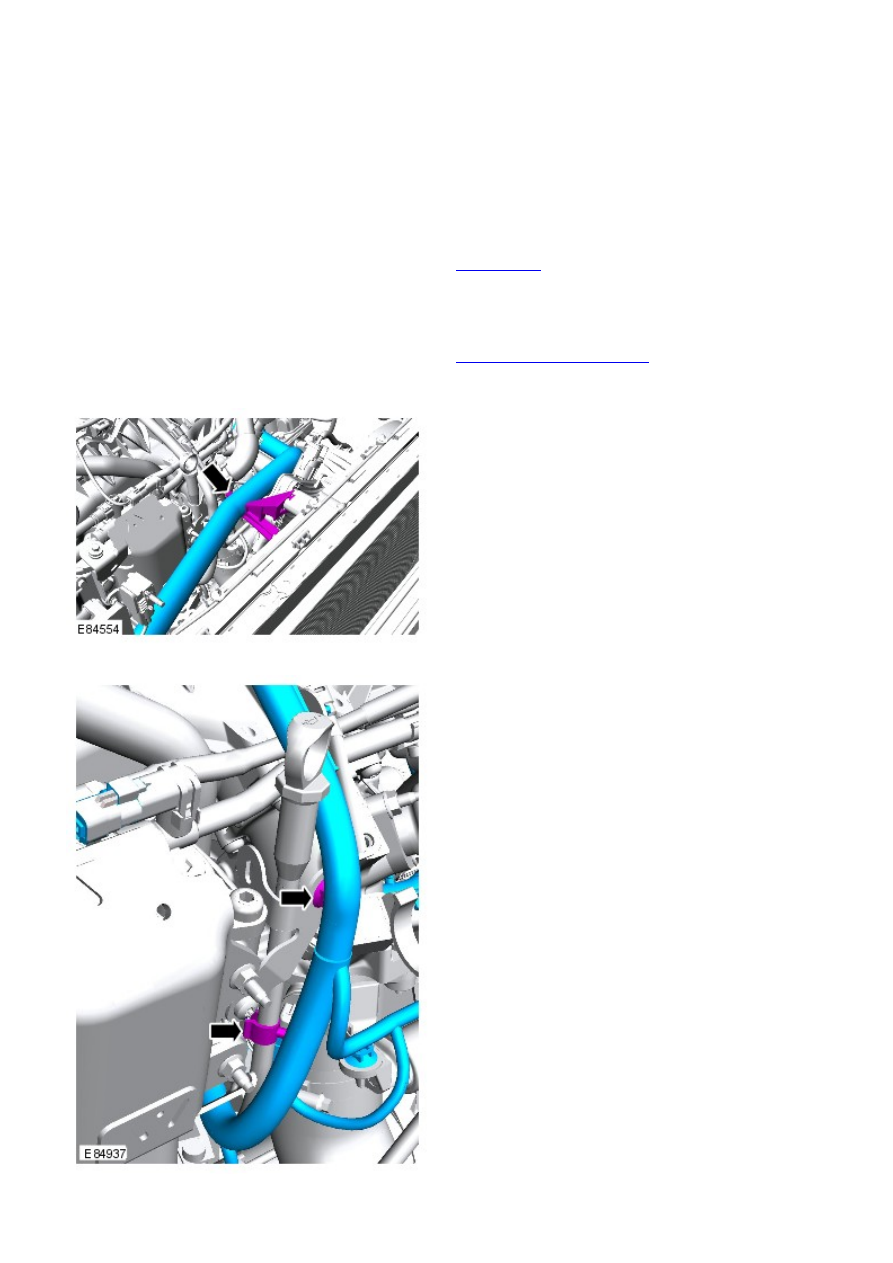

4.

Torque: 10 Nm

5.

6.

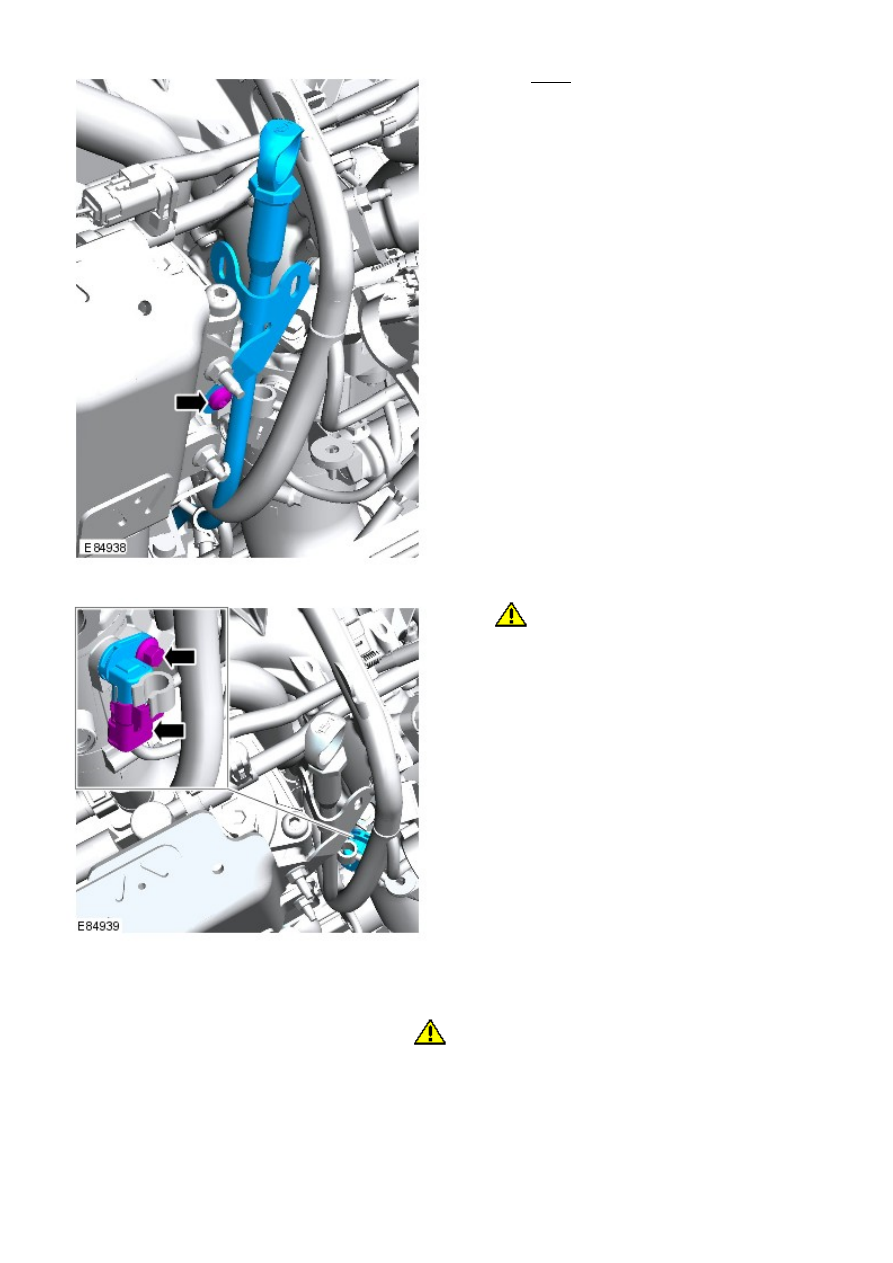

CAUTION: A new O-ring seal is to be installed.

6.

Installation

1.

CAUTION: Make sure that the mating faces are clean and

free of foreign material.

To install, reverse the removal procedure.

1.

Electronic Engine Controls - TD4 2.2L Diesel - Heated Oxygen Sensor
(HO2S)

Removal and Installation

Special Tool(s)

310-121
W rench, H02S

Removal

WARNING: Observe due care when working near a hot exhaust system.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

2.

3.

Using the special tool, remove the heated oxygen
sensor (HO2S).

Special Tool(s):

310-121

4.

Installation

For H02S anti-seize compound information, refer to the specification

1.

section.

Refer to:

Specifications

 (303-08B Engine Emission Control - TD4 2.2L

Diesel, Specifications).

2.

CAUTION: Make sure the anti-seize compound does not

contact the HO2S tip.

Apply anti-seize compound to the sensor threads.

2.

Install the HO2S.

Special Tool(s):

310-121

Torque: 45 Nm

3.

Connect the HO2S electrical connector.

4.

Install the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

5.
