Electronic Engine Controls - I6 3.2L Petrol - Manifold Absolute Pressure
(MAP) Sensor

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

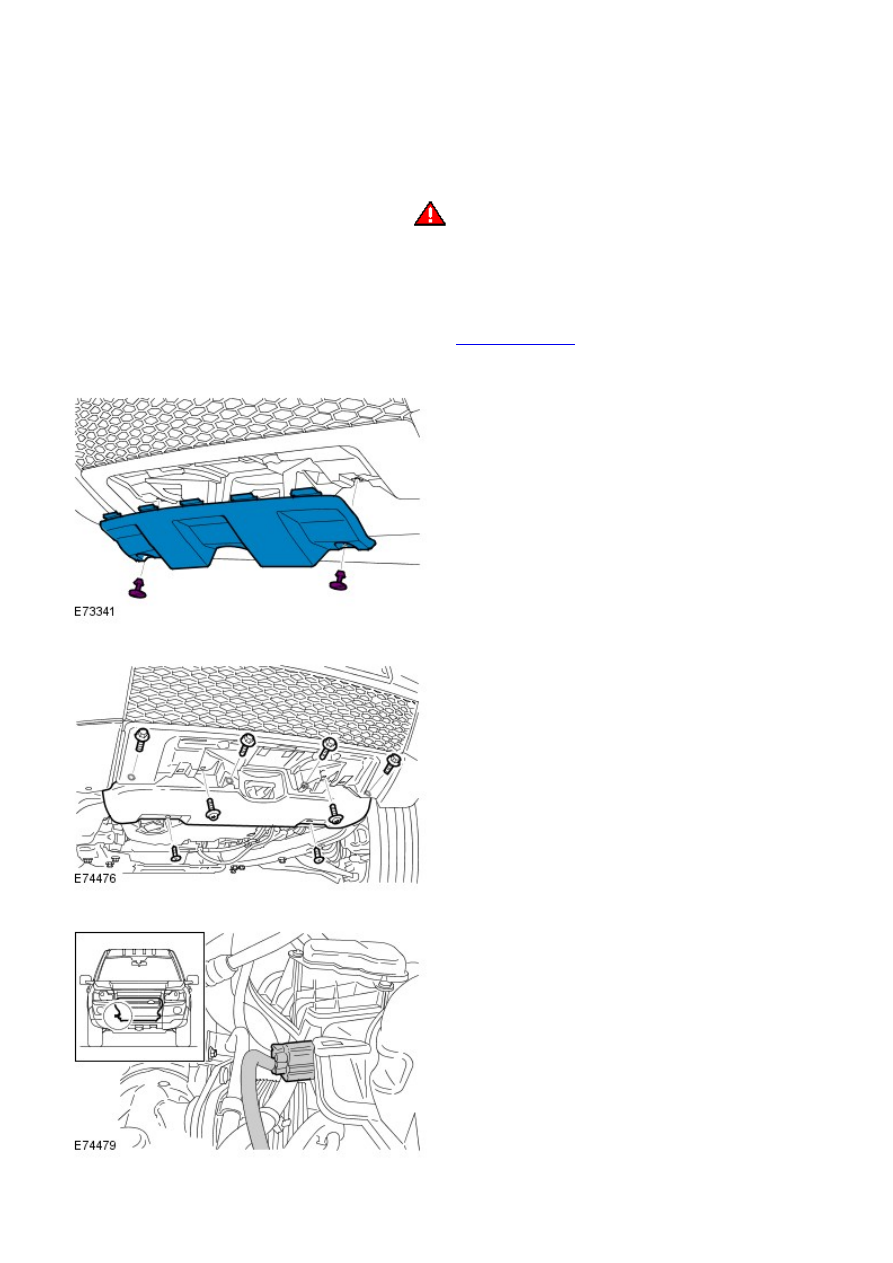

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

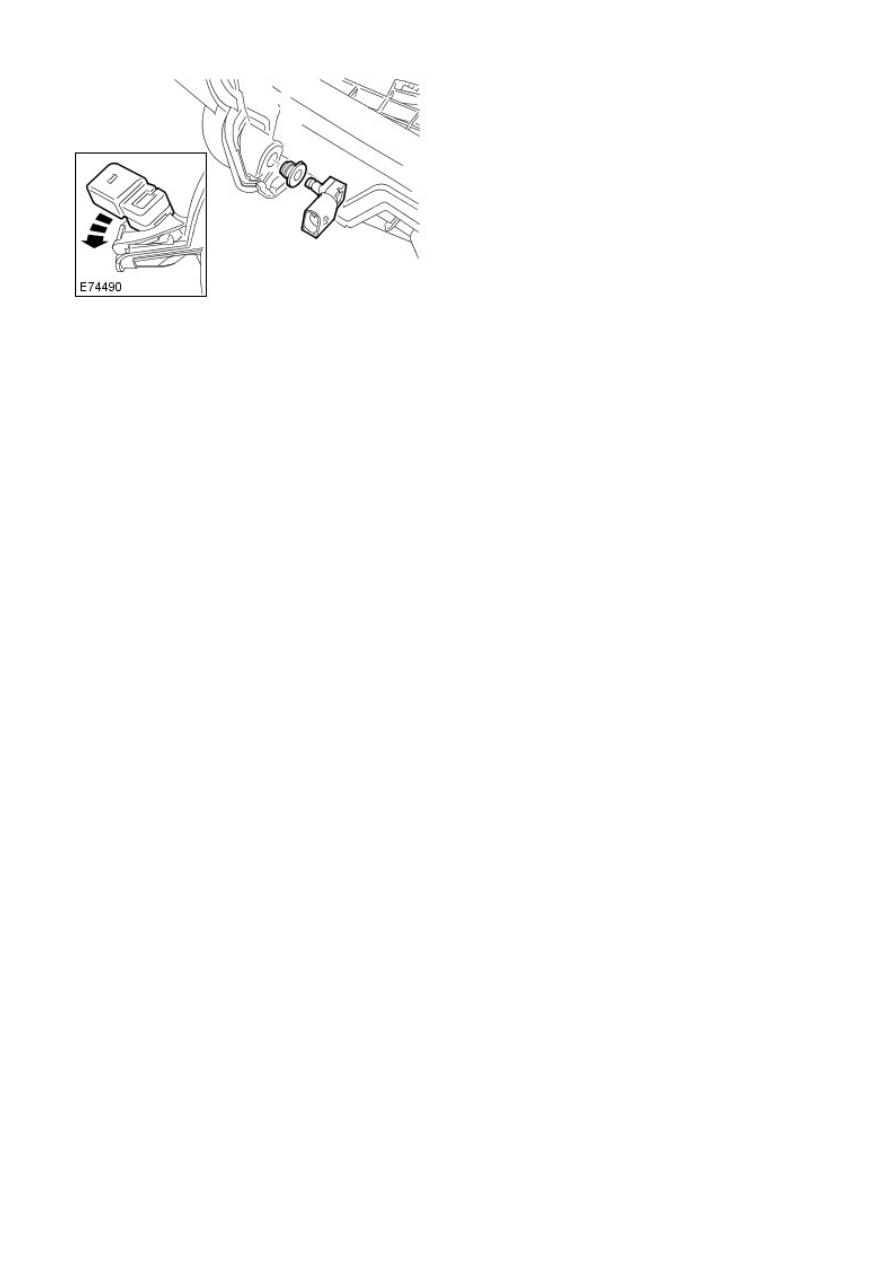

2.

3.

4.

5.

6.

Installation

To install, reverse the removal procedure.

1.

2. NOTE: For NAS vehicles only.

If required, carry out a short drive cycle.

Refer to: Powertrain Control Module (PCM) Short Drive Cycle
Self-Test (303-14A, General Procedures).

2.

Electronic Engine Controls - I6 3.2L Petrol - Engine Control Module (ECM)

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

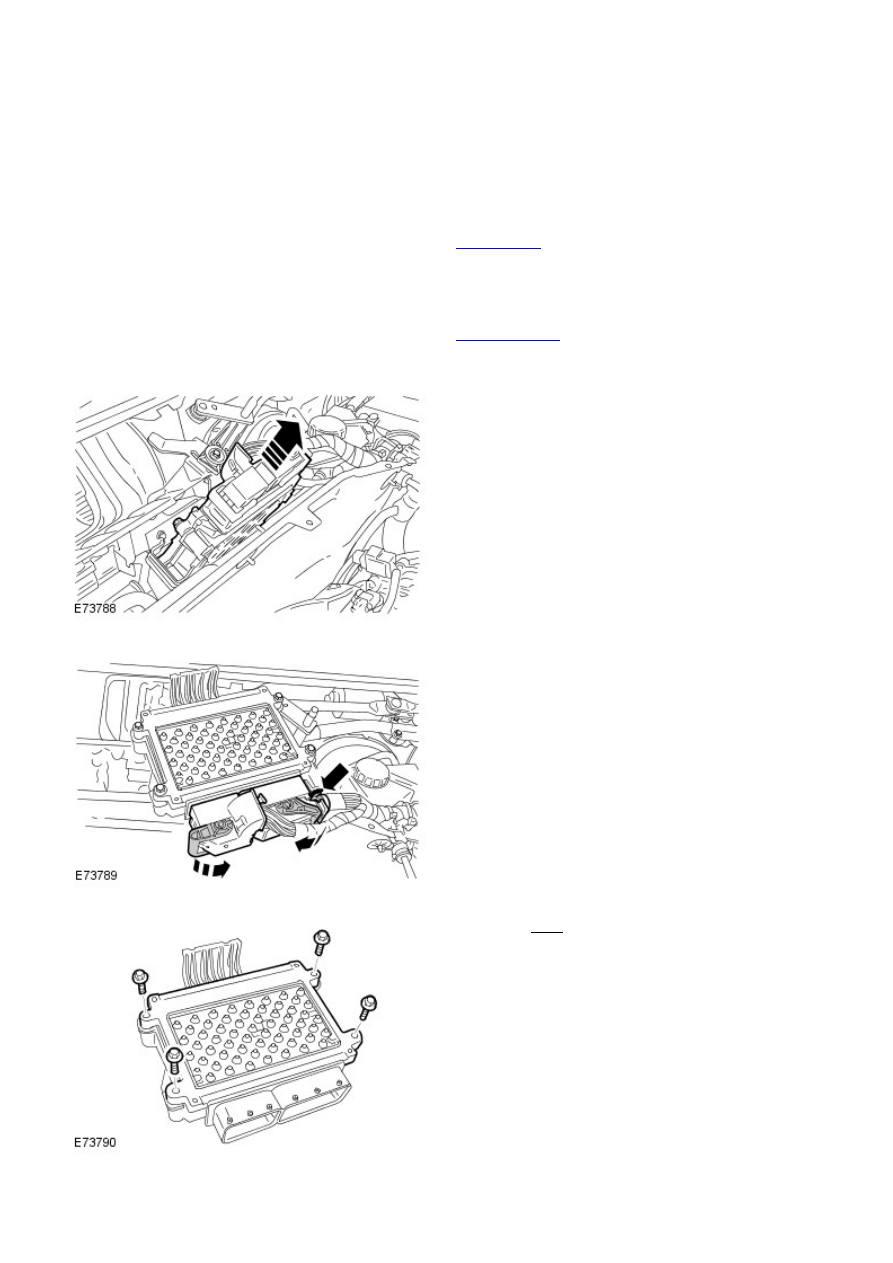

1.

Remove the plenum chamber panel.

Refer to:

Plenum Chamber

 (412-01 Climate Control, Removal and

Installation).

2.

3.

Petrol ECM shown, diesel similar.

4.

Torque: 6 Nm

5.

Installation

All vehicles

To install, reverse the removal procedure.

1.

Vehicles with diesel particulate filter (DPF)

Renew the engine oil and filter.

Refer to:

Engine Oil Draining and Filling

 (303-01B Engine - TD4 2.2L

Diesel, General Procedures).

2.

All vehicles

If a new component has been installed, configure using Land Rover
approved diagnostic equipment.

3.
