Frelander 2. Manual - part 246





DTC

Description

Possible Cause

Action

MAF sensor fault

- Low intake flow

Exhaust leak, before catalytic
converter

P017500 System too rich (bank 2)

Restricted air filter
Oil contaminated with fuel

- Too many cold starts with
vehicle subsequently not
getting hot enough for long
enough

Leaking fuel injectors
MAF sensor fault

- High intake flow

Leaking evaporative emission
system purge valve

Check the condition of the air cleaner
element:
REFER to:

Air Cleaner

 (303-12B Intake Air

Distribution and Filtering - TD4 2.2L Diesel,
Removal and Installation).
Check engine the oil condition. Check for
leaking injectors. Check for MAF sensor,
injector and evaporative emission system
DTCs.

P018100 Fuel temperature sensor A

circuit range/performance

Fuel temperature sensor A
circuit: high resistance
Fuel temperature sensor failure

Check the fuel temperature sensor and
circuits. Refer to the electrical guides.
Install a new sensor as necessary (the fuel
temperature sensor is incorporated into the
fuel rail pressure sensor).
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).

P018200 Fuel temperature sensor A

circuit low

Fuel temperature sensor A
circuit: short circuit to ground
Fuel temperature sensor A
circuit: high resistance
Fuel temperature sensor failure

Check the fuel temperature sensor and
circuits. Refer to the electrical guides.
Install a new sensor as necessary (the fuel
temperature sensor is incorporated into the
fuel rail pressure sensor).
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).

P018300 Fuel temperature sensor A

circuit high

Fuel temperature sensor A
circuit: short circuit to power
Fuel temperature sensor A
circuit: open circuit
Fuel temperature sensor failure

Check the fuel temperature sensor and
circuits. Refer to the electrical guides.
Install a new sensor as necessary (the fuel
temperature sensor is incorporated into the
fuel rail pressure sensor).
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).

P019100 Fuel rail pressure sensor A

circuit range/performance

Fuel rail pressure (FRP) sensor
A circuit: high resistance
Fuel rail pressure (FRP) sensor
failure
Fuel pump driver module failure

Check the FRP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
necessary.
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).
Check for DTCs indicating fuel pump driver
module faults. Rectify as necessary.

P019121 Fuel rail pressure sensor A

circuit range/performance -
signal amplitude less than
minimum

Fuel rail pressure (FRP) sensor
A circuit: high resistance
Fuel rail pressure (FRP) sensor
failure

Check the FRP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
necessary.
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).

P019122 Fuel rail pressure sensor A

circuit range/performance -
signal amplitude greater
than maximum

Fuel rail pressure (FRP) sensor
A circuit: short circuit to power
Fuel rail pressure (FRP) sensor
failure

Check the FRP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
necessary.
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).

P019200 Fuel rail pressure sensor A

circuit low

Fuel rail pressure (FRP) sensor
A circuit: short circuit to ground
Fuel rail pressure (FRP) sensor
A circuit: open circuit
Fuel rail pressure (FRP) sensor
failure

Check the FRP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
necessary.
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).

P019300 Fuel rail pressure sensor A

circuit high

Fuel rail pressure (FRP) sensor
A circuit: short circuit to power
Fuel rail pressure (FRP) sensor
failure

Check the FRP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
necessary.
REFER to:

Fuel Rail Pressure (FRP) Sensor

(303-14A Electronic Engine Controls - I6 3.2L
Petrol, Removal and Installation).

P020100 Cylinder 1 injector

circuit/open

Injector circuit: short circuit to
power
Injector circuit: open circuit
Injector circuit power supply:
open circuit
Injector failure

Check the injector and circuits. Refer to the
electrical guides. Install a new injector as
necessary.
REFER to:

Fuel Injector

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

DTC

Description

Possible Cause

Action

P020200 Cylinder 2 injector

circuit/open

Injector circuit: short circuit to
power
Injector circuit: open circuit
Injector circuit power supply:
open circuit
Injector failure

Check the injector and circuits. Refer to the
electrical guides. Install a new injector as
necessary.
REFER to:

Fuel Injector

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P020300 Cylinder 3 injector

circuit/open

Injector circuit: short circuit to
power
Injector circuit: open circuit
Injector circuit power supply:
open circuit
Injector failure

Check the injector and circuits. Refer to the
electrical guides. Install a new injector as
necessary.
REFER to:

Fuel Injector

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P020400 Cylinder 4 injector

circuit/open

Injector circuit: short circuit to
power
Injector circuit: open circuit
Injector circuit power supply:
open circuit
Injector failure

Check the injector and circuits. Refer to the
electrical guides. Install a new injector as
necessary.
REFER to:

Fuel Injector

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P020500 Cylinder 5 injector

circuit/open

Injector circuit: short circuit to
power
Injector circuit: open circuit
Injector circuit power supply:
open circuit
Injector failure

Check the injector and circuits. Refer to the
electrical guides. Install a new injector as
necessary.
REFER to:

Fuel Injector

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P020600 Cylinder 6 injector

circuit/open

Injector circuit: short circuit to
power
Injector circuit: open circuit
Injector circuit power supply:
open circuit
Injector failure

Check the injector and circuits. Refer to the
electrical guides. Install a new injector as
necessary.
REFER to:

Fuel Injector

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P046000 Fuel level sensor A circuit

Fuel level sensor circuit: short
circuit to ground
Fuel level sensor circuit: open
circuit
Fuel level sensor circuit: short
circuit to power
Fuel level sensor failure

Carry out a complete vehicle read for related
DTCs. Rectify as necessary. Check the fuel
level sensor and circuits. Refer to the
electrical guides. Install a new sensor as
necessary.
REFER to:

Fuel Level Sender

 (310-01A Fuel

Tank and Lines - I6 3.2L Petrol, Removal
and Installation).

P046100 Fuel level sensor A circuit

range/performance

Fuel level sensor stuck/jammed Check the fuel level sensor for correct

operation. Install a new sensor as
necessary.
REFER to:

Fuel Level Sender

 (310-01A Fuel

Tank and Lines - I6 3.2L Petrol, Removal
and Installation).

P046400 Fuel level sensor A circuit

intermittent

Fuel level sensor A circuit: high
resistance
Fuel level sensor failure

Check the fuel level sensor and circuits.
Refer to the electrical guides. Install a new
sensor as necessary.
REFER to:

Fuel Level Sender

 (310-01A Fuel

Tank and Lines - I6 3.2L Petrol, Removal
and Installation).

P062800 Fuel pump A control circuit

low

Fuel pump module control
circuit: short circuit to ground
Fuel pump module control
circuit: open circuit
Fuel pump control module
failure

Check the fuel pump control module and
circuits. Refer to the electrical guides. Refer
to the warranty policy and procedures
manual if a module is suspect.

P062900 Fuel pump A control circuit

high

Fuel pump module control
circuit: short circuit to power
Fuel pump control module
failure

Check the fuel pump control module and
circuits. Refer to the electrical guides. Refer
to the warranty policy and procedures
manual if a module is suspect.

P134600 Fuel level sensor B circuit

Fuel level sensor ejector
malfunction

Carry out a complete vehicle read for related
DTCs. Rectify as necessary.

P210100 Throttle actuator control

motor circuit
range/performance

Throttle actuator control motor
circuit: short circuit to ground
Throttle actuator control motor
circuit: open circuit
Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
failure

Check the throttle motor and circuits. Refer
to the electrical guides. Install a new
throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P210177 Throttle actuator control

motor circuit
range/performance

Throttle body
contaminated/sticking
Throttle actuator control motor
failure

Check the throttle body condition and
operation. Clean the throttle body and
recheck. Install a new throttle body as
necessary.

DTC

Description

Possible Cause

Action

REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P210300 Throttle actuator control

motor circuit high

Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
failure

Check the throttle motor and circuits. Refer
to the electrical guides. Install a new
throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P211800 Throttle actuator control

motor current
range/performance

Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
circuit: short circuit to ground
Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
failure

Check the throttle motor and circuits. Refer
to the electrical guides. Install a new
throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P211900 Throttle actuator control

throttle body
range/performance

Throttle body
contaminated/sticking

Check the condition and operation of the
throttle body. Rectify as necessary. Install a
new throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

Fuel Charging and Controls - I6 3.2L Petrol - Throttle Body

Removal and Installation

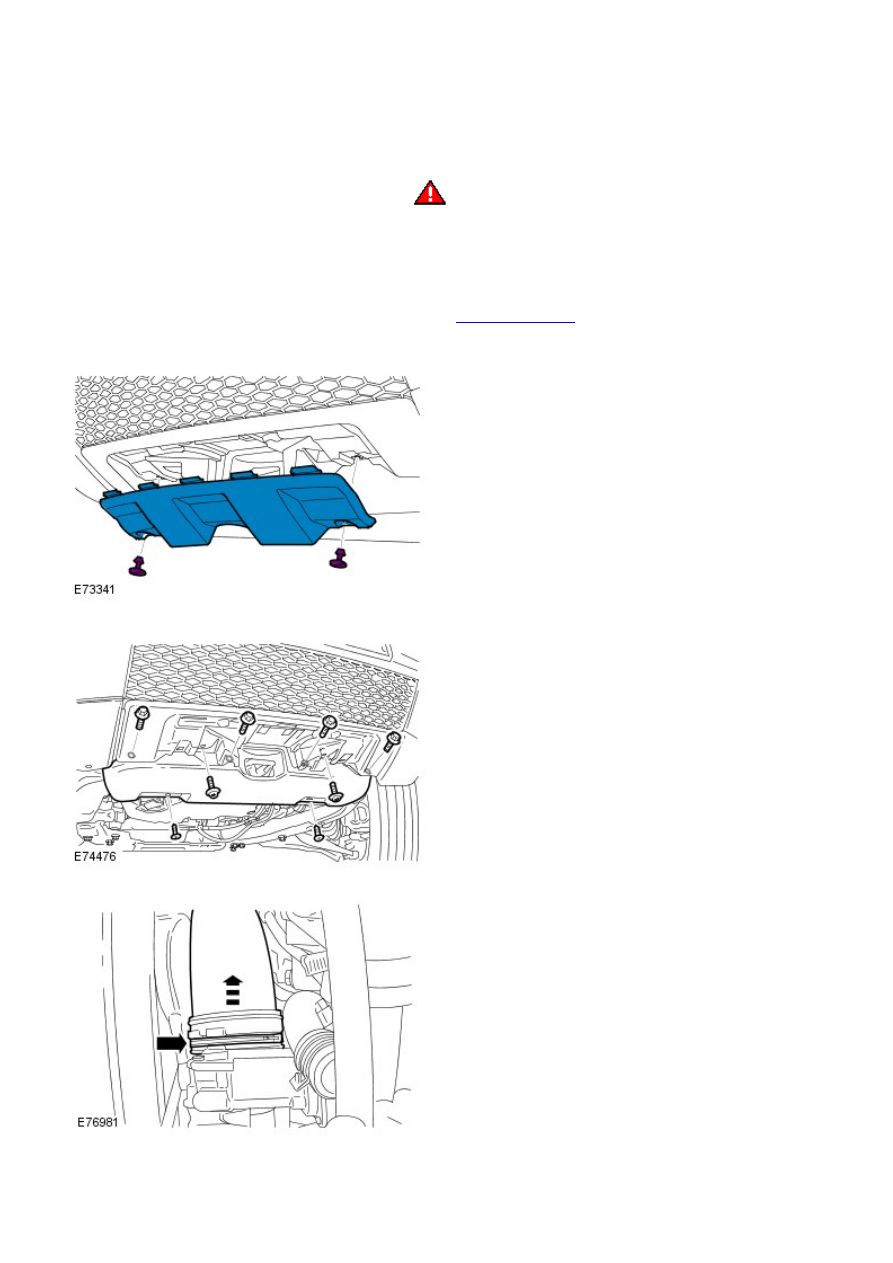

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

3.

4.

Release the air cleaner outlet pipe.

5.















Content   ..  244  245  246  247   ..
