Frelander 2. Manual - part 220





Engine - TD4 2.2L Diesel - Engine Upper Support Insulator

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

Torque: 10 Nm

1.

Torque: 110 Nm

2.

Installation

To install, reverse the removal procedure.

1.

Engine - TD4 2.2L Diesel - Engine Lower Support Insulator

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

All vehicles

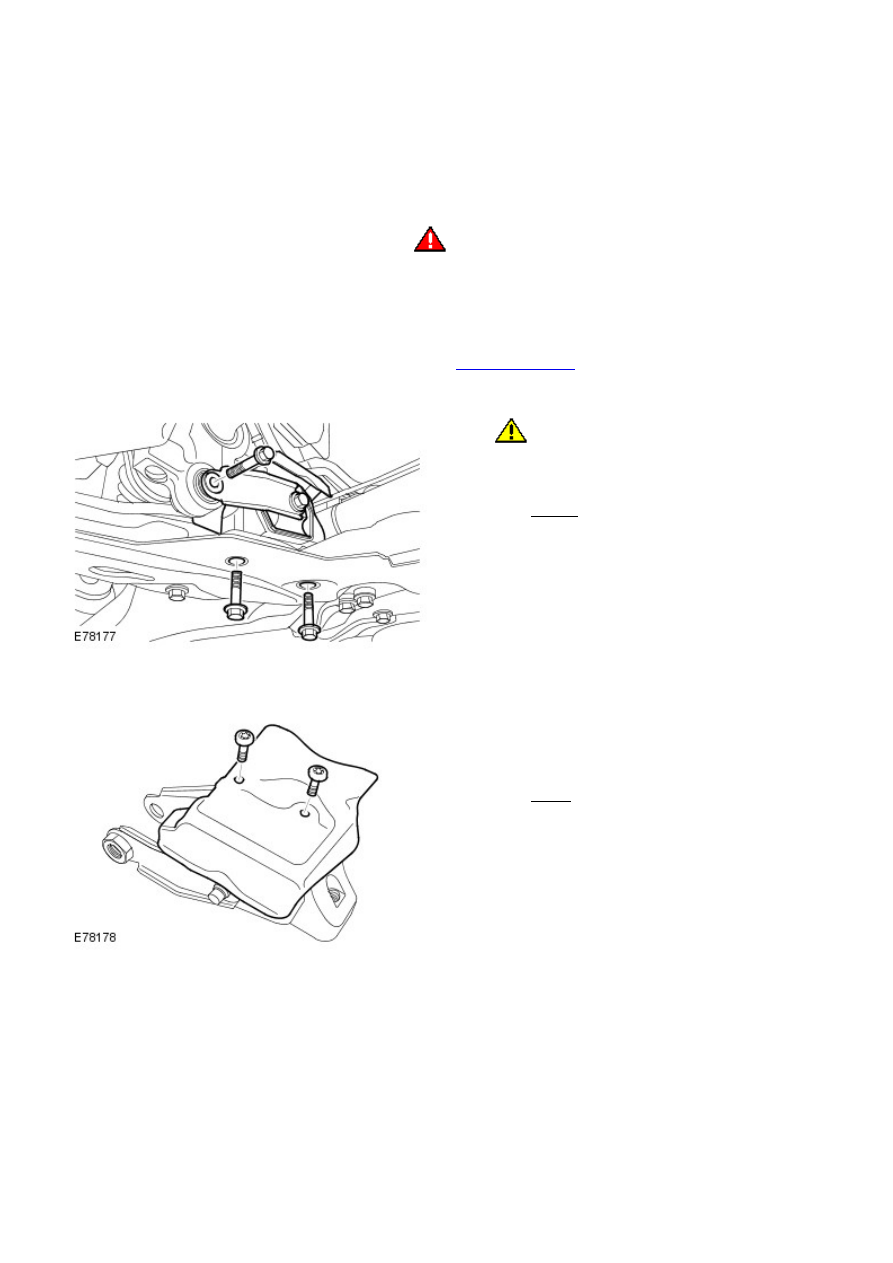

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

3.

CAUTION: Make sure that these components

are installed to the noted removal position.

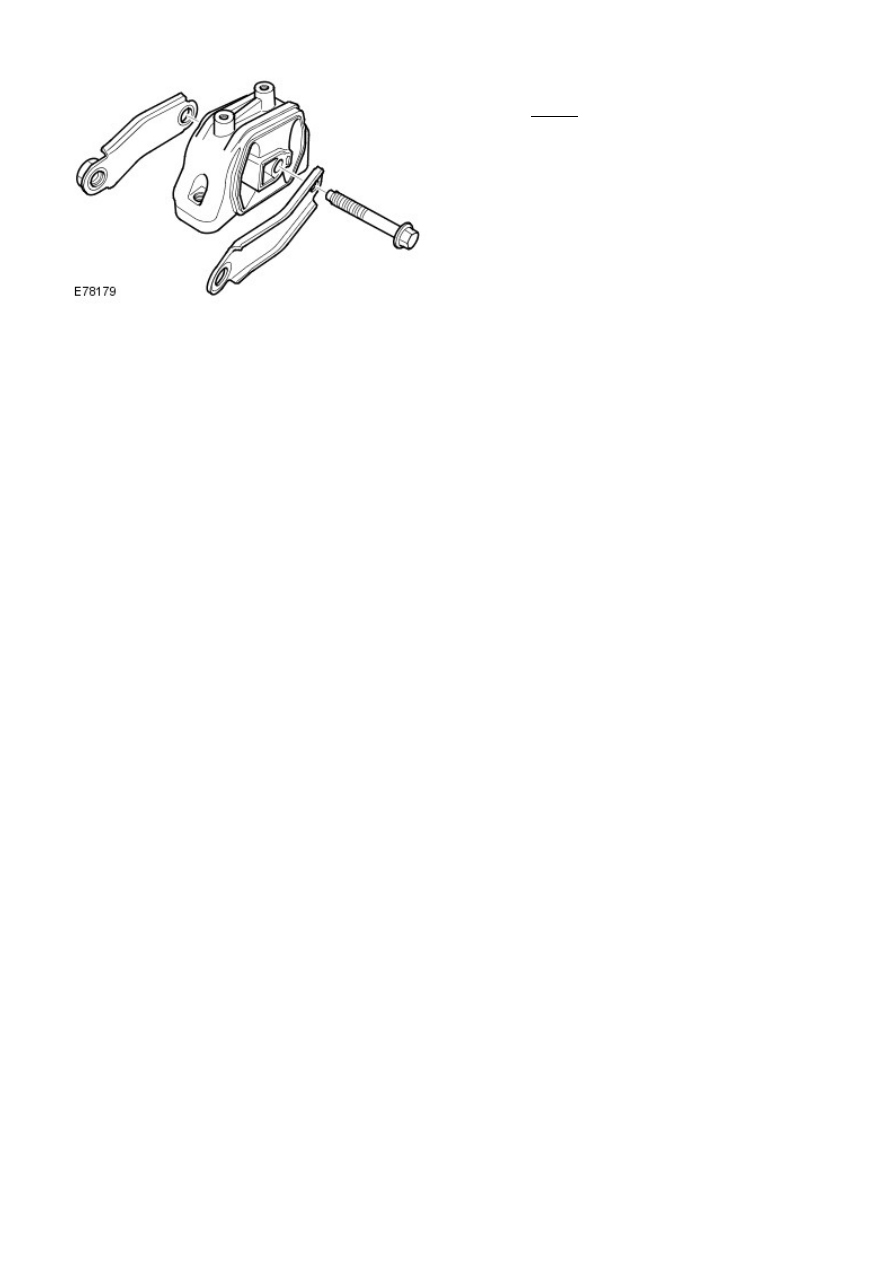

Remove the lower support insulator.

Torque: 110 Nm

3.

Vehicles with petrol engine

4. NOTE: Do not disassemble further if the component
is removed for access only.

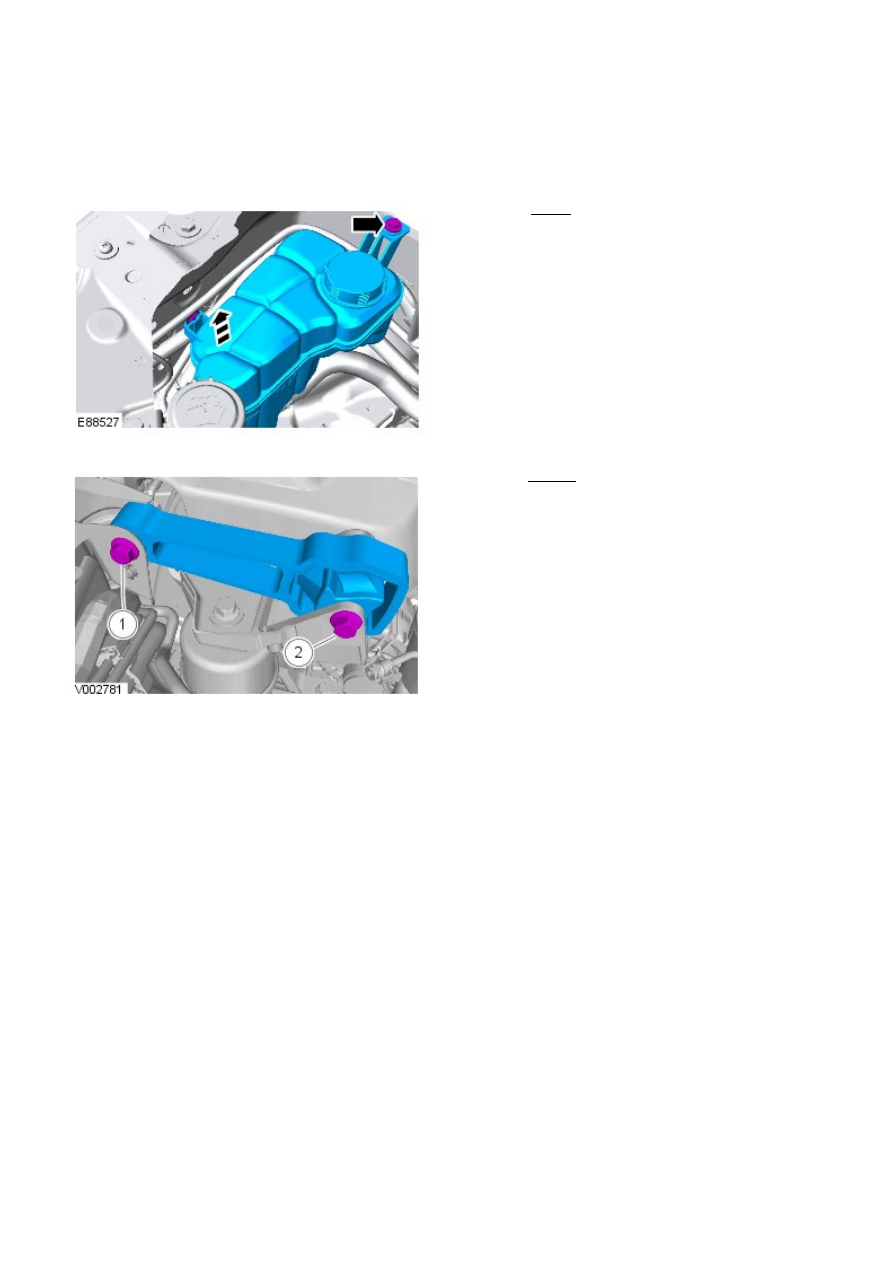

Remove the heat shield.

Torque: 10 Nm

4.

All vehicles

Remove the engine mount link brackets.

Torque: 110 Nm

5.

Installation

To install, reverse the removal procedure.

1.

Engine - TD4 2.2L Diesel - Oil Pan Extension

Removal and Installation

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the engine cover.

Refer to:

Engine Cover - TD4 2.2L Diesel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

2.

Remove the oil pan.

Refer to:

Oil Pan

 (303-01B Engine - TD4 2.2L Diesel, Removal and

Installation).

3.

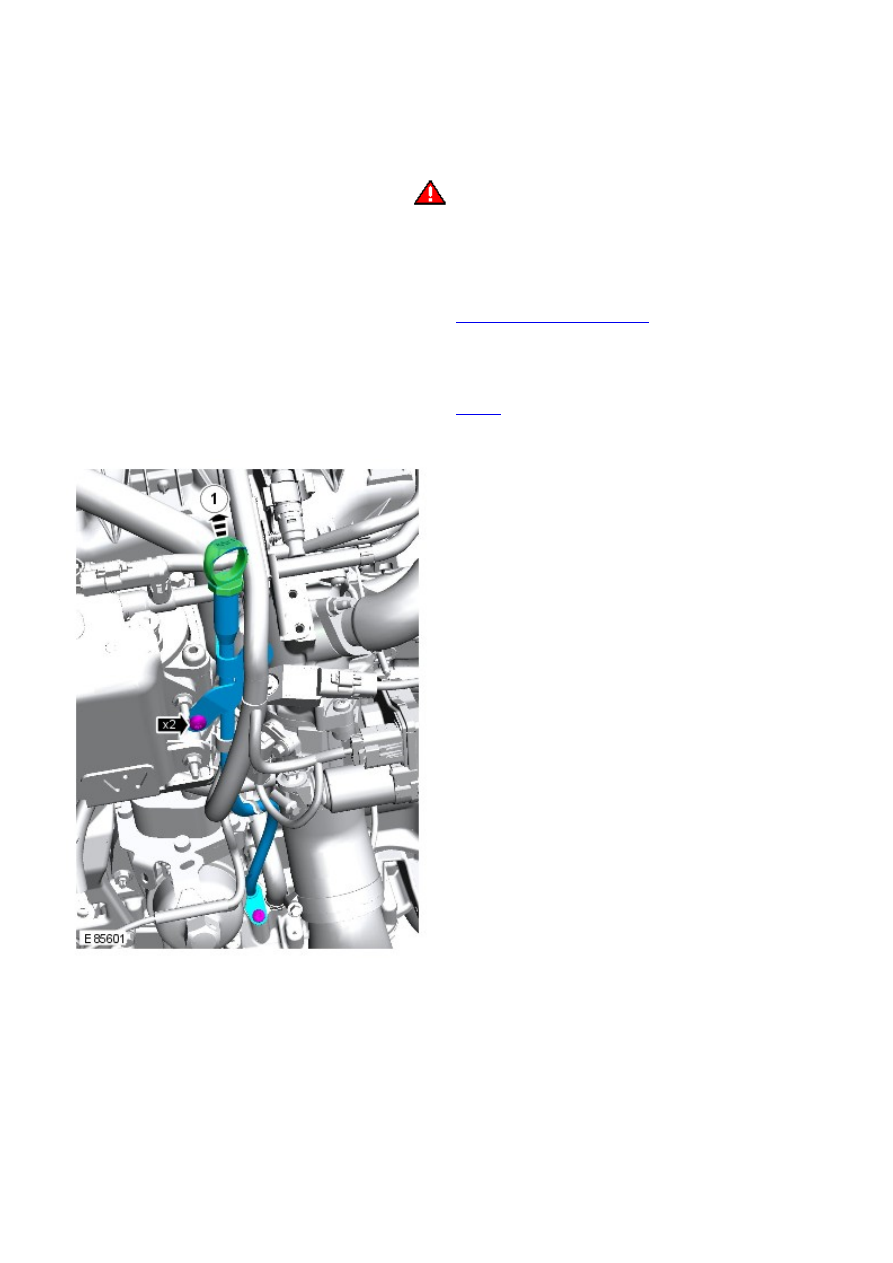

4. NOTE: Remove and discard the O-ring seal.

Remove the dipstick tube.

4.
