Engine - TD4 2.2L Diesel - Exhaust Manifold

Removal and Installation

Removal

WARNING: Observe due care when working near a hot exhaust system.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the exhaust gas recirculation (EGR) cooler.

Refer to:

Exhaust Gas Recirculation (EGR) Cooler

 (303-08B Engine

Emission Control - TD4 2.2L Diesel, Removal and Installation).

2.

Remove the catalytic converter.

Refer to:

Catalytic Converter - Vehicles Without: Diesel Particulate

Filter (DPF)

 (309-00B Exhaust System - TD4 2.2L Diesel, Removal

and Installation).

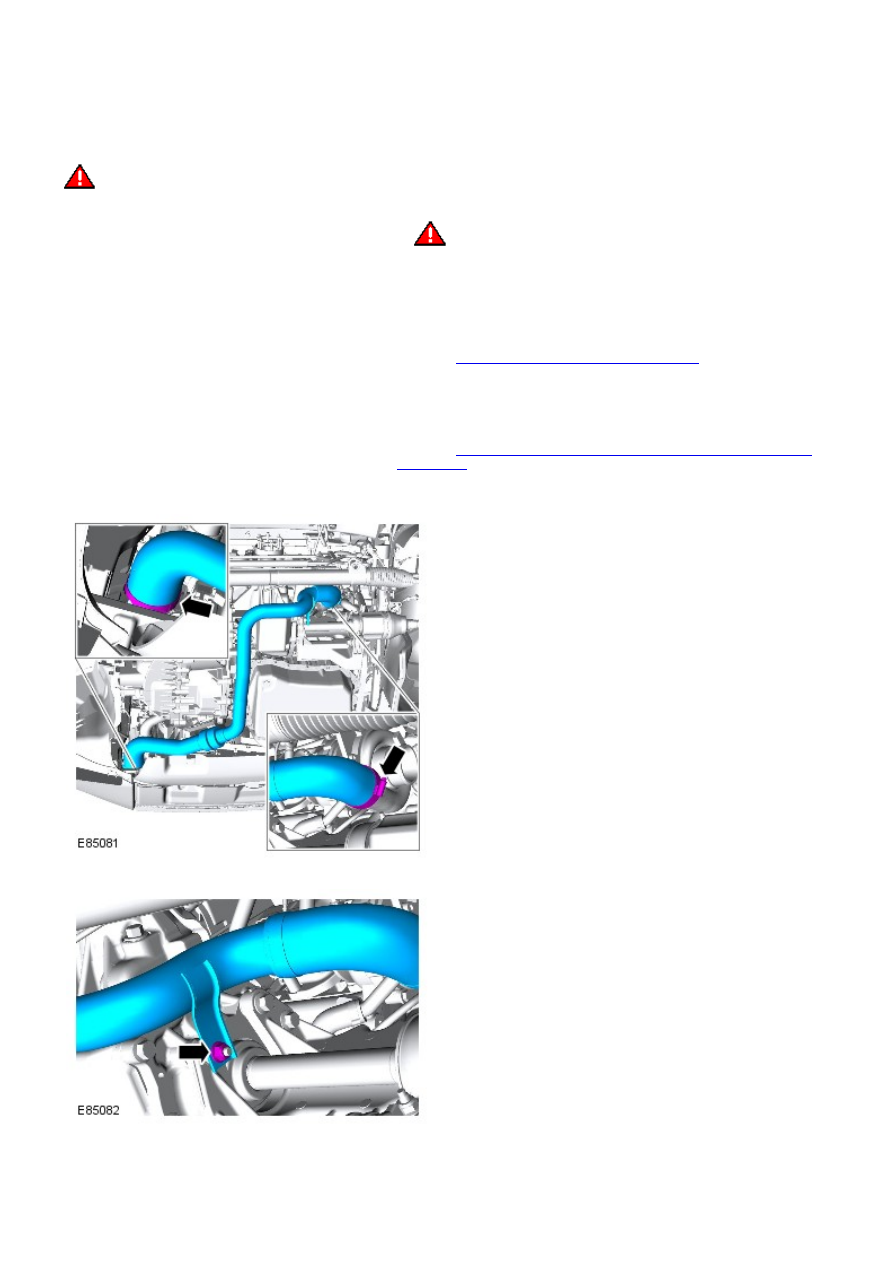

3.

4. NOTE: Make sure that all openings are sealed.

4.

5.

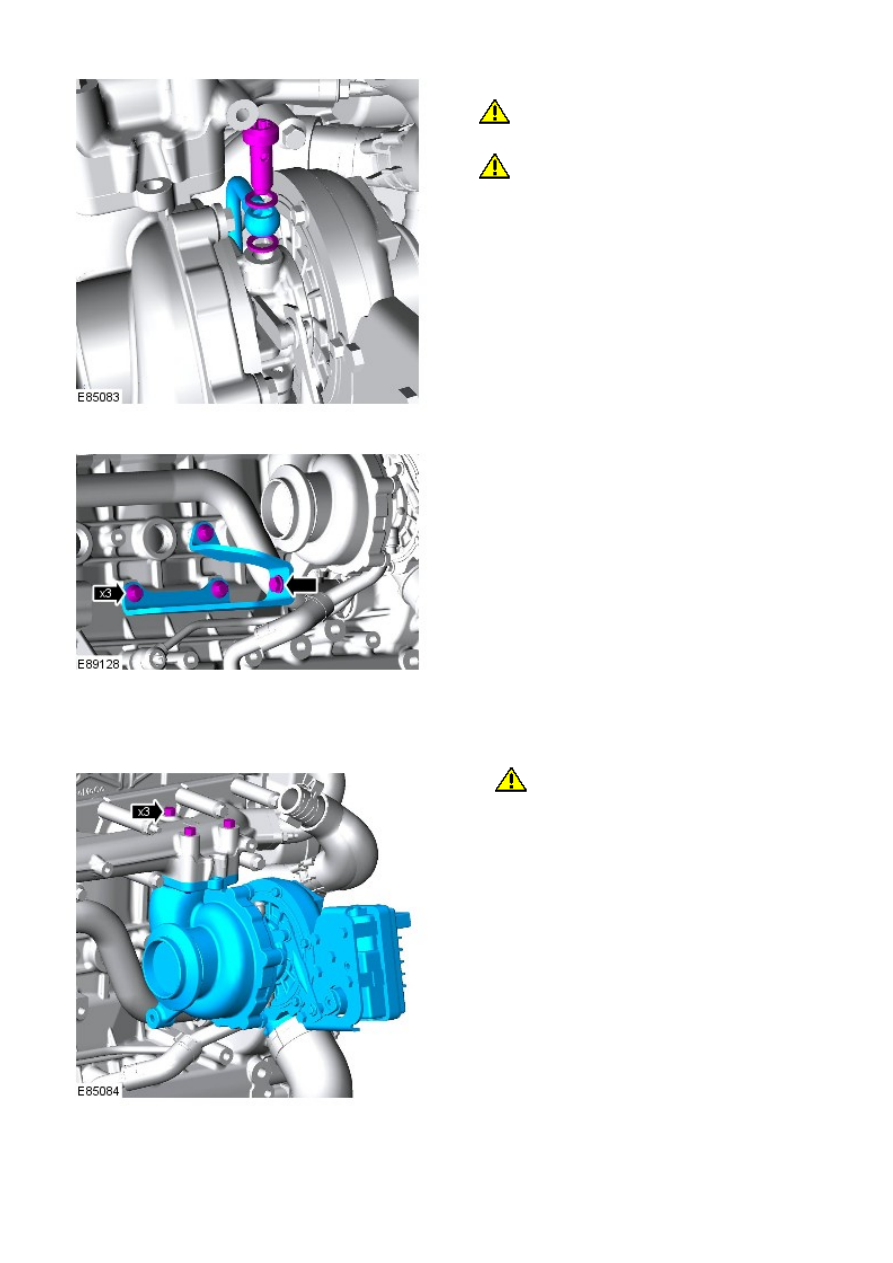

6. CAUTIONS:

 Make sure that the area around the component is

clean and free of foreign material.

 Make sure that all openings are sealed. Use new

blanking caps.

6.

7.

8.

CAUTION: Make sure that all openings are

sealed. Use new blanking caps.

Release the turbocharger.

8.

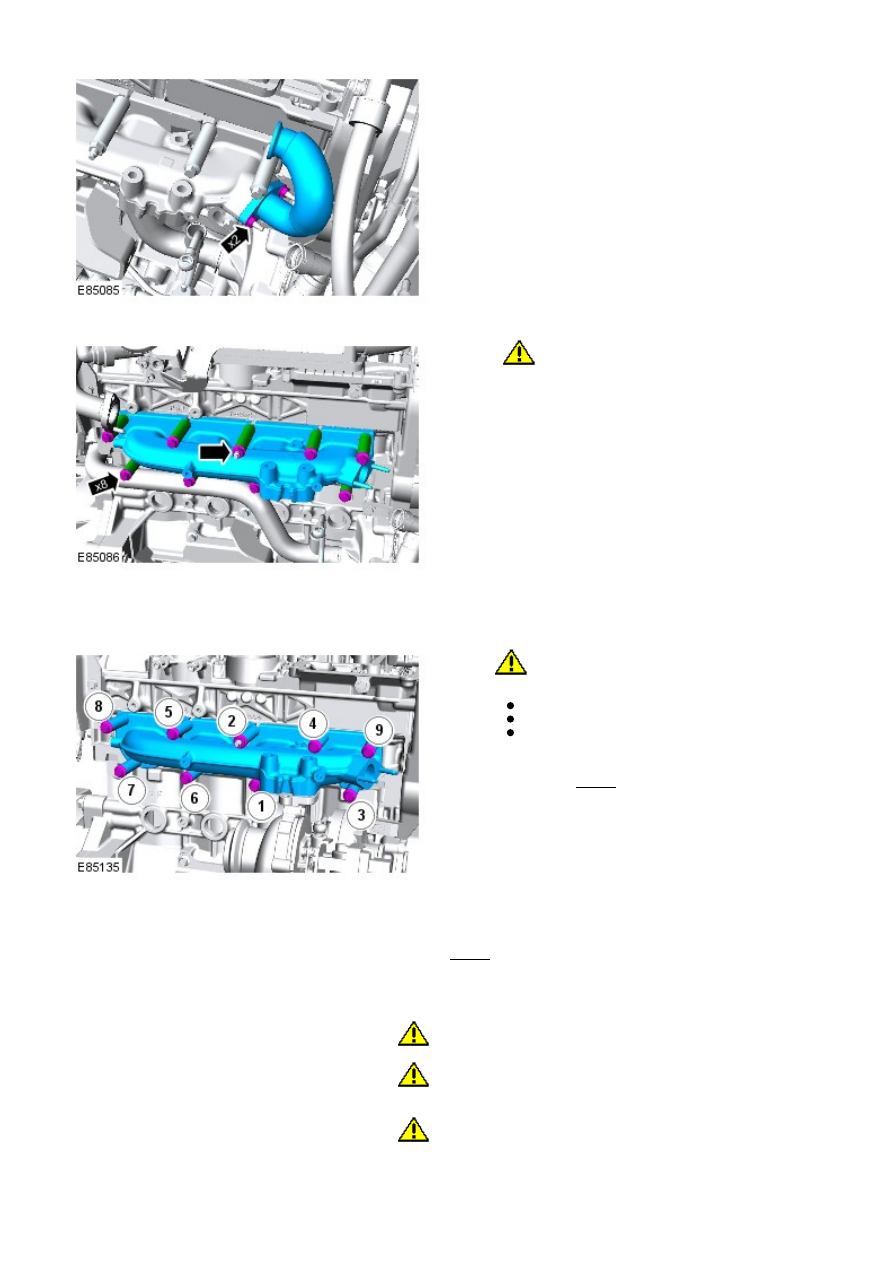

Remove the EGR cooler to exhaust manifold elbow.

9.

10.

CAUTION: Make sure that all openings are

sealed. Use new blanking caps.

• NOTE: Discard the gasket.

10.

Installation

1.

CAUTION: Make sure that the area around the

component is clean and free of foreign material.

Install a new gasket.
Install the exhaust manifold.
Evenly and progressively, tighten the bolts in
the sequence shown.

Torque: 25 Nm

1.

Install the EGR cooler to exhaust manifold elbow.

Torque: 10 Nm

2.

3. CAUTIONS:

 Make sure that new bolts are installed.

 Extreme cleanliness must be exercised when handling this

component.

 Carbon deposits must be carefully removed from both faces of

the turbocharger and exhaust manifold prior to assembly.

Install the turbocharger.

3.

Torque: 24 Nm



Install the turbocharger support bracket, but do not fully
tighten at this stage.
Tighten the support bracket to turbocharger bolt.

Torque: 24 Nm
Tighten the support bracket to cylinder block bolts.

Torque: 24 Nm

4.

5. CAUTIONS:

 Make sure that the area around the component is clean and

free of foreign material.

 Make sure that new sealing washers are installed.

Connect the turbocharger oil feed line.

Torque: 24 Nm

5.

Install the turbocharger outlet pipe.

Torque: 25 Nm

6.

Install the catalytic converter.

Refer to:

Catalytic Converter - Vehicles Without: Diesel Particulate

Filter (DPF)

 (309-00B Exhaust System - TD4 2.2L Diesel, Removal

and Installation).

7.

Install the EGR cooler.

Refer to:

Exhaust Gas Recirculation (EGR) Cooler

 (303-08B Engine

Emission Control - TD4 2.2L Diesel, Removal and Installation).

8.

Check and top-up the engine oil.

9.
