9.

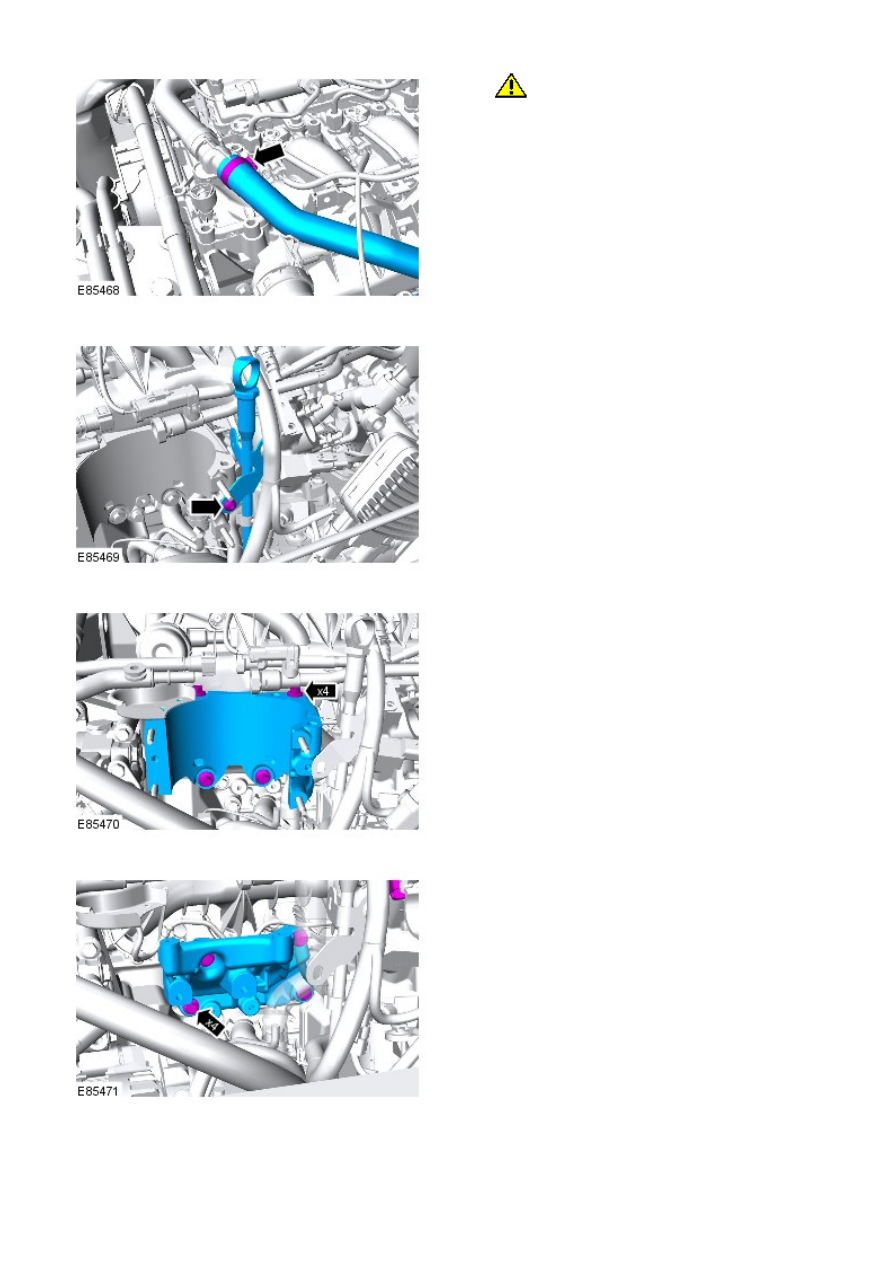

CAUTION: Make sure that all openings are

sealed. Use new blanking caps.

9.

10.

11.

12.

13.

14.

15.

16.

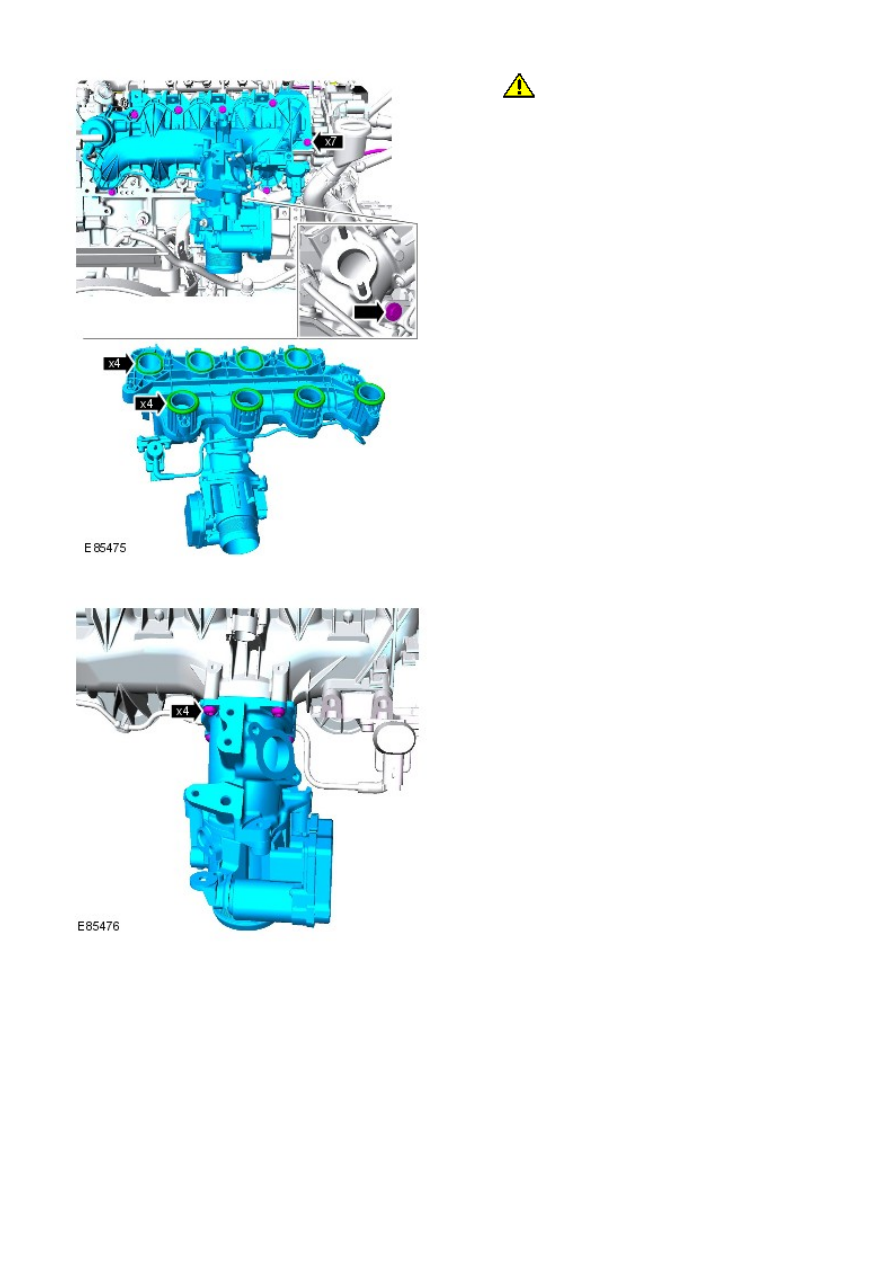

CAUTION: Discard the seals.

16.

17. NOTE: Do not disassemble further if the component
is removed for access only.

Remove the intake manifold adaptor and throttle
housing.

17.

18.

Installation

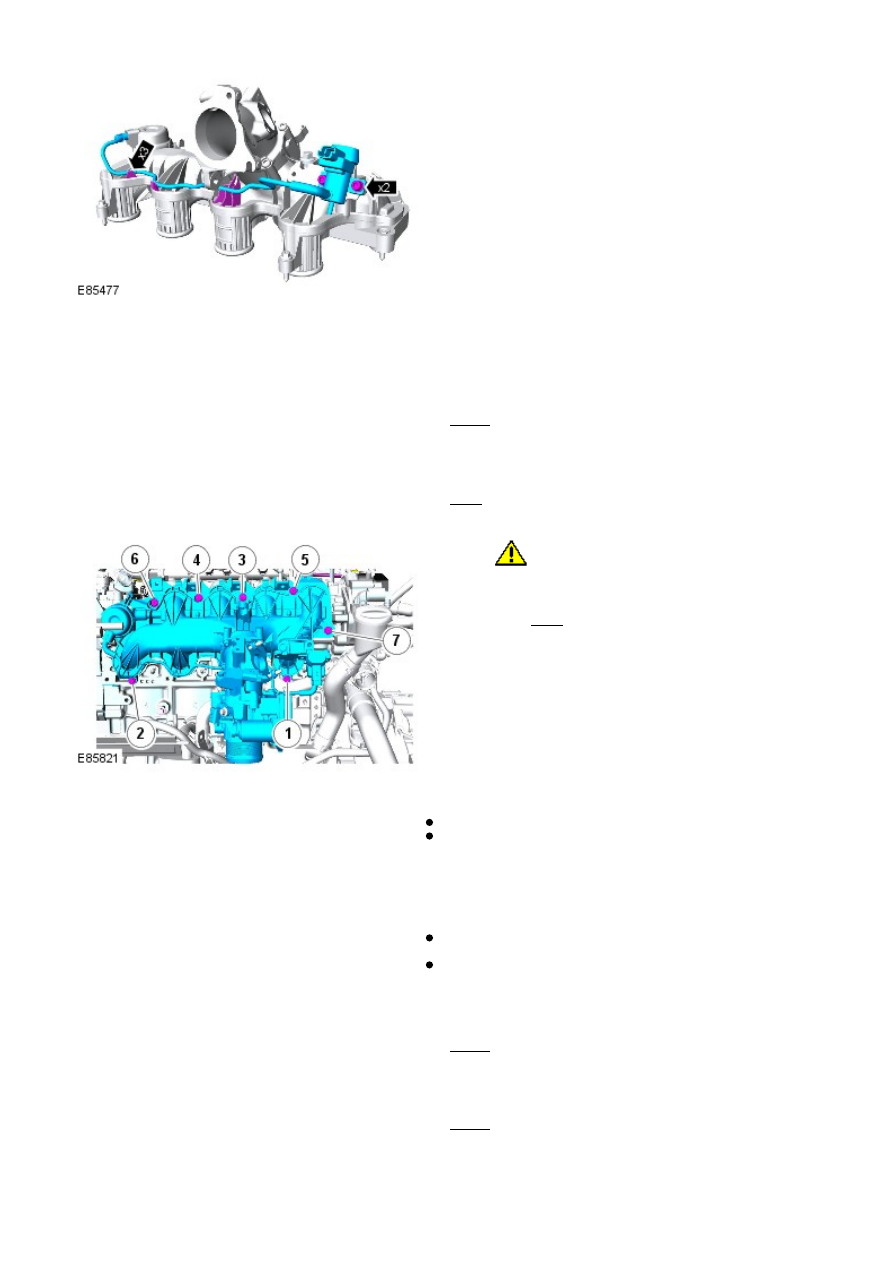

Install the intake manifold runner control (IMRC) actuator.

Torque: 10 Nm

1.

Install the intake manifold adaptor and throttle housing.

Torque: 6 Nm

2.

3.

CAUTION: Install the new seals.

Install the intake manifold.

Torque: 9 Nm

3.



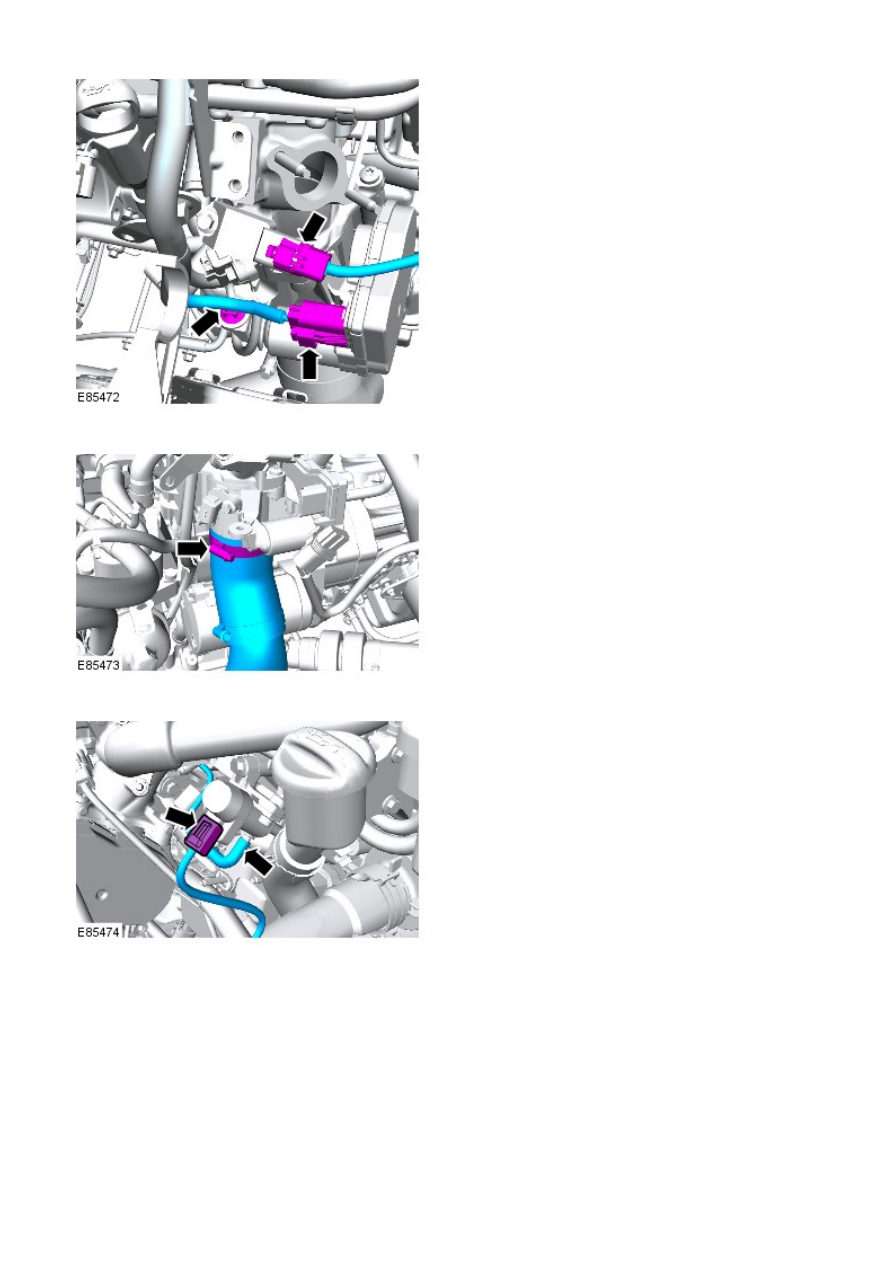

Connect the IMRC actuator electrical connector.
Connect the vacuum hose.

4.

Connect the turbocharger outlet pipe.

5.



Connect the manifold absolute pressure (MAP) sensor
electrical connector.
Connect the throttle position (TP) sensor electrical connector.

6.

Install the fuel filter brackets.

Torque: 25 Nm

7.

Attach the oil level indicator tube.

Torque: 10 Nm

8.

9. NOTE: Install a new retaining clip.

Connect the crankcase vent hose.

9.

10. CAUTIONS:

10.
