Frelander 2. Manual - part 202





Engine - TD4 2.2L Diesel - Engine Oil Draining and Filling

General Procedures

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

2.

Remove the oil filter.

Refer to:

Oil Filter Element

 (303-01B Engine - TD4 2.2L Diesel,

Removal and Installation).

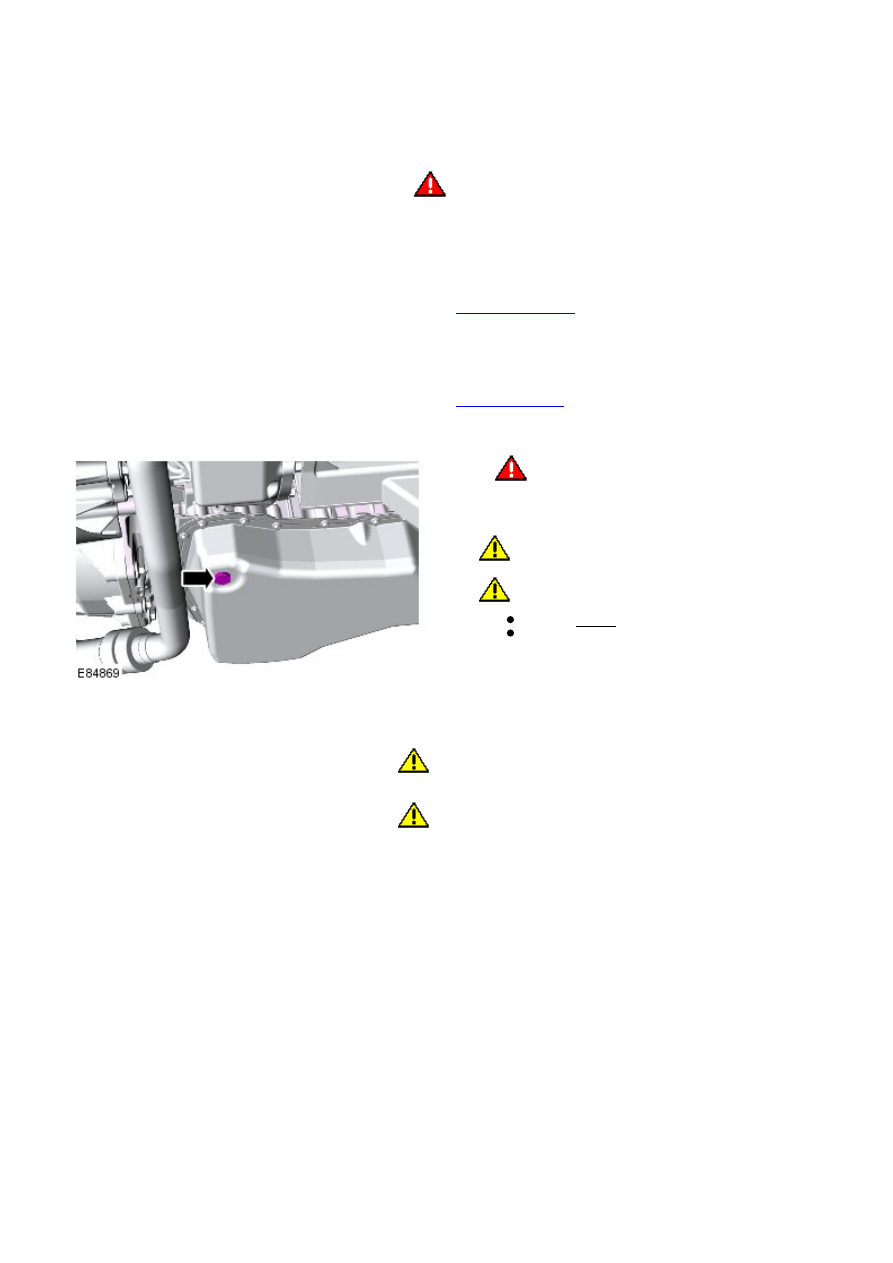

3.

4.

WARNING: Avoid skin contact with the

specified material.

• CAUTIONS:

 Hot fluid.

 Be prepared to collect escaping fluids.

Torque: 20 Nm
Remove and discard the sealing washer.

4.

5. CAUTIONS:

 Make sure that the component is clean, free of foreign

material and lubricant.

 Make sure that new sealing washers are installed.

To install, reverse the removal procedure.

5.

Check and top-up the engine oil.

6.

Engine - TD4 2.2L Diesel - Camshaft Timing

General Procedures

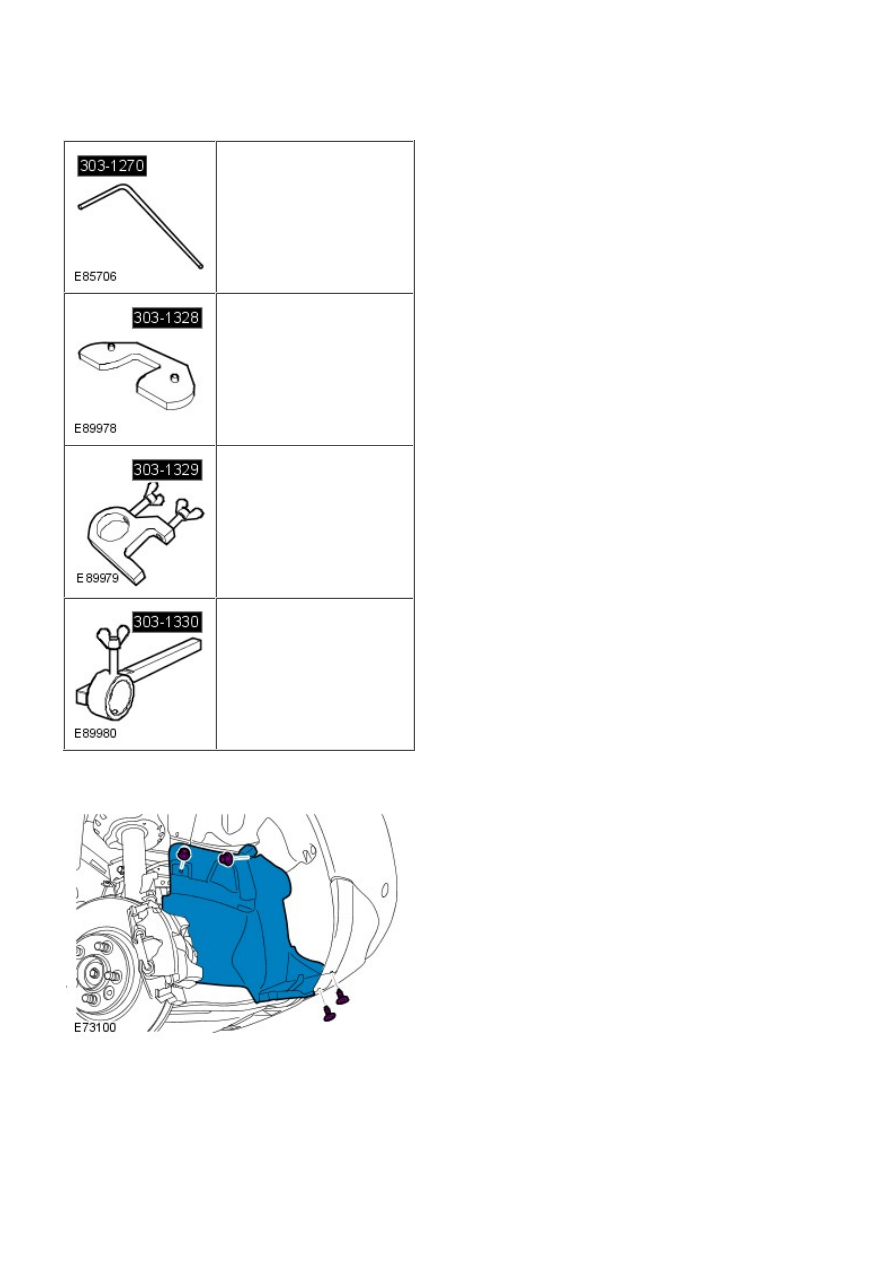

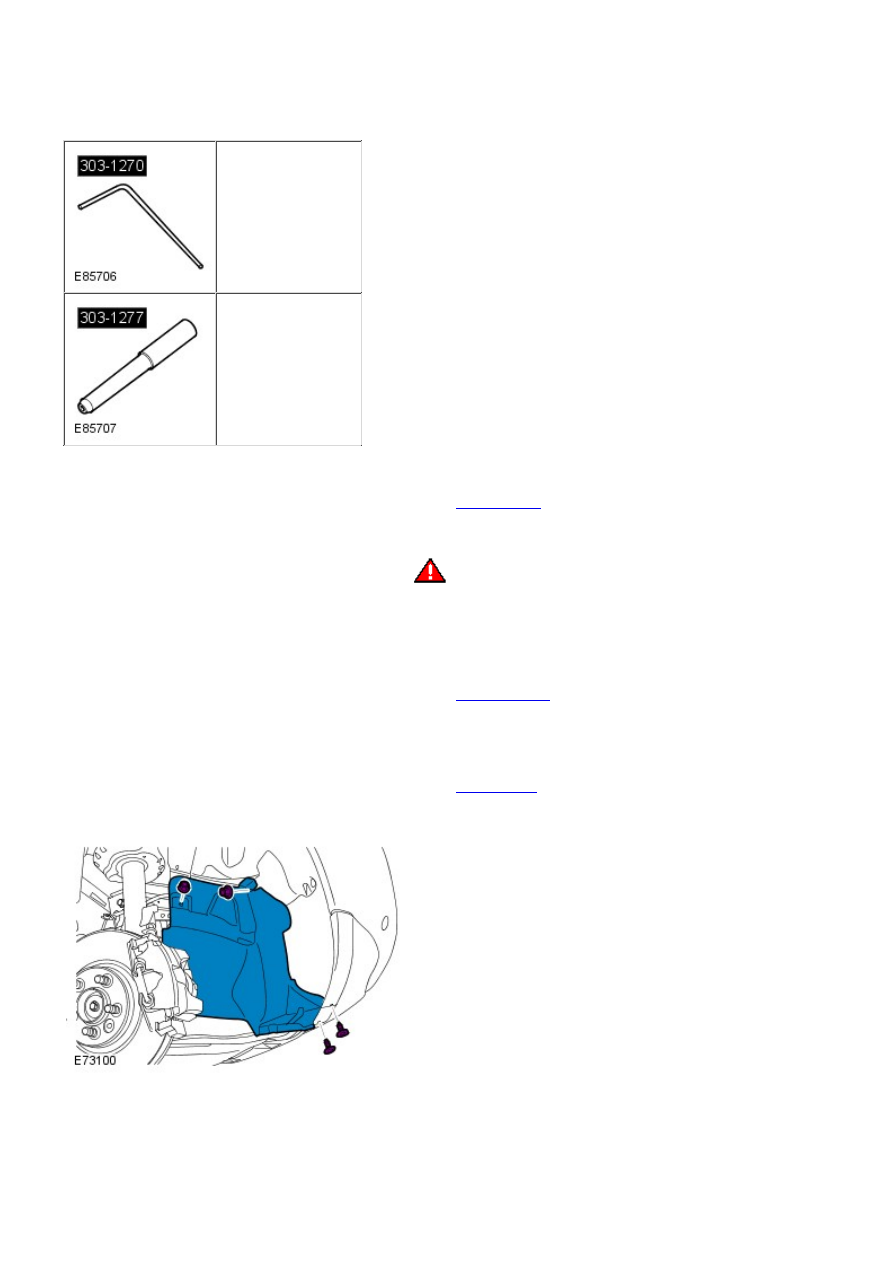

Special Tool(s)

303-1270
Timing Pin, Crankshaft

303-1277
Timing Pin, Camshaft

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

2.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

2.

Remove the RH front wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

3.

Remove the starter motor.

Refer to:

Starter Motor

 (303-06B Starting System - TD4 2.2L Diesel,

Removal and Installation).

4.

5.

6.

CAUTION: Only rotate the crankshaft clockwise.

Remove the grommet.

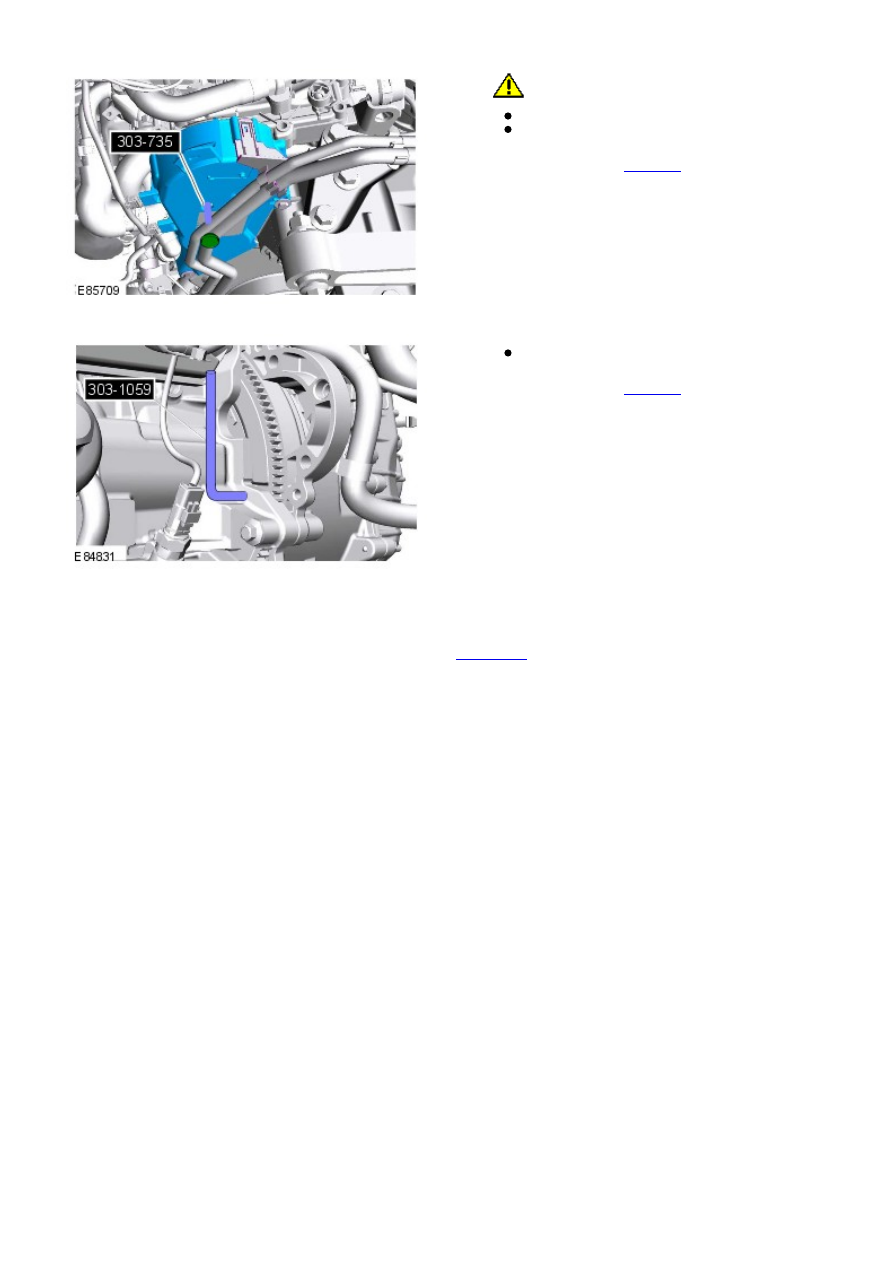

Install the camshaft timing tool.

Special Tool(s):

303-1277

6.



Install the crankshaft timing tool.

Special Tool(s):

303-1270

7.

If the camshaft timing is found to be incorrect, proceed with the
adjustment.

Refer to:

Timing Belt

 (303-01B Engine - TD4 2.2L Diesel, Removal

and Installation).

8.

Engine - TD4 2.2L Diesel - Balance Shaft Backlash

General Procedures

Special Tool(s)

303-1270
Timing Pin, Crankshaft

303-1328
Timing Plate, Balance Shafts

303-1329
Locking Tool, Balance Shafts

303-1330
Backlash Lever, Balance Shafts

• NOTE: The backlash can only be adjusted between the crankshaft and balance shaft assemblies. Incorrect backlash
between the balance shafts will require the replacement of the balance shaft assembly.

1.
