Frelander 2. Manual - part 183





Stage
1:

Stage
2:

2.

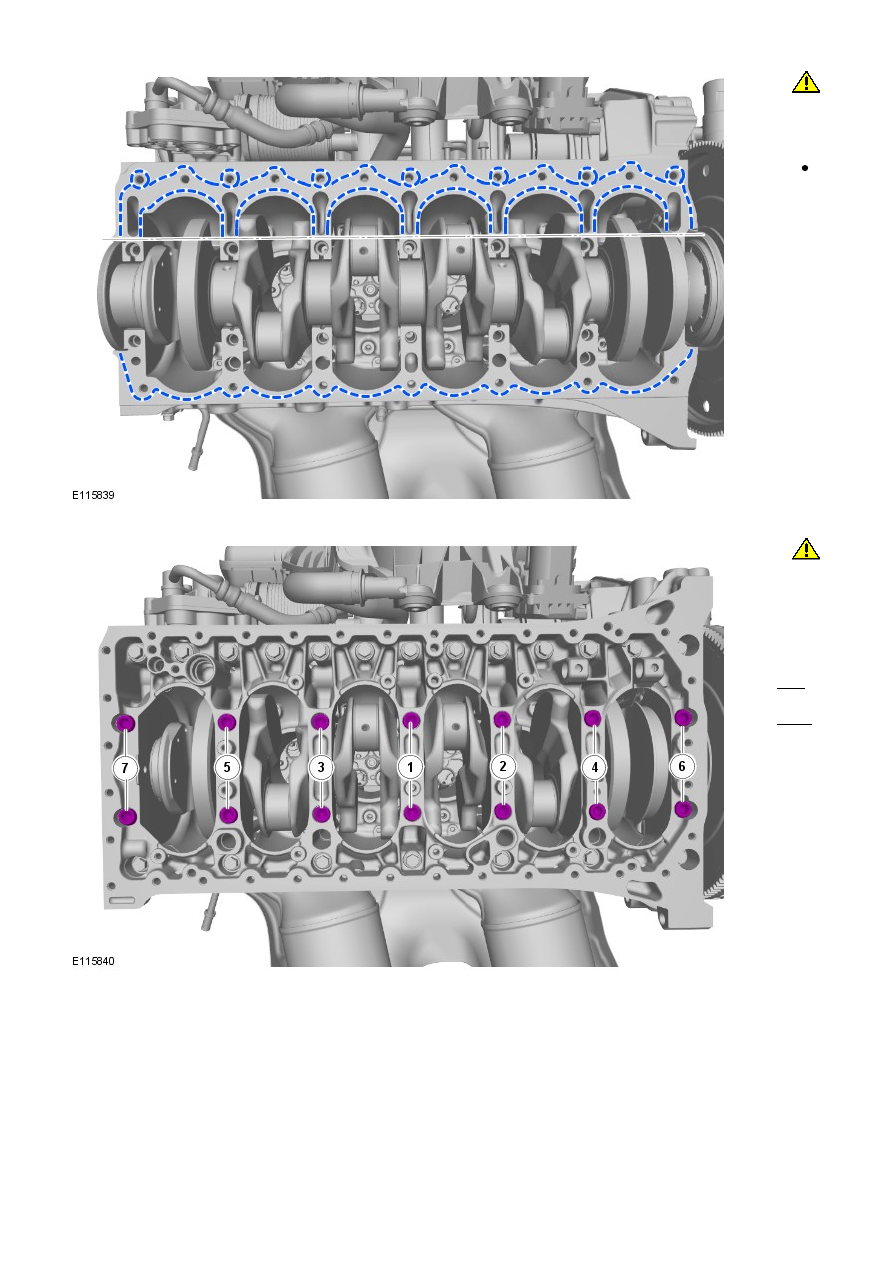

CAUTION: Make
sure that the
mating faces are
clean and free of
foreign material.

Apply a
2.5mm
bead of
sealant
STC50550
(Loctite
5900) to
the areas
shown.

2.

3.

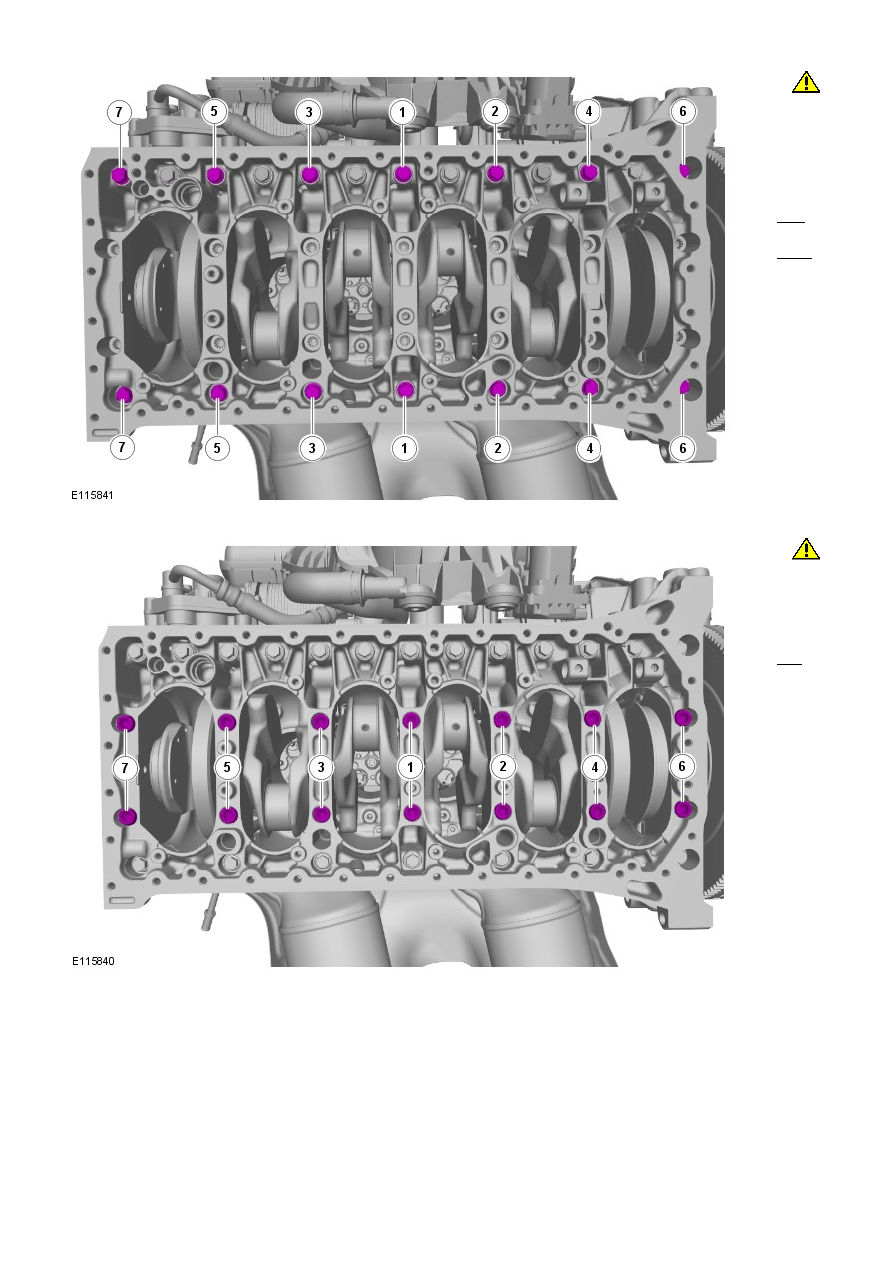

CAUTION:
Tighten
the bolts
in the
sequence
shown.

Torque:

5 Nm

30 Nm

3.

Stage
1:

Stage
2:

4.
CAUTION:
Tighten
the bolts
in the
sequence
shown.

Torque:

5 Nm

25 Nm

4.

5.

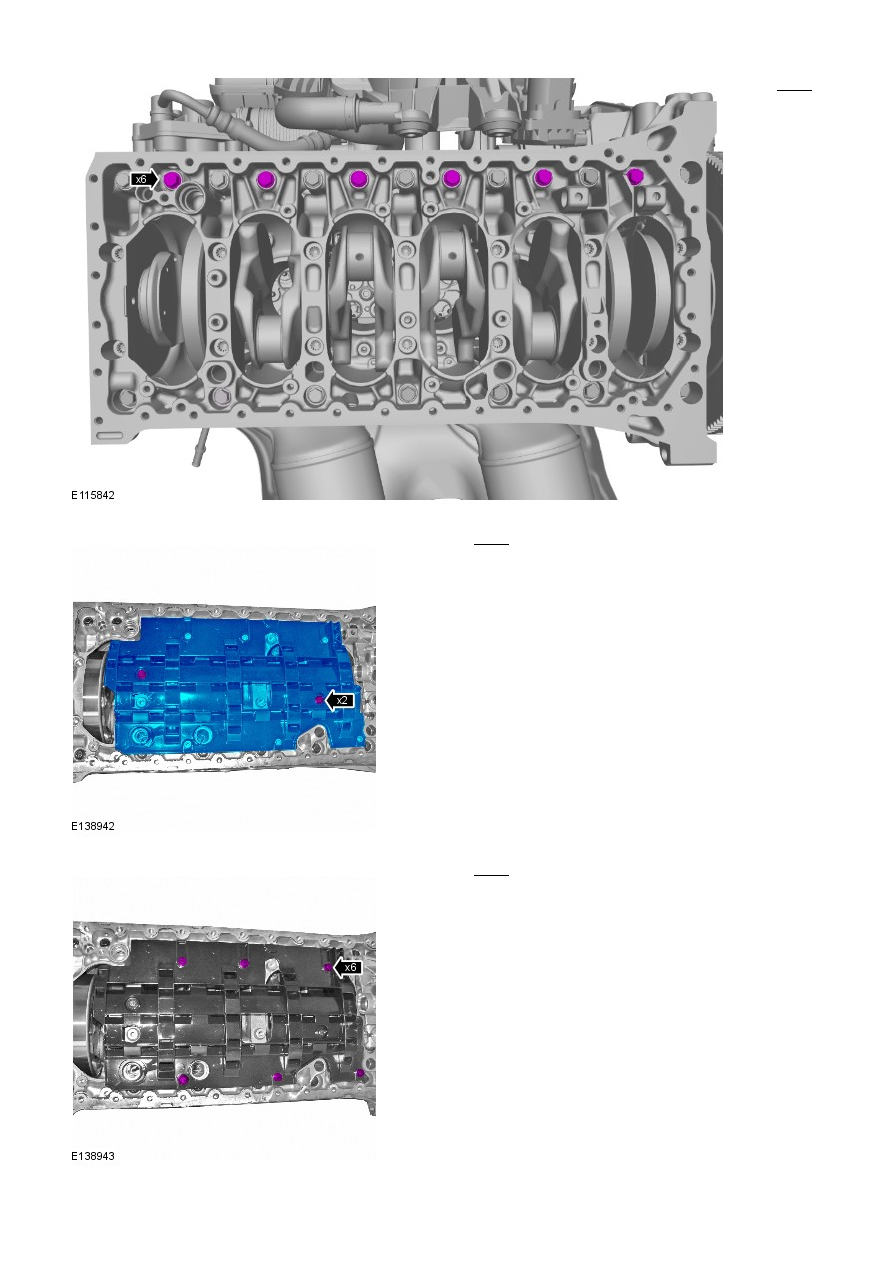

CAUTION:
Tighten
the bolts
in the
sequence
shown.

Torque:
105°

5.

Torque:
25 Nm

6.

Torque: 10 Nm

7.

Torque: 10 Nm

8.

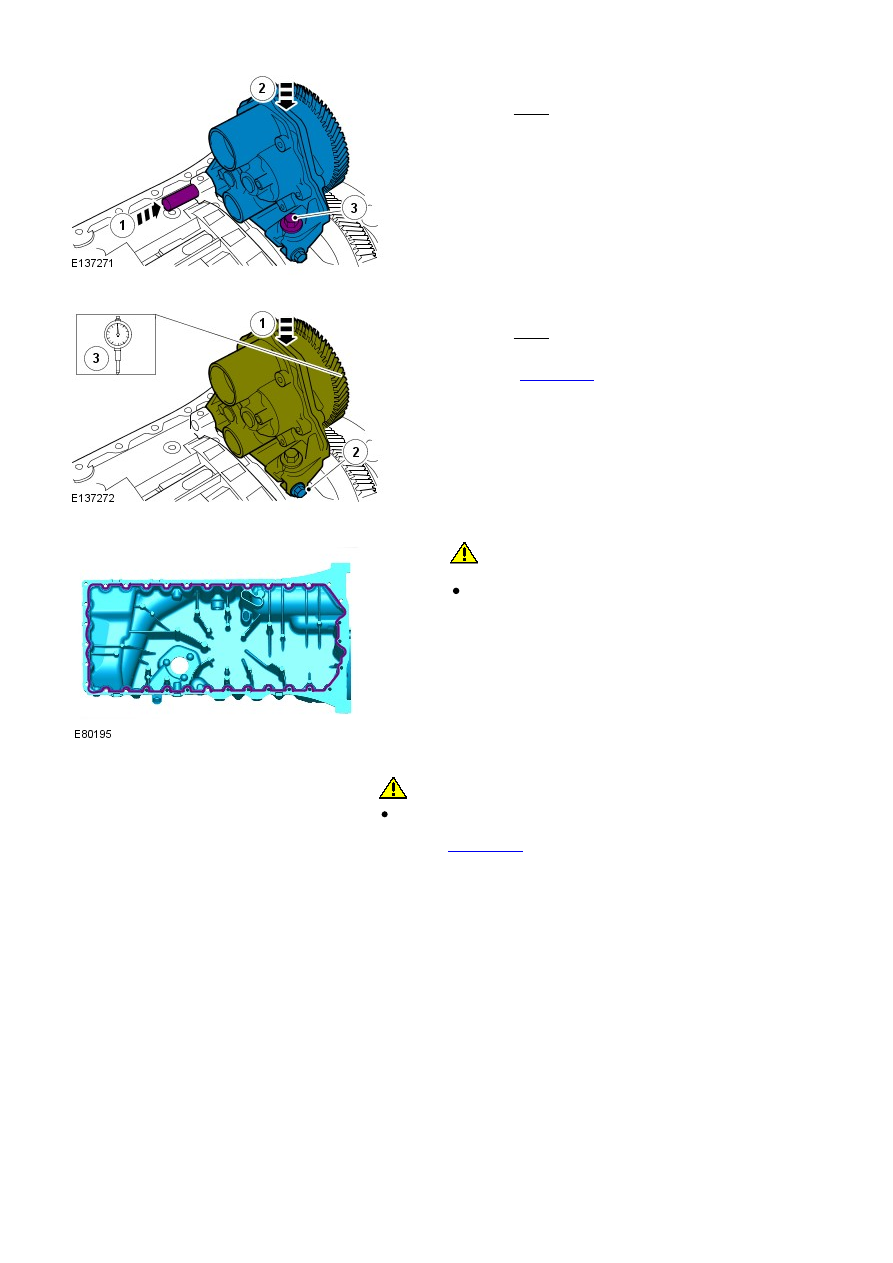

Install the pin.

1.

Apply light pressure to the pump body.

2.

Torque: 17 Nm

3.

9.



Apply light pressure to the pump body.

1.

Torque: 10 Nm

2.

Measure the backlash

Refer to:

Specifications

 (303-01A Engine - I6 3.2L Petrol,

Specifications).

3.

If necessary, repeat the above procedure.

4.

10.

11.

CAUTION: Make sure that the mating faces are clean and free

of foreign material.

Apply a 2.5mm bead of sealant STC50550 (Loctite 5900) to the
areas shown.

11.

12.

CAUTION: Make sure that new sealing washers are installed.

Fill the engine with the recommended oil to the correct level.

Refer to:

Specifications

 (303-01A Engine - I6 3.2L Petrol, Specifications).

12.
