correctly.

8. WORN VALVE GUIDES: When the needle oscillates over about a 13 kPa (4 in-Hg) range at idle speed, the valve

guides could be worn. As engine speed increases, the needle will become steady if guides are responsible.

8.

9. WEAK VALVE SPRINGS: W hen the needle oscillation becomes more violent as engine RPM is increased, weak

valve springs are indicated. The reading at idle could be relatively steady.

9.

10. LATE VALVE TIMING: A steady but low reading could be caused by late valve timing.

10.

11. IGNITION TIMING RETARDED: Retarded ignition timing will produce a steady but somewhat low reading.

11.

12. INSUFFICIENT SPARK PLUG GAP: When spark plugs are gapped too close, a regular, small pulsation of the

needle can occur.

12.

13. INTAKE LEAK: A low, steady reading can be caused by an intake manifold or throttle body gasket leak.

13.

14. BLOW N HEAD GASKET: A regular drop of fair magnitude can be caused by a blown head gasket or warped

cylinder head to cylinder block surface.

14.

15. RESTRICTED EXHAUST SYSTEM: When the engine is first started and is idled, the reading may be normal, but

as the engine RPM is increased, the back pressure caused by a clogged muffler, kinked tail pipe or other concerns
will cause the needle to slowly drop to 0 kPa (0 in-Hg). The needle then may slowly rise. Excessive exhaust
clogging will cause the needle to drop to a low point even if the engine is only idling.

15.

When vacuum leaks are indicated, search out and correct the cause. Excess air leaking into the system will upset the fuel
mixture and cause concerns such as rough idle, missing on acceleration or burned valves. If the leak exists in an accessory
such as the power brake booster, the unit will not function correctly. Always repair vacuum leaks.

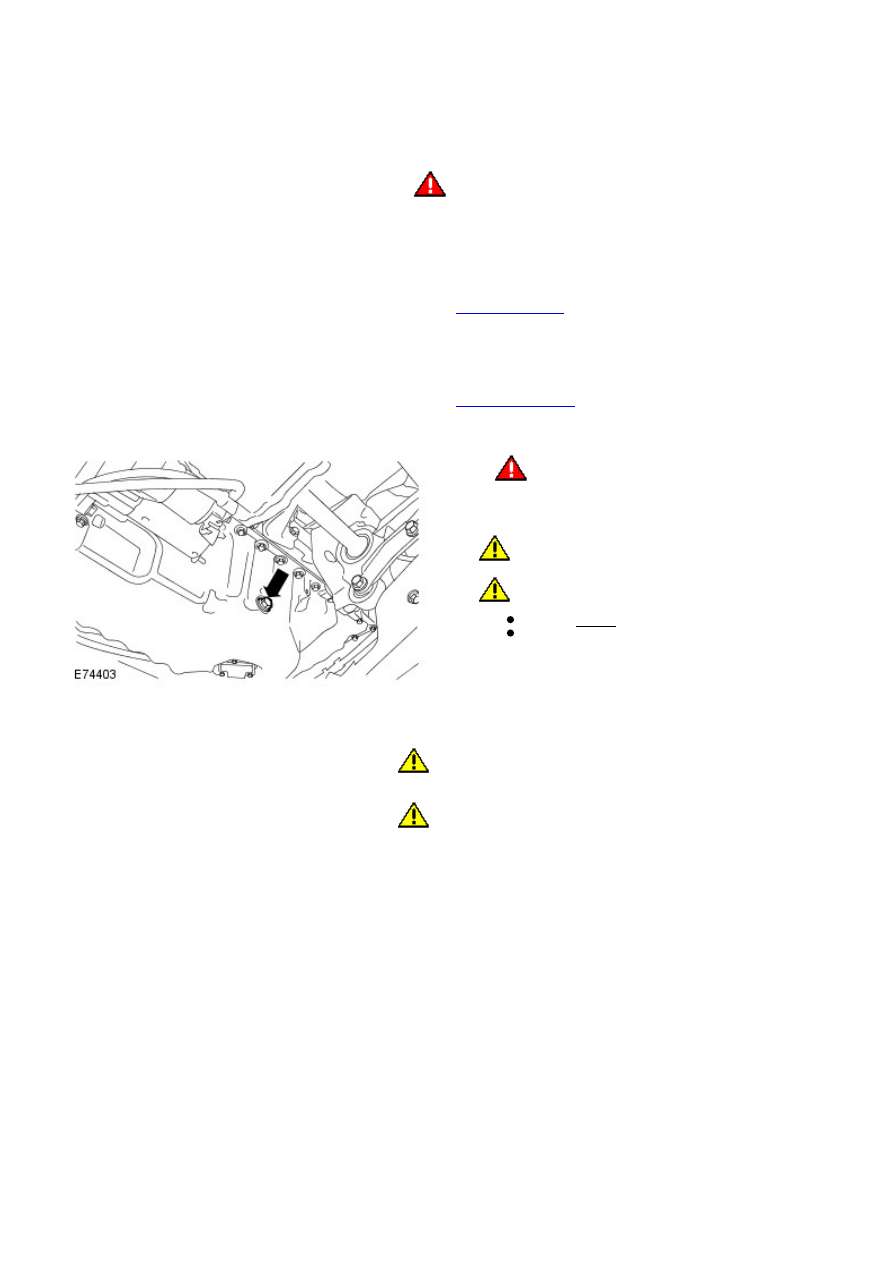

Engine - I6 3.2L Petrol - Engine Oil Draining and Filling

General Procedures

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the oil filter.

Refer to:

Oil Filter Element

 (303-01A Engine - I6 3.2L Petrol,

Removal and Installation).

2.

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

3.

4.

WARNING: Avoid skin contact with the

specified material.

• CAUTIONS:

 Hot fluid.

 Be prepared to collect escaping fluids.

Torque: 38 Nm
Remove and discard the sealing washer.

4.

5. CAUTIONS:

 Make sure that the component is clean, free of foreign

material and lubricant.

 Make sure that new sealing washers are installed.

To install, reverse the removal procedure.

5.

Check and top-up the engine oil.

6.

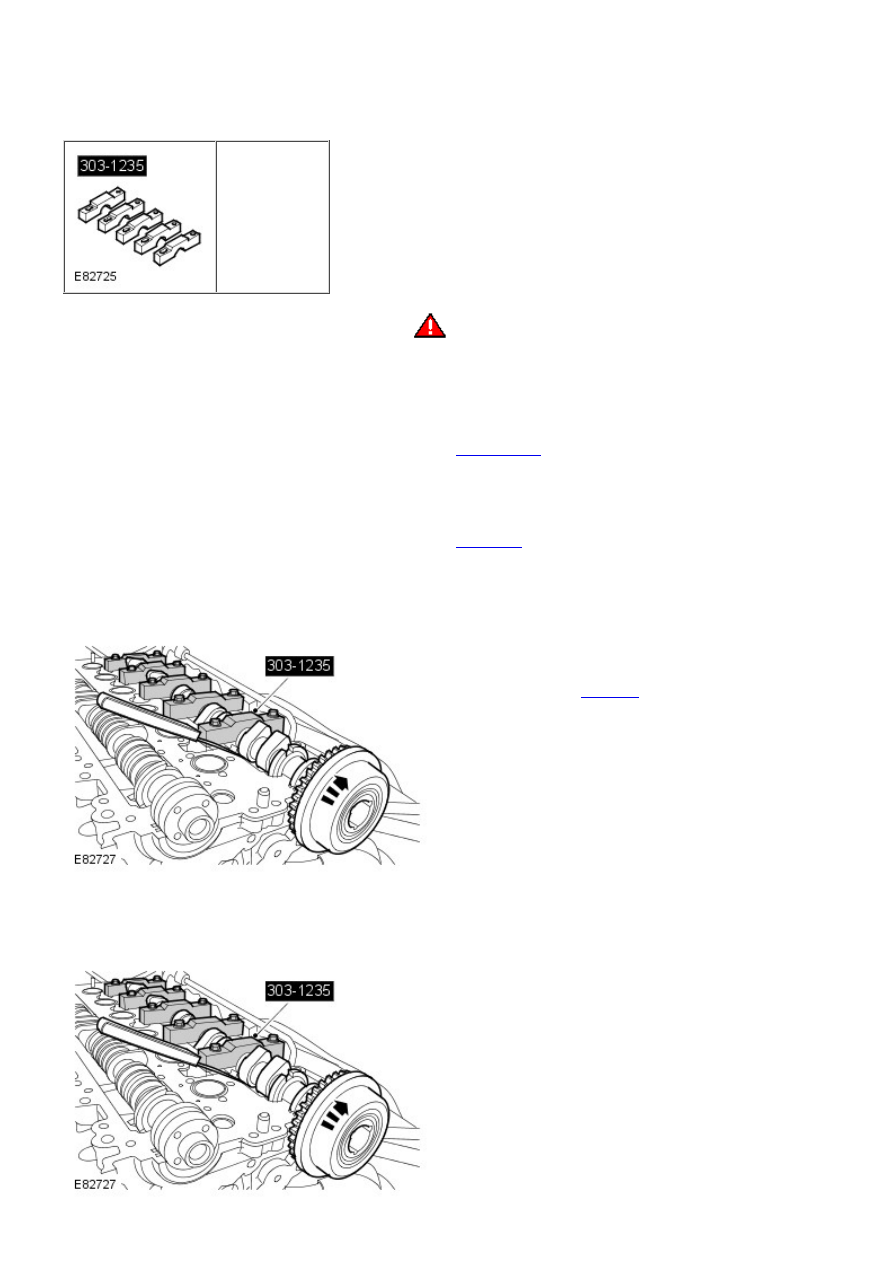

Engine - I6 3.2L Petrol - Valve Clearance Adjustment

General Procedures

Special Tool(s)

303-1235
Holder, Camshaft

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

2.

Remove the camshafts.

Refer to:

Camshafts

 (303-01A Engine - I6 3.2L Petrol, Removal and

Installation).

3.

Replace the valve shims, with the smallest shim available.

4.

Using the special tools, position and secure the
exhaust camshaft.

Special Tool(s):

303-1235

5.

Using the original bolt, install the camshaft sprocket and lightley
tighten.

6.

Using a feeler gauge, measure the clearance between
the camshaft and the valve shim.

7.

Measure and record the tappet clearances.

8.

Remove the camshaft sprocket.

9.

Remove the special tool.

10.

Remove the exhaust camshaft.

11.

Remove the valve tappets, replace with selected tappets.

12.

Install the camshafts.

13.

Refer to:

Camshafts

 (303-01A Engine - I6 3.2L Petrol, Removal and

Installation).

Connect the battery ground cable and install the cover.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

14.
