10.

WARNING: Do not probe supplemental

restraint system (SRS) electrical connectors.

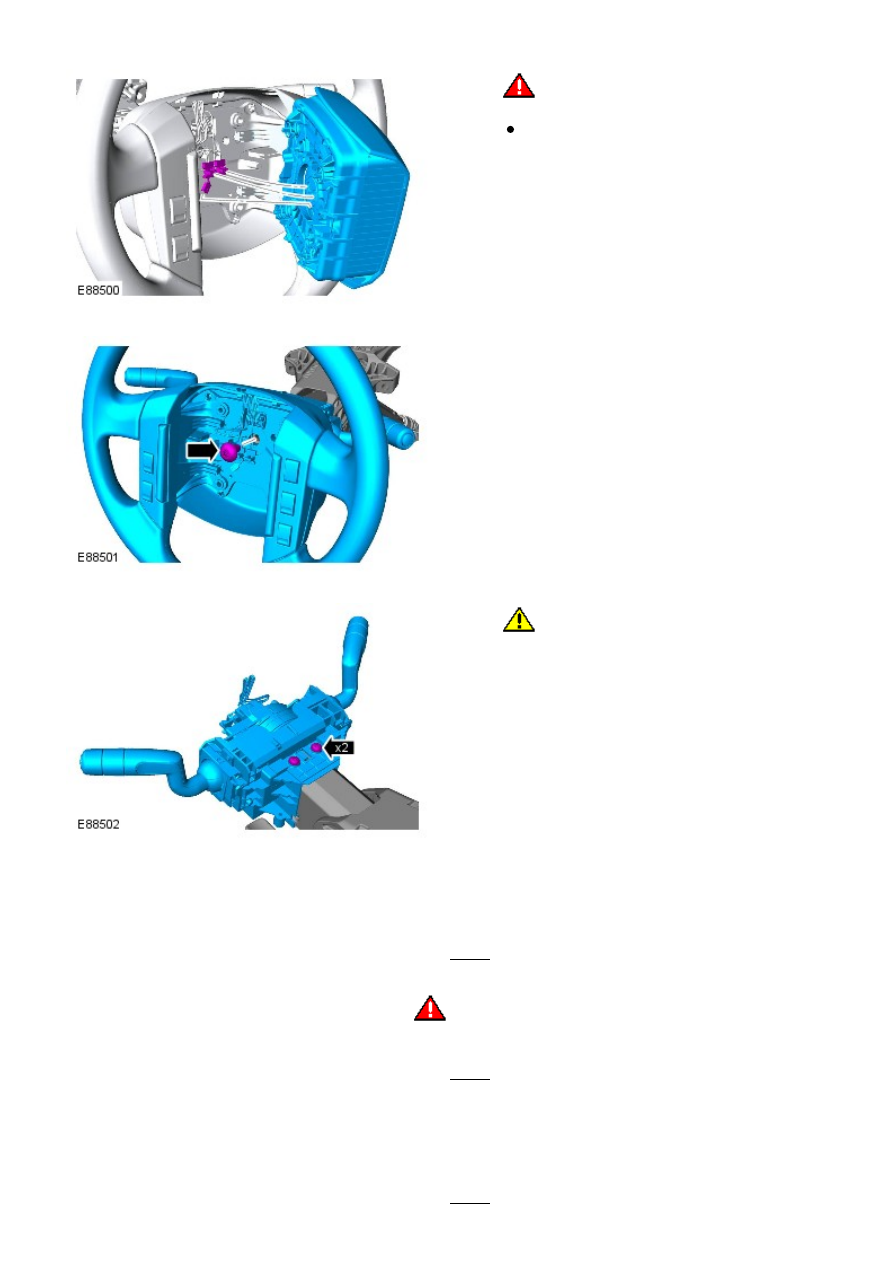

Disconnect the 3 electrical connectors.

10.

Remove the steering wheel.

11.

12.

CAUTION: Make sure that the clockspring rotor

does not rotate.

Remove the clockspring.

12.

Installation

Install the steering column and tighten the bolts.

Torque: 25 Nm

1.

2.

WARNING: Make sure that a new bolt is installed.

Connect the steering shaft universal joint and tighten the bolt.

Torque: 25 Nm

2.

Install the clockspring.

3.

Install the steering wheel.

Torque: 40 Nm

4.

5. WARNINGS:

5.

 The SRS electrical connectors are unique. DO NOT force, or

attempt to connect electrical connectors to the wrong sockets.

 Driver air bag module installation can be confirmed by hearing

2 audible clicks, 1 for each spring. The module edges should also be
flush with the steering wheel.

Install the driver air bag module.

If installed, connect the SRS ride-down electrical connector
concealed at the rear of the steering column.

6.

Secure the wiring harness to the steering column.

7.

Connect the steering column electrical connectors.

8.

Install the steering column upper cowl.

9.

Install the steering column lower cowl.

10.

Install the driver lower air bag module.

Refer to:

Driver Lower Air Bag Module

 (501-20B Supplemental

Restraint System, Removal and Installation).

11.

Connect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

12.

If a new steering column has been installed, configure the steering
column lock using Land Rover approved diagnostic equipment.

13.

Steering Column Switches -

Torque Specifications

Description

Nm

lb-ft

Steering column switch Torx screws

1.5

1.0

Steering Column Switches - Steering Column Switches

Description and Operation

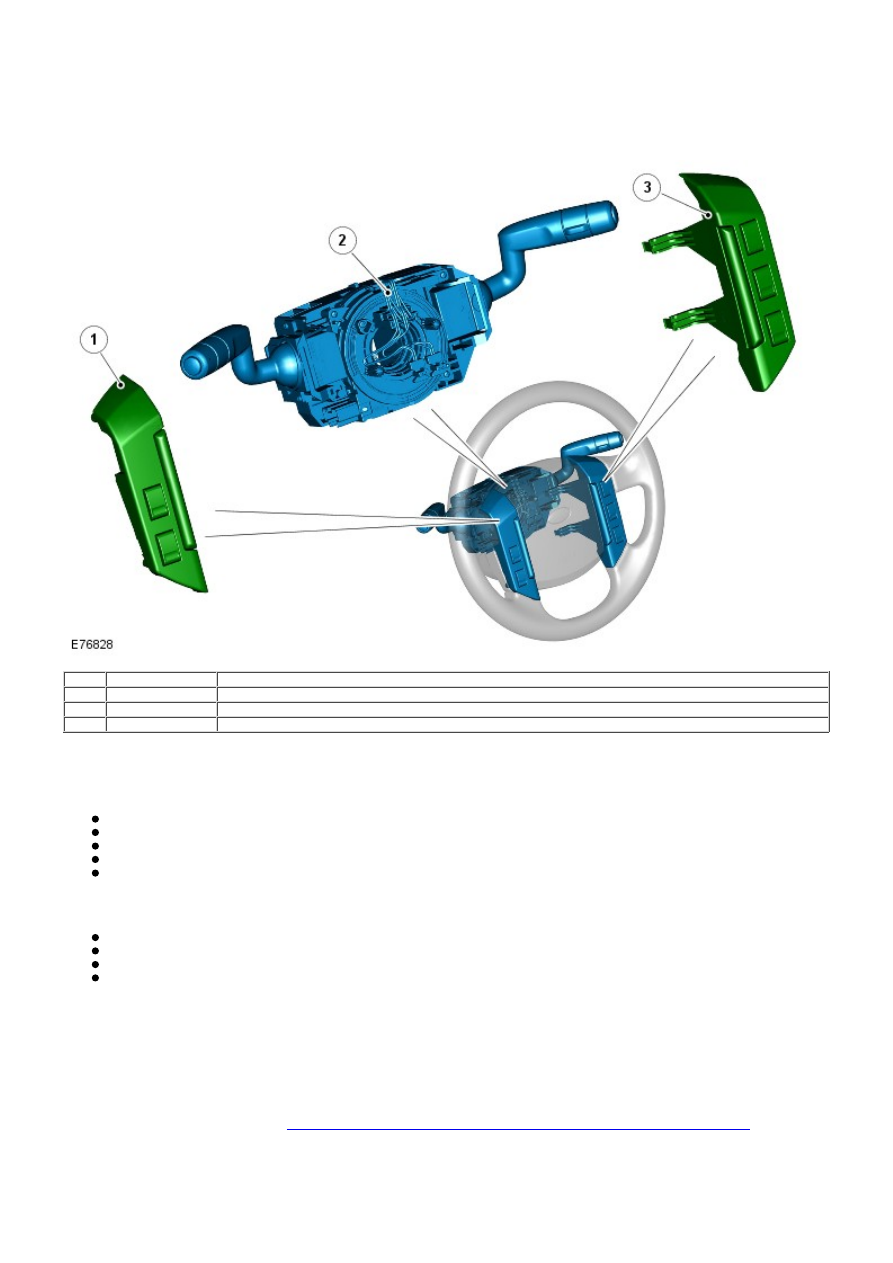

COMPONENT LOCATION

Item

Part Number

Description

1

-

Speed control switches

2

-

Steering column case containing the multifunction switches and clockspring

3

-

Audio control switches

OVERVIEW

The windshield wiper switch is located in the right-hand-side of the case and retained with 2 screws. The switch is
connected to the main harness via a connector at the back of the switch. The switch controls the following functions:

Windshield wiper intermittent slow and fast speed
Windshield wiper flick wipe
Windshield wash/wipe
Rear wash/wipe
Intermittent delay selection.

The turn signal indicator switch is located in the left-hand-side of the case and retained with 2 screws. The switch is
connected to the main harness via a connector on the back of the switch. The switch controls the following functions:

Left / right turn signal operation
High / low beam operation
Headlamp flash
Trip computer function selection (if fitted).

The trip button allows the driver to cycle though an option menu and also reset trip cycle mileage calculations. The trip
computer information is displayed in the instrument cluster message center (high line instrument cluster only).

Steering wheel mounted switches on the right-hand-side of the driver's airbag, control the audio and telephone functions.
Switches on the left-hand-side of the driver's airbag control the speed control functions.

The clockspring is located in the front of the case and retained with four screws. The clockspring engages in slots in the
steering wheel boss and turns with the rotation of the steering wheel. The clockspring incorporates a tang which cancels
the turn signal indicators when the steering wheel is rotated.
For additional information, refer to:

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

 (501-20B

Supplemental Restraint System, Description and Operation).

CONTROL DIAGRAM

• NOTE: A = Hardwired; D = High speed CAN bus, O = LIN bus
