Frelander 2. Manual - part 60





Rear Suspension - Rear Wheel Bearing

Removal and Installation

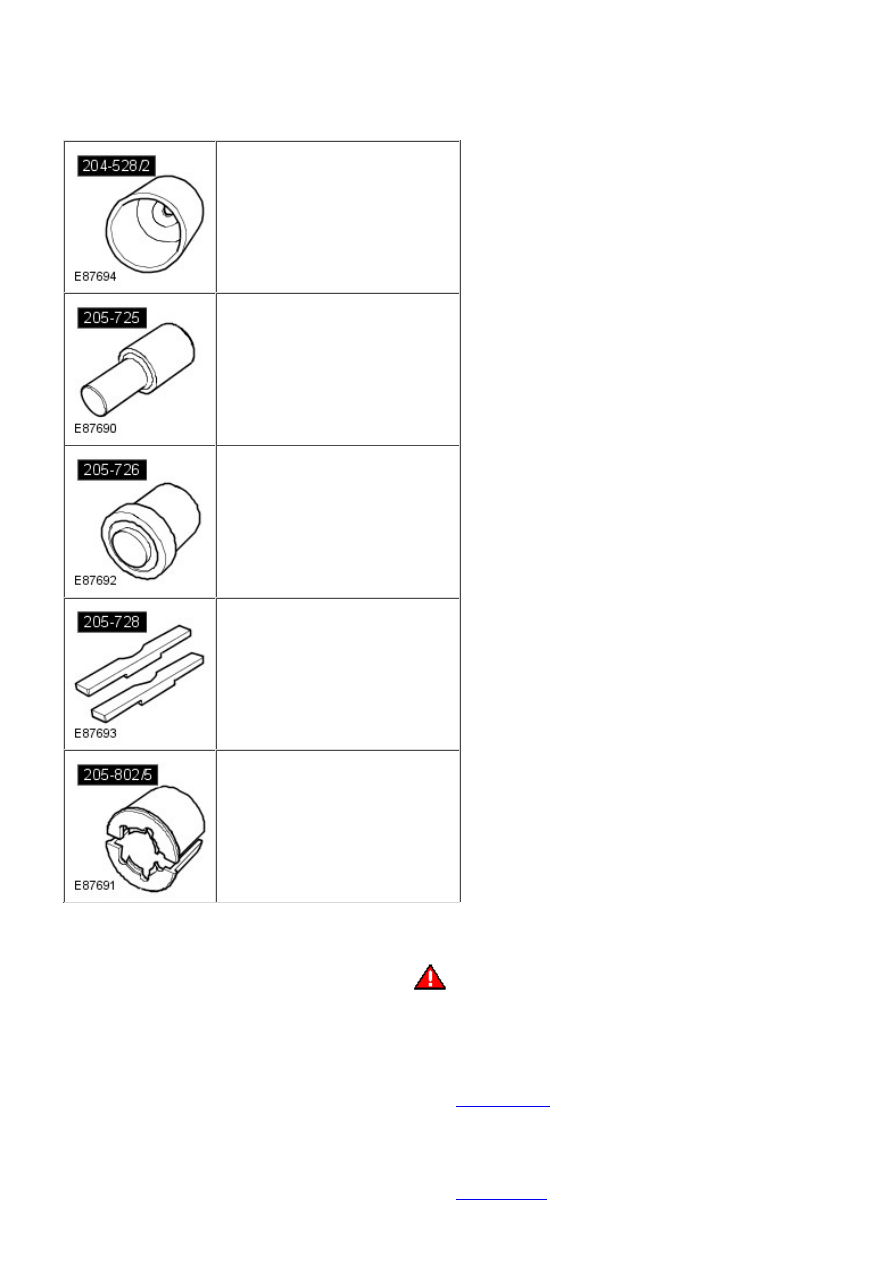

Special Tool(s)

204-528/2
Remover/Installer, Bushing

205-725
Remover/Installer, Wheel Hub

205-726
Remover/Installer, Wheel Hub Bearing

205-728
Remover/Installer, Wheel Hub

205-802/5
Remover, W heel Hub/Bearing

Removal

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove the wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the wheel knuckle.

Refer to:

Wheel Knuckle

 (204-02 Rear Suspension, Removal and

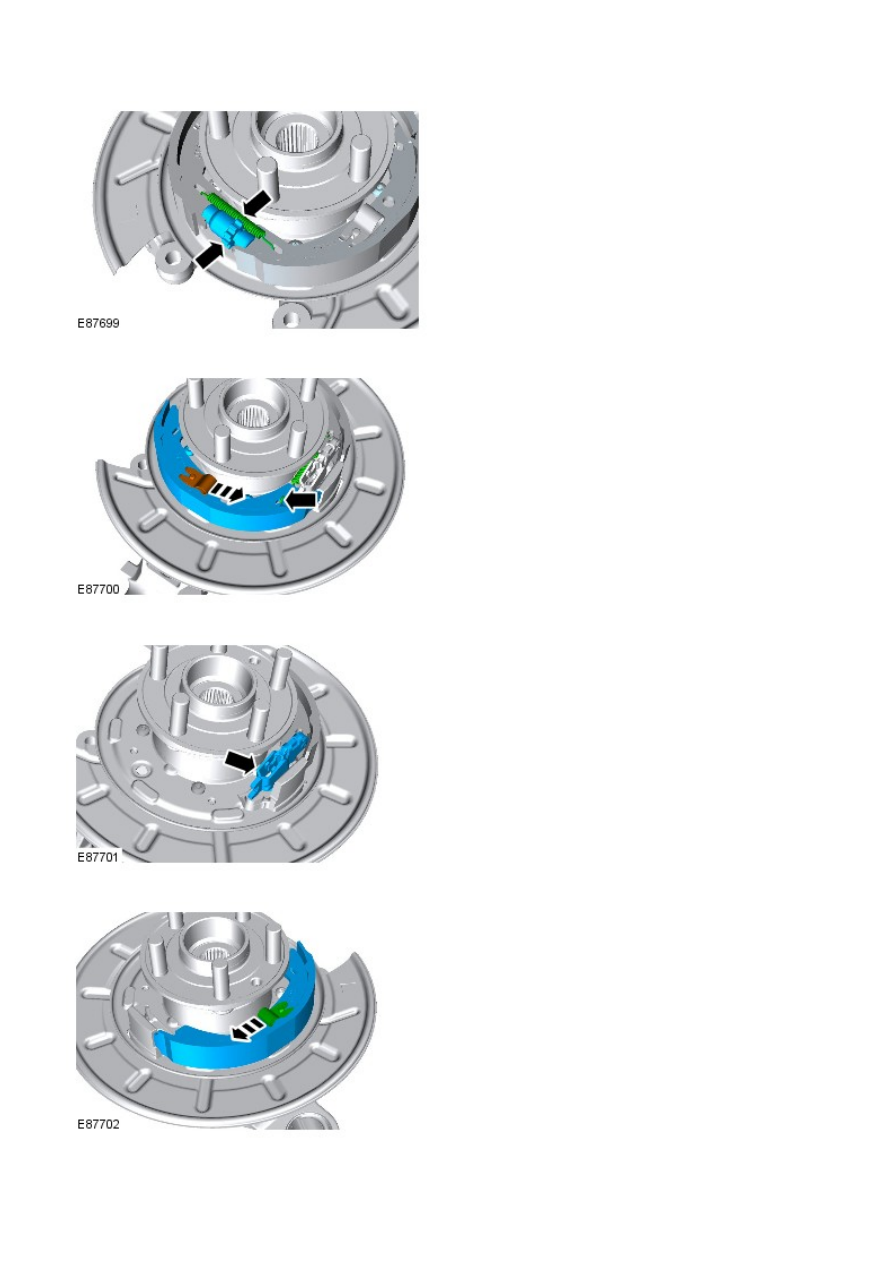

3.

Installation).

4.

5.

6.

7.

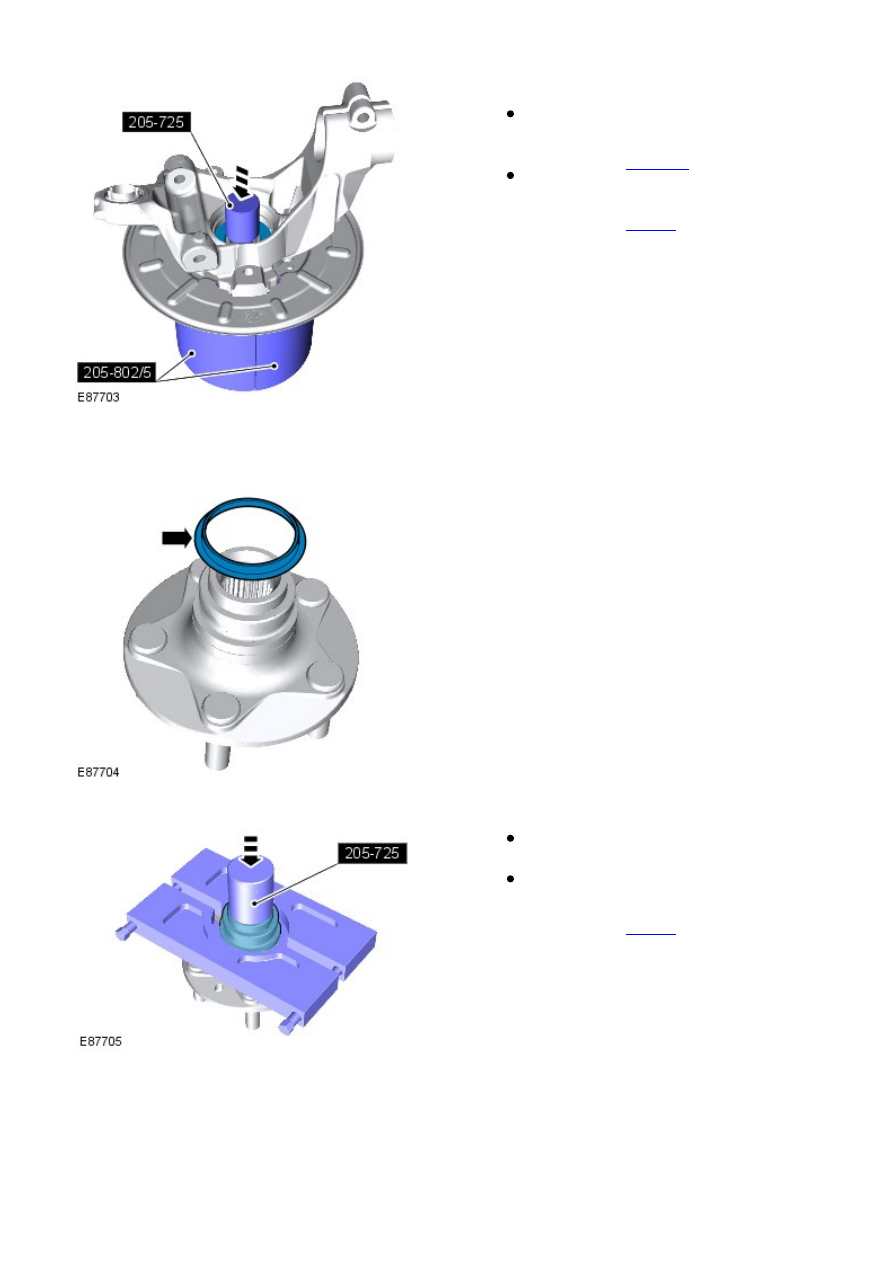

8. NOTE: Bearing damage is unavoidable during this
operation.

Position the wheel knuckle assembly in a press
and support on special tool.

Special Tool(s):

205-802/5

Press the drive flange out of the wheel knuckle
assembly using special tool.

Special Tool(s):

205-725

8.

9. NOTE: The inner bearing track will remain on the
drive flange.

9.



Clamp both halves of a suitable bearing
separator around the inner bearing track and
position the drive flange in a press.
Using the special tool, press the drive flange
from the inner bearing track.

Special Tool(s):

205-725

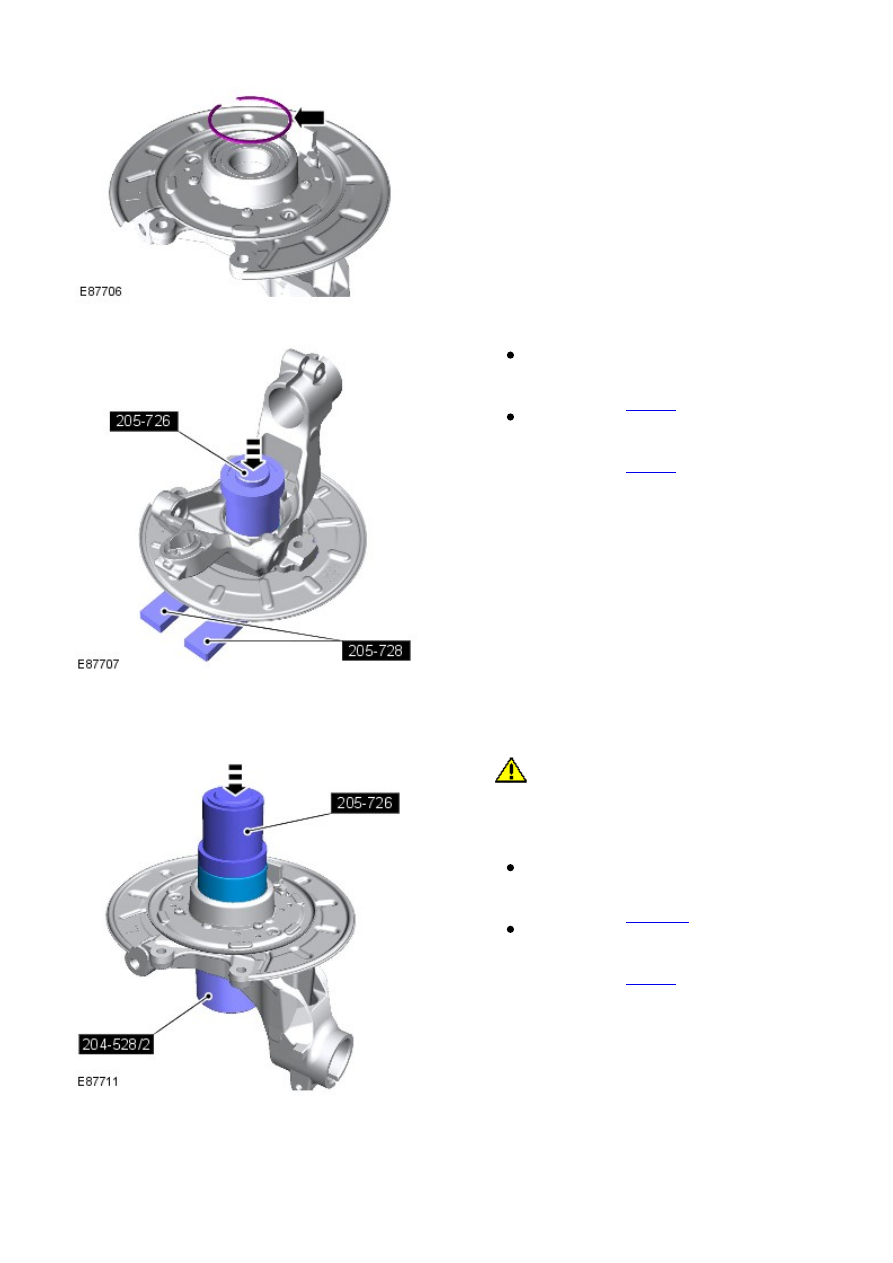

10.

Remove the circlip from the wheel knuckle assembly.

11.



Position the wheel knuckle assembly in a press
and support on special tools.

Special Tool(s):

205-728

Press the wheel bearing out of the wheel
knuckle assembly using special tool.

Special Tool(s):

205-726

12.

Installation

1.

CAUTION: One side of the bearing is magnetic.

The magnetic side is identifiable by the application of a
matt black finish. The magnetic side must face towards
the inboard side of the vehicle. Before fitting the
bearing, make sure the magnetic face is clean. The
bearing must be handled with extreme care.

Position the wheel knuckle assembly in a press
and support on special tool.

Special Tool(s):

204-528/2

Press the new wheel bearing into the wheel
knuckle assembly using special tool.

Special Tool(s):

205-726

1.

Install the circlip to the wheel knuckle assembly.

2.
