BODY

INTERIOR TRIM COMPONENTS

19

GLOVE BOX

Service repair no - 76.52.03

Remove

1. Open glove box lid.

2. Release illumination lamp from glove box.
3. Remove 4 screws and remove glove box.

Refit

1. Position glove box and tighten screws.
2. Position and secure illumination lamp.
3. Close glove box lid.

HEADLINING - 5 DOOR

Service repair no - 76.64.01
Service repair no - 76.64.15

Remove

1. Remove both A’ post trims.

See this section.

2. Remove both rear quarter upper trim casings.

See this section.

3. Remove both sun visors.

See this section.

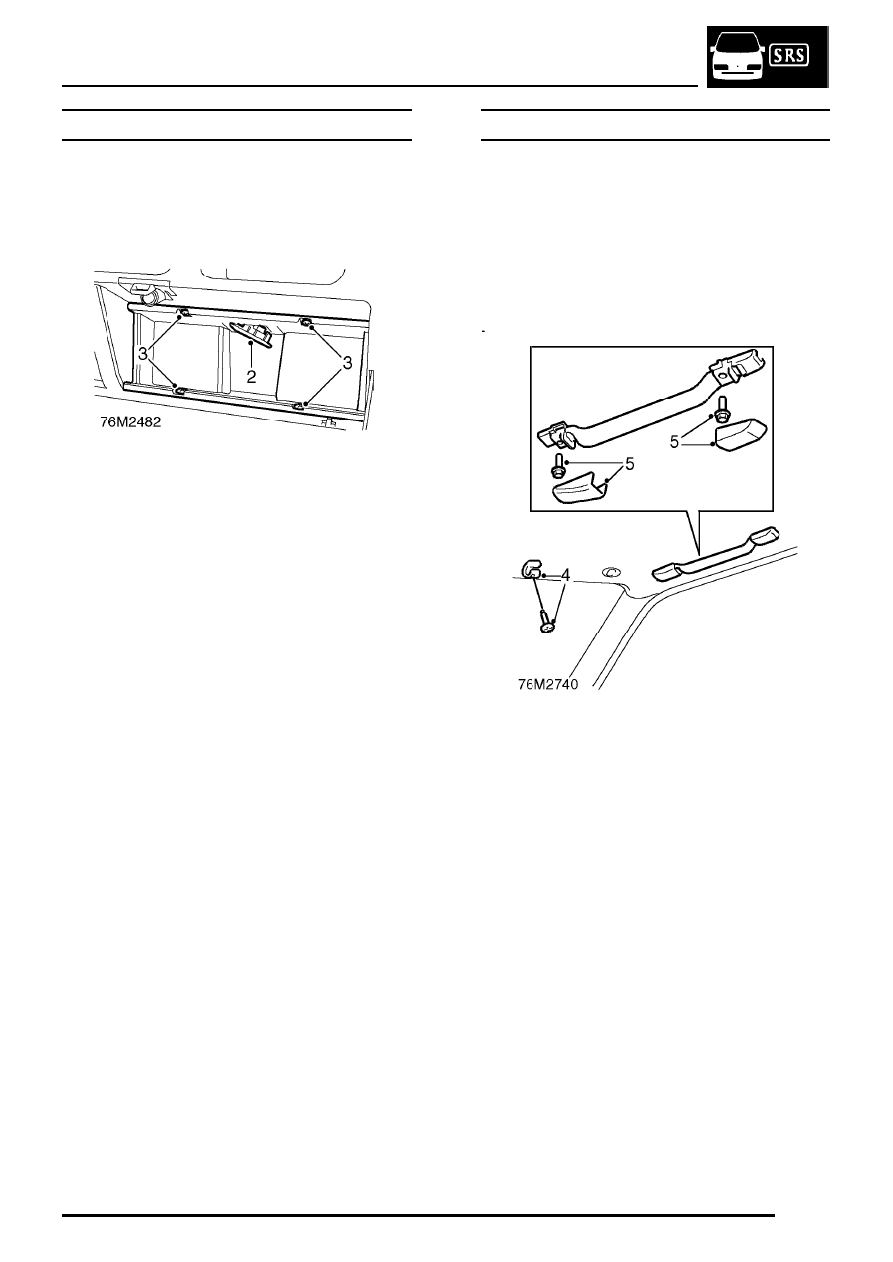

4. Remove screw from each sun visor clip and

collect clips.

5. Remove screw covers and screws from grab

handles and remove grab handles.

6. Remove grab handle blanking plugs.

BODY

20

INTERIOR TRIM COMPONENTS

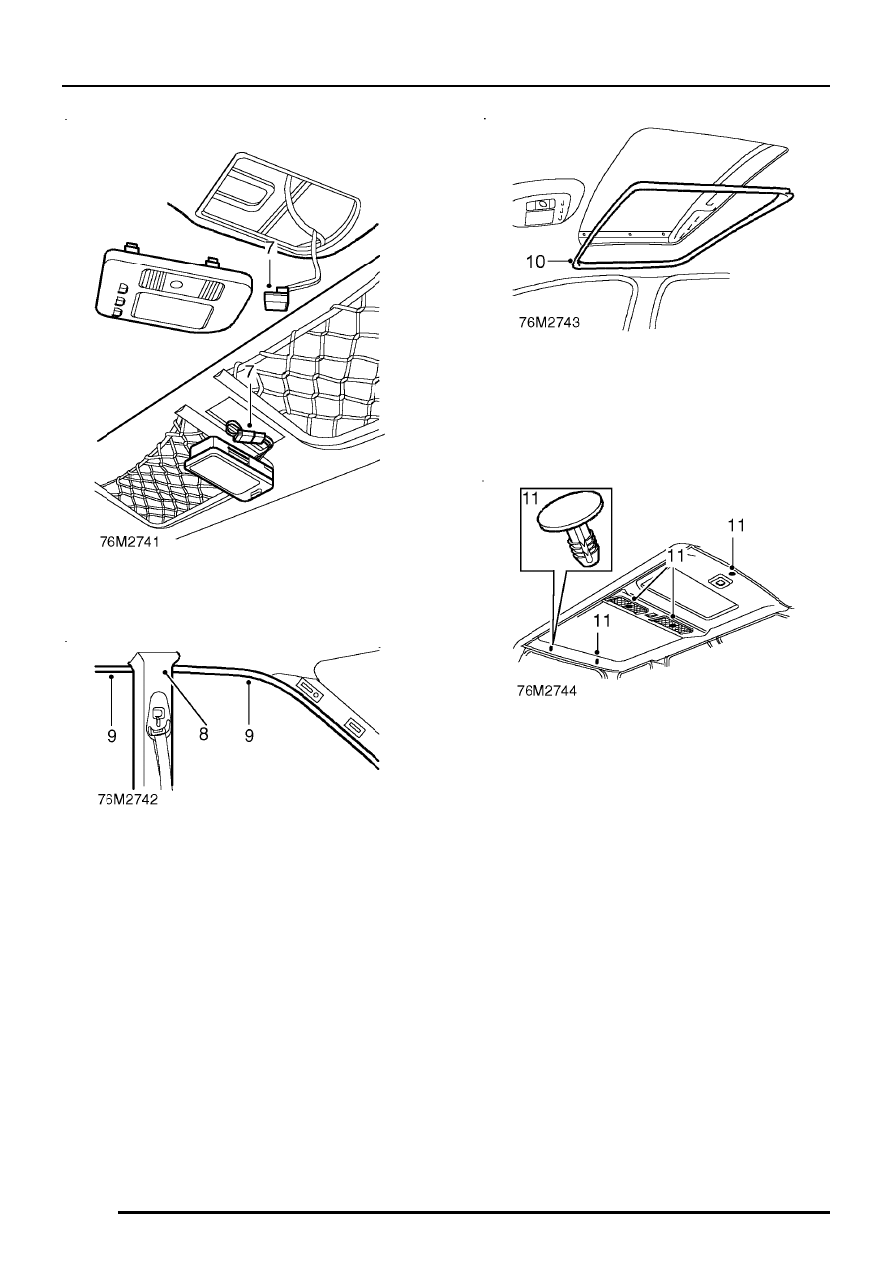

7. Release roof lamps, disconnect multiplugs and

remove roof lamps.

8. Release both B/C’ post upper finishers and

position aside.

9. Release headlining from front and rear door

aperture seals.

Models with sun roof:

10. Release and remove sun roof surround finisher

from sunroof aperture.

All models:

11. Remove 5 retaining studs from headlining.
12. With assistance remove headlining through tail

door.

BODY

INTERIOR TRIM COMPONENTS

21

Do not carry out further dismantling if
component is removed for access only.

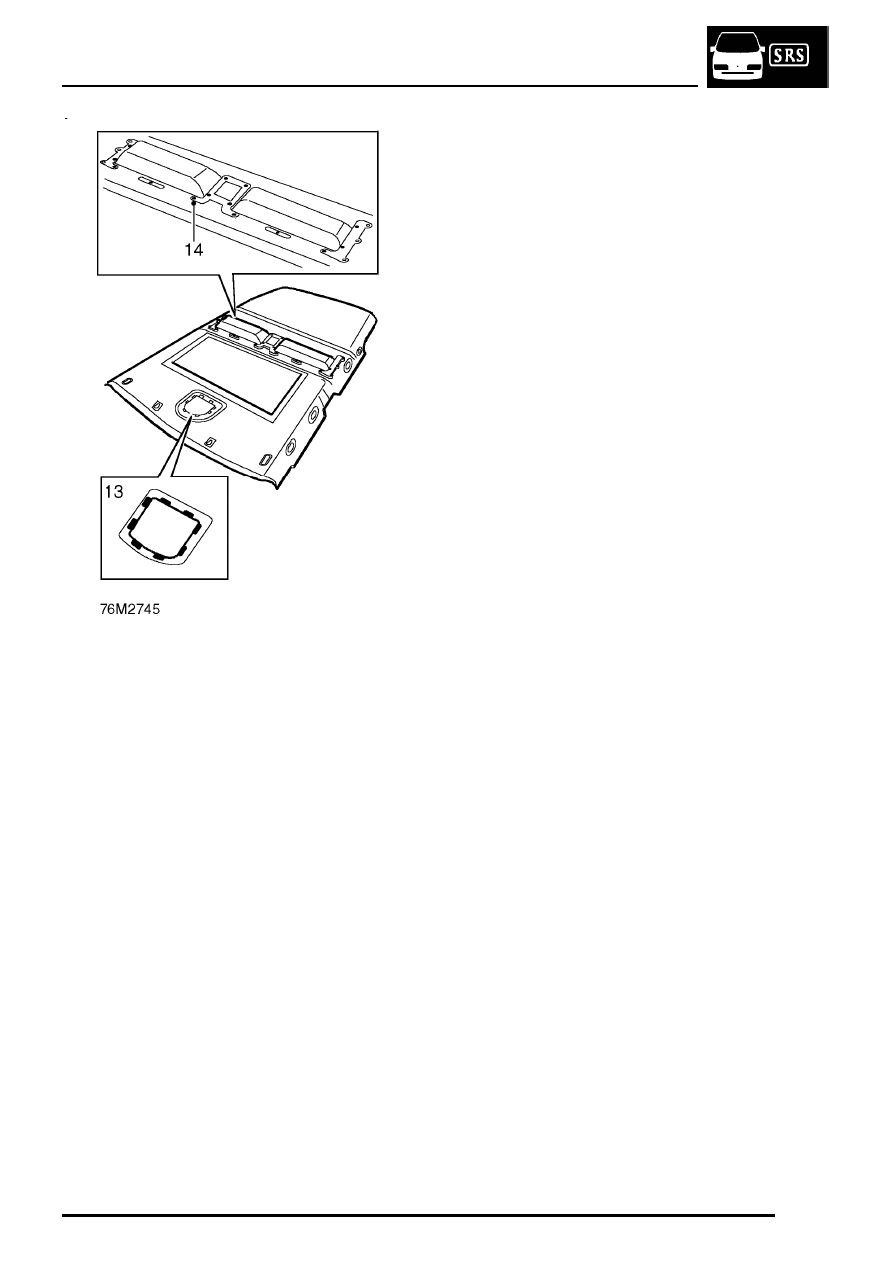

13. Release 8 tags securing front roof lamp

support and remove support.

14. Remove 14 nuts from stowage pockets, collect

backing plates and remove stowage pockets.

15. Position stowage pockets and backing plates

on replacement headlining and secure with
nuts.

16. Position roof lamp support on replacement

headlining and secure retaining tags.

Refit

1. With assistance, position headlining and

secure with retaining studs.

Models with sun roof:

2. Position sunroof surround finisher and secure

in position.

All models:

3. Locate headlining to front and rear door

aperture seals.

4. Fit and secure ’B/C’ post upper finishers.
5. Connect multiplugs and fit roof lamps.
6. Fit grab handle blanking plugs.
7. Fit grab handles, tighten screws and fit screw

covers.

8. Fit sun visor clips and tighten screws.
9. Fit both sun visors.

See this section.

10. Fit both ’A’ post trims.

See this section.

11. Fit rear quarter upper trim casings.

See this

section.

BODY

22

INTERIOR TRIM COMPONENTS

HEADLINING - 3 DOOR

Service repair no - 76.64.15

Remove

1. Fold front seat squabs forward.
2. Remove both sun visors.

See this section.

3. Remove both ’A’ post trims.

See this section.

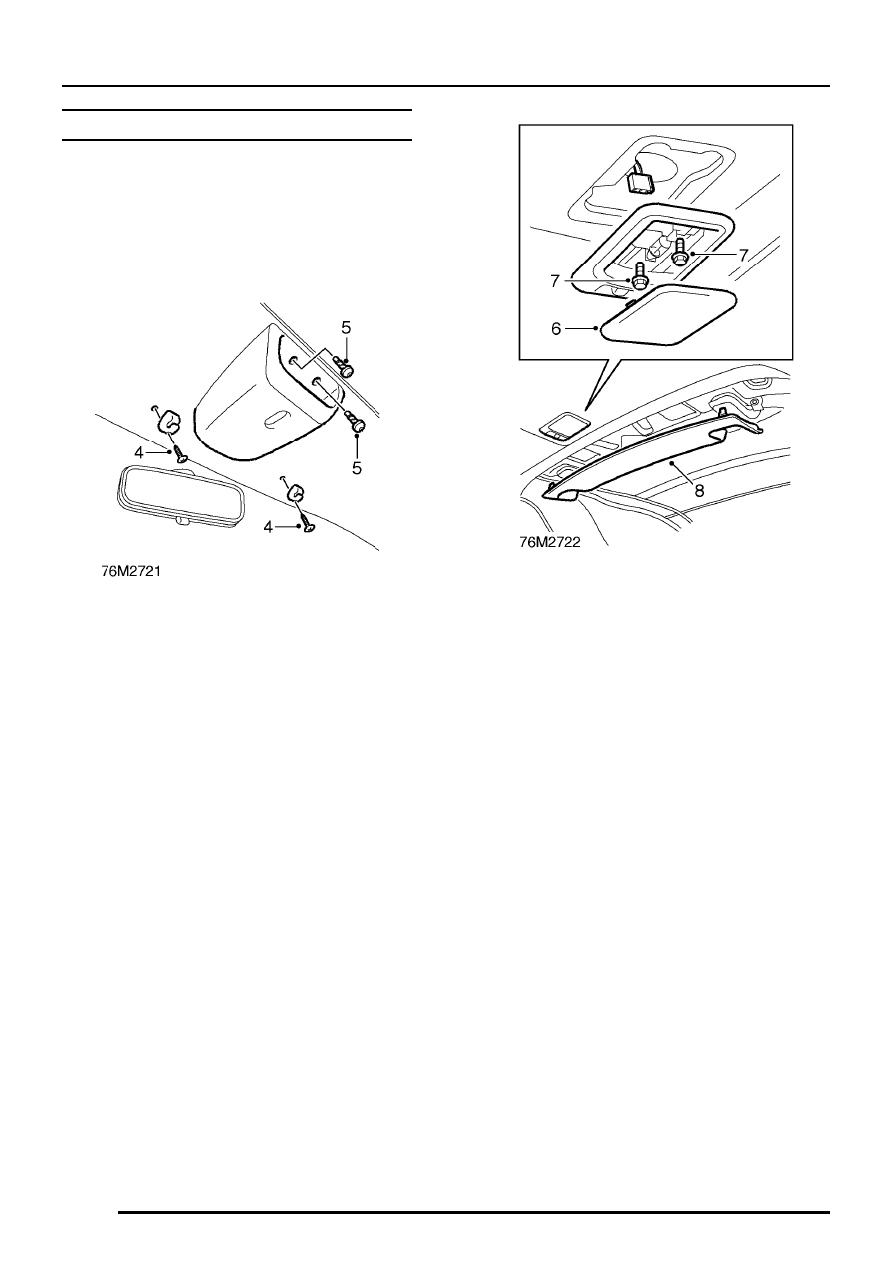

4. Remove 2 screws from both sun visor clips and

collect clips.

5. Remove 2 screws securing headlining to front

end of roof panel.

6. Remove roof lamp lens.
7. Remove 2 screws, release roof lamp and

disconnect multiplug.

8. Release headlining rear finisher from roof

panel and remove finisher.
