INFORMATION

4

BODY DIMENSIONS

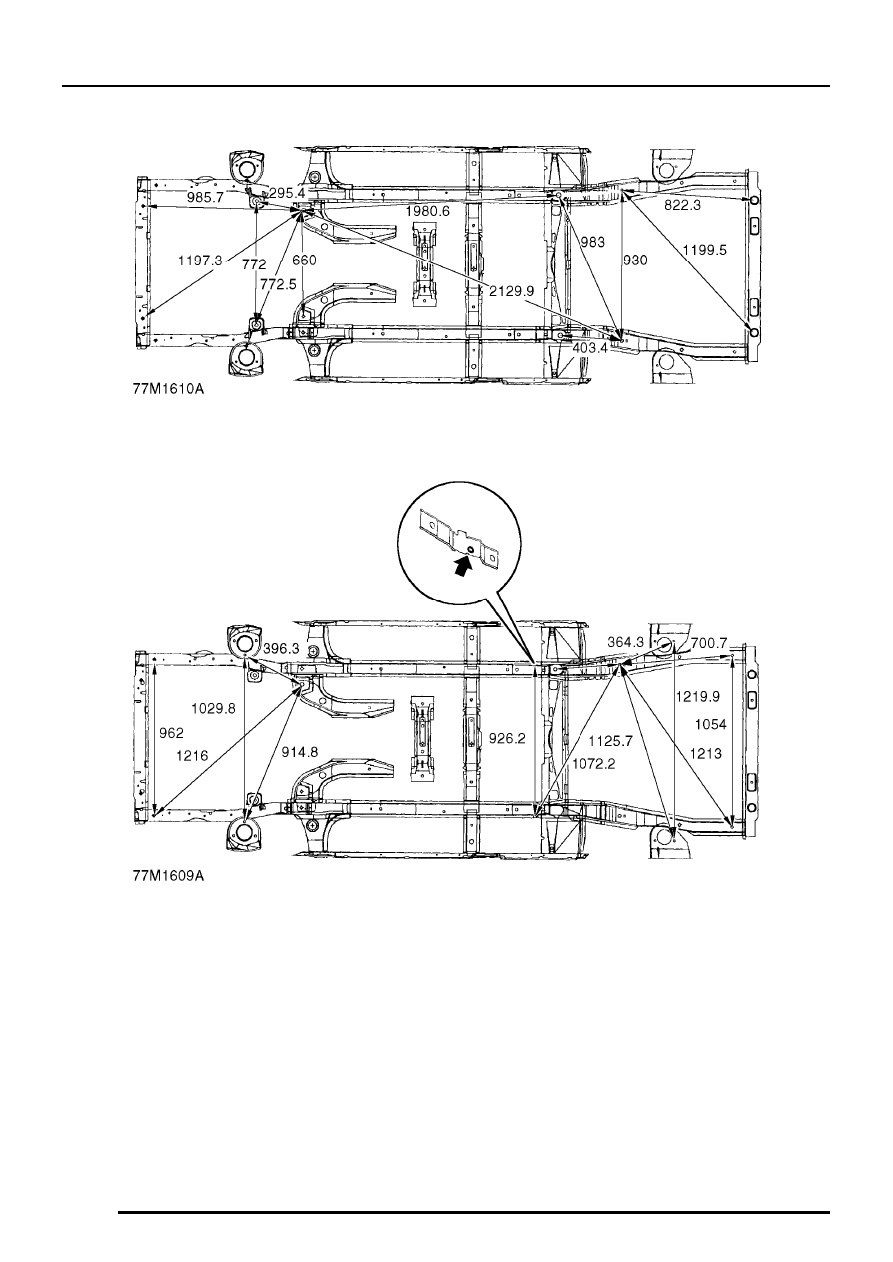

INFORMATION

BODY DIMENSIONS

5

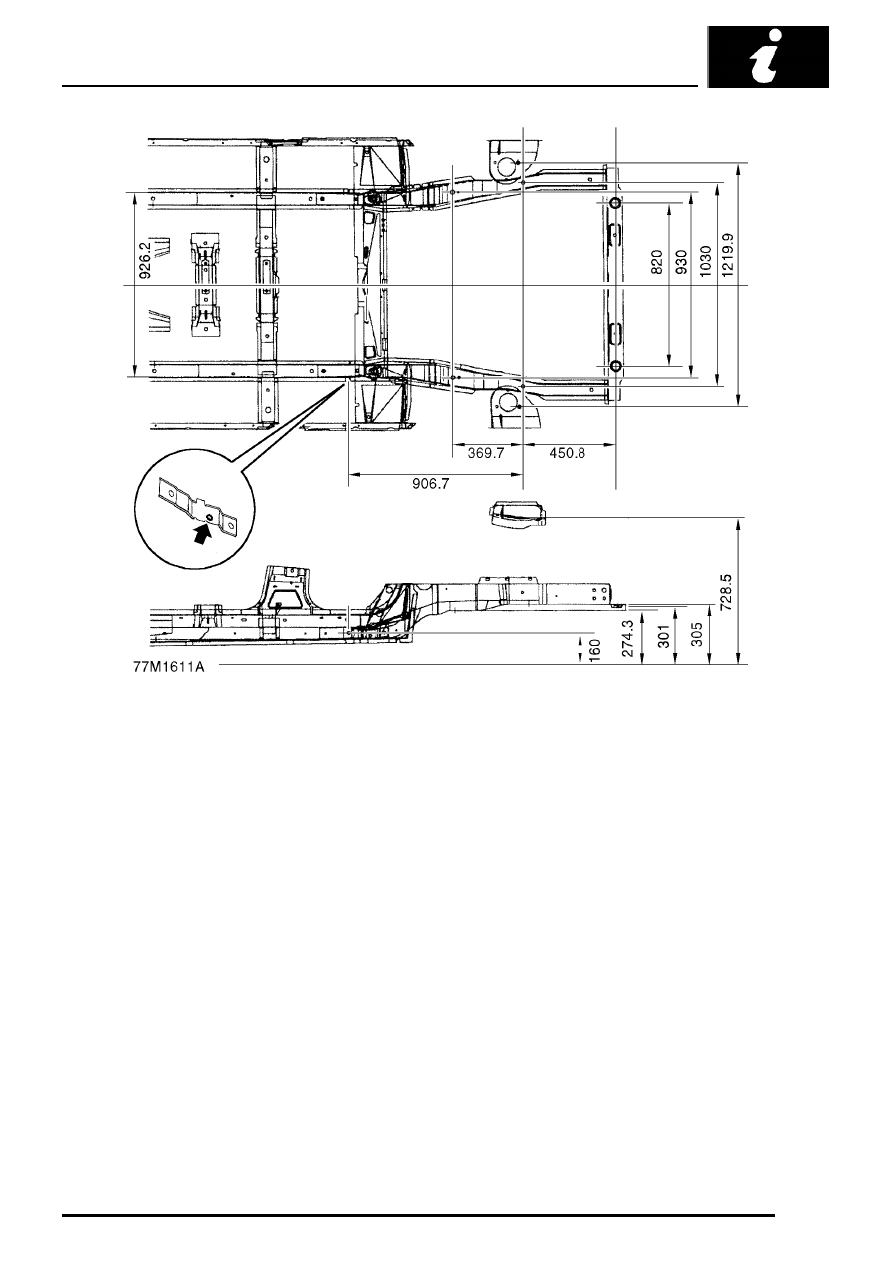

INFORMATION

6

BODY DIMENSIONS

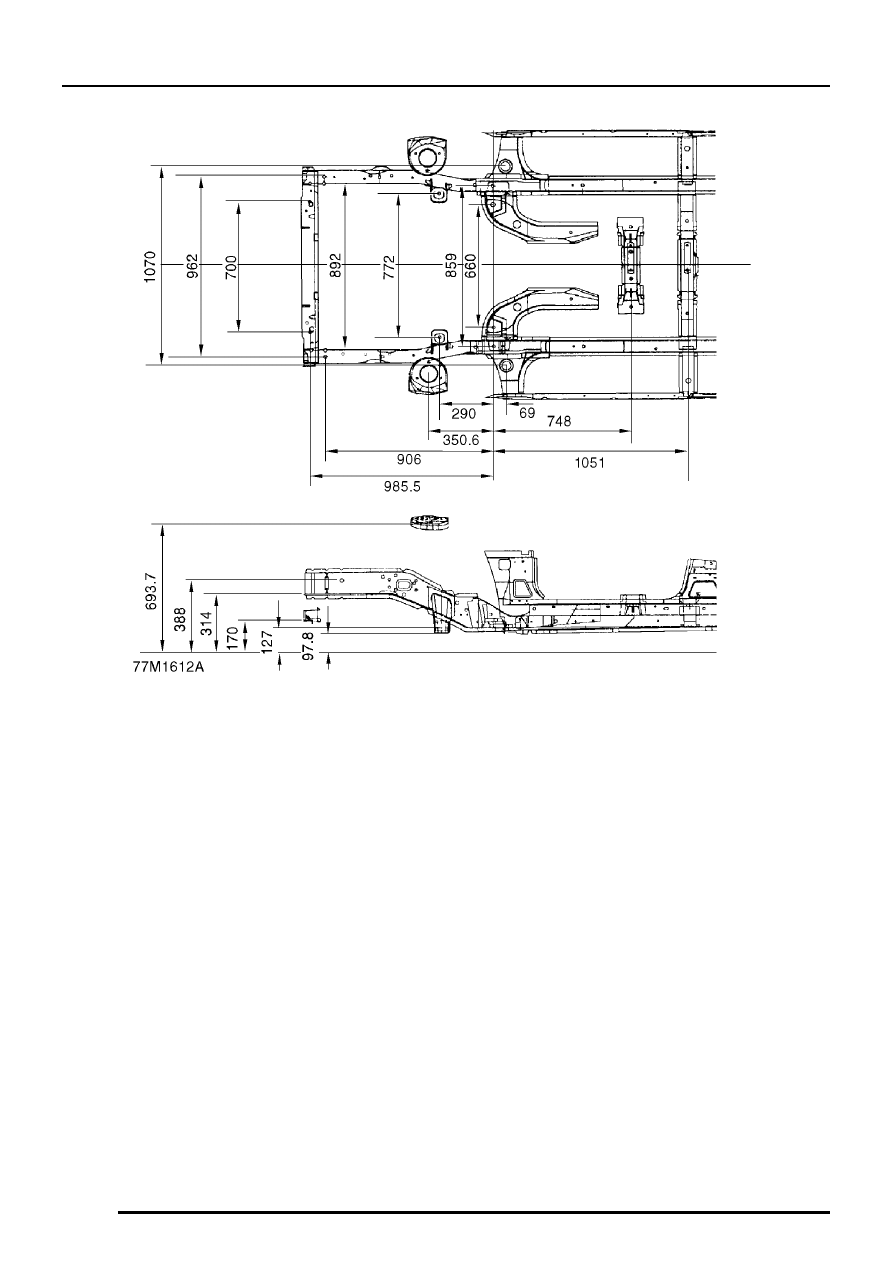

INFORMATION

BODY DIMENSIONS

7

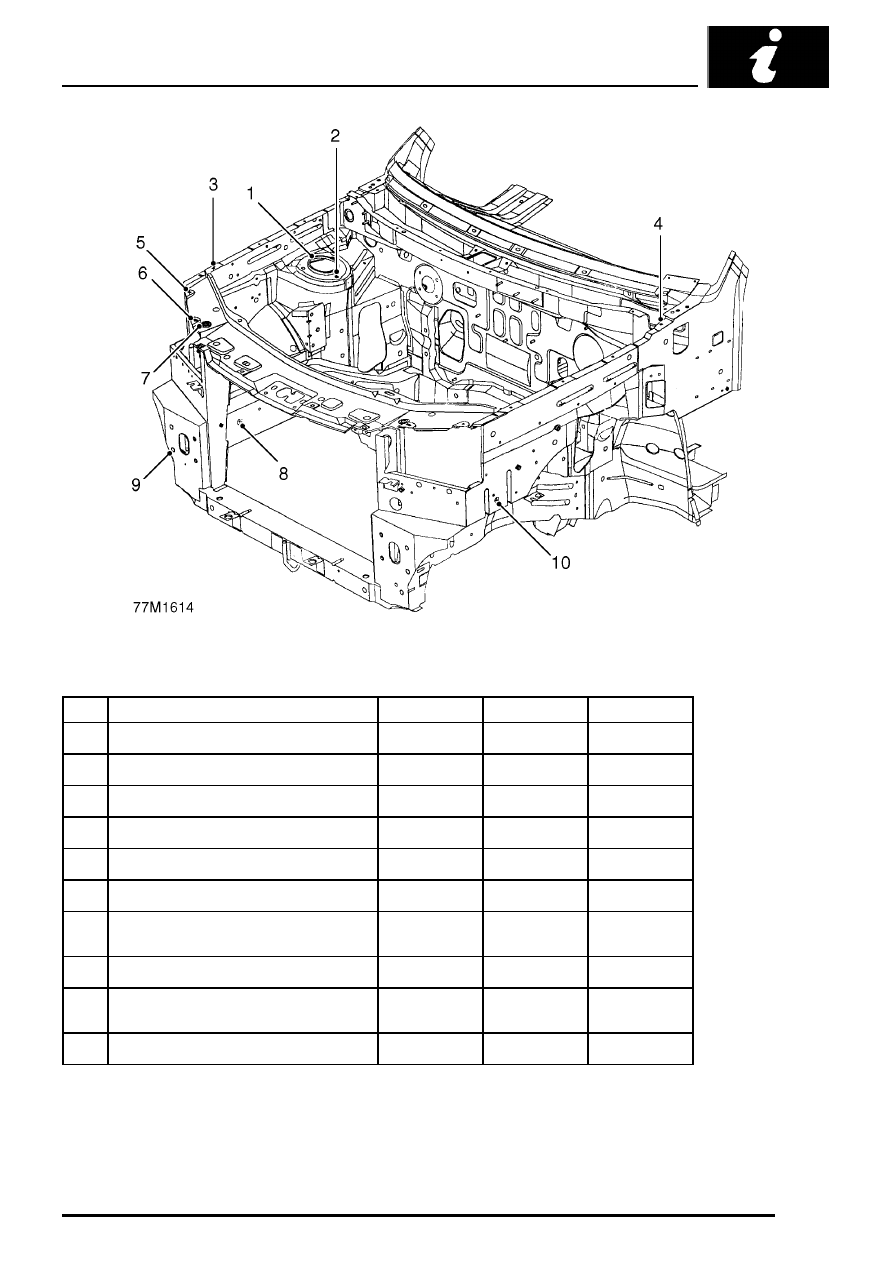

Front end dimensional information (see above Figure)

No.

Description

X

Y

Z

1

Front damper large hole

997

578.5

718.5

2

Front damper, inboard fixing hole

975.4

514.9

693.7

3

Front wing fixing

605

669

806

4

Rear wing fixing, dash side

1220

690

848.2

5

Outboard headlamp fixing hole

465

615

788.3

6

Inboard headlamp fixing hole

377

485

772

7

Bonnet locking platform, jig location

hole

390

445

765

8

Sidemember jig location hole

500

446

388

9

Headlamp mounting panel, jig location

hole

304

536

335

10

Front valance jig location hole

540

671.7

525
