Freelander 1. Manual - part 273





CHARGING AND STARTING

ADJUSTMENTS

86-1-1

CHARGING AND STARTING

ADJUSTMENTS

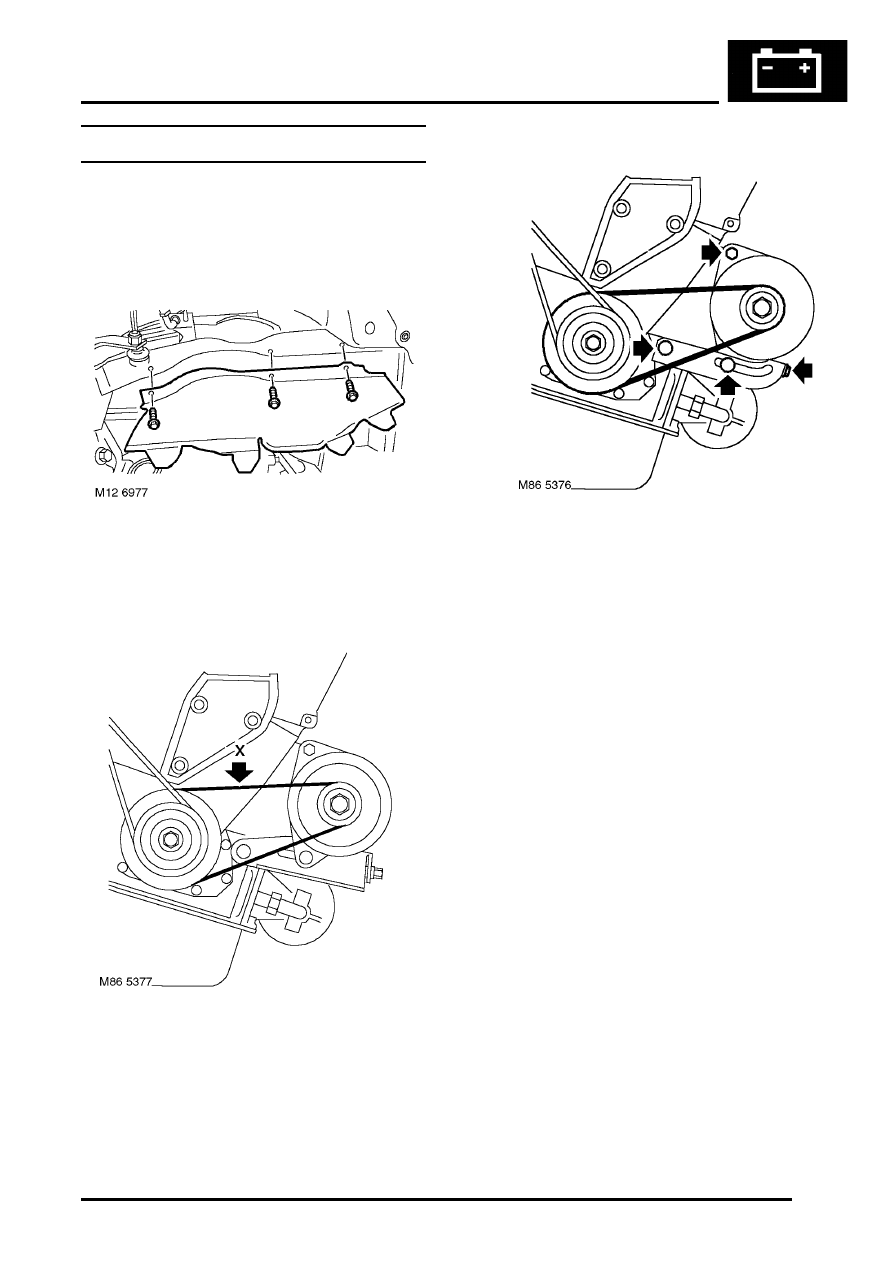

Ancillary drive belt - K1.8

$% 86.10.05

Check

1. Disconnect battery earth lead.
2. Turn steering on RH lock.

3. Remove 3 bolts and remove splash shield.
4. Rotate crankshaft a sufficient number of turns

to check condition of drive belt. Renew a drive
belt that shows signs of wear, splitting or oil
contamination.

5. Apply a force of 10 kg to drive belt at position 'X'

and measure deflection between crankshaft
pulley and alternator pulley. Deflection must be
6 - 8 mm.

Adjust

1. Loosen alternator pivot nut and bolt.
2. Loosen bolt securing alternator adjustment

bracket to engine.

3. Loosen bolt securing alternator to adjustment

bracket.

4. Increase drive belt tension by rotating

alternator adjustment bolt clockwise.

5. Tighten alternator pivot and adjustment bracket

bolts to 25 Nm (18 lbf.ft).

6. Recheck drive belt tension.
7. Fit splash shield and secure with bolts.
8. Straighten steering.
9. Connect battery earth lead.

CHARGING AND STARTING

86-1-2

ADJUSTMENTS

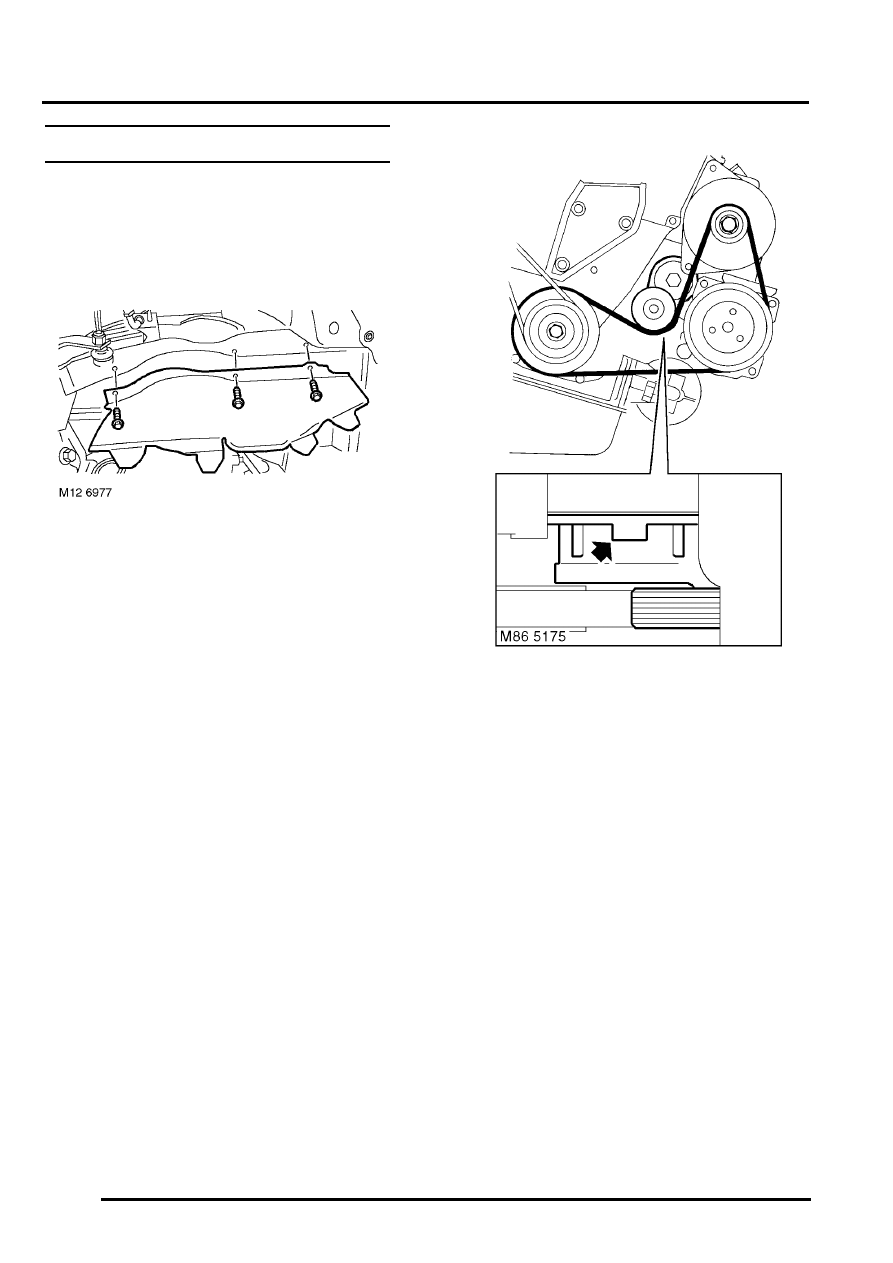

Ancillary drive belt - K1.8 with A/C

$% 86.10.05

Check

1. Disconnect battery earth lead.
2. Turn steering on RH lock.

3. Remove 3 bolts and remove splash shield.
4. Rotate crankshaft a sufficient number of turns

to check condition of drive belt. Renew a drive
belt that shows signs of wear, splitting or oil
contamination.

5. Check belt length, belt must be renewed before

indicator reaches RH end of slot.

6. Fit splash shield and secure with bolts.
7. Straighten steering.
8. Connect battery earth lead.

CHARGING AND STARTING

REPAIRS

86-1-3

REPAIRS

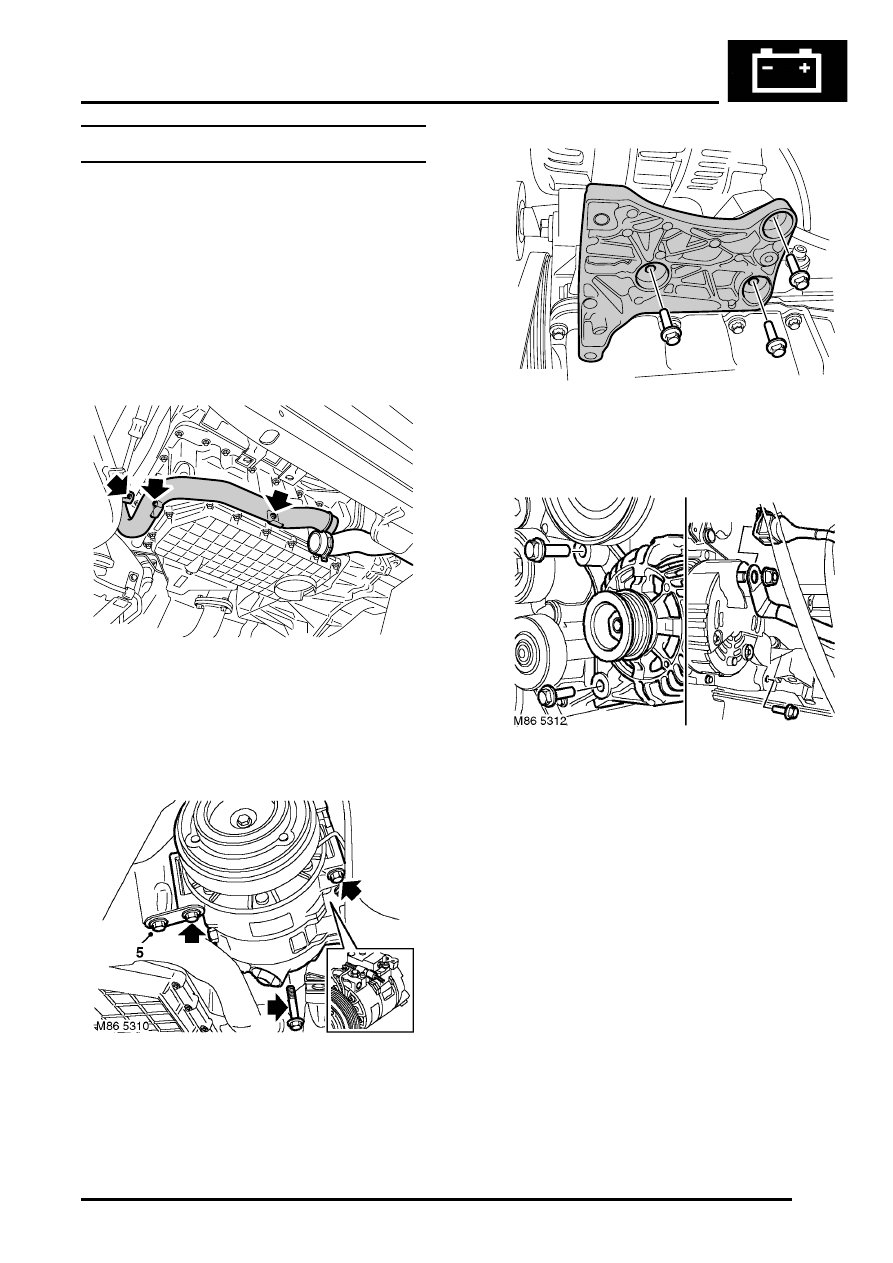

Alternator - Td4

$% 86.10.02

Remove

1. Disconnect battery earth lead.
2. Drain cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

3. Models with A/C: Remove compressor drive

belt.


 +

 AIR CONDITIONING, REPAIRS,

Drive belt - compressor - Td4.

4. Remove 3 bolts securing coolant rail to sump

and cylinder block.

CAUTION: Care must be taken to ensure
that oil or fluid does not enter or
contaminate the alternator.

5. Models with A/C: Loosen bolt securing

compressor support bracket to sump, do not
remove.

6. Models with A/C: Remove 3 bolts securing

compressor to mounting bracket, release
support bracket and tie compressor aside.

7. Models with A/C: Remove 3 bolts and bracket,

securing compressor mounting to casting on
cylinder block.

8. Disconnect alternator multiplug.
9. Remove nut securing battery cable to alternator

and remove cable.

10. Remove 3 bolts and remove alternator.

Refit

1. Clean alternator mounting points.
2. Fit alternator to mounting bracket.Tighten M10

bolt to 45 Nm (33 lbf.ft) and M8 bolts to 25 Nm
(18 lbf.ft).

CAUTION: Ensure upper bolt is fitted prior
to assembly.

3. Connect alternator multiplug.
4. Fit battery cable to alternator terminal and

tighten to 10 Nm (7.5 lbf.ft).

M86 5309

M86 5311

CHARGING AND STARTING

86-1-4

REPAIRS

5. Models with A/C: Clean A/C compressor and

housing mating faces, dowels and dowel holes.

6. Models with A/C: Fit bolts and compressor

mounting to casting, tighten to 25 Nm (18 lbf.ft).

7. Models with A/C: Position A/C compressor, fit

bolts and tighten to 25 Nm (18 lbf.ft).

8. Models with A/C: Align compressor support

bracket to sump and tighten bolt to 10 Nm (7.5
lbf.ft).

9. Fit lower coolant rail to sump and tighten bolts

to 10 Nm (7.5 lbf.ft).

10. Fit compressor drive belt.



 +

 AIR CONDITIONING, REPAIRS,

Drive belt - compressor - Td4.

11. Refill cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

12. Connect battery earth lead.

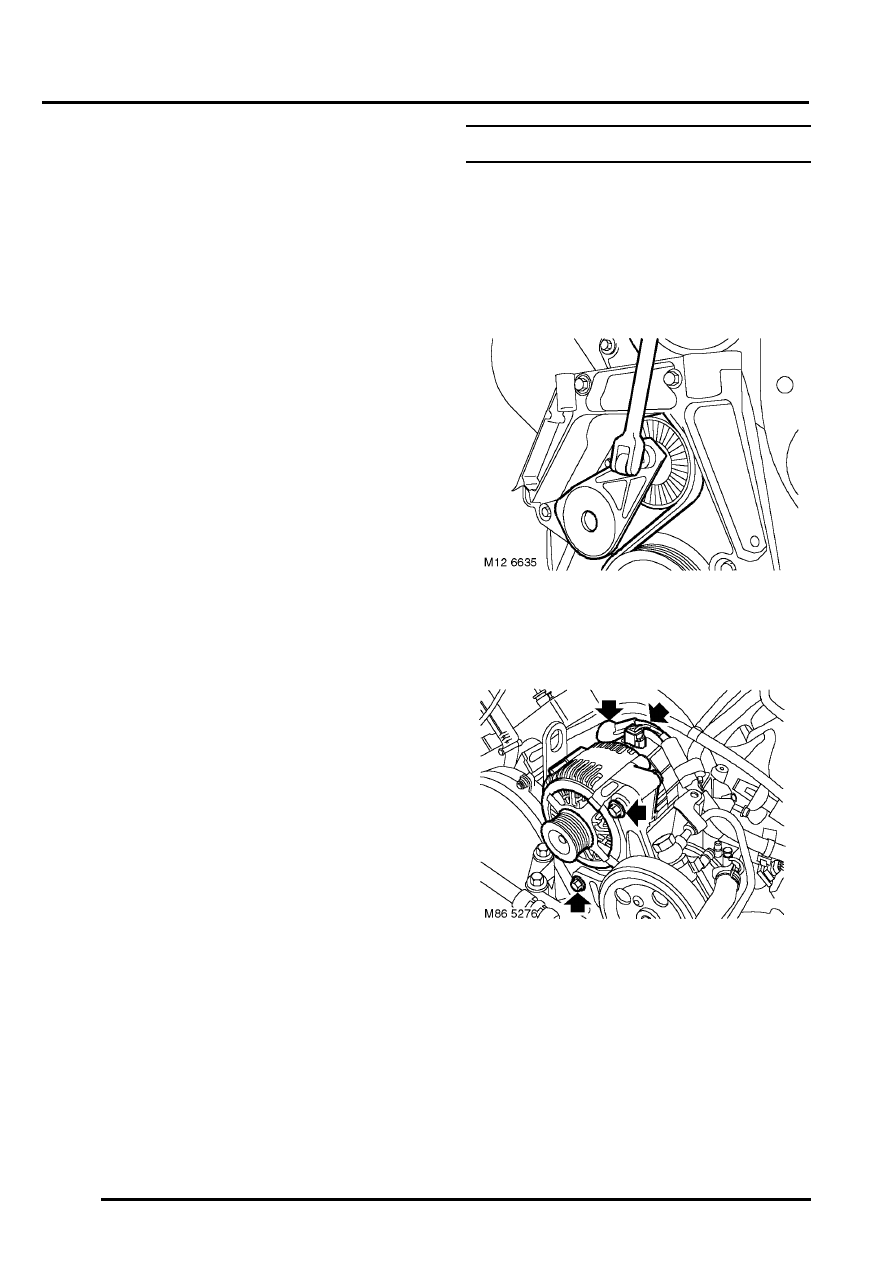

Alternator - KV6

$% 86.10.02

Remove

1. Disconnect battery earth lead.
2. Remove top arm.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Arm assembly - engine mounting RH.

3. Using a 3/8” square drive socket bar, raise

ancillary drive belt tensioner and release drive
belt from alternator pulley.

4. Release alternator battery lead terminal cover,

loosen terminal nut and disconnect lead from
terminal

5. Disconnect alternator multiplug.
6. Remove lower bolt and upper nut and bolt

securing alternator to front mounting plate.

7. Remove alternator.
