Freelander 1. Manual - part 265





HEATING AND VENTILATION

REPAIRS

80-9

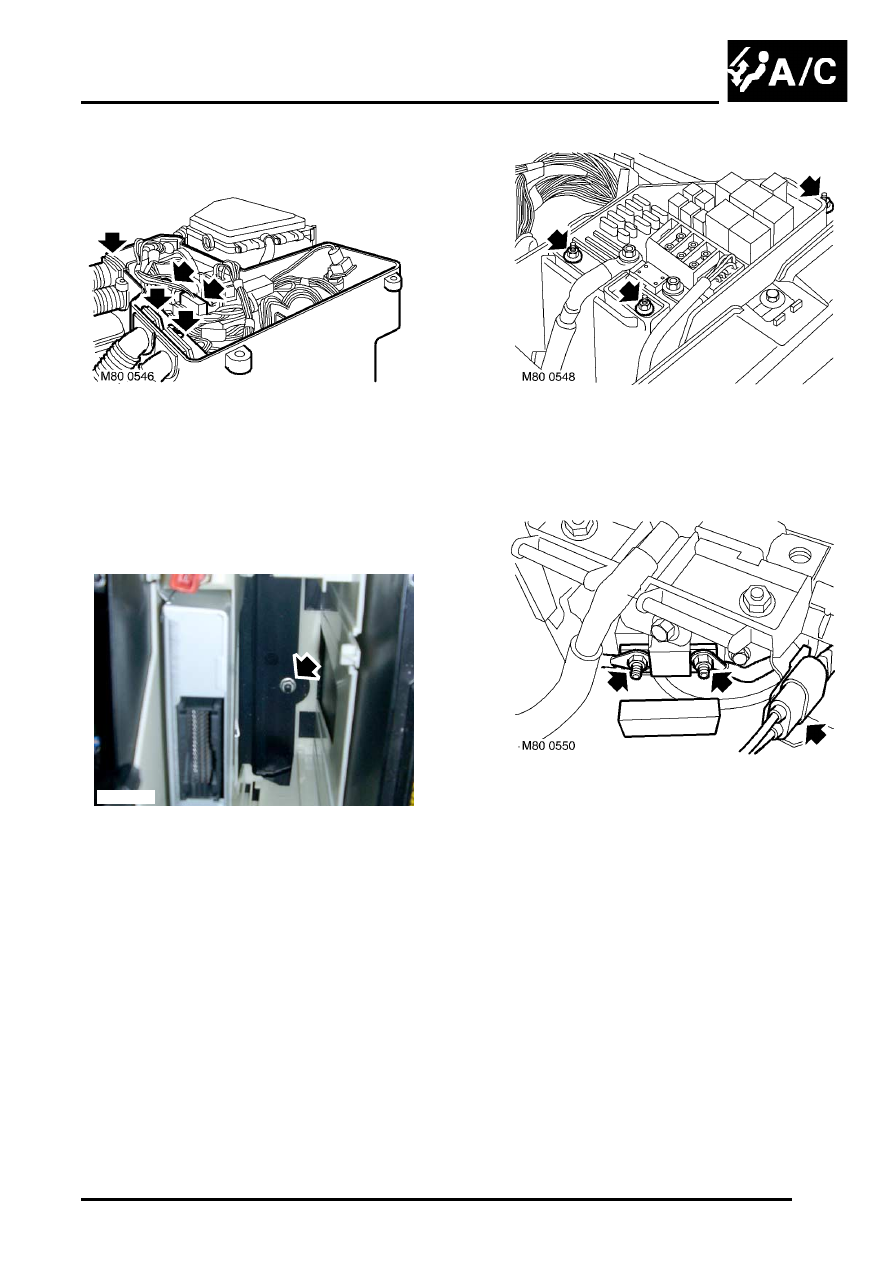

5. Release harness from cable ties and release

relays from inner casing.

6. Release and disconnect cooling fan and joint

harness multiplugs.

7. Release 3 harnesses and air duct rubber

sleeve's from housing.

8. Release clips and remove fuse box cover.

9. Remove nut securing ECM housing.

10. Release housing from retaining brackets and

remove.

11. Remove 3 nuts securing fuse box, place fuse

box aside.

12. Release PTC harness from ECM housing

bracket.

13. Remove cover from PTC positive lead fuse

holder.

14. Release multiplug and disconnect PTC

harness from engine harness.

15. Remove 2 nuts securing both leads from (80

amp) fuse holder, remove leads.

16. Release clip securing PTC harness to ECM

housing bracket.

M80 0557

HEATING AND VENTILATION

80-10

REPAIRS

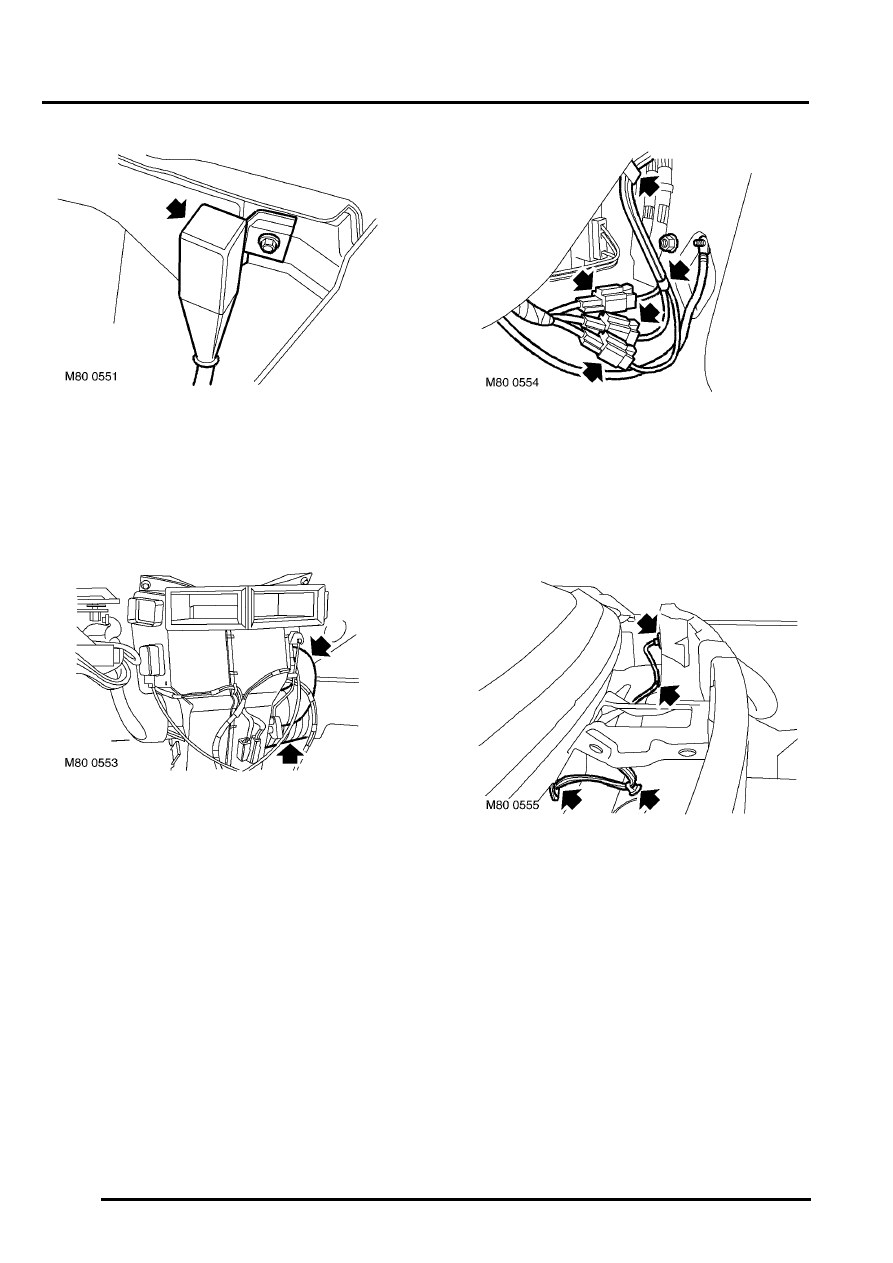

17. Release PTC harness relay from bulkhead

retaining bracket.

18. Remove fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

19. Release and remove RH demister vent duct
20. Release and remove air duct.

21. Disconnect 3 Lucar connections from PTC

element.

22. Release cable ties securing PTC harness to

main harness.

23. Remove air intake plenum.



 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

24. Release 2 clips securing PTC harness from

plenum box section.

25. With assistance release 2 grommets from

bulkhead and remove PTC harness from
vehicle.

HEATING AND VENTILATION

REPAIRS

80-11

Refit

1. With assistance route PTC harness through

bulkhead and fit grommets.

2. Fit clips securing PTC harness to plenum box
3. Fit air intake plenum.



 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

4. Fit cable ties securing PTC harness to main

bulkhead harness.

5. Connect Lucar connections to PTC element.
6. Fit air duct.
7. Fit RH demister vent duct.
8. Fit fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

9. Connect and secure PTC harness multiplug to

engine harness.

10. Secure PTC harness/relay to bulkhead bracket
11. Fit clip to secure PTC harness to ECM housing

bracket.

12. Fit PTC positive leads to (80 amp) fuse holder,

fit and tighten nuts to 7 Nm (5.2 lbf.ft).

13. Fit (80 amp) fuse cover.
14. Secure PTC harness/relays to ECM housing

bracket.

15. Fit fuse box, ensure harness routing is clear

suspension turret. Tighten nuts to 10 Nm (7
lbf.ft).

16. Fit fuse box cover.
17. Fit 'E' box housing into securing brackets.
18. Fit and tighten nut securing housing.
19. Fit harness and air duct rubber sleeve's to

housing.

20. Fit harness cable tie and secure relay in

housing.

21. Connect and secure joint harness and cooling

fan multiplugs.

22. Connect cooling fan sensor and gearbox ECU

multiplugs.

23. Fit ECM into 'E' box.



 +

 ENGINE MANAGEMENT SYSTEM -

EDC, REPAIRS, Engine control module
(ECM).

24. Position PTC positive cable to battery and

secure with bolt, tighten to 25 Nm (18 lbf.ft).

25. Connect battery earth lead.

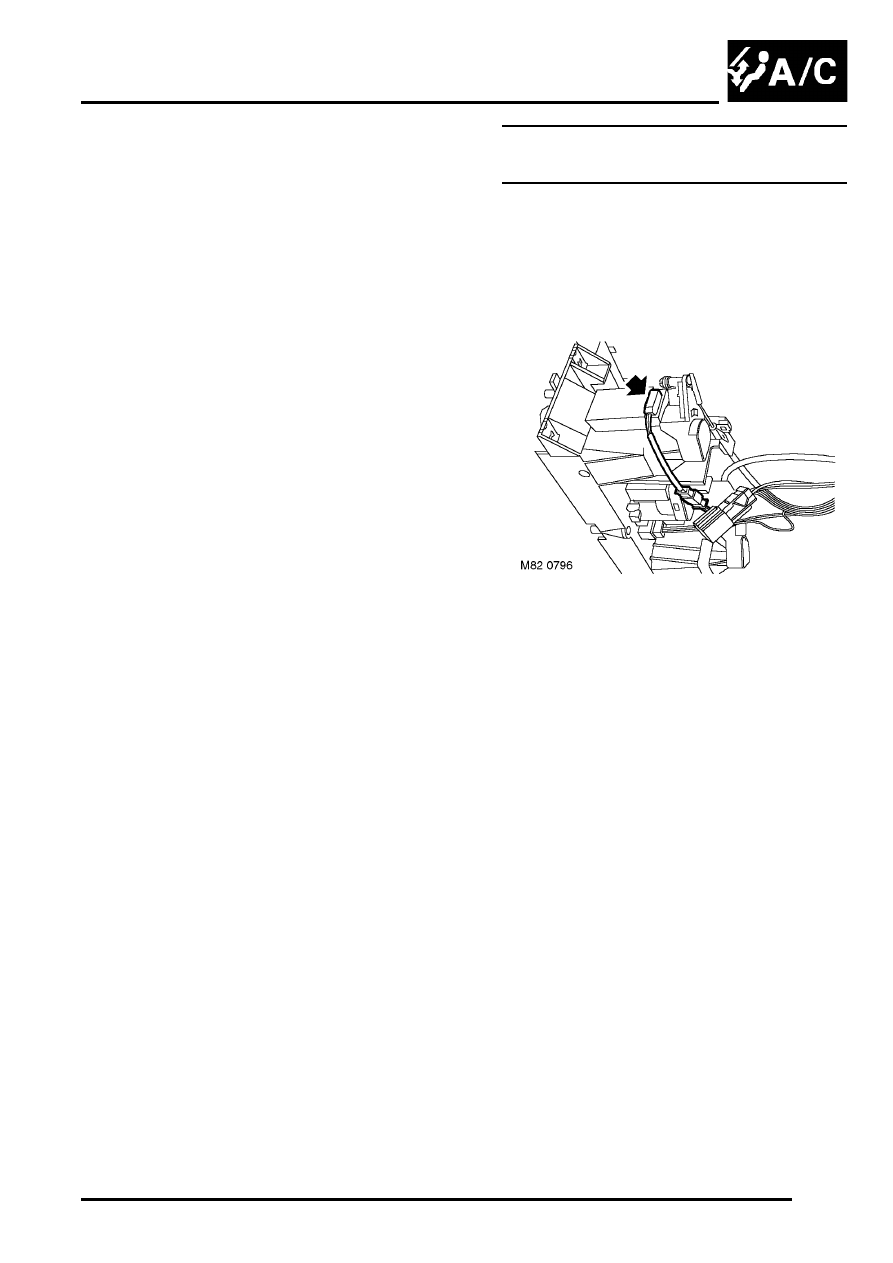

Microswitch - positive temperature co-
efficient (PTC) heater - Td4 models

$% 80.20.08

Remove

1. Remove front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

2. Disconnect multiplug and release microswitch

from heater control pack.

Refit

1. Fit microswitch to heater control pack and

connect multiplug.

2. Fit front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

HEATING AND VENTILATION

80-12

REPAIRS

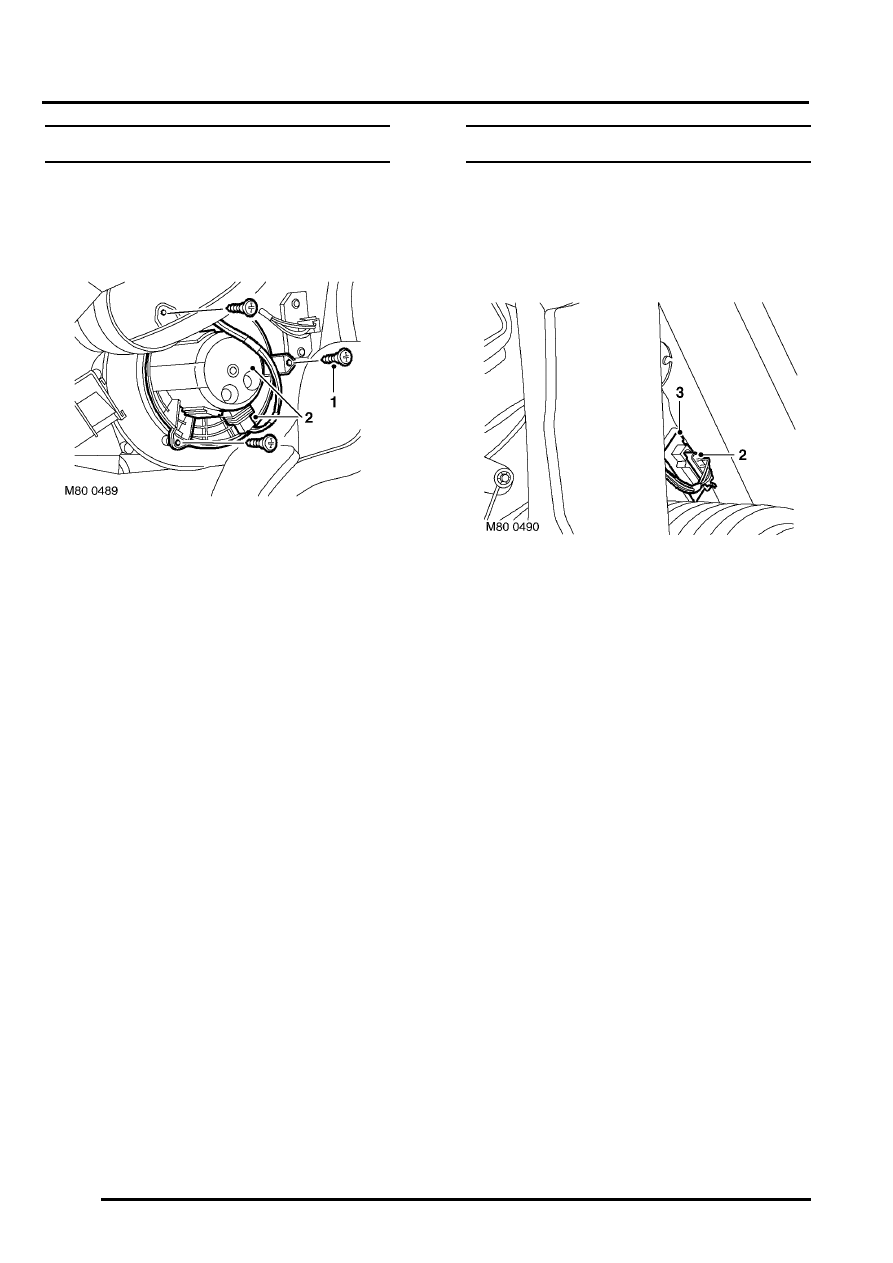

Blower assembly

$% 80.20.12

Remove

1. Remove 3 screws securing fan motor assembly

to heater casing.

2. Release fan assembly from heater and

disconnect multiplug.

3. Remove fan assembly.

Refit

1. Position fan assembly to heater and connect

multiplug.

2. Fit fan assembly to heater casing and secure

with screws.

Resistor unit - fan motor

$% 80.20.17

Remove

1. LHD models only: Disconnect air inlet

connector hose from heater and evaporator.

2. Disconnect multiplug from resistor.
3. Release clip and remove resistor from heater.

Refit

1. Fit resistor to heater.
2. Connect multiplug to resistor.
3. LHD models only: Connect air inlet connector

hose.
