HEATING AND VENTILATION

REPAIRS

80-1

HEATING AND VENTILATION

REPAIRS

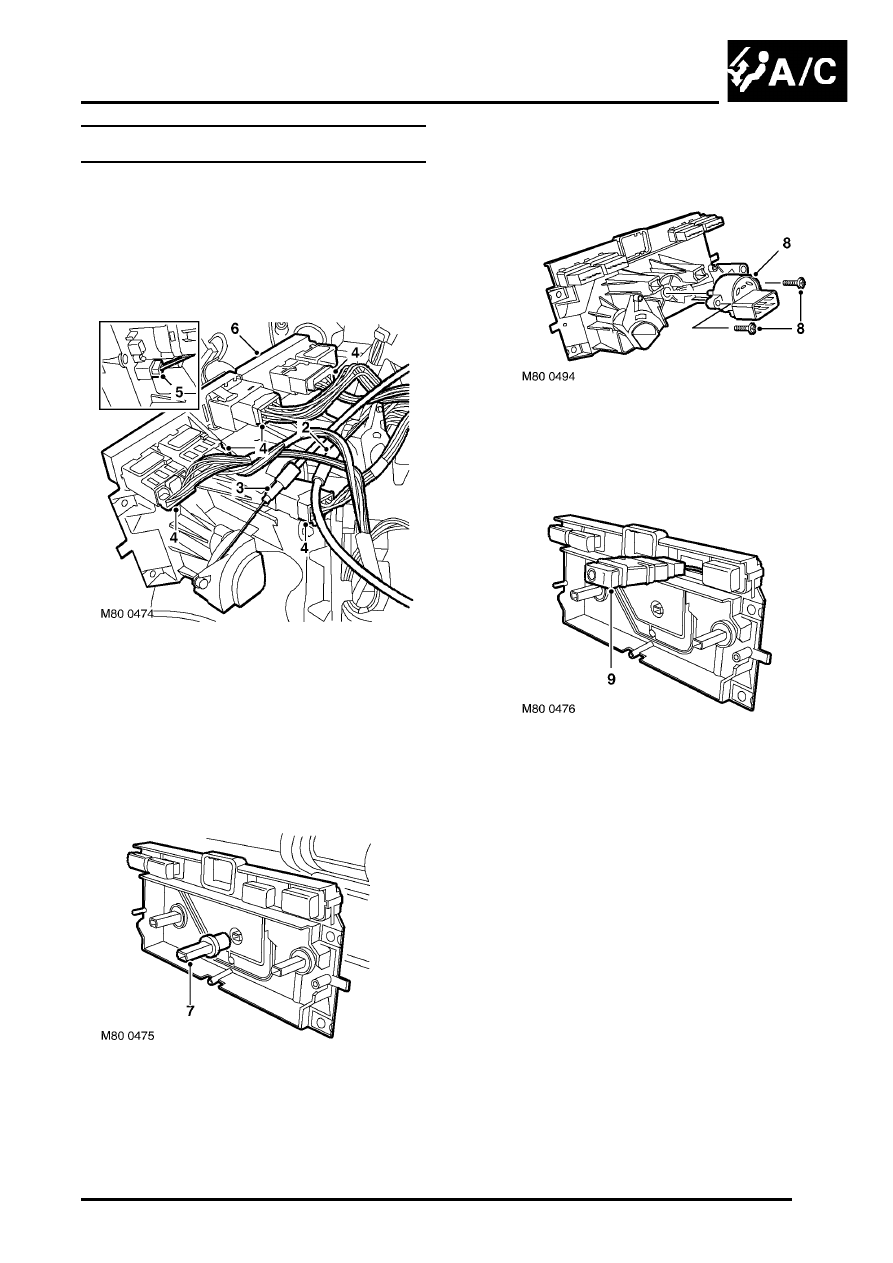

Controls - heater

$% 80.10.02

Remove

1. Remove front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

2. Release air blend control cable from control

knob and abutment.

3. Release air distribution control cable from

control knob and abutment.

4. Disconnect multiplugs from all switches.
5. Disconnect illumination multiplug.
6. Remove heater controls.

7. Remove fan speed switch drive shaft.

8. Remove 2 screws securing fan speed switch

and remove switch.

9. Remove 5 switches from heater controls.

Refit

1. Fit switches to heater control housing.
2. Fit fan speed switch and secure with screws.
3. Fit drive shaft to fan speed switch.
4. Fit heater control assembly to vehicle.
5. Connect switch and illumination multiplugs.
6. Connect air blend control cable to control knob

and abutment.

7. Connect air distribution control cable to control

knob and abutment.

8. Fit front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

HEATING AND VENTILATION

80-2

REPAIRS

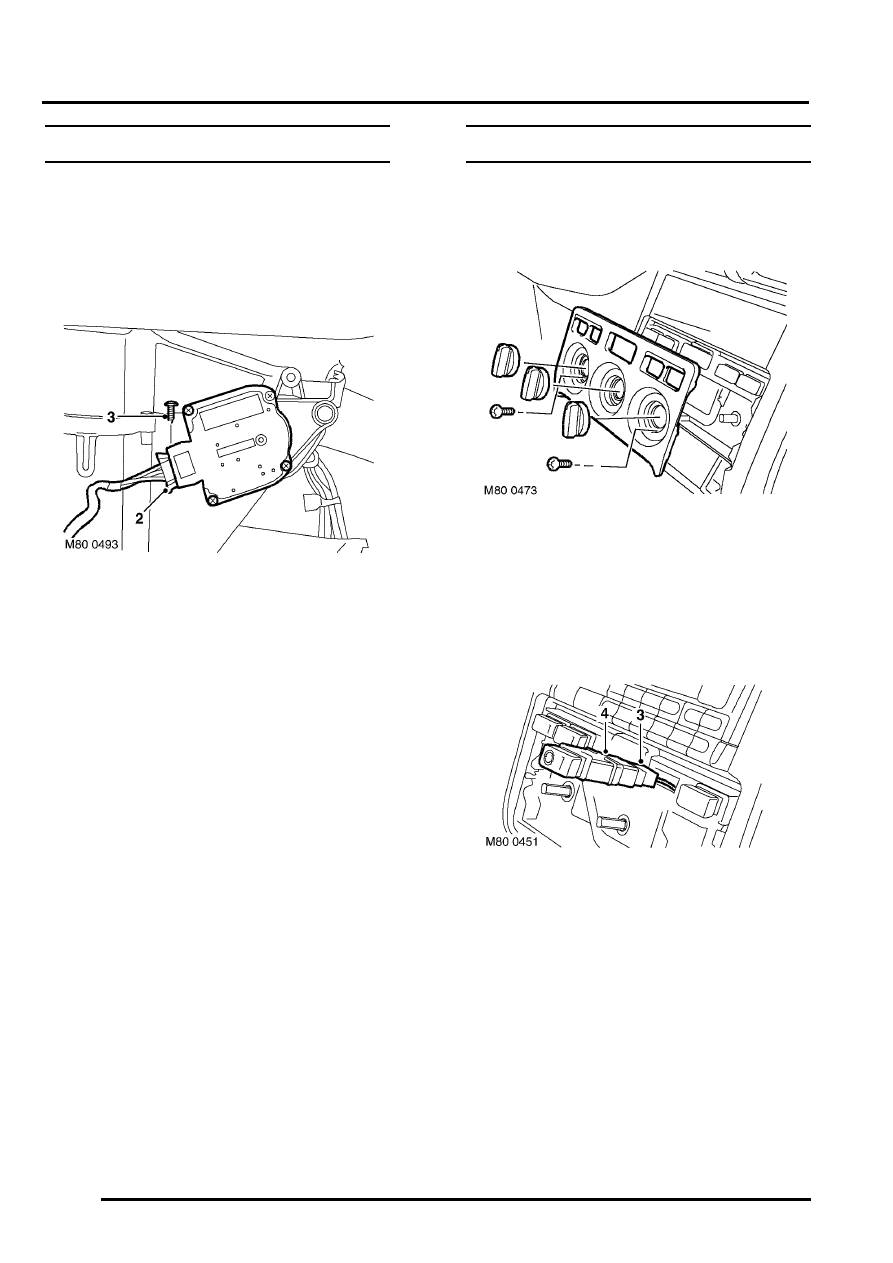

Servo - air recirculation

$% 80.10.18

Remove

1. Remove glove box.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Glove box.

2. Disconnect multiplug from servo.
3. Remove screw securing servo to evaporator

and remove servo.

Refit

1. Fit servo to evaporator and secure with screw.
2. Connect multiplug to servo.
3. Fit glove box.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Glove box.

Switch - recirculation control

$% 80.10.21

Remove

1. Remove 3 heater control knobs.
2. Remove 2 screws securing heater control

finisher to heater controls and remove finisher.

3. Release switch and disconnect multiplug.
4. Remove switch.

Refit

1. Fit recirculation switch to heater control panel

and connect multiplug.

2. Fit heater control finisher to heater controls and

secure with screws.

3. Fit heater control knobs.

HEATING AND VENTILATION

REPAIRS

80-3

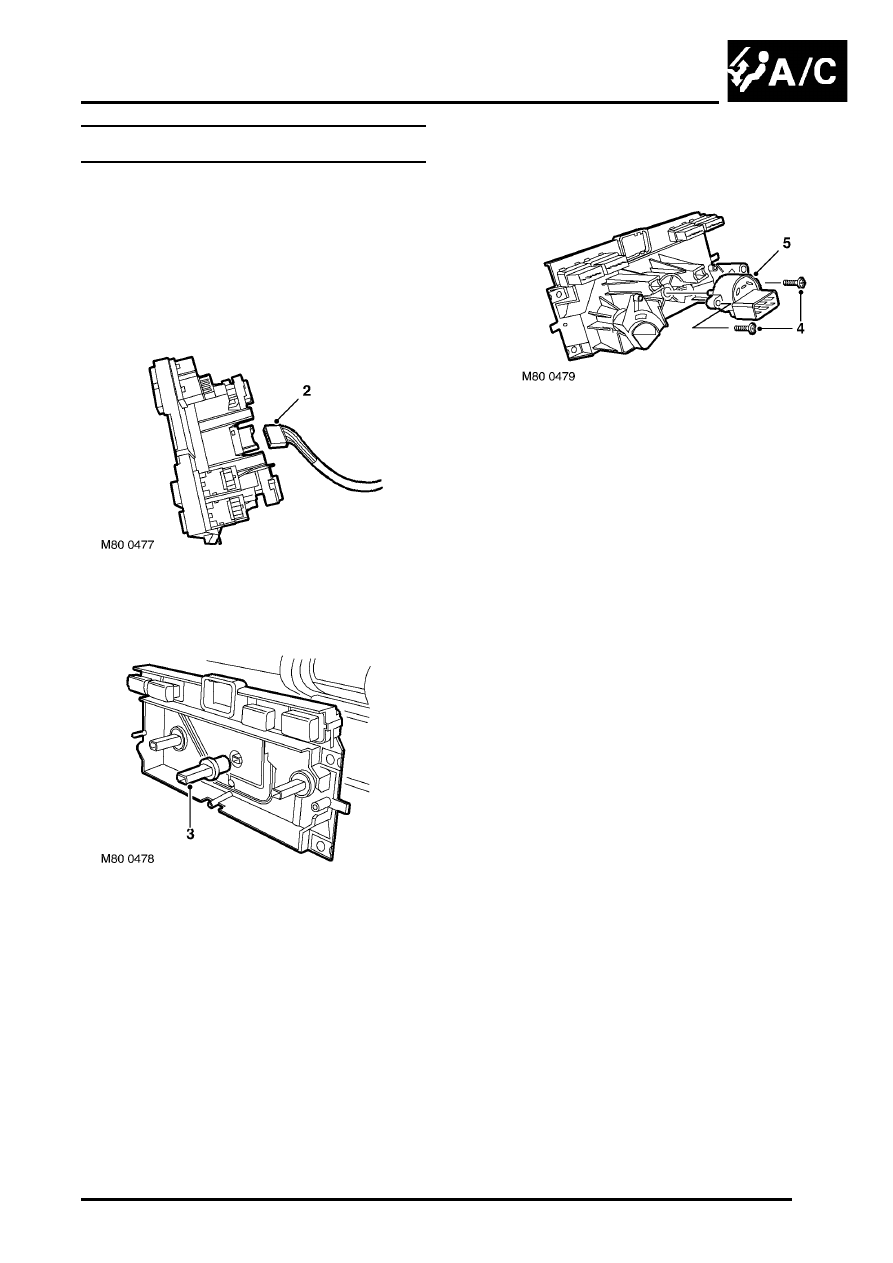

Switch - fan - front heater

$% 80.10.22

Remove

1. Remove front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

2. Disconnect multiplug from switch.

3. Remove drive shaft from switch.

4. Remove 2 screws securing switch to heater

controls.

5. Remove switch.

Refit

1. Fit switch to heater controls and secure with

screws.

2. Fit drive shaft to switch.
3. Connect multiplug to switch.
4. Fit front console.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front.

HEATING AND VENTILATION

80-4

REPAIRS

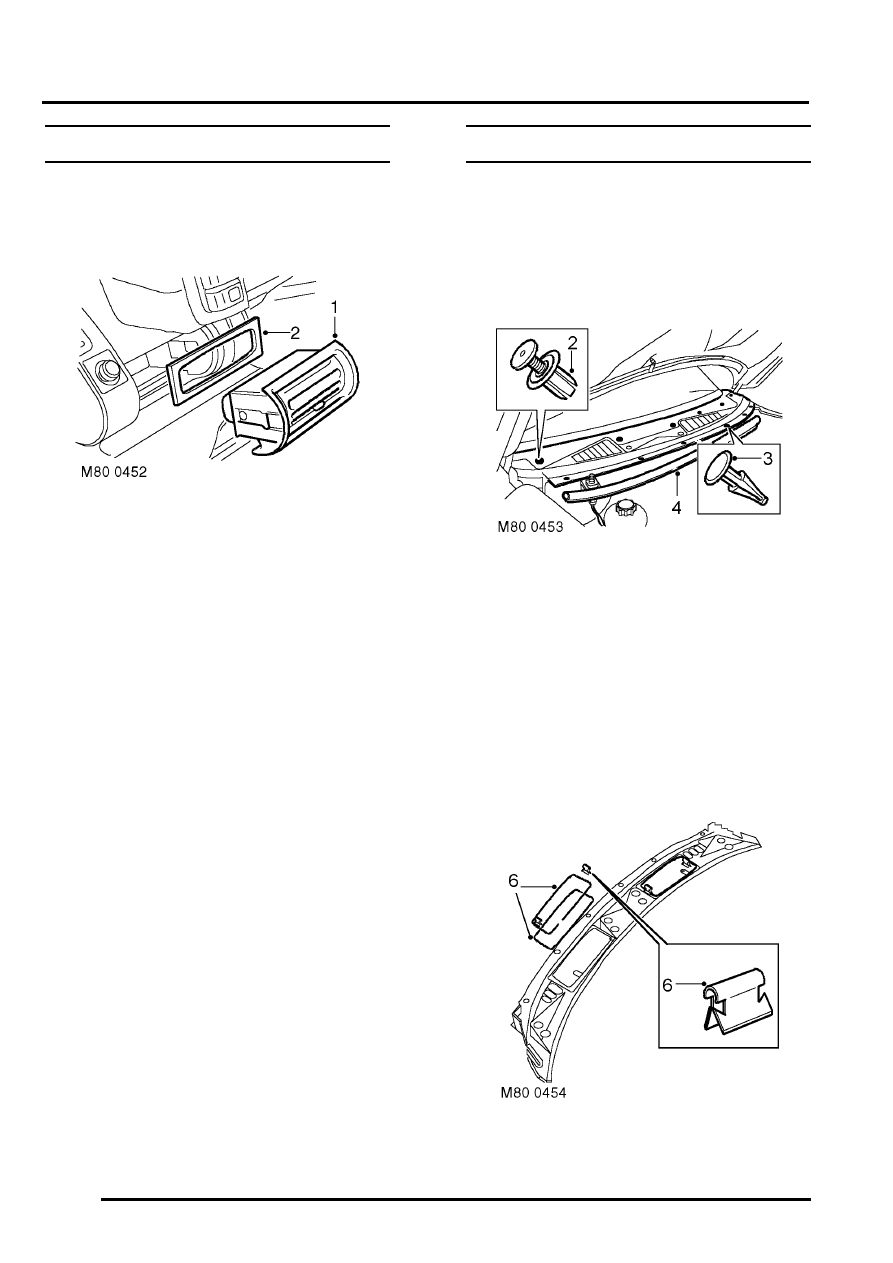

Ventilator - face level - LH

$% 80.15.05

Remove

1. Protect fascia and carefully lever vent from

fascia.

2. Remove and discard seal.

Refit

1. Fit new seal to vent.
2. Fit vent to fascia.

Plenum - air intake

$% 80.15.62

Remove

1. Remove both wiper arms.



 +

 WIPERS AND WASHERS, REPAIRS,

Arm - wiper - each.

2. Remove 6 studs securing rear edge of air

intake moulding.

3. Remove 6 studs securing front edge of

moulding and bonnet sealing rubber to engine
bulkhead.

4. Remove air intake moulding and bonnet

sealing rubber.

NOTE: Do not carry out further dismantling if
component is removed for access only.

5. Remove bonnet sealing rubber from air intake

moulding.

6. Remove 4 clips securing air intake filter

retainers. Remove retainers and filters.
