Freelander 1. Manual - part 249





PANEL REPAIRS

REPAIRS 77-2-59

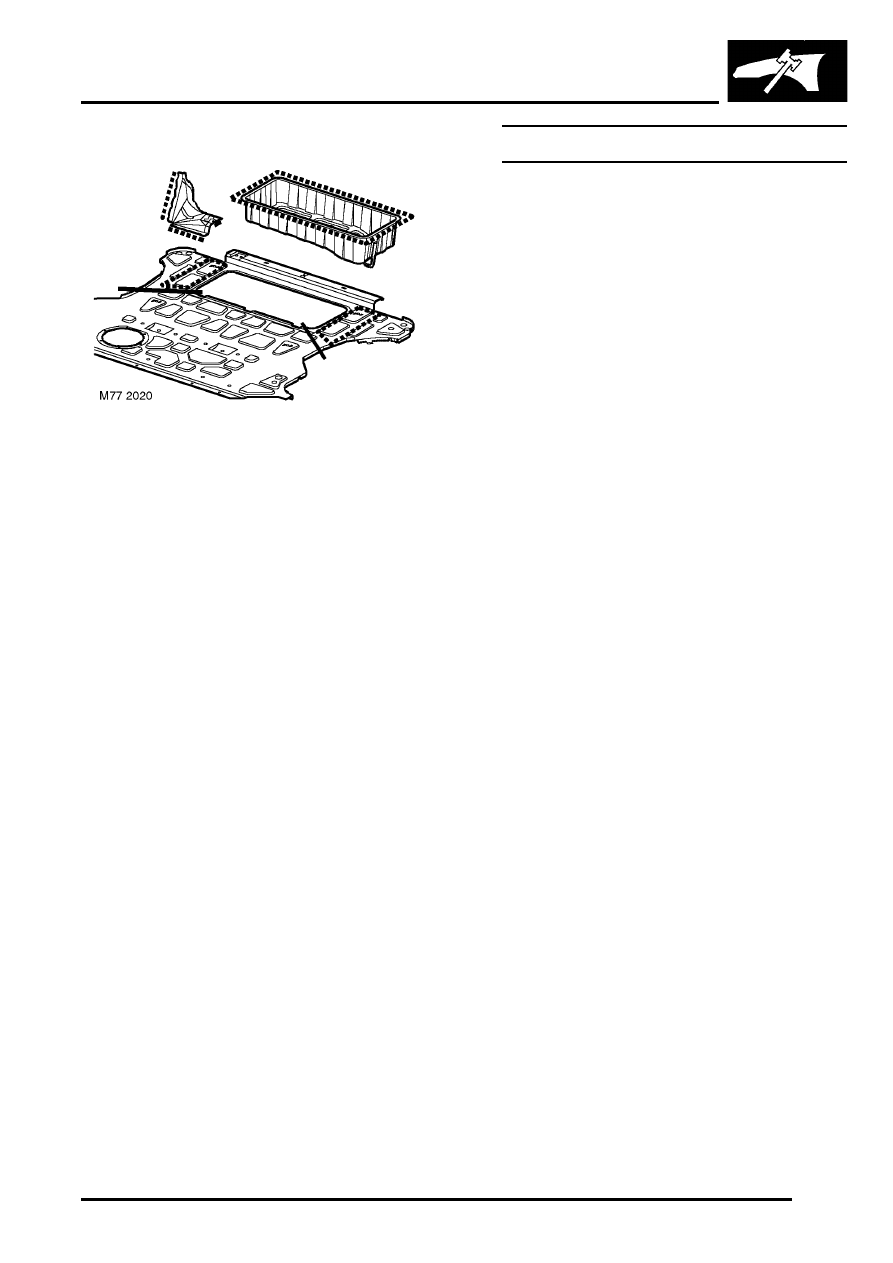

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Secure vehicle harness to rear body lower

closing.

2. Fit fuel tank.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Tank.

3. Fit loadspace carpet.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Carpet - luggage compartment.

4. Fit LH and RH rear quarter lower casings.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - lower
- 5 door.

5. Fit tail door aperture seal.
6. Fit tail door.



 +

 DOORS, REPAIRS, Door - tail

assembly - remove for access & refit.

7. Fit tail exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Exhaust pipe - tail.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
tail.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Tail pipe &
silencer.

8. Connect all ECUs.
9. Connect alternator.

10. Connect battery earth lead.

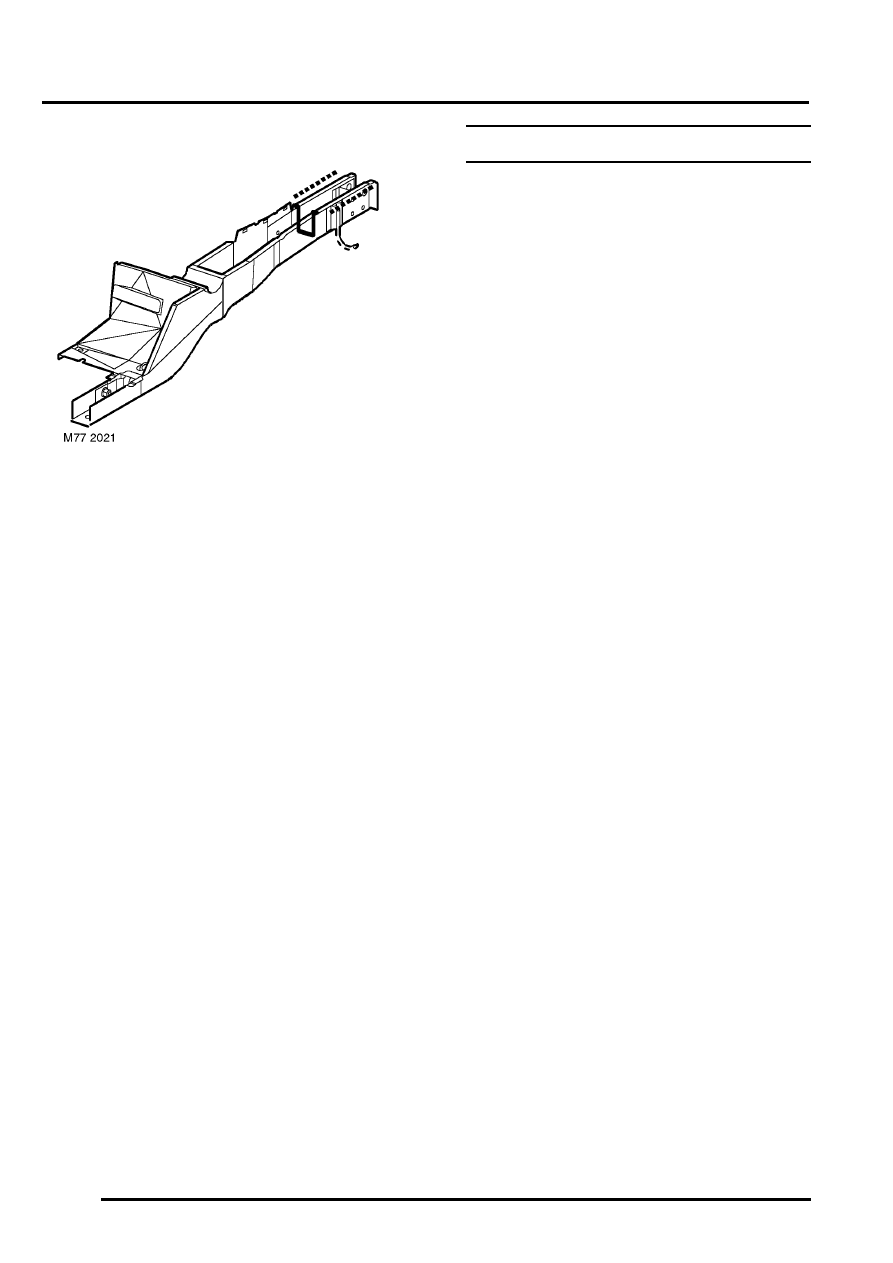

Floor longitudinal

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove tail exhaust pipe



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Exhaust pipe - tail.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
tail.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Tail pipe &
silencer.

5. Remove tail door



 +

 DOORS, REPAIRS, Door - tail

assembly - remove for access & refit.

6. Remove tail door aperture seal.
7. Remove LH and RH rear quarter lower casings.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - lower
- 5 door.

8. Remove loadspace carpet.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Carpet - luggage compartment.

9. Remove fuel tank.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Tank.

10. Release vehicle harness from rear body lower

closing and position aside.

PANEL REPAIRS

77-2-60 REPAIRS

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Secure vehicle harness to rear body lower

closing.

2. Fit fuel tank.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Tank.

3. Fit loadspace carpet.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Carpet - luggage compartment.

4. Fit LH and RH rear quarter lower casings.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - lower
- 5 door.

5. Fit tail door aperture seal.
6. Fit tail door.



 +

 DOORS, REPAIRS, Door - tail

assembly - remove for access & refit.

7. Fit tail exhaust pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Exhaust pipe - tail.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
tail.


 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Tail pipe &
silencer.

8. Connect all ECUs.
9. Connect alternator.

10. Connect battery earth lead.

Front roof assembly - 3 door

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove LH and RH front roof panel finishers.
5. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

6. Remove sunroof assembly.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 3 door.

7. Remove windscreen



 +

 SCREENS, REPAIRS, Windscreen.

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. There are
no plug welds used in this procedure, spot
welds only.

Refit

1. Fit windscreen.



 +

 SCREENS, REPAIRS, Windscreen.

2. Fit sunroof.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 3 door.

3. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

4. Fit LH and RH front roof panel finishers.
5. Connect all ECUs.
6. Connect alternator.
7. Connect battery earth lead.

PANEL REPAIRS

REPAIRS 77-2-61

Rear roof assembly - 3 door

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove soft/hard top.
5. Remove LH and RH rear roof panel finishers.
6. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

7. Remove sunroof.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 3 door.

8. Remove aerial.



 +

 IN CAR ENTERTAINMENT,

REPAIRS, Aerial - manual - 3 door.

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. There are
no plug welds used in this procedure, spot
welds only.

Refit

1. Fit aerial.



 +

 IN CAR ENTERTAINMENT,

REPAIRS, Aerial - manual - 3 door.

2. Fit sunroof.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 3 door.

3. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

4. Fit LH and RH rear roof panel finishers.
5. Fit soft/hard top.
6. Connect all ECUs.
7. Connect alternator.
8. Connect battery earth lead.

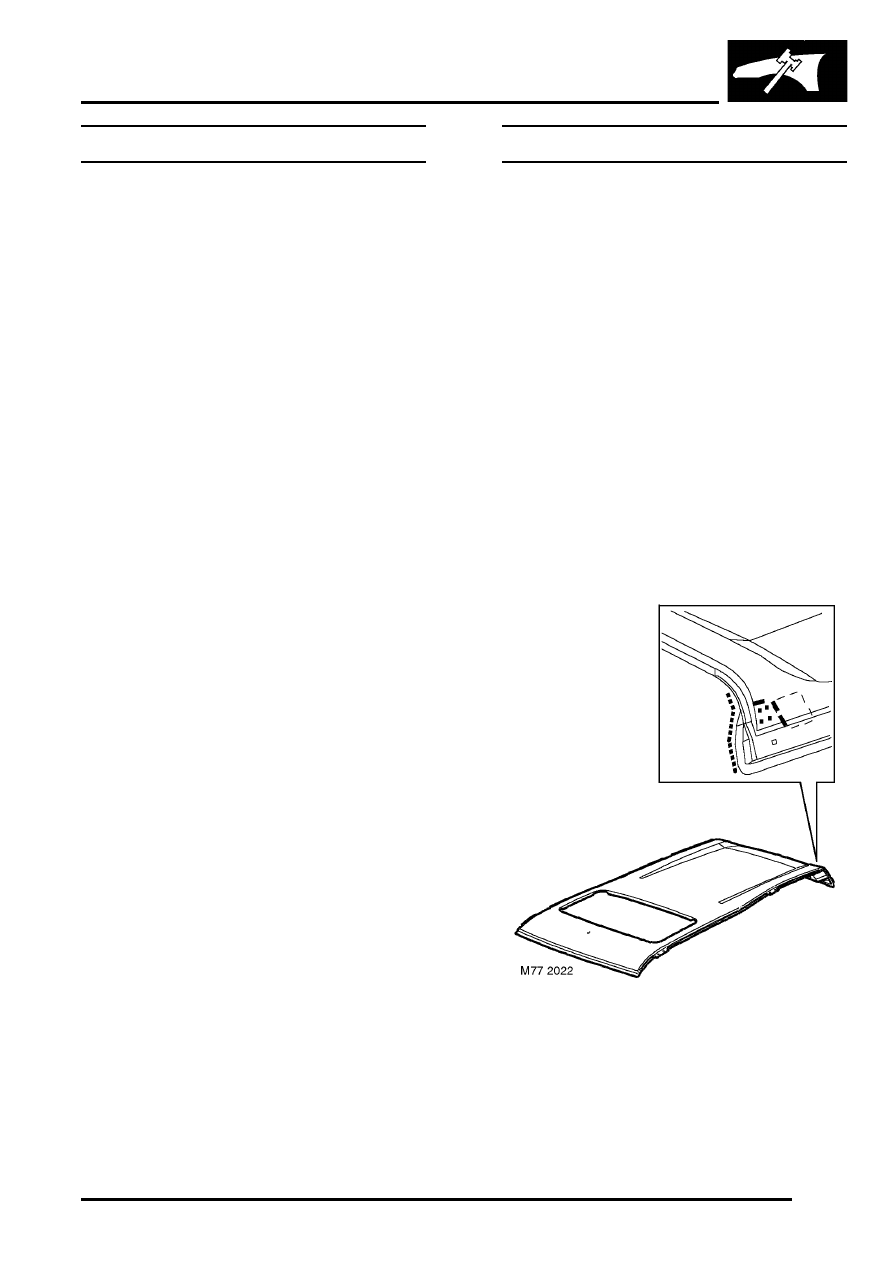

Roof assembly - 5 door

Remove

1. Disconnect battery earth lead.
2. Disconnect alternator.
3. Disconnect all ECUs.
4. Remove tail door glass upper finisher.
5. Remove LH and RH roof panel finishers.



 +

 EXTERIOR FITTINGS, REPAIRS,

Moulding - roof - 5 door.

6. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.

7. If applicable, remove sunroof.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 5 door.

8. Remove aerial.



 +

 IN CAR ENTERTAINMENT,

REPAIRS, Aerial - manual - 5 door.

9. Remove windscreen



 +

 SCREENS, REPAIRS, Windscreen.

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

PANEL REPAIRS

77-2-62 REPAIRS

Refit

1. Fit windscreen.



 +

 SCREENS, REPAIRS, Windscreen.

2. Fit aerial.



 +

 IN CAR ENTERTAINMENT,

REPAIRS, Aerial - manual - 5 door.

3. If applicable, fit sunroof.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 5 door.

4. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.

5. Fit LH and RH roof panel finishers.



 +

 EXTERIOR FITTINGS, REPAIRS,

Moulding - roof - 5 door.

6. Fit tail door glass upper finisher.
7. Connect all ECUs.
8. Connect alternator.
9. Connect battery earth lead.
