BODY DIMENSIONS

BODY DIMENSIONS

77-1-3

Dimensional Illustrations

X,Y,Z Dimensional Information

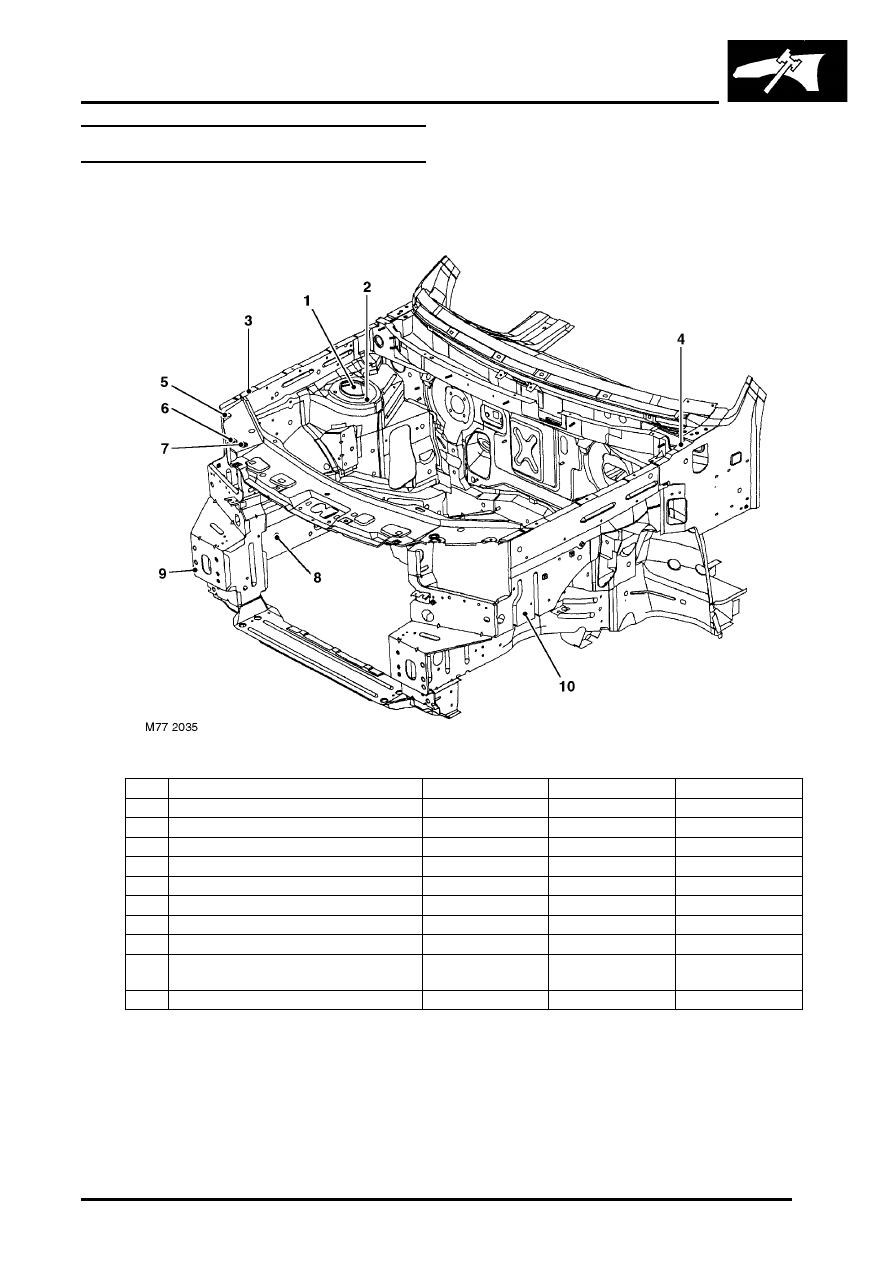

Front end dimensional information

No.

Description

X

Y

Z

1

Front damper large hole

977 (38.464)

578.5 (22.775)

718.5 (28.287)

2

Front damper, inboard fixing hole

975.4 (38.401)

514.9 (20.271)

693.7 (27.311)

3

Wing, front fixing

605 (23.818)

669 (26.338)

806 (31.732)

4

Wing, rear fixing,

1220 (48.031)

690 (27.165)

848.2 (33.393)

5

Outboard headlamp fixing hole

465 (18.307)

615 (24.212)

788 (31.023)

6

Inboard headlamp fixing hole

377 (14.842)

485 (19.094)

772 (30.393)

7

Bonnet locking platform, jig location hole

390 (15.354)

445 (17.519)

765 (30.118)

8

Sidemember, jig location hole

500 (19.685)

446 (17.559)

388 (15.275)

9

Headlamp mounting panel, jig location
hole

239 (9.409)

536 (21.102)

335 (13.188)

10

Front valance, jig location hole

540 (21.259)

671.7 (26.444)

525 (20.669)

BODY DIMENSIONS

77-1-4

BODY DIMENSIONS

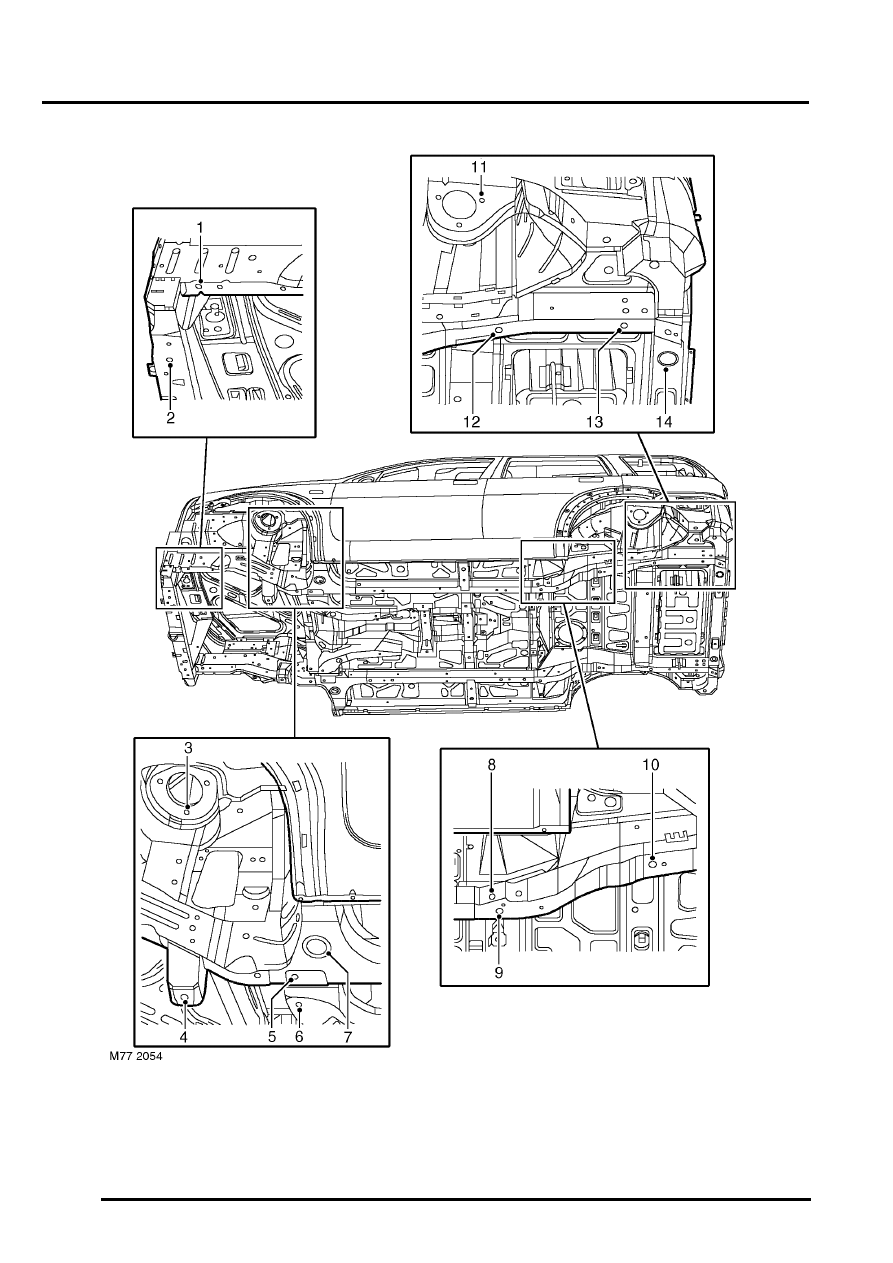

Underbody dimensional information

BODY DIMENSIONS

BODY DIMENSIONS

77-1-5

No.

Description

X

Y

Z

1

Front sidemember, jig location hole

420 (16.534)

481 (18.937)

312 (12.283)

2

Front crossmember, jig location hole

340.5 (13.405)

350 (13.779)

154 (6.062)

3

Front damper, inboard fixing hole

975.5 (38.405)

515 (20.275)

693.5 (27.303)

4

Front subframe, front fixing

1036 (40.787)

386 (15.196)

98 (3.858)

5

Front subframe, rear outboard fixing

1326 (52.204)

429.5 (16.909)

127 (5.0)

6

Front subframe, rear inboard fixing

1326 (52.204)

330 (12.992)

127 (5.0)

7

Outrigger panel, jig location hole

1395 (54.921)

535 (21.062)

125 (4.921)

8

Link arm fixing, centre hole

2765 (108.858)

463 (18.228)

160 (6.299)

9

Rear longitudinal front, jig location
hole

2900 (114.173)

432 (17.007)

131.5 (5.177)

10

Rear subframe, front mounting hole

3302 (130.0)

465 (18.307)

274.5 (10.807)

11

Spring location, rear fixing hole

3636 (143.149)

610 (24.015)

728.5 (28.681)

12

Rear subframe, rear fixing

3671.5 (144.547)

515 (20.275)

305 (12.007)

13

Rear longitudinal rear, jig location
hole

4000 (157.480)

527 (20.748)

305 (12.007)

14

Rear crossmember, jig location hole

4122.5 (162.303)

410 (16.141)

301 (11.850)

BODY DIMENSIONS

77-1-6

BODY DIMENSIONS

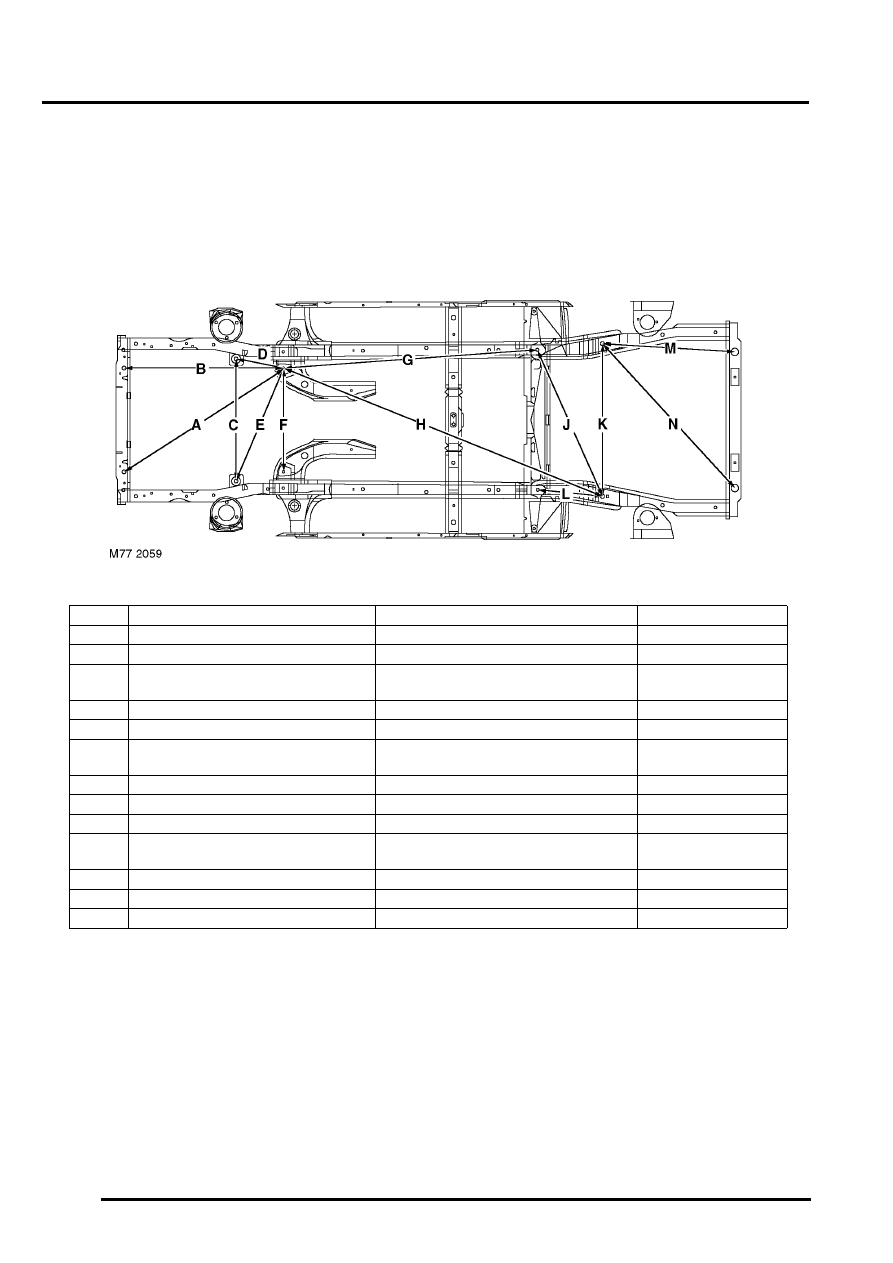

Under body information

Item

From

To

Length

A

Front crossmember, jig location hole

Front subframe, rear mounting hole

1197.3 (47.137)

B

Front crossmember, jig location hole

Front subframe, rear mounting hole

985.7 (38.807)

C

Front Subframe, front mounting hole
`LH`

Front subframe, front mounting hole `RH`

772.0 (30.393)

D

Front subframe, front mounting hole

Front subframe, rear mounting hole

295.3 (11.625)

E

Front subframe, front mounting hole

Front subframe, rear mounting hole

772.5 (30.413)

F

Front subframe, rear mounting hole
`RH`

Front subframe rear mounting hole `LH`

660.0 (25.984)

G

Front subframe, rear mounting hole

Rear longitudinal front, jig location hole

1577.3 (62.098)

H

Front subframe, rear mounting hole

Rear subframe, front mounting hole

2129.9 (83.854)

J

Rear longitudinal front, jig location hole

Rear subframe, front mounting hole

983.0 (38.700)

K

Rear subframe, front mounting hole
`LH`

Rear subframe front mounting hole `RH`

930.0 (36.614)

L

Rear longitudinal front, jig location hole

Rear subframe, front mounting hole

403.4 (15.881)

M

Rear subframe, front mounting hole

Rear crossmember, jig location hole

822.3 (32.374)

N

Rear subframe, front mounting hole

Rear crossmember, jig location hole

1199.5 (47.224)
