HOOD

REPAIRS

76-7-9

3. Remove Torx screw securing roof finisher to

hard-back retainer.

4. Remove 3 Torx screws securing hard-back

retainer and remove retainer.

Refit

1. Position hard-back retainer,  fit  Torx screws

and tighten to 10Nm (7.5 lbf.ft).

2. Fit Torx screw securing roof finisher.
3. Position catch, fit Torx screws and tighten to  10

Nm (7.5 lbf.ft).

Ensure formed washer is correctly located
in catch recess.

4. Fit hard-back.



 +

 HOOD, REPAIRS, Frame & hood

cover - assembly - remove for access & refit.

Catch and retainer - hard-back - rear

$% 76.61.95

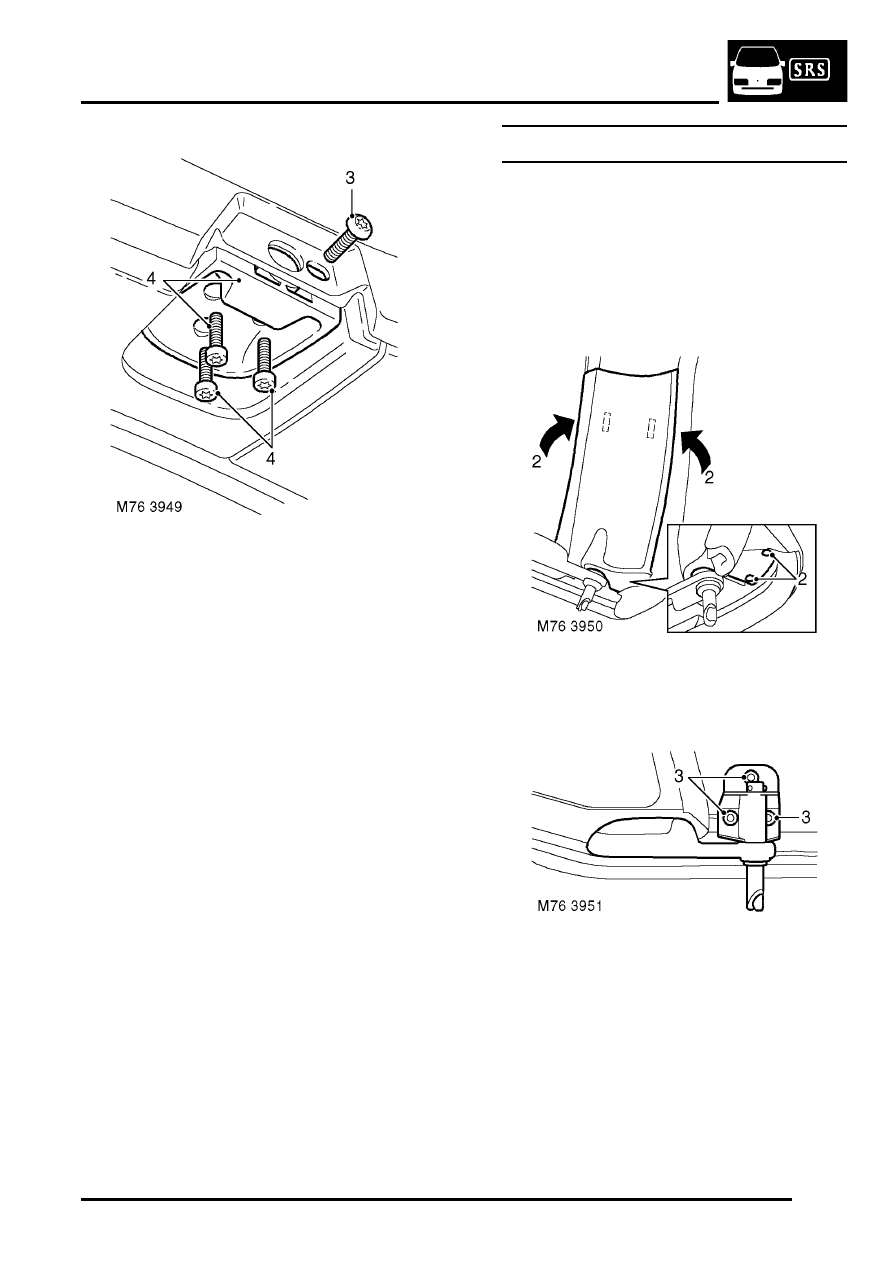

Remove

1. Remove hard-back or soft-back.



 +

 HOOD, REPAIRS, Hard top - remove

for access & refit.


 +

 HOOD, REPAIRS, Hard top - remove

for access & refit.

2. Remove 2 screws securing 'E' post finisher,

release finisher from 2 clips and remove
finisher.

3. Remove 3 Torx screws securing catch and

remove catch.

4. Remove lower rear quarter trim casing.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - lower
- 3 door.

HOOD

76-7-10 REPAIRS

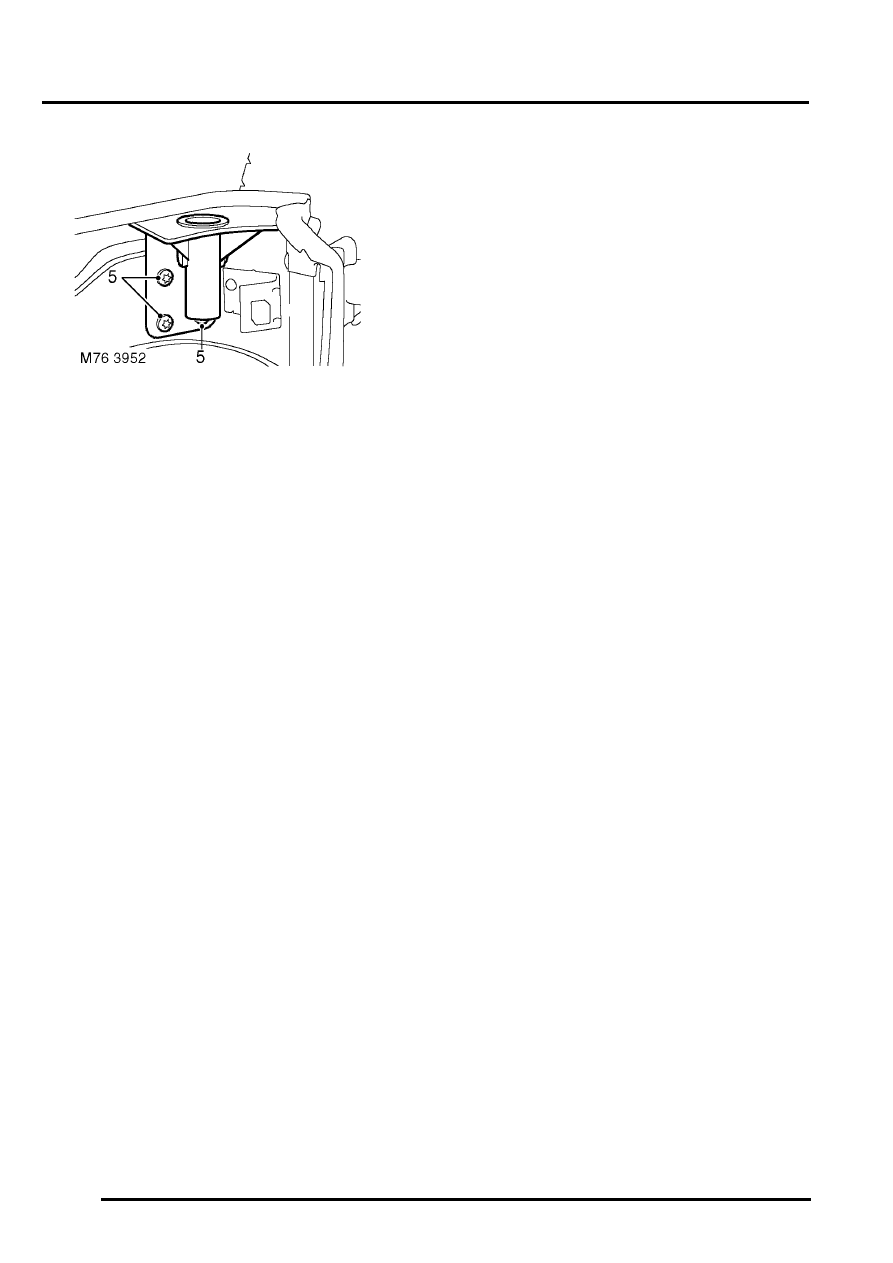

5. Remove 3 Torx screws securing hard-back

retainer and remove retainer.

Refit

1. Position catch, fit Torx screws and tighten to

10Nm (7.5 lbf.ft).

2. Position 'E' post finisher, engage in clips and

secure with screws.

3. Position hard-back retainer, fit  Torx screws

and tighten to 10 Nm (7.5 lbf.ft).

4. Fit lower rear quarter trim casing.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - rear quarter - lower
- 3 door.

5. Fit hard-back or soft-back.



 +

 HOOD, REPAIRS, Hard top - remove

for access & refit.


 +

 HOOD, REPAIRS, Frame & hood

cover - assembly - remove for access & refit.

BODY DIMENSIONS

BODY DIMENSIONS

77-1-1

BODY DIMENSIONS

BODY DIMENSIONS

Dimensional Information

Measurement Types
The following dimensional information is shown so as to assist the technician in the diagnosis and repair of body
panels. The information is shown in two different ways. There are X,Y,Z dimensions and actual point to point
dimensions.

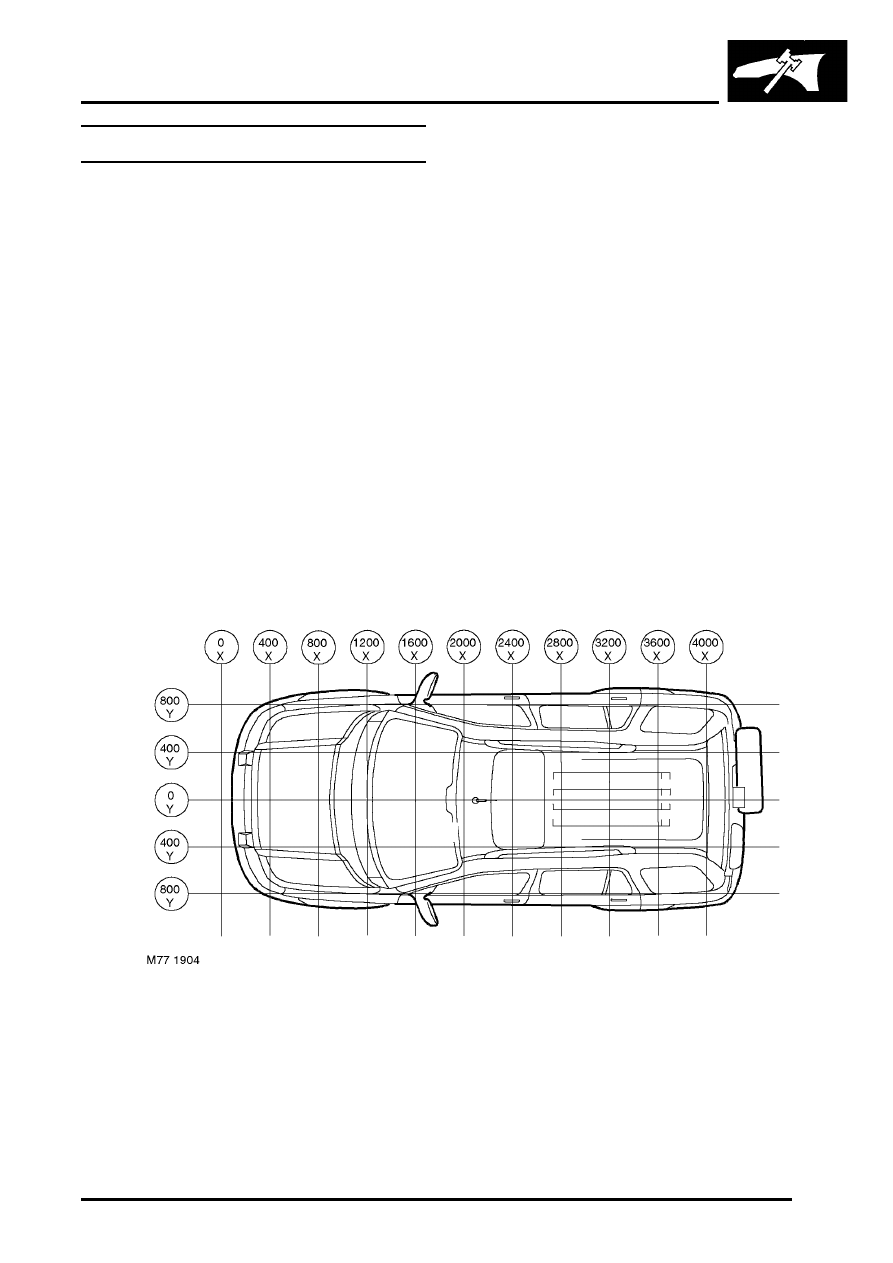

The X,Y,Z dimensions are the measuring planes used within Land Rover for the measurement of body panels. The
whole bodyshell is within a parallel grid system, see illustrations below.

The X plane is an imaginary vertical plane starting at the front of the vehicle. It is at right angles to the centre line of
the vehicle and measures distances along the length of the vehicle.

The Y plane is an imaginary plane through the centre of the vehicle. All Y dimensions start from this plane. As a rule,
body dimensions are symmetrical about the centre line.

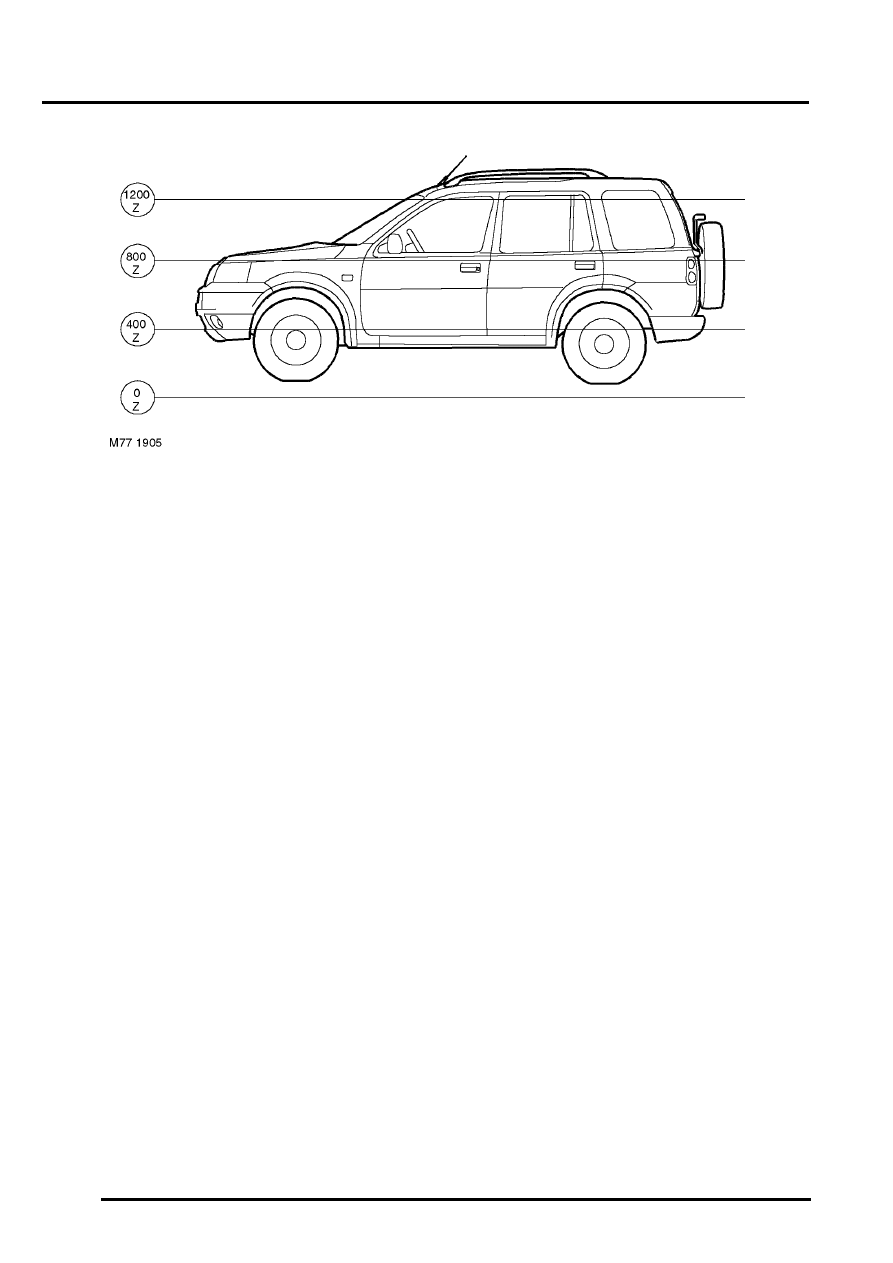

The Z plane is set at a fixed distance parallel to the underside of the vehicle. All Z dimensions start from this plane.

The point to point measurements are actual distances between two points. These points can be holes or intersection
points. Where holes are taken, the point of measurement is always from the hole centre.

Measurements shown are in millimetres and inches. The measurements shown in brackets are in inches.

The tolerance for the basic geometry of the vehicle is

±

 1.0 mm (0.040). This includes tooling holes, all fixing holes

and apertures.

The tolerance for matching panel form and break lines is

±

 0.5 mm (0.020).

BODY DIMENSIONS

77-1-2

BODY DIMENSIONS
