Freelander 1. Manual - part 226

SUNROOF

REPAIRS

76-6-9

Finisher - flange to headlining - front

$% 76.84.25

Remove

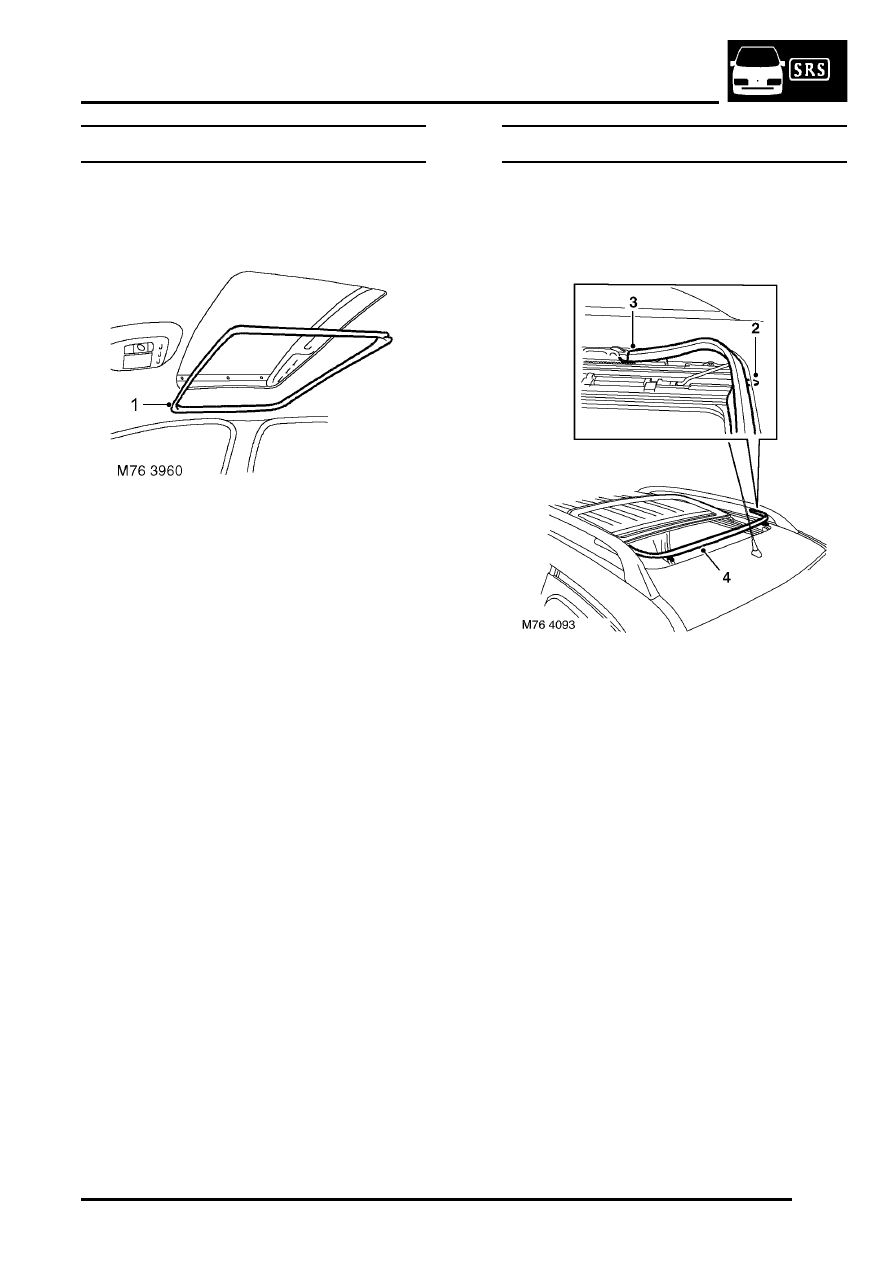

1. Release sun roof surround finisher from sun

roof aperture and remove finisher.

Refit

1. Position sun roof surround finisher and secure

in position, ensure locating lug is in position at
the front of finisher.

Wind deflector - sun/sliding roof - 5 door

$% 76.84.28

Remove

1. Open sun roof.

2. Carefully release wind deflector retaining pegs

from roof.

3. Release wind deflector from lifting assemblies.
4. Remove wind deflector.

Refit

1. Position wind deflector to lifting assemblies and

secure in position.

2. Carefully locate retaining pegs under roof.
3. Close sun roof.

SUNROOF

76-6-10 REPAIRS

Sun blind - front - one - 5 door

$% 76.84.30

Remove

1. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.

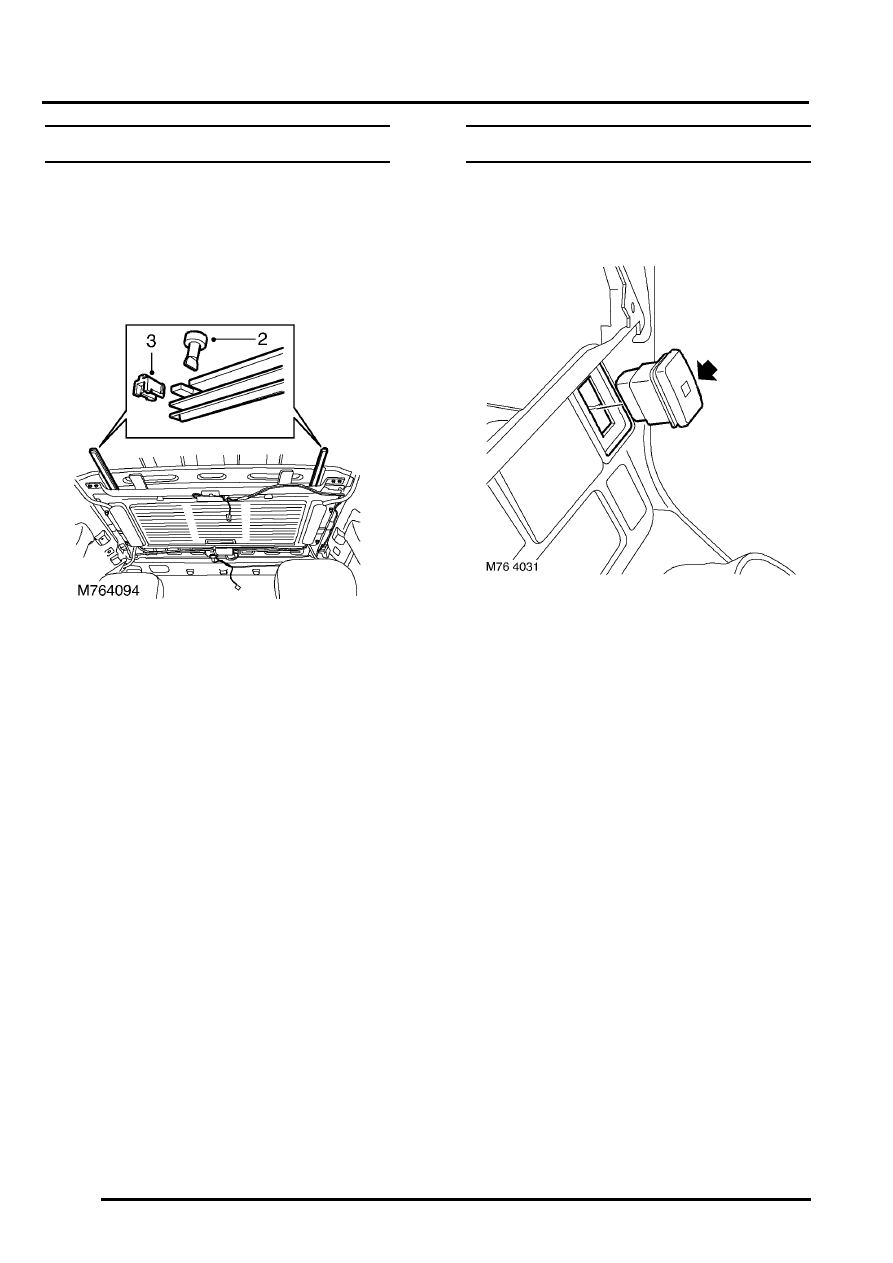

2. Remove 2 blind stops.
3. Remove 2 rubber buffers.
4. Slide blind to the rear of sun roof and remove

from guides.

Refit

1. Lubricate guides with isoflex grease.
2. Fit blind to guides and slide into position.
3. Fit blind stops and rubber buffers.
4. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.

Switch - sun/sliding roof - front

$% 76.84.40

Remove

1. Release switch from front console.
2. Disconnect multiplug and remove switch.

Refit

1. Position switch and connect multiplug.
2. Fit switch to front console.

SUNROOF

REPAIRS 76-6-11

Seal - tray - sun /sliding roof - front - 5
door

$% 76.84.61

Remove

1. Remove sun roof assembly.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 5 door.

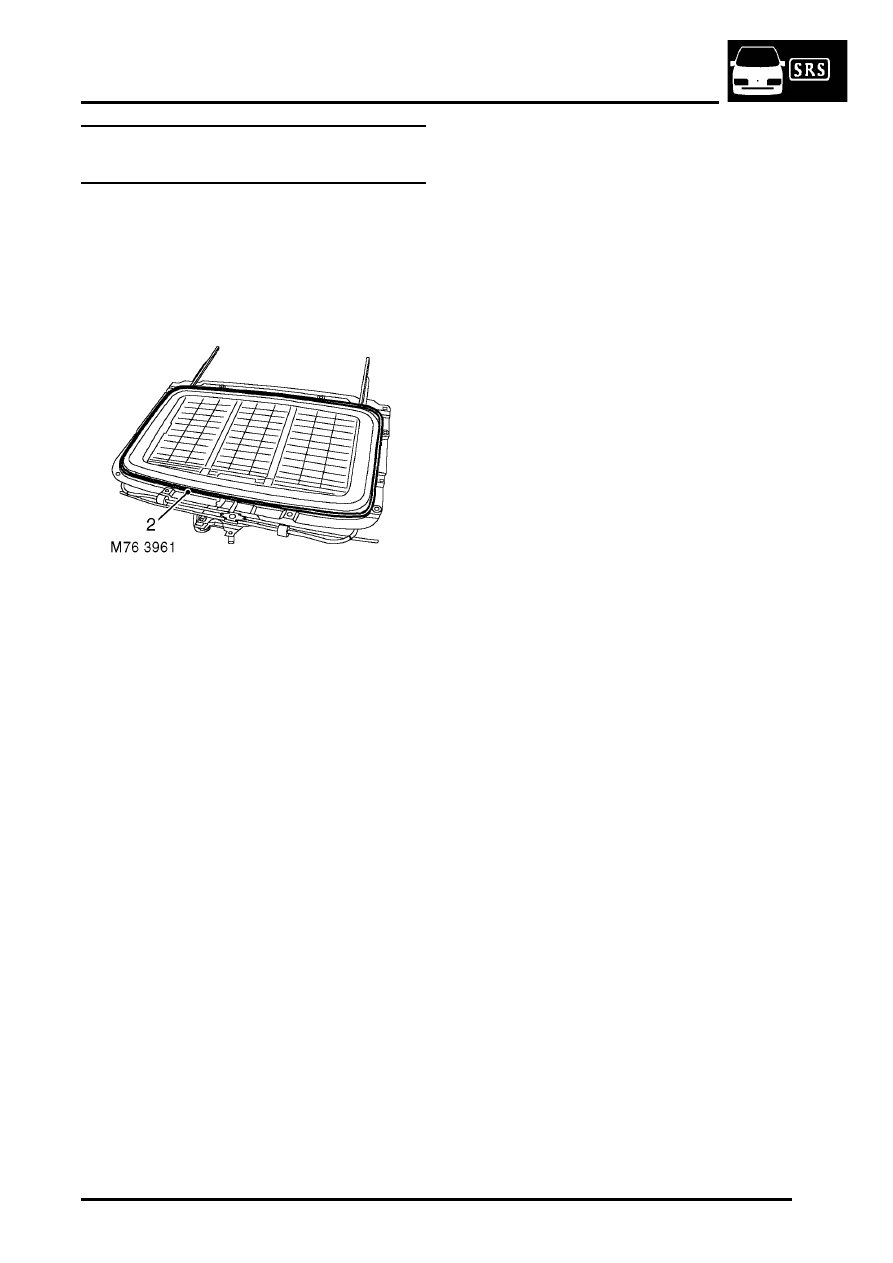

2. Remove sun roof tray seal.

Refit

1. Clean old adhesive from tray.
2. Remove backing from new seal and fit seal to

tray.

3. Fit sun roof assembly.



 +

 SUNROOF, REPAIRS, Sun/sliding

roof - complete - front - 5 door.

SUNROOF

76-6-12 REPAIRS
