RESTRAINT SYSTEMS
REPAIRS
75-23

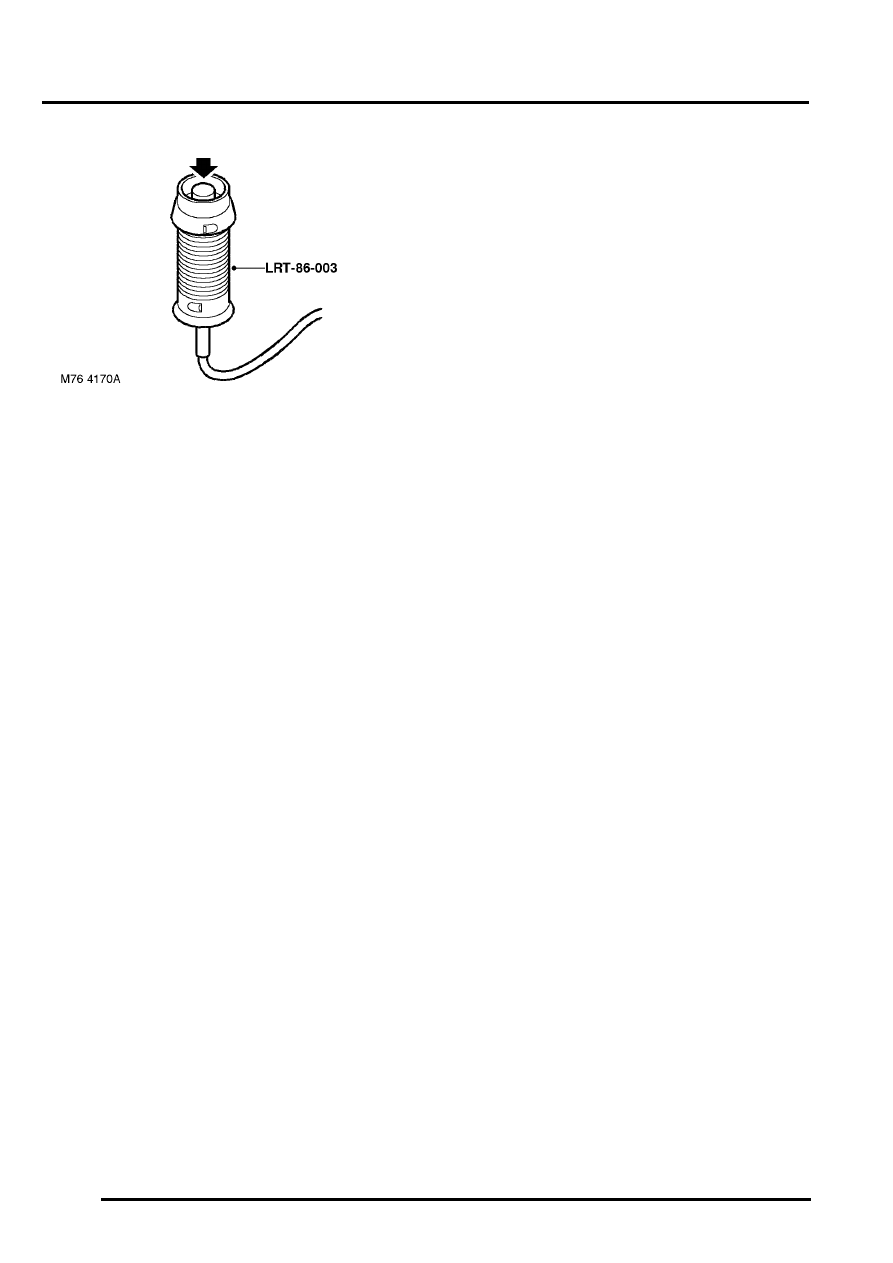

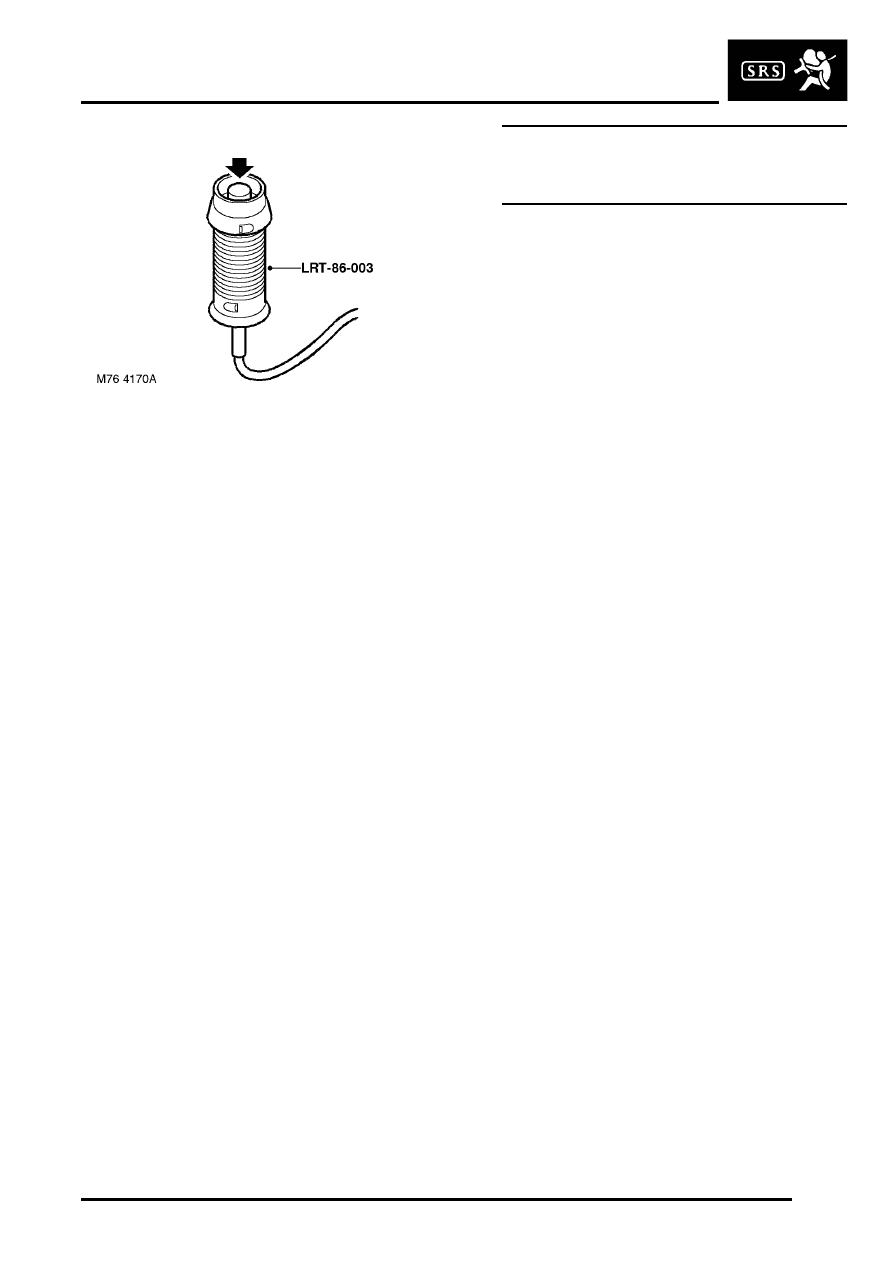

9. Press deployment tool operating button to
deploy airbag module.
10. DO NOT return to airbag module for 30
minutes.
WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.
WARNING: Wear a face shield and gloves
when handling a deployed airbag module.
Wash your hands and rinse them well with
water after handling a deployed airbag
module.

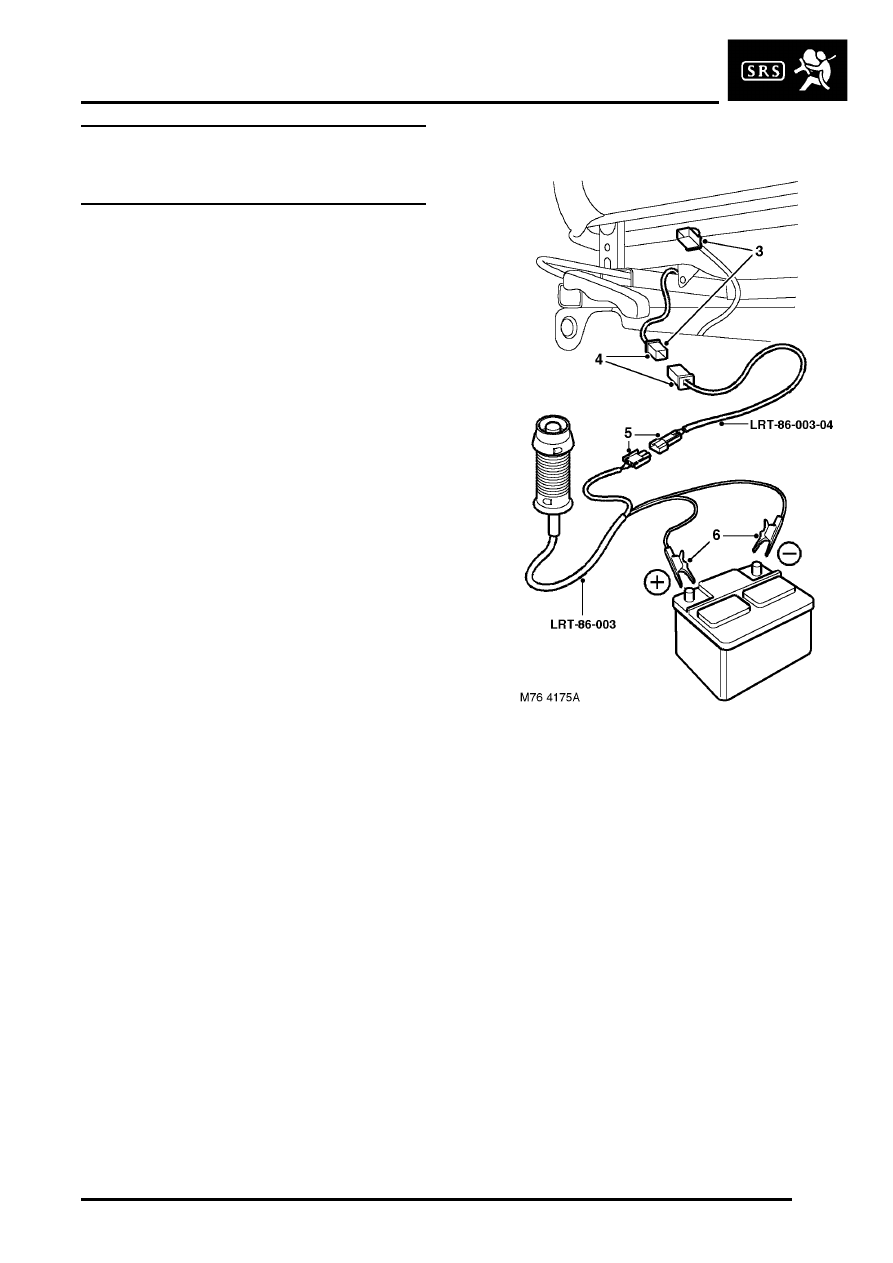

11. Release passenger airbag module and
disconnect deployment tool flylead LRT-86–
003–04.
12. Remove passenger airbag module from
vehicle.
+
RESTRAINT SYSTEMS, REPAIRS,
Air bag - fascia - passenger.
13. Place passenger airbag module in a strong
plastic bag and seal bag.
14. Transport deployed airbag module to
designated area for incineration.
NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.
15. If the vehicle is being scrapped, scrap all
remaining parts of the SRS system. DO NOT
re-use or salvage any parts of the SRS system.
NOTE: If the vehicle is not being scrapped,
ensure all dust/particle by-products of airbag
deployment are removed from vehicle interior;
vacuum all fabric surfaces and wipe all other
surfaces with a damp cloth.

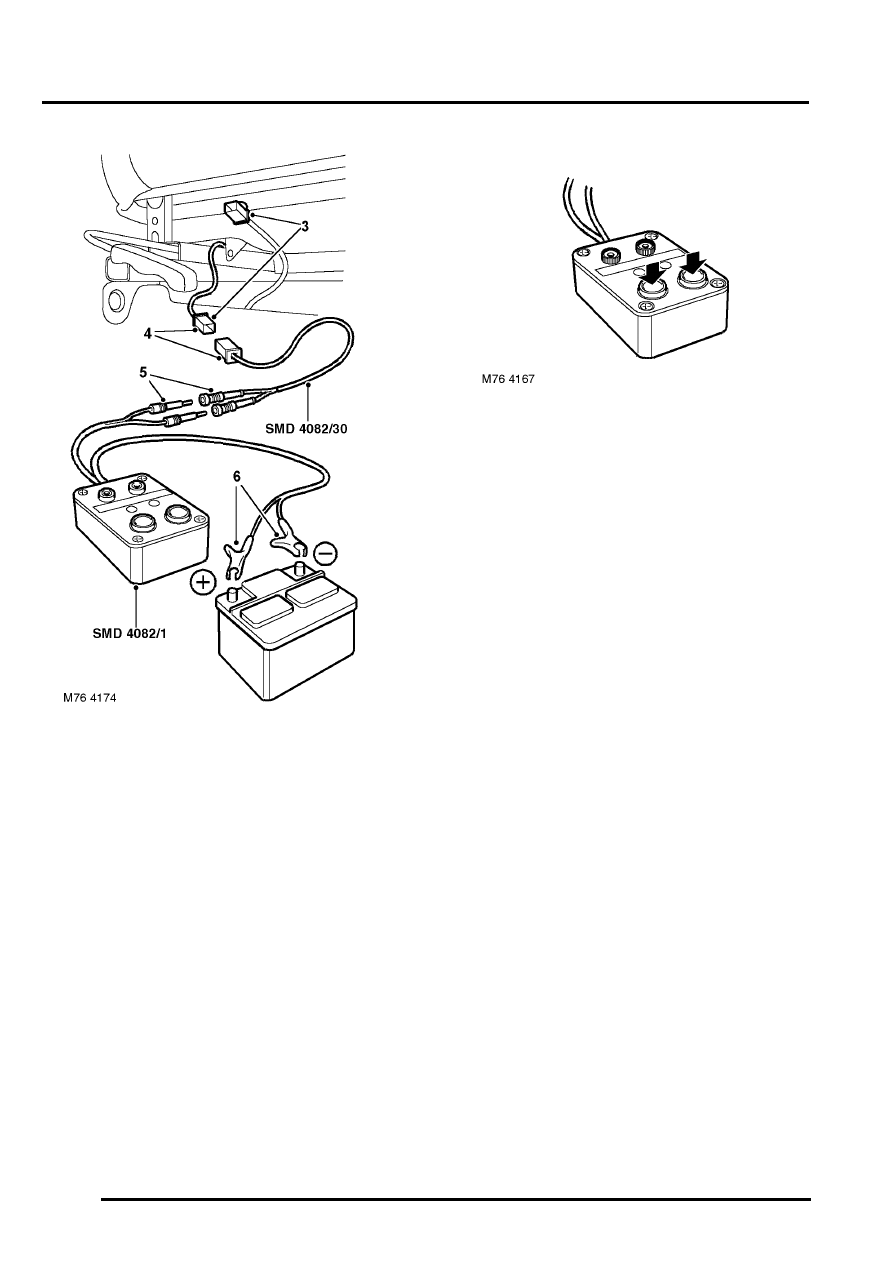

Pre-tensioner - front seatbelt -
deployment using deployment tool SMD
4082/1 (in-vehicle)
$% 76.74.99
These guidelines are written to aid authorised
personnel to carry out the safe deployment and
disposal of seatbelt pre-tensioners when they are still
fitted in the vehicle.
If a vehicle is to be scrapped and contains an
undeployed pre-tensioner, the pre-tensioner
must be manually deployed. This operation
should only be carried out using the following
recommended manual deployment procedure.
Before deployment is started the deployment
tool self test procedure should be carried out.
WARNING: Only use approved deployment
equipment, and only deploy SRS components in
a well ventilated designated area. Ensure SRS
components are not damaged or ruptured before
deployment. Notify the relevant authorities.
WARNING: Always remove the ignition key from
the ignition switch, disconnect the vehicle
battery and wait 10 minutes before commencing
work on the SRS system.
WARNING: Only personnel who have undergone
the appropriate training should undertake
deployment of airbag and seat belt pre-tensioner
modules.
WARNING: When removing, testing or installing
a seatbelt pre-tensioner, do not lean directly over
it or block the end of the piston tube.
Deploy
1. Carry out deployment toolSMD 4082/1 self
test.
+
RESTRAINT SYSTEMS, REPAIRS,
Airbag deployment tool SMD 4082/1- self
test procedure.
2. Slide seat fully rearwards to access pre-
tensioner harness connector.
