FRONT SUSPENSION

REPAIRS

60-15

Refit

1. Ensure bush bore in hub is clean.

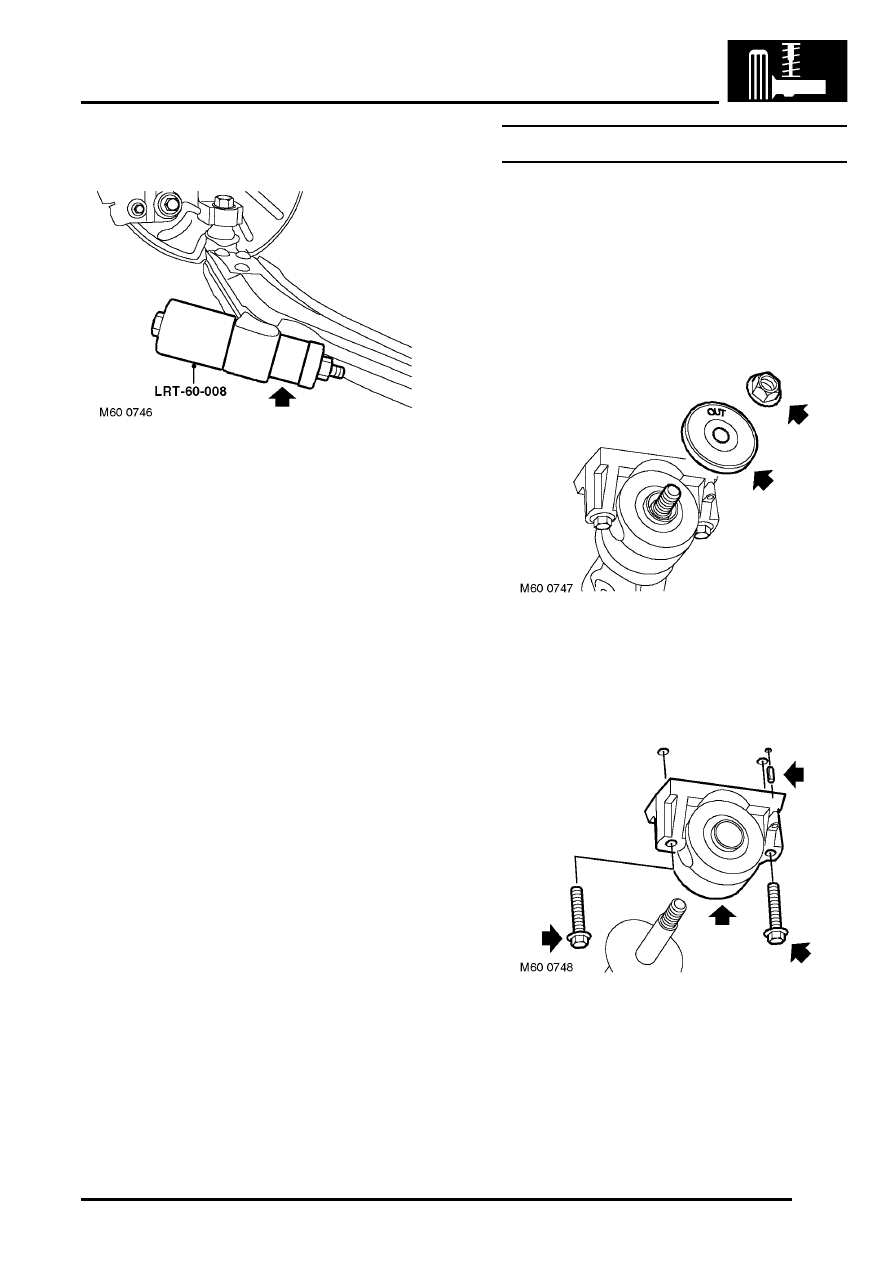

2. Using LRT-60-008 fit new bush into lower arm.
3. Align lower arm to rear beam, fit bolt but do not

tighten at this stage.

4. Align rear bush housing to body dowel, fit bolts

but do not tighten at this stage.

5. Tighten rear bush housing bolts to 105 Nm (77

lbf.ft).

CAUTION: Nuts and bolts must be tightened
with the weight of the vehicle on the
suspension.

6. Tighten lower arm front bush bolts to 190 Nm

(140 lbf.ft).

7. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

8. Remove stands and lower vehicle.
9. Check and, if necessary, adjust wheel

alignment.


 +

 STEERING, ADJUSTMENTS, Front

wheel alignment - check & adjust.

Bush - lower arm - rear

$% 60.35.25

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove nut securing lower arm rear bush

housing and remove snubber rubber.

CAUTION: Note orientation of snubber
washer.

3. Remove 2 bolts securing lower arm rear bush

housing.

4. Release bush locating pin from body and

remove bush housing.

FRONT SUSPENSION

60-16

REPAIRS

Refit

1. Clean lower arm and bush housing mating

faces.

2. Fit bush housing to lower arm and locate dowel

into body.

3. Fit  bolts securing  lower arm rear bush

housings and tighten to 105 Nm (77 lbf.ft).

4. Fit snubber rubber and nut but do not tighten at

this stage.

CAUTION: Ensure correct orientation of
snubber washer. Ensure that 'OUT' is
visible on snubber washer when fitted.

5. Tighten rear bush housing nut to 140 Nm (103

lbf.ft).

CAUTION: Nuts and bolts must be tightened
with the weight of the vehicle on the
suspension.

6. Remove stand and lower vehicle.
7. Check front wheel alignment



 +

 STEERING, ADJUSTMENTS, Front

wheel alignment - check & adjust.

REAR SUSPENSION

REPAIRS

64-1

REAR SUSPENSION

REPAIRS

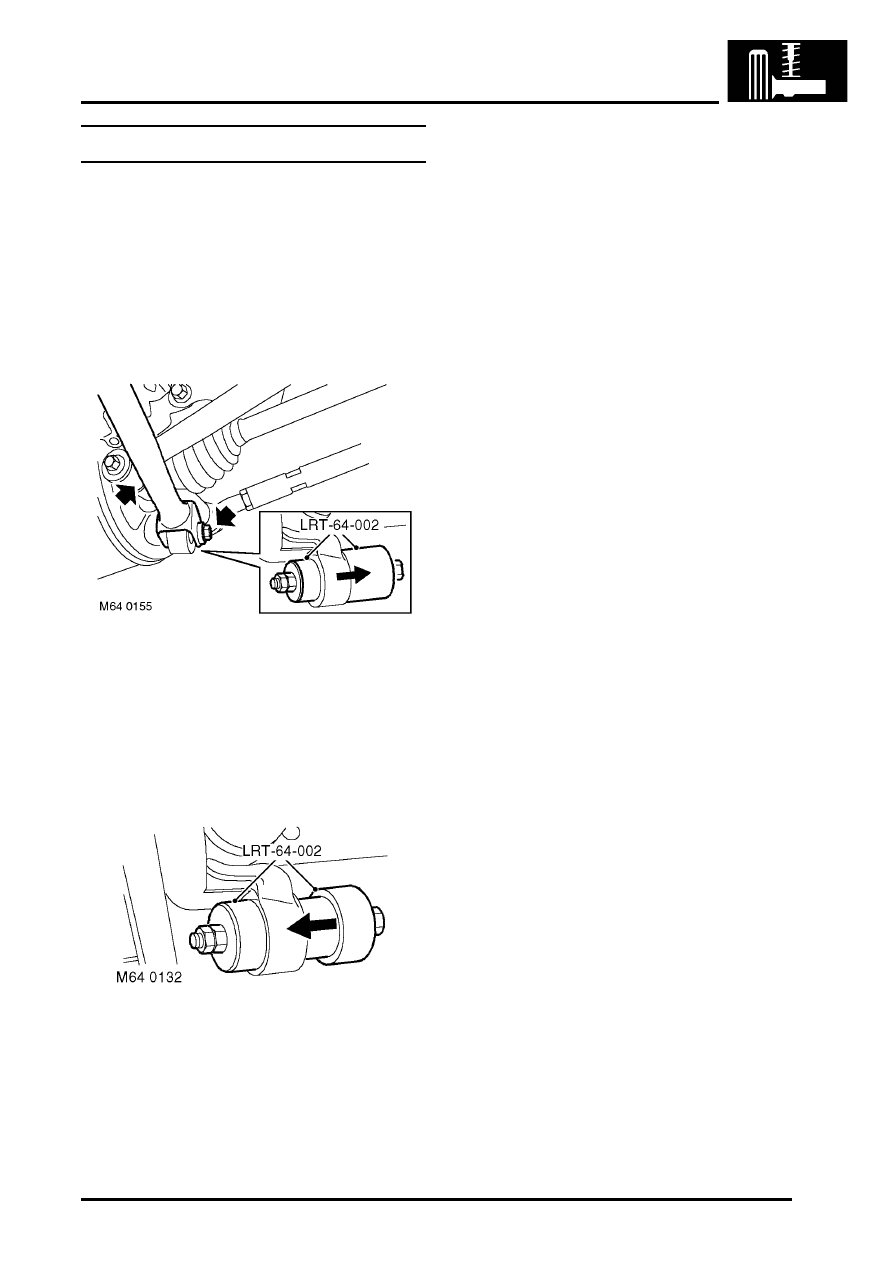

Bush - trailing link

$% 64.15.11

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheel.

3. Remove nut and bolt securing trailing link to

rear hub, collect spacer from under bolt head.

4. Release trailing link from hub and tie aside.
5. Using LRT-64-002 remove trailing link bush

from hub.

Refit

1. Ensure bush bore in hub is clean.

2. Using LRT-64-002 fit new bush into hub.
3. Align trailing link to hub, fit nut and bolt but do

not tighten at this stage.

4. Support weight of vehicle with jack under rear

hub.

CAUTION: Nuts and bolts must be tightened
with weight of vehicle on suspension.

5. Fit spacer, nut and bolt to trailing link and

tighten to 120 Nm (89 lbf.ft).

6. Fit road wheel(s) and tighten nuts to 115  Nm

(85 lbf.ft).

7. Remove stands and lower vehicle.
8. Check and, if necessary, adjust wheel

alignment.

REAR SUSPENSION

64-2

REPAIRS

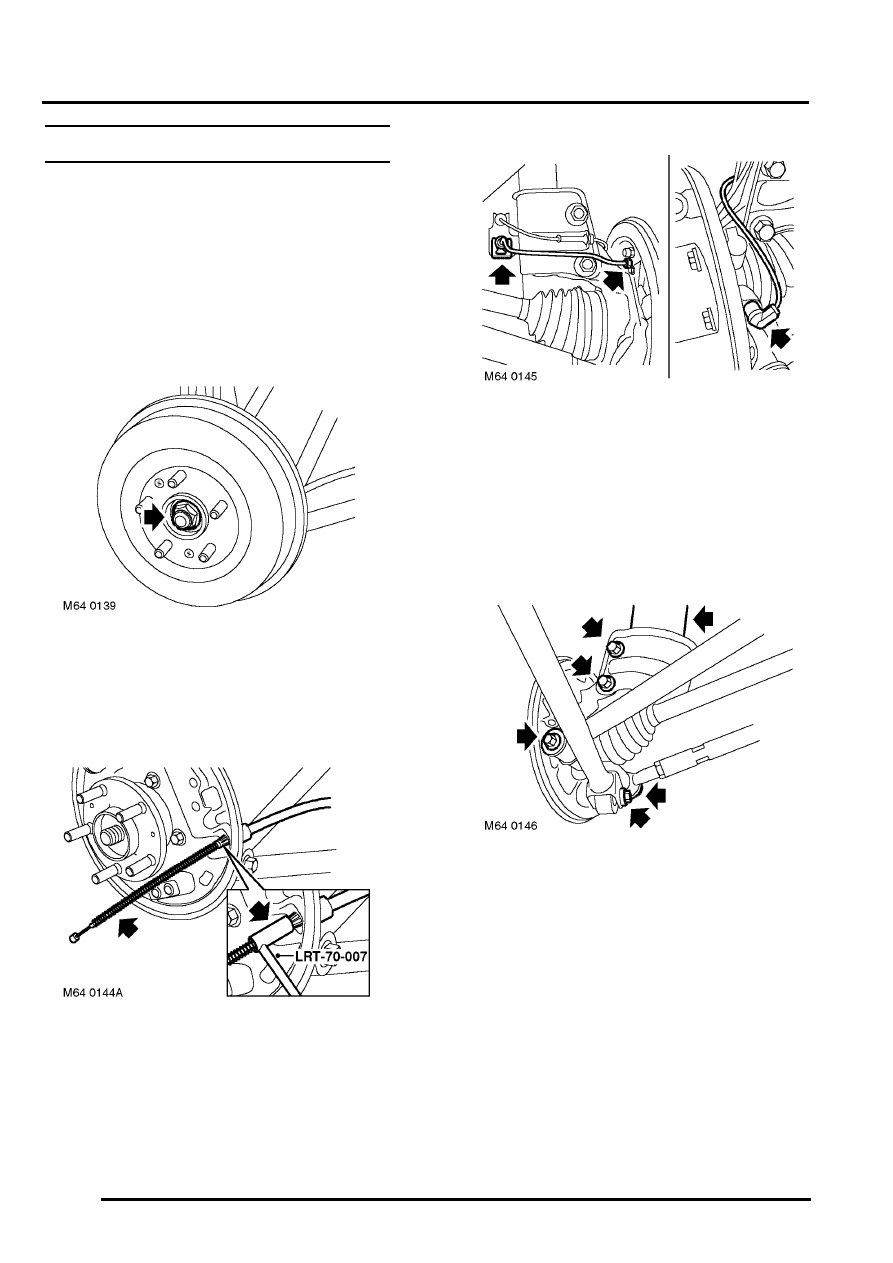

Bearing - hub

$% 64.15.14

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheel.

3. With assistant depressing the brake pedal,

remove and discard drive shaft nut.

4. Remove brake shoe assembly.



 +

 BRAKES, REPAIRS, Brake Shoes -

rear set.

5. Using LRT-70-007 release handbrake cable

from backplate and remove from backplate.

6. Remove clip securing brake hose to bracket on

damper.

7. Disconnect brake pipe union from wheel

cylinder.

CAUTION: Always fit plugs to open
connections to prevent contamination.

8. Release ABS sensor from hub.

9. Remove nut and bolt securing trailing link to

hub.

10. Remove nut, bolt and washers securing

transverse links to hub.

11. Remove 2 nuts and bolts securing hub to

damper.

12. Release damper from hub.
13. Remove hub assembly from drive shaft.

NOTE: Do not carry out further dismantling if
component is removed for access only.
