Freelander 1. Manual - part 54





ENGINE - TD4

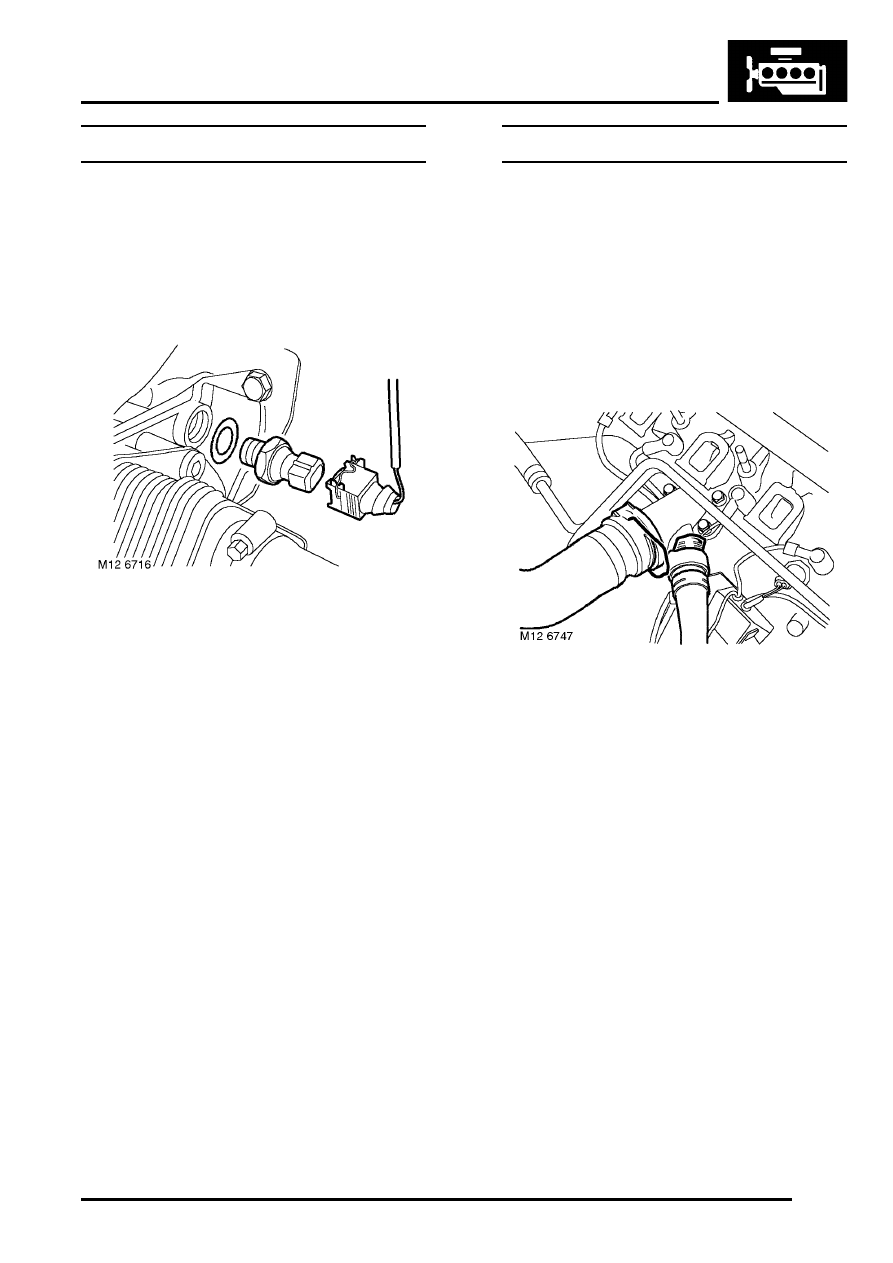

REPAIRS 12-1-59

Switch - oil pressure

$% 12.60.50

Remove

1. Disconnect battery earth lead.
2. Remove starter motor.



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - Td4.

3. Disconnect multiplug from oil pressure switch.
4. Position absorbent cloth to catch oil spillage.
5. Remove oil pressure switch and discard

sealing washer.

Refit

1. Clean oil pressure switch threads.
2. Fit new sealing washer to oil pressure switch.
3. Fit oil pressure switch and tighten to 38 Nm (28

lbf.ft).

4. Connect multiplug to oil pressure switch.
5. Fit starter motor.



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - Td4.

6. Check and if necessary top up engine oil.
7. Connect battery earth lead.

Gasket - cooler - engine oil

$% 12.60.67

Remove

1. Disconnect battery earth lead.
2. Remove inlet manifold gasket.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Gaskets - induction
manifold.

3. Drain cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

4. Release clips securing hoses to coolant elbow

and disconnect hoses.

5. Remove and discard seals from coolant elbow

quick release connections.

6. Move coolant hoses aside for access.
7. Drain engine oil and remove filter.



 +

 MAINTENANCE, MAINTENANCE,

Engine Oil and Filter – Td4.

8. Remove starter motor



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - Td4.

ENGINE - TD4

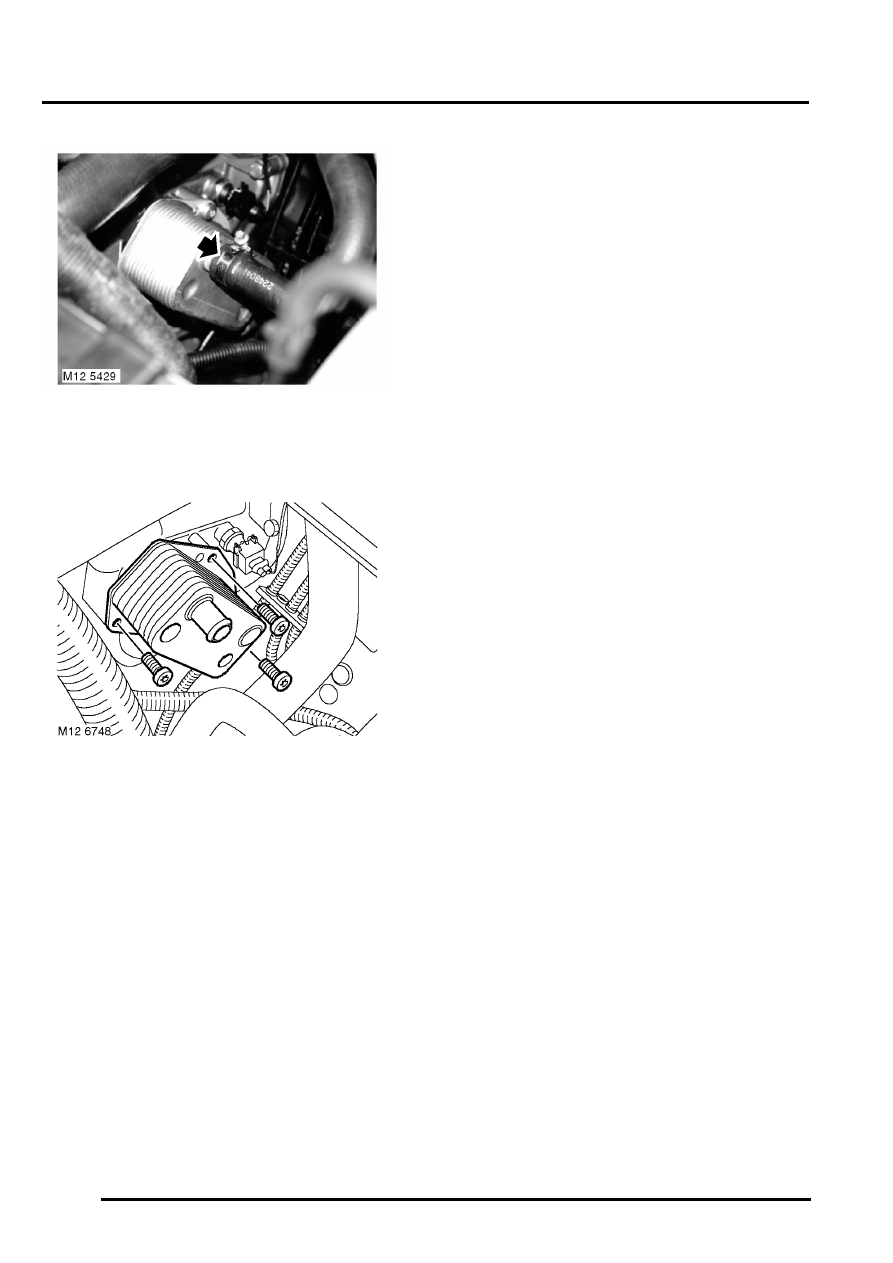

12-1-60 REPAIRS

9. Release clip securing hose to oil cooler and

disconnect hose from cooler.

10. Position container to collect fluid spillage.

11. Remove 3 Torx bolts securing cooler to oil filter

housing and remove cooler.

12. Remove and discard oil cooler gasket from oil

filter housing.

Refit

1. Clean oil cooler and mating face on oil filter

housing.

2. Fit new gasket to oil filter housing.
3. Fit oil cooler to oil filter housing and tighten

bolts to 22 Nm (16 lbf.ft).

4. Connect hose to oil cooler and secure with clip.
5. Fit starter motor.



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - Td4.

6. Fit new oil filter and refill engine with oil.



 +

 MAINTENANCE, MAINTENANCE,

Engine Oil and Filter – Td4.

7. Fit new 'O' ring seals to coolant elbow hose

connections.

8. Connect quick release hoses to coolant elbow.
9. Fit inlet manifold gasket.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- Td4, REPAIRS, Gaskets - induction
manifold.

10. Connect battery earth lead.
11. Refill cooling system.



 +

 COOLING SYSTEM - Td4,

ADJUSTMENTS, Coolant - drain and refill.

ENGINE - TD4

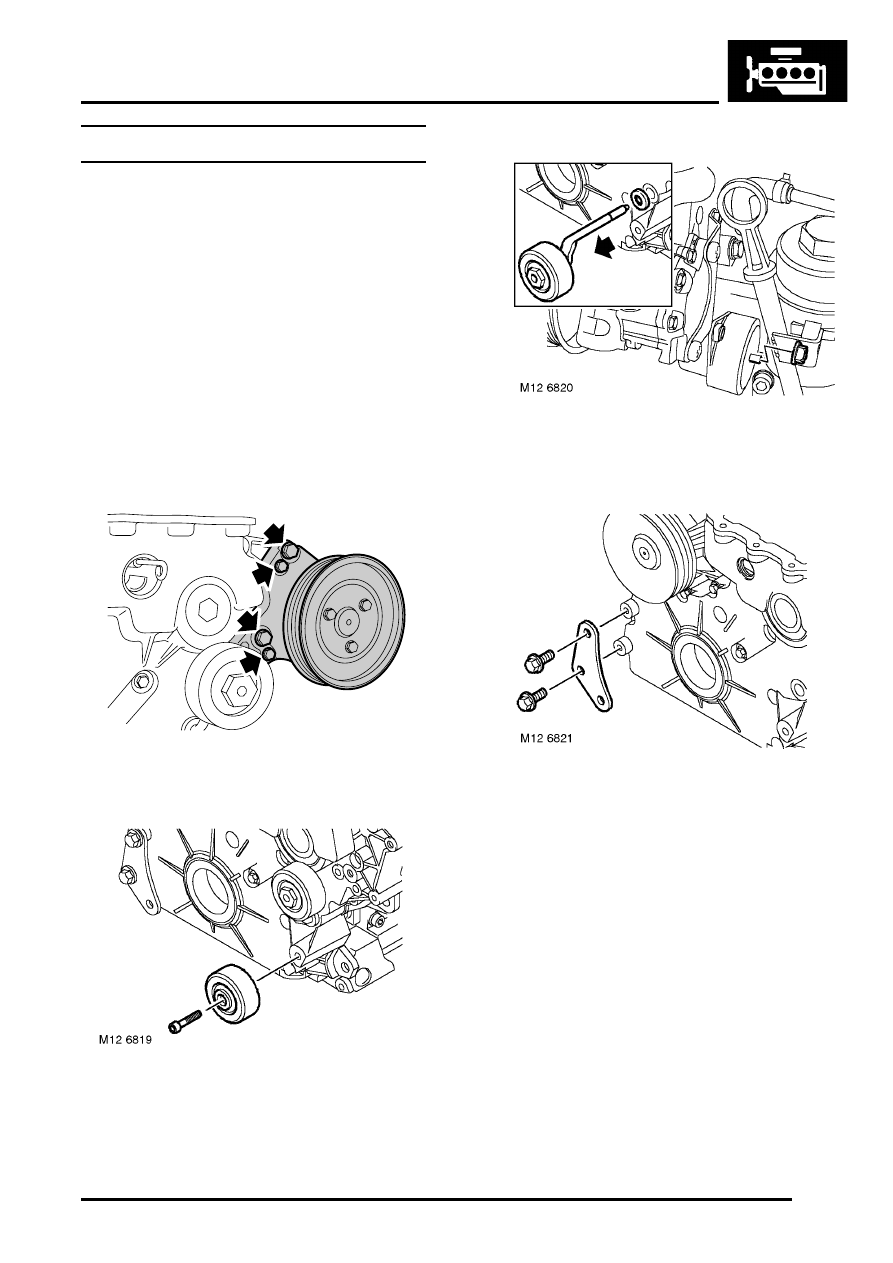

REPAIRS 12-1-61

Gasket - timing gear cover

$% 12.65.04

Remove

1. Disconnect battery earth lead.
2. Remove cylinder head gasket.



 +

 ENGINE - Td4, REPAIRS, Gasket -

cylinder head - manual models.


 +

 ENGINE - Td4, REPAIRS, Gasket -

cylinder head - automatic models.

3. Remove oil pump.



 +

 ENGINE - Td4, REPAIRS, Pump - oil.

4. Remove alternator.



 +

 CHARGING AND STARTING,

REPAIRS, Alternator - Td4.

5. Remove crankshaft front oil seal.



 +

 ENGINE - Td4, REPAIRS, Crankshaft

front oil seal.

6. Remove 4 bolts and tie PAS pump aside.

7. Remove Allen bolt and remove ancillary drive

belt jockey pulley.

8. Remove nut and tensioner arm from spring

housing.

9. Remove and discard tensioner arm seal.

10. Remove 2 bolts and remove lower coolant rail

support bracket.

M12 6818

ENGINE - TD4

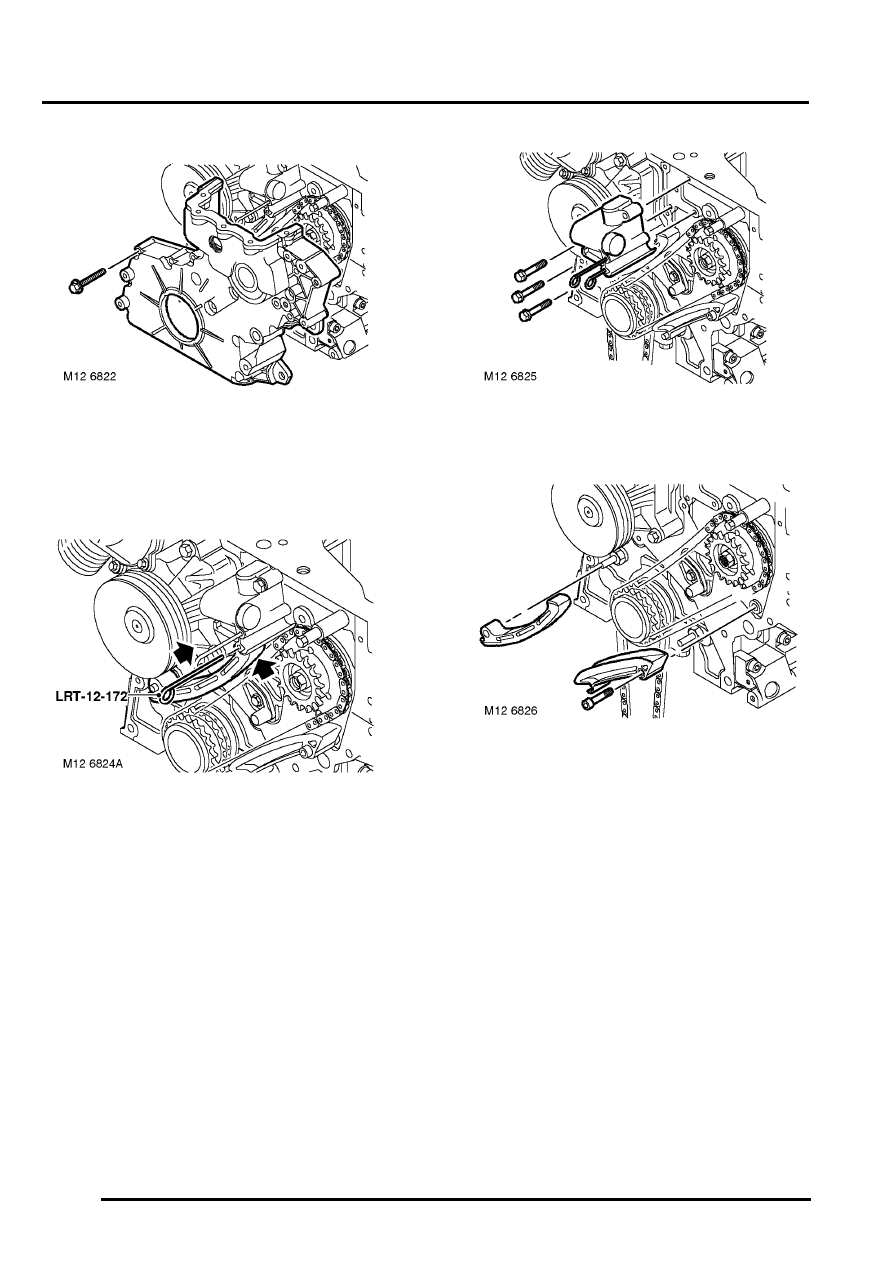

12-1-62 REPAIRS

11. Remove 14 bolts, release and remove timing

cover. Removal of bolts will release ancillary
drive belt tensioner.

12. Remove camshaft drive chain from fuel pump

sprocket.

13. Press lower chain tensioner plunger fully into

tensioner body and fit LRT-12-172 to lock
plunger.

14. Remove 3 bolts and remove timing chain

tensioner.

15. Remove fuel pump drive chain upper guide.
16. Remove Allen bolt and remove fuel pump drive

chain lower guide. Discard Allen bolt.

17. Restrain fuel pump sprocket and remove

securing nut.
