GENERAL INFORMATION

03-11

Split pins

Always fit new split-pins of the correct size for the
hole in the bolt or stud.

Screw threads

General
Metric threads to ISO standards are used.

Damaged nuts, bolts and screws must always be
discarded. Cleaning damaged threads with a die or
tap impairs the strength and  closeness of fit of the
threads and is not recommended.

Always ensure that replacement bolts are at least
equal in strength to  those replaced.

Castellated nuts must not be slackened to accept a
split-pin, except in  recommended cases when this
forms part of an adjustment.

Do not allow oil or grease to enter blind threaded
holes. The hydraulic action on screwing in the bolt or
stud could split the housing.

Always tighten a nut or bolt to the recommended
torque figure. Damaged or corroded threads can
affect the torque reading.

To check or re-tighten a bolt or screw to a specified
torque figure, first loosen a quarter of a turn, then
retighten to the correct torque figure.

Oil thread lightly before tightening to ensure a free
running thread, except in the case of threads treated
with sealant/lubricant, and self-locking nuts.

GENERAL INFORMATION

03-12

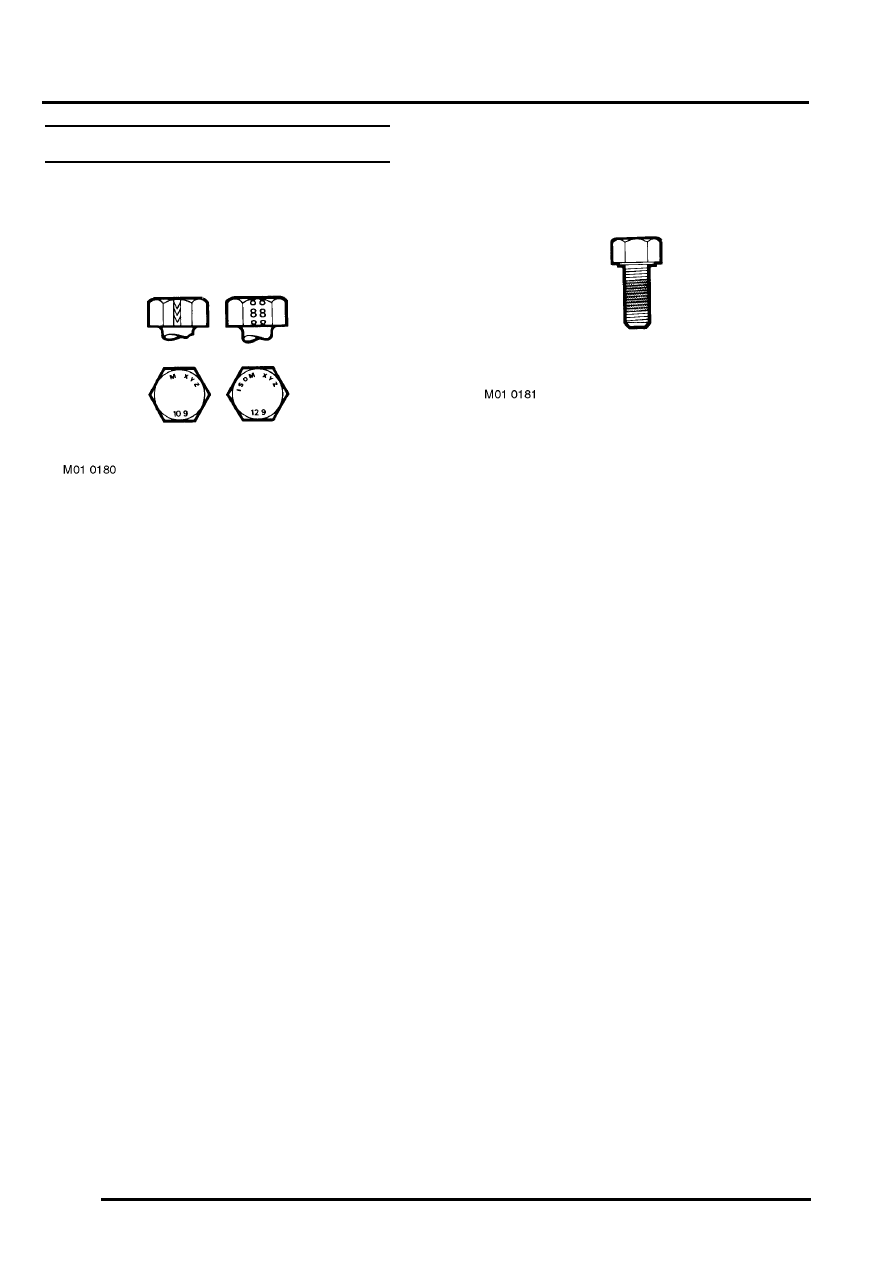

Bolt identification

Bolt identification

An ISO metric bolt or screw made of steel and larger
than 6 mm in diameter can be identified by either the
symbols ISO M or M embossed or indented on top of
the bolt head.

In addition to marks identifying the manufacturer, the
top of the bolt head is also marked with symbols
indicating the strength grade, e.g. 8.8; 10.9; 12.9;
14.9. As an alternative, some bolts and screws have
the M and strength grade symbol stamped on the
flats of the hexagon.

Encapsulated bolts and screws

Encapsulated bolts and screws have a micro-
encapsulated locking agent pre-applied to the
thread. They are identified by a coloured section
which extends 360

°

  around the thread. The locking

agent is released and activated by the assembly
process and is then chemically cured to  provide the
locking action.

Unless a specific repair procedure states otherwise,
encapsulated bolts may  be re-used providing the
threads are undamaged and the following procedure
is adopted:

l

Remove loose adhesive from the bolt and
housing threads.

l

Ensure threads are clean and free of oil and
grease.

l

Apply an approved locking agent.

An encapsulated bolt may be replaced with a bolt of
equivalent specification provided it is treated with an
approved locking agent.

GENERAL INFORMATION

03-13

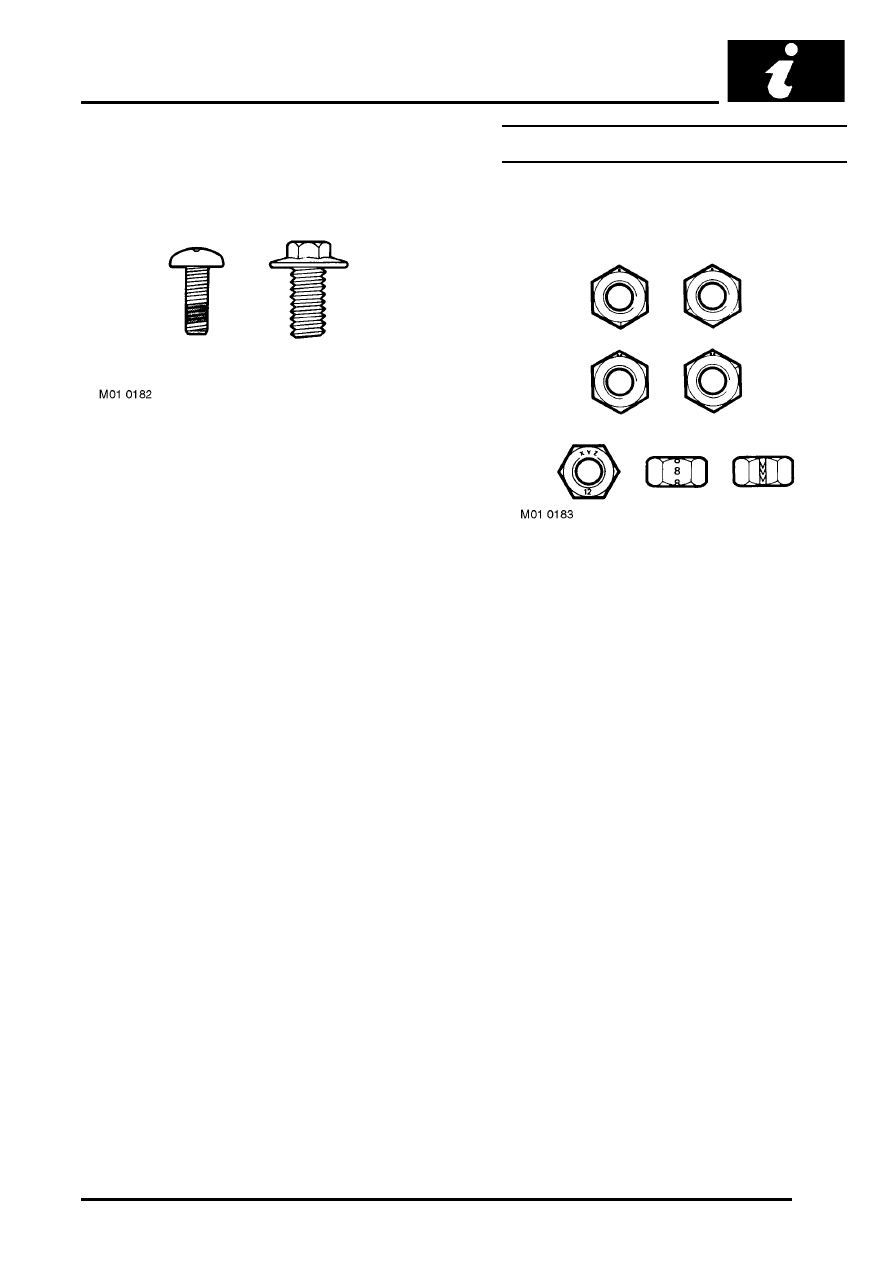

Self-locking bolts and screws

Self-locking bolts and screws, i.e. nylon patched or
trilobular thread can be  re-used providing resistance
can be felt when the locking portion enters the
female thread.

Nylon patched bolts and screws have a locking agent
pre-applied to the threads.  They are identified by the
presence of a coloured section of thread which
extends for up to 180

°

  around the thread.

Trilobular bolts (i.e. Powerlok) have a special thread
form which creates a  slight interference in the
tapped hole or threads of the nut into which it is
screwed.

DO NOT re-use self-locking fasteners in critical
locations (e.g. engine bearings, flywheel). Always
use the correct replacement self-locking nut, bolt or
screw.

DO NOT fit non self-locking fasteners in applications
where a self-locking nut, bolt or screw is specified.

Nut identification

Nut identification

A nut with an ISO metric thread is marked on one
face or on one of the flats  of the hexagon with the
strength grade symbol 8, 12, or 14. Some nuts with a
strength grade 4, 5 or 6 are also marked and some
have the metric  symbol M on the flat opposite the
strength grade marking.

A clock face system is sometimes used as an
alternative method of indicating  the strength grade.
The external chamfers or a face of the nut is marked
in a  position relative to the appropriate hour mark on
a clock face to indicate the  strength grade.

A dot is used to locate the 12 o'clock position and a
dash to indicate the  strength grade. If the grade is
above 12, two dots identify the 12 o'clock  position.

When tightening a slotted or castellated nut, never
loosen it to insert a split pin except where
recommended as part of an adjustment. If difficulty is
experienced, alternative washers or nuts should be
selected, or the washer thickness reduced.

Where bearing pre-load is involved, nuts should be
tightened in accordance with special instructions.

GENERAL INFORMATION

03-14

Self-locking nuts

Self-locking nuts, i.e. nylon insert or deferred thread
nuts can be re-used  providing resistance can be felt
when the locking portion of the nut passes  over the
thread of the bolt or stud.

DO NOT apply heat in an attempt to free deferred
thread nuts or fittings;  as well as causing damage to
protective coatings, there is a risk of damage to
electronic equipment and brake linings from stray
heat.

Where self-locking nuts have been removed, it is
advisable to replace them with new ones of the same
type.

Where bearing pre-load is involved, nuts should be
tightened in accordance with special instructions.

Flexible pipes and hoses

General
When removing and installing flexible hydraulic pipes
and hoses, ensure that the following practices are
observed to ensure component serviceability:

l

Before removing any brake or power steering
hose, clean end fittings and area surrounding
them as thoroughly as possible.

l

Obtain appropriate plugs or caps before
detaching hose end fittings,  so that the ports
can be immediately covered to prevent the
ingress of dirt.

l

Clean hose externally and blow through with
airline. Examine carefully for cracks, separation
of plies, security of end fittings and external
damage. Reject any faulty hoses.

l

When refitting a hose, ensure that no
unnecessary bends are introduced, and that
hose is not twisted before or during tightening of
union nuts.

l

Fit a cap to seal a hydraulic union and a plug to
its socket after removal to prevent ingress of
dirt.

l

Absolute cleanliness must be observed with
hydraulic components at all times.

l

After any work on hydraulic systems, carefully
inspect for leaks underneath the vehicle while a
second operator applies maximum brake
pressure to the brakes (engine running) and
operates the steering.

Do not disconnect any pipes in an air
conditioning refrigeration system unless trained
and instructed to do so. A refrigerant is used
which can cause blindness if allowed to contact
eyes.
