HARNESSES

REPAIRS 86-7-25

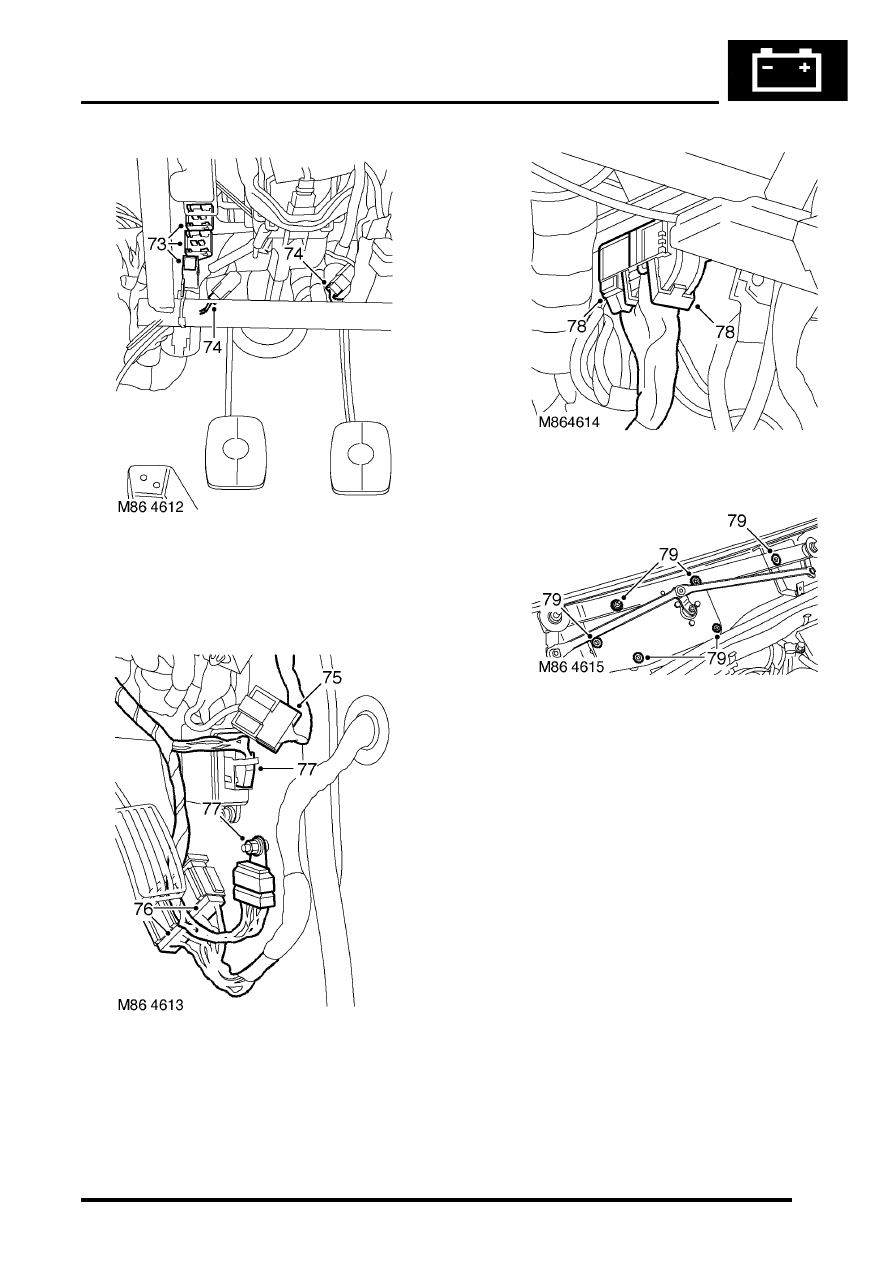

73. Release 3 multiplugs from steering  column

support.

74. Disconnect multiplugs from brake and clutch

pedal.

75. Disconnect multiplug from RH side body

harness.

76. Disconnect 2 multiplugs from RH door

harness.

77. Disconnect multiplugs from cruise control

ECU, remove nut securing earth header to
body and remove earth header.

78. Disconnect 2 multiplugs from ECM.

79. Remove 6 nuts and bolts securing wiper

mechanism, release mechanism and
disconnect multiplug.

80. With assistance withdraw RH side harness into

interior.

81. Release RH side front carpet.

HARNESSES

86-7-26 REPAIRS

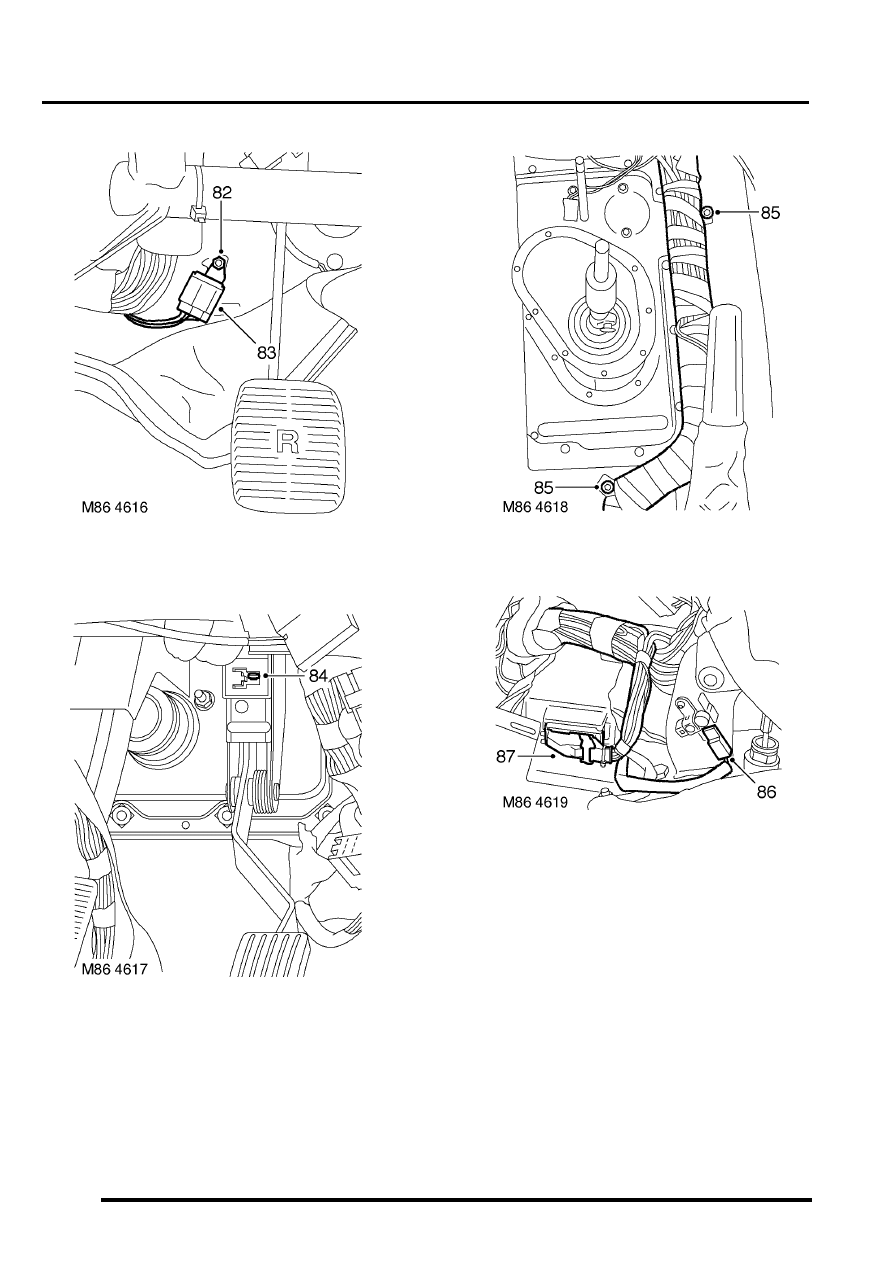

82. Remove nut securing earth header to  footwell.
83. Remove earth header.

84. Remove clip securing harness to pedal  box.

85. Remove 2 nuts securing harness to  tunnel.

86. Disconnect Lucar from handbrake switch.
87. Disconnect multiplug from DCU.
88. Remove rear carpet.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Carpet - rear.

HARNESSES

REPAIRS 86-7-27

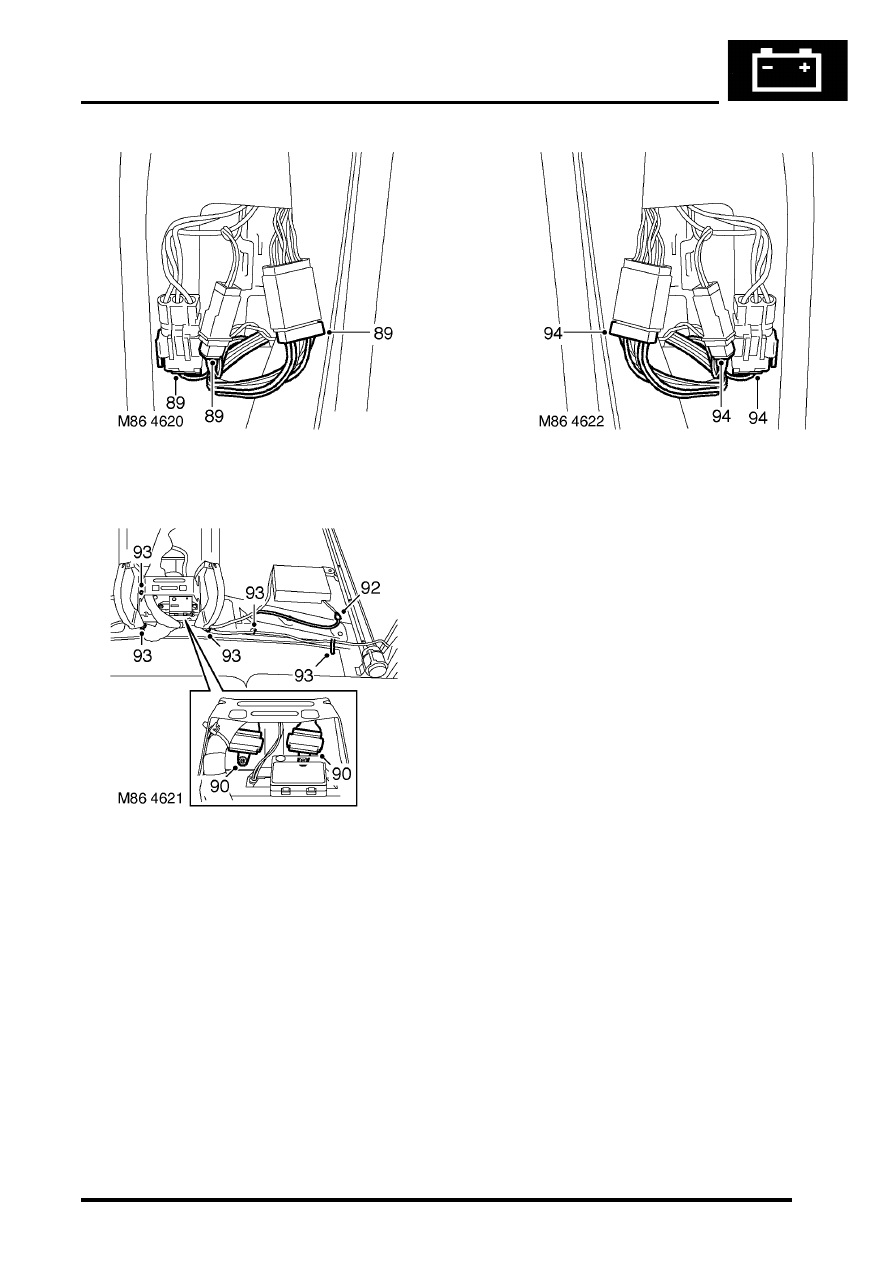

89. Disconnect 3 multiplugs from RH rear  door

harness.

90. Remove 2 nuts securing 2 earth headers to

rear centre console tunnel.

91. Remove earth headers from centre  console.
92. Disconnect multiplug from CD player.
93. Remove 5 clips and 2 retainers securing

harness to floor.

94. Disconnect 3 multiplugs from LH rear  door

harness.

95. Withdraw harness to interior.
96. Manoeuvre harness over steering column

support bracket.

97. With assistance remove main harness.

Refit

1. With assistance position main harness to  body

and manoeuvre over steering column  support
bracket.

2. Lay harness in position and secure to  floor

clips and retainers.

3. Connect LH and RH rear door multiplugs.
4. Connect CD player multiplug.
5. Position centre console earth headers  and

secure with nuts.

6. Fit rear carpet.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Carpet - rear.

7. Connect DCU multiplug.
8. Connect Lucar to handbrake switch.
9. Fit and tighten nuts securing harness to

transmission tunnel.

10. Secure harness to pedal box.
11. Position footwell earth header and  secure with

nut.

12. Feed RH side of harness into engine bay.
13. Position carpet.
14. Connect wiper motor multiplug, position

mechanism and secure with nuts and bolts.

15. Connect ECM multiplug.
16. Position RH lower 'A' post earth header  and

secure with nut, connect cruise control
multiplug.

17. Connect RH front door and RH side body

harness multiplugs.

HARNESSES

86-7-28 REPAIRS

18. Secure multiplugs to steering column  support

bracket and connect brake and clutch  pedal
multiplugs.

19. Connect multiplugs to column switch and

passive coil.

20. Position passenger compartment fusebox,

connect multiplugs, fit fusebox to fascia  and
secure with nut.

21. Connect ignition switch multiplug to  fuse box.
22. With assistance feed LH side of harness  into

engine bay.

23. Connect multiplugs to front door harness  and

body harness.

24. Position earth headers to LH lower 'A'  post and

secure with nuts.

25. Connect multiplugs to ECU pack.
26. Position harness in engine bay.
27. Connect and secure heated front screen

multiplugs.

28. Fit plenum molding.



 +

 HEATING AND VENTILATION,

REPAIRS, Plenum Air Intake.

29. Connect multiplugs to ABS sensor and  fuel

cut-off switch.

30. Using draw string feed harness through  inner

wing, remove draw string, connect  repeater
lamp multiplug and fit lamp.

31. Connect multiplugs to ABS modulator.
32. Feed harness through to front panel.
33. Position body earth leads and secure with

bolts.

34. Connect washer reservoir multiplugs and

pipes, secure pipes with clips.

35. Secure fog lamp multiplug.
36. Secure earth header behind headlamp.
37. Connect multiplugs to headlamp level  motor,

headlamp and side lamp.

38. Fit indicator lamp



 +

 LIGHTING, REPAIRS, Lamp - front

repeater.

39. Connect multiplug to LH horn.
40. Feed harness to ACE accelerometer, connect

multiplug and secure with cable ties.

41. Connect cruise control, ABS sensor and  brake

fluid level switch multiplugs.

42. Connect engine harness multiplug and  feed

harness along RH wing to fuse box.

43. Using draw string pull harness through  inner

wing, remove draw string, connect  repeater
lamp multiplug and fit lamp.

44. Connect chassis harness multiplugs.
45. Position engine bay fuse box and connect

multiplugs, fit fuse box and secure with  screws.

46. Connect multiplugs to front of fuse box.
47. Position battery and starter cables  and secure

with screws.

48. Fit fuse box cover.
49. Position earth lead and secure with nut.
50. Feed harness through to front panel.
51. Secure fog lamp multiplug.
52. Connect headlamp level motor, headlamp  and

side lamp multiplugs.

53. Fit indicator lamp



 LIGHTING, REPAIRS, Lamp - front

repeater.

54. Secure harness to RH front panel.
55. Connect cooling fan and horn multiplug.
56. Secure harness to lower support rail.
57. Connect receiver drier and air  temperature

sensor multiplugs.

58. Fit front bumper.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper assembly - front.

59. Fit battery tray.
60. Fit air filter assembly.



 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Air cleaner assembly.

61. Position both lower 'A' post trims and  secure

with studs.

62. Fit heater assembly.



 +

 HEATING AND VENTILATION,

REPAIRS, Heater assembly - models with
air conditioning.


 +

 HEATING AND VENTILATION,

REPAIRS, Heater assembly - models
without air conditioning.
