ALARM SYSTEM AND HORN

DESCRIPTION AND OPERATION 86-4-15

Anti-theft status LED

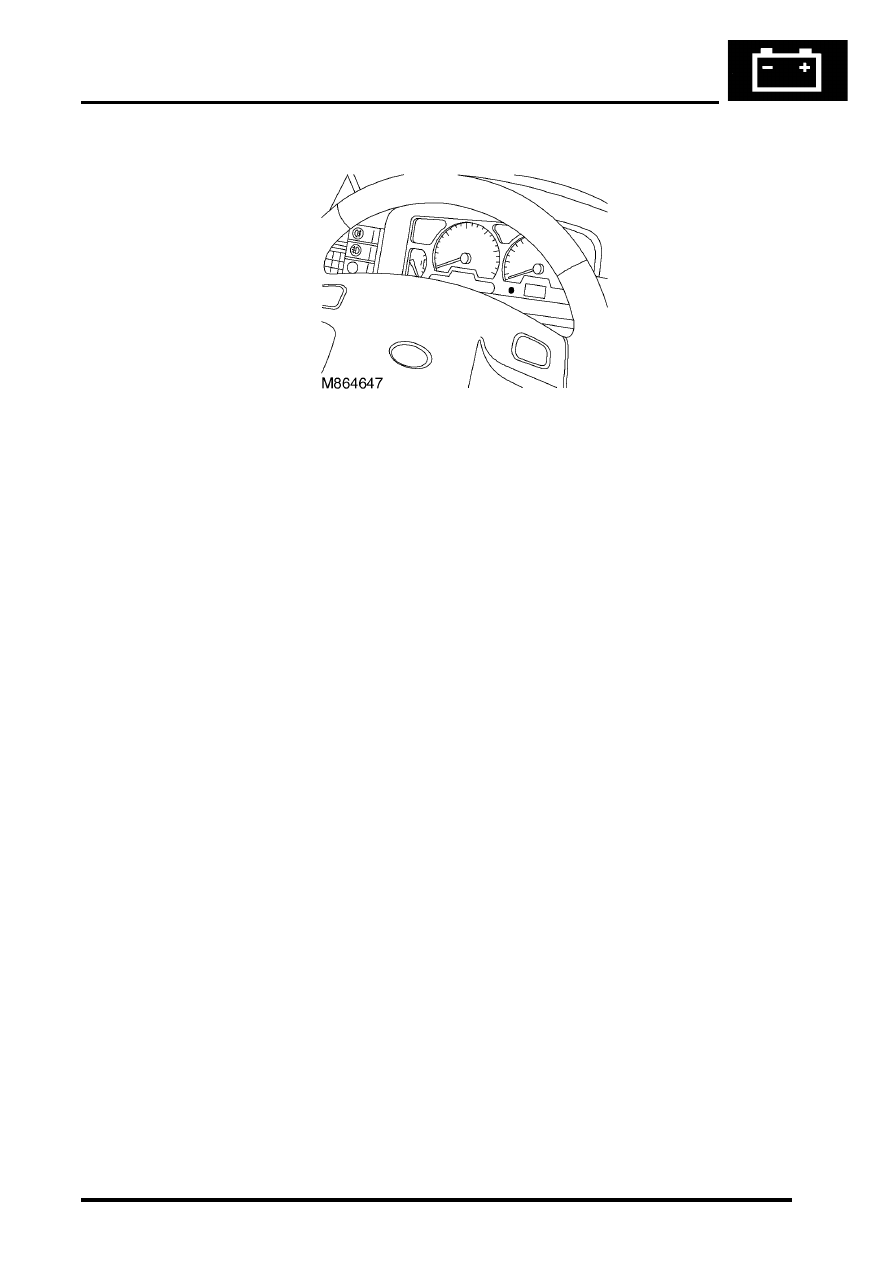

A Light Emitting Diode (LED) situated in the instrument cluster indicates the condition of the anti-theft system and acts
as a warning to potential thieves that the alarm system is activated.

Input/Output
The LED has a dedicated signal from the BCU to indicate the status of the following:

l

Alarm armed: The LED flashes at 10 Hz with a 50:50 duty cycle for 10 seconds, after which the LED flashes 50
ms on, 2 seconds off until the state of the system changes.

l

Engine immobilised: If the engine is immobilised and the ignition is on, the LED is illuminated continuously.  If the
engine is immobilised and the ignition is off, the LED flashes 50 ms on, 2 seconds off.

l

Alarm tampered: If the alarm has been triggered, the LED flashes at 10 Hz with a 50:50 duty cycle.

l

Handset battery low indicator: If the handset battery is low, the driver's door is open and the ignition is switched
off, the LED flashes two pulses of 50 ms on, 50 ms off, every 10 seconds.

ALARM SYSTEM AND HORN

86-4-16 DESCRIPTION AND OPERATION

Operation

Standard system functions
All vehicles have the following functions as standard.

l

Locking.

l

Unlocking.

l

Fuel cut off switch unlocking.

l

Internal locking.

l

Electric fuel flap release.

Locking
The doors are locked by pressing the lock button on the handset or by locking the vehicle from the driver's door with
the key.

In order to lock the vehicle, the following conditions must be met:

l

The driver's door is closed.

l

The ignition is off.

l

The fuel cut off switch is not tripped.

l

The bonnet is closed.

l

The vehicle is not super locked.

Depending on system configuration a mislock occurs if these conditions are not met. The doors may lock (depending
on condition not met) and the system may not fully arm, depending on configuration of the system. If a mislock occurs
an audible warning is emitted and the vehicle becomes partially armed.

Unlocking
The doors are unlocked by pressing the unlock button on the handset or by unlocking the vehicle from the driver's
door with the key. This may unlock only the driver's door or it may unlock all doors depending on system configuration.

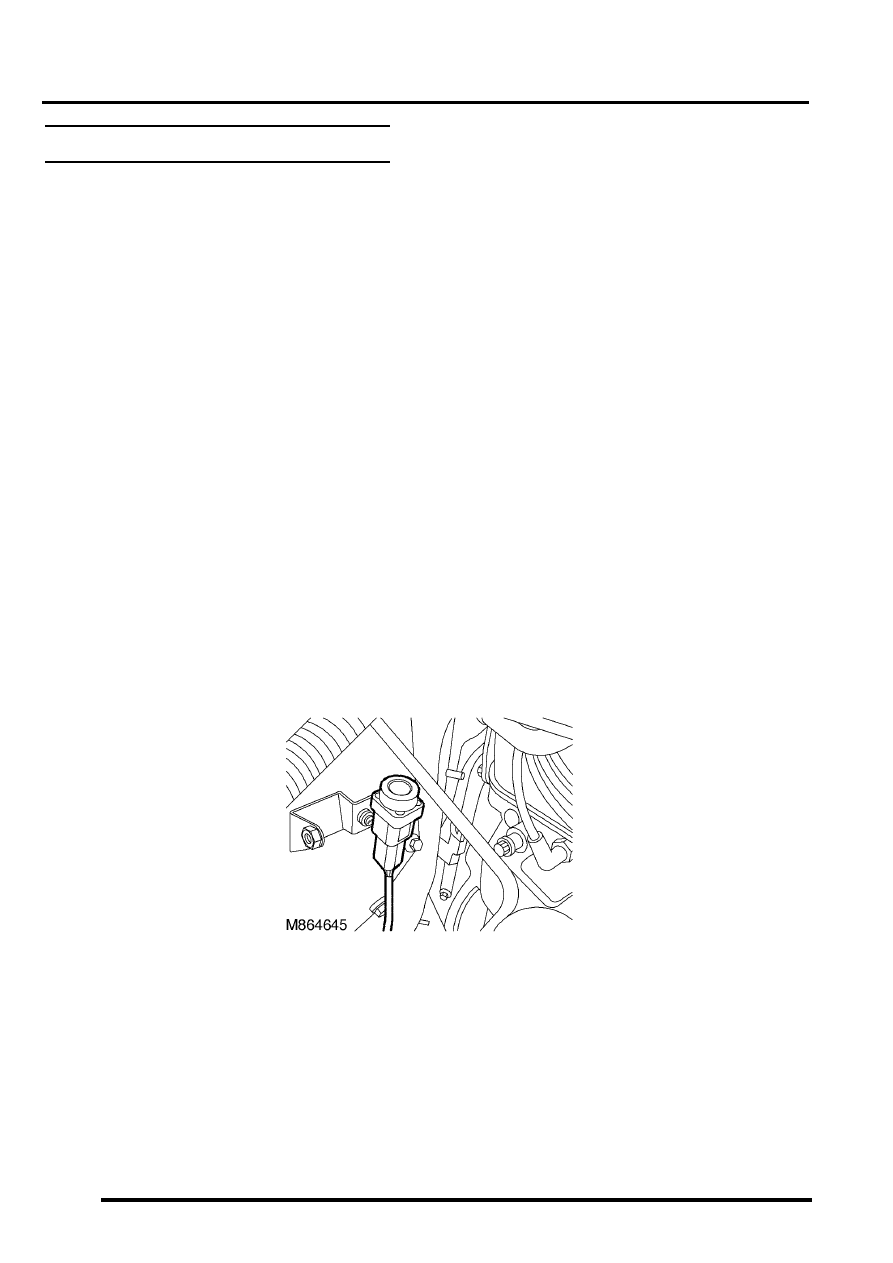

Fuel cut off switch unlocking

In the event that the vehicle experiences a force strong enough to actuate the switch, all the doors on the vehicle
immediately unlock.  The following conditions must be met for this to occur:

l

The security system is not armed.

l

The ignition is on.

This same action causes the fuel pump to shut off and disables the Engine Control Module (ECM). In some markets,
this action may also cause the direction indicators lights to flash.

ALARM SYSTEM AND HORN

DESCRIPTION AND OPERATION 86-4-17

Internal locking
Internal locking allows the doors to be locked / unlocked from a central position using switches on the instrument
panel.  The internal unlock switch will not operate if the vehicle is super locked.

Electric fuel flap release

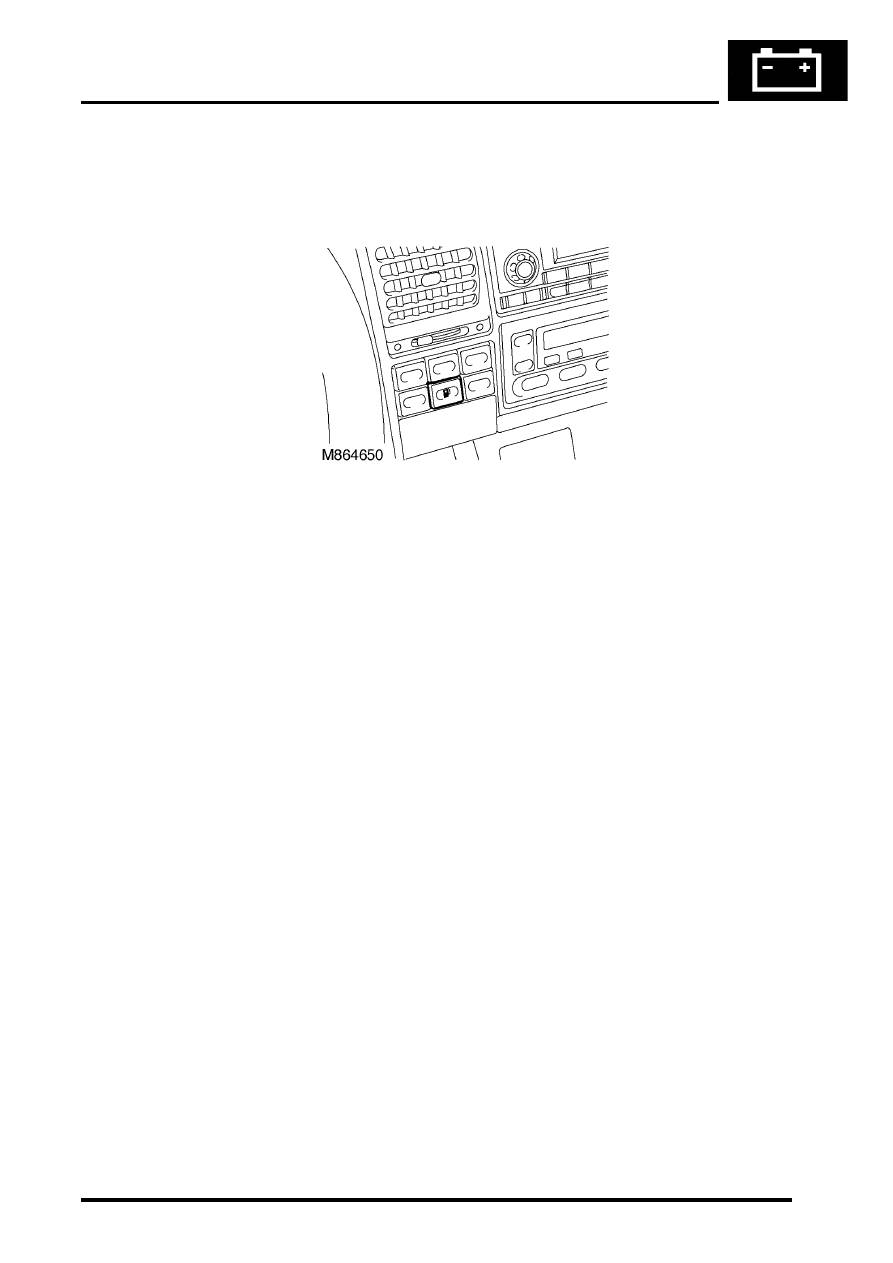

Up to 03 model year shown

The fuel flap is opened by pressing the button on the fascia on vehicles up to 03 model year or on the instrument pack
binacle on vehicles from 03 model year.  This works only if the anti-theft system is not armed and the ignition is off.
In some configurations, it may also be necessary to remove the key from the ignition switch.

Configurable system functions
The following alarm system features are configurable using TestBook.

l

Perimetric alarm.

l

Volumetric alarm.

l

Super locking.

l

Partial arming.

l

Mislock.

l

Passive immobilisation.

l

Passive remobilisation.

l

Emergency key access.

l

Single point entry.

l

Speed related locking.

l

Acclimatisation related locking.

l

Visual warnings.

l

Audible warning.

l

Theft deterrent led.

l

Transit mode.

ALARM SYSTEM AND HORN

86-4-18 DESCRIPTION AND OPERATION

Perimetric alarm
The perimetric alarm is used by the BCU to detect unauthorised opening of a door or hinged panel. Switches
incorporated into the door latch assemblies and the bonnet determine the state of the panels.

There are two perimetric alarm configurations:

l

Alarm not active.

l

Alarm active.

Arming: To arm the perimetric alarm, press the lock button on the handset or lock the vehicle using the key in the
driver's door. Once the alarm has been set, the BCU monitors the state of the doors and the bonnet.

In order to arm the perimetric alarm the following conditions must be met:

l

Drivers door closed.

l

Key not inserted in ignition switch.

l

Fuel cut-off switch not tripped.

Disarming: To prevent the alarm from triggering when entering the vehicle, the alarm system must be disarmed with
the key or the handset.

There are two perimetric alarm disarming configurations:

l

Always disarm with key.

l

Only disarm with key if locked with key.

The perimetric alarm can be disarmed by unlocking the vehicle with the handset or by using the key in the driver's
door lock, depending on system configuration.

NOTE: The “only disarm with key if locked with key” configuration prevents the alarm from being disarmed by
unlocking the vehicle with the handset if the vehicle has been locked by the key. In this situation the Emergency Key
Access (EKA) code must be entered to disarm the alarm.

In order for the alarm to trigger, the following conditions must be met:

l

Perimetric alarm armed.

l

Bonnet or door opened.

Once triggered, the alarm will remain triggered for 30 seconds before resetting.

Volumetric alarm
The volumetric alarm is used by the BCU to detect movement within the vehicle. This allows the alarm to be triggered
if a window is smashed in an attempt to gain access to the vehicle.

There are two volumetric alarm configurations:

l

Volumetric alarm not active.

l

Volumetric alarm active.

Two sensors, which transmit and receive ultrasonic signals, detect movement within the vehicle. Theses sensors
detect any change in air movement within the vehicle and then supply the BCU a signal to activate the alarm. Fifteen
seconds after the vehicle is locked with the handset or the key the volumetric alarm is armed. This delay is
incorporated into the BCU software to prevent accidental or nuisance triggering of the alarm.

In order to arm the volumetric alarm, the following conditions must be met:

l

Driver's door closed.

l

Key not inserted in ignition.

l

Fuel cut-off switch not tripped.

To prevent the alarm from triggering when entering the vehicle, the alarm system must be disarmed with the key or
the handset.

There are two volumetric alarm disarming configurations:

l

Always disarm with key.

l

Only disarm with key if locked with key.
