AIR CONDITIONING

REPAIRS

82-35

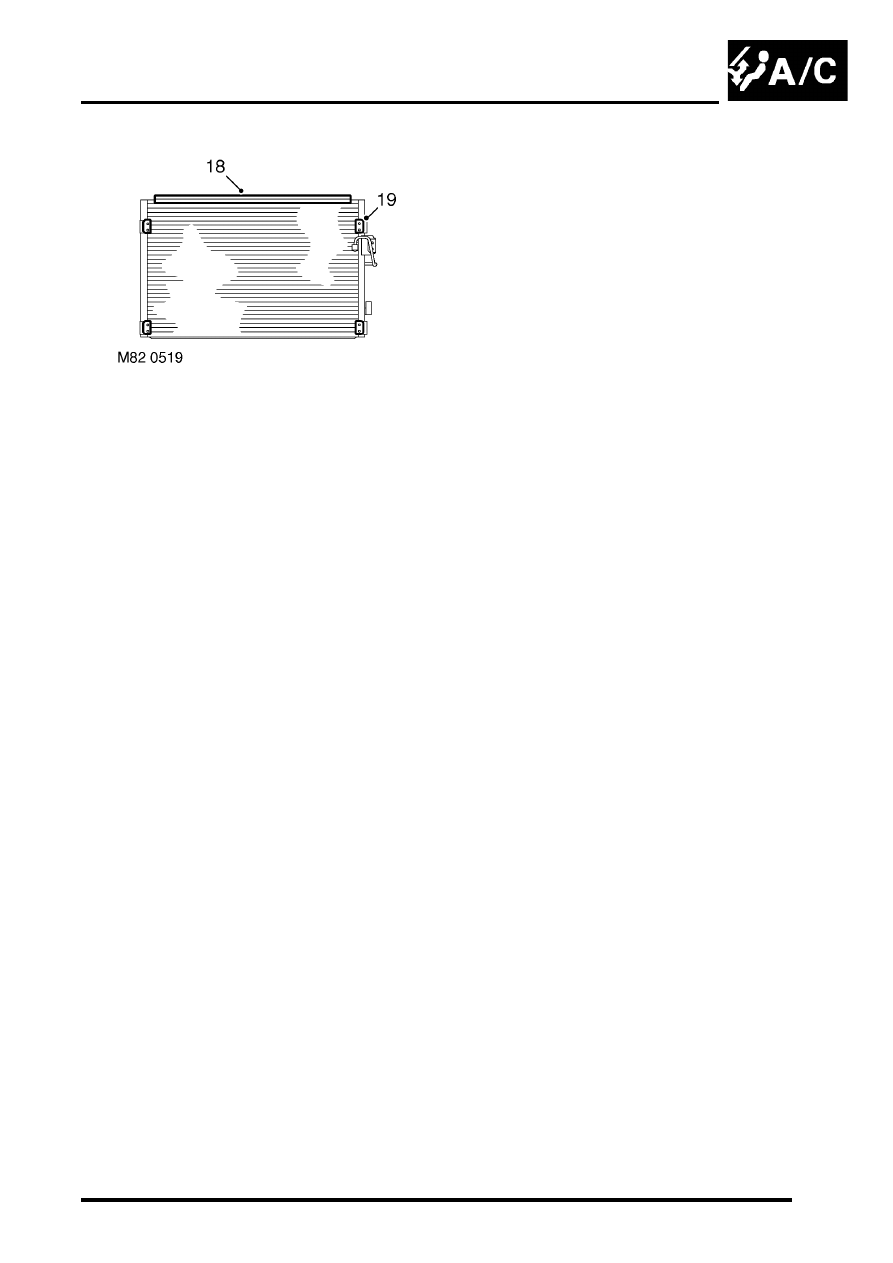

18. Remove sealing strip from outer upper seam of

condenser.

19. Remove captive nut plates from condenser.

Refit

1. Fit captive nut plates to new condenser.
2. Fit seal to condenser.
3. Fit RH mounting bracket to condenser and

secure with bolt.

4. Fit receiver drier bracket assembly and secure

with bolts.

5. Ensure condenser pipe and new receiver drier

connections are clean.

6. Lubricate new 'O' ring with refrigerant oil and fit

to condenser pipe.

7. Fit receiver drier to bracket and condenser

pipe. Tighten bolt securing  condenser pipe to 5
Nm (3.7 lbf.ft). Fit clamping bolt securing
receiver drier to bracket and tighten to 5 Nm
(3.7 lbf.ft).

8. Ensure adaptor block and receiver drier

connections are clean.

9. Lubricate new 'O' ring with refrigerant oil and fit

to adaptor block.

10. Fit adaptor block to receiver drier and tighten

bolt to 5 Nm. (3.7 lbf.ft).

11. Fit condenser assembly.

12. Fit cooling fan to condenser and fit bolts to

secure support rails to condenser  brackets.

13. Ensure connections of condenser,  receiver

drier and evaporator pipes are clean.

14. Lubricate new 'O' ring seals with refrigerant oil

and fit one seal to each  evaporator pipe.

15. Connect evaporator pipes and tighten bolts to 5

Nm (3.7 lbf.ft).

16. Connect multiplug to dual pressure switch.
17. Fit radiator.

l



 COOLING SYSTEM - Td5,

REPAIRS, Radiator.

l



 COOLING SYSTEM - V8,

REPAIRS, Radiator.

18. Recharge A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

AIR CONDITIONING

82-36

REPAIRS

Receiver drier and dual pressure switch

$% 82.17.03

Remove

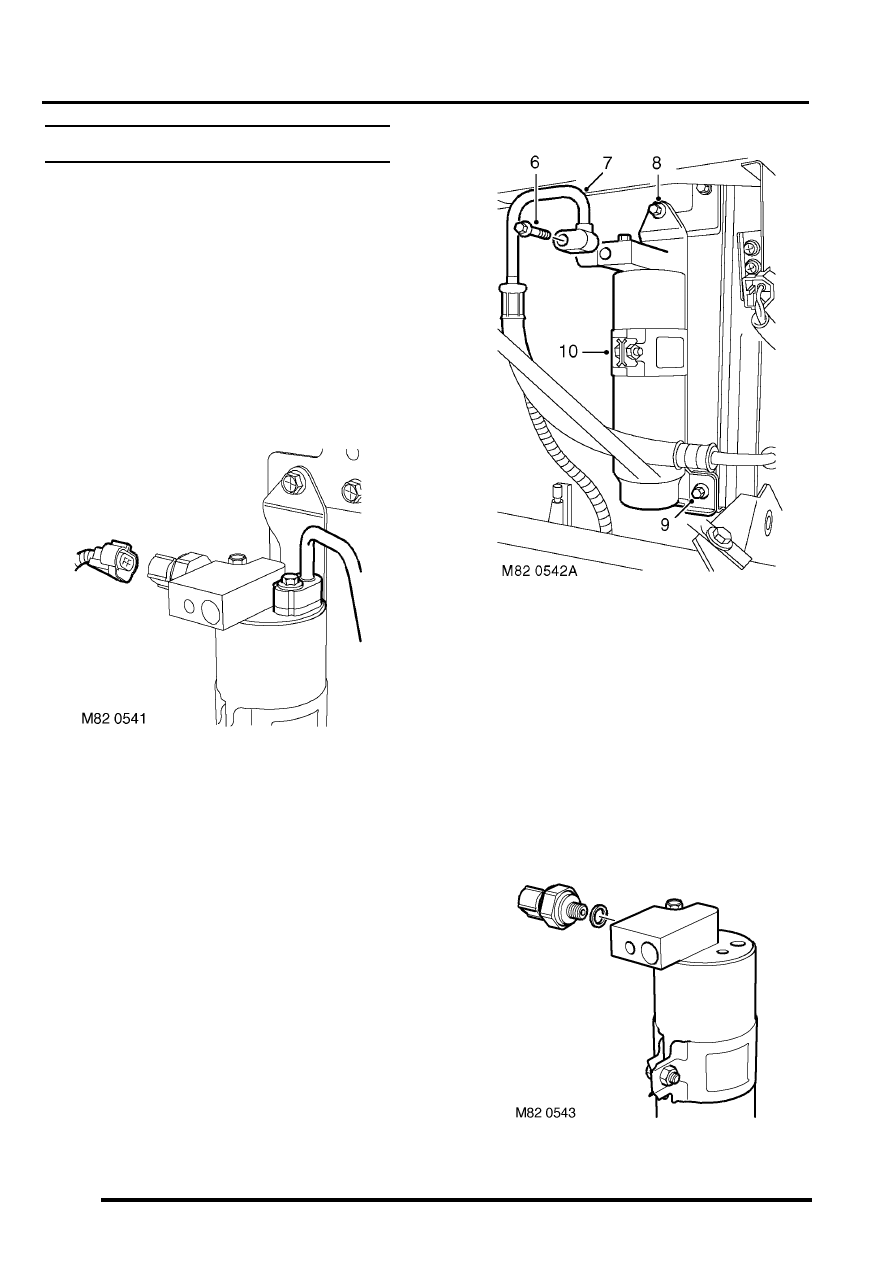

1. Recover refrigerant from air  conditioning

system.


 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

2. Remove front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

3. Disconnect multiplug from dual pressure

switch.

4. Remove bolt securing condenser pipe to

receiver drier.

5. Disconnect condenser pipe from receiver  drier.

CAUTION: Always fit plugs to open
connections to prevent contamination.

6. Remove bolt securing evaporator pipe to

receiver drier.

7. Disconnect evaporator pipe from receiver

drier.

CAUTION: Always fit plugs to open
connections to prevent contamination.

8. Remove bolt securing top of receiver drier

mounting bracket to condenser.

9. Remove bolt securing bottom of receiver drier

mounting bracket to condenser.

10. Remove receiver drier assembly.

11. Loosen mounting bracket clamping bolt.

AIR CONDITIONING

REPAIRS

82-37

12. Remove receiver drier from mounting bracket.
13. Remove dual pressure switch from receiver

drier

Refit

1. Fit  dual pressure switch to receiver drier and

tighten to 10 Nm (7 lbf.ft).

2. Fit receiver drier to mounting bracket and

tighten clamping bolt.

3. Fit receiver drier assembly to condenser.
4. Fit bolts securing receiver drier mounting

bracket to condenser  and tighten to 5 Nm (3.7
lbf.ft).

5. Remove caps from air conditioning pipes and

receiver drier.

6. Remove old 'O' rings from pipes.
7. Fit new 'O' rings to pipes and lubricate with

refrigerant oil.

8. Connect air conditioning pipes to  receiver

drier.

9. Fit bolts securing  air conditioning pipes to

receiver drier and tighten to  5 Nm (3.7 lbf.ft).

10. Connect multiplug to dual pressure switch.
11. Fit front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

12. Recharge air conditioning system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

ECU - air temperature control

$% 82.20.90

Remove

1. Release radio from fascia.



 IN CAR ENTERTAINMENT,

REPAIRS, Radio cassette player.

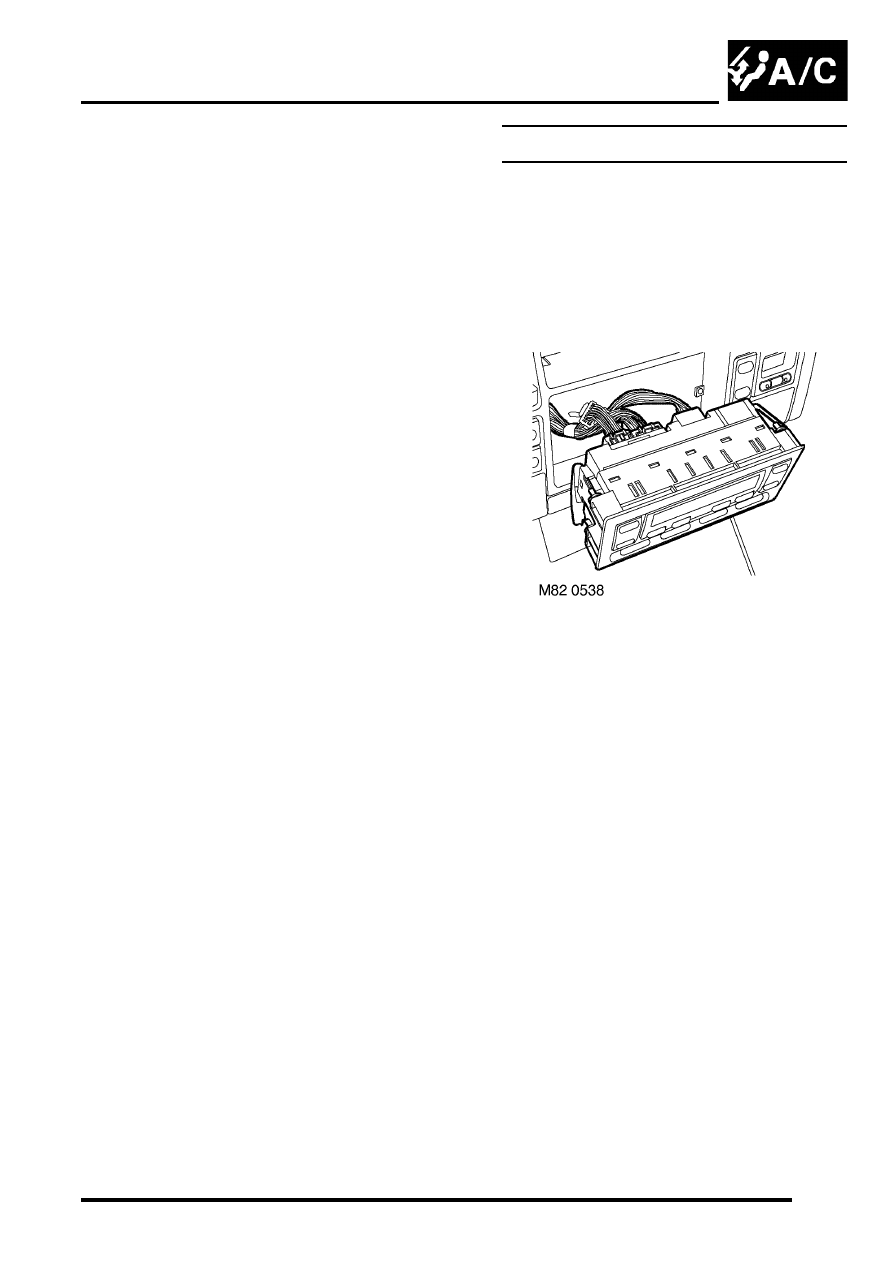

2. Working through radio aperture, release control

unit from fascia.

3. Disconnect 3 multiplugs and remove control

unit.

4. Collect bushes from control unit location pegs.

Refit

1. Fit bushes to new control unit.
2. Position control unit and connect  multiplugs.
3. Fit control unit to fascia.
4. Fit radio to fascia.



 IN CAR ENTERTAINMENT,

REPAIRS, Radio cassette player.

AIR CONDITIONING

82-38

REPAIRS

Sensor - ambient air  temperature

$% 82.20.91

Remove

1. Remove front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

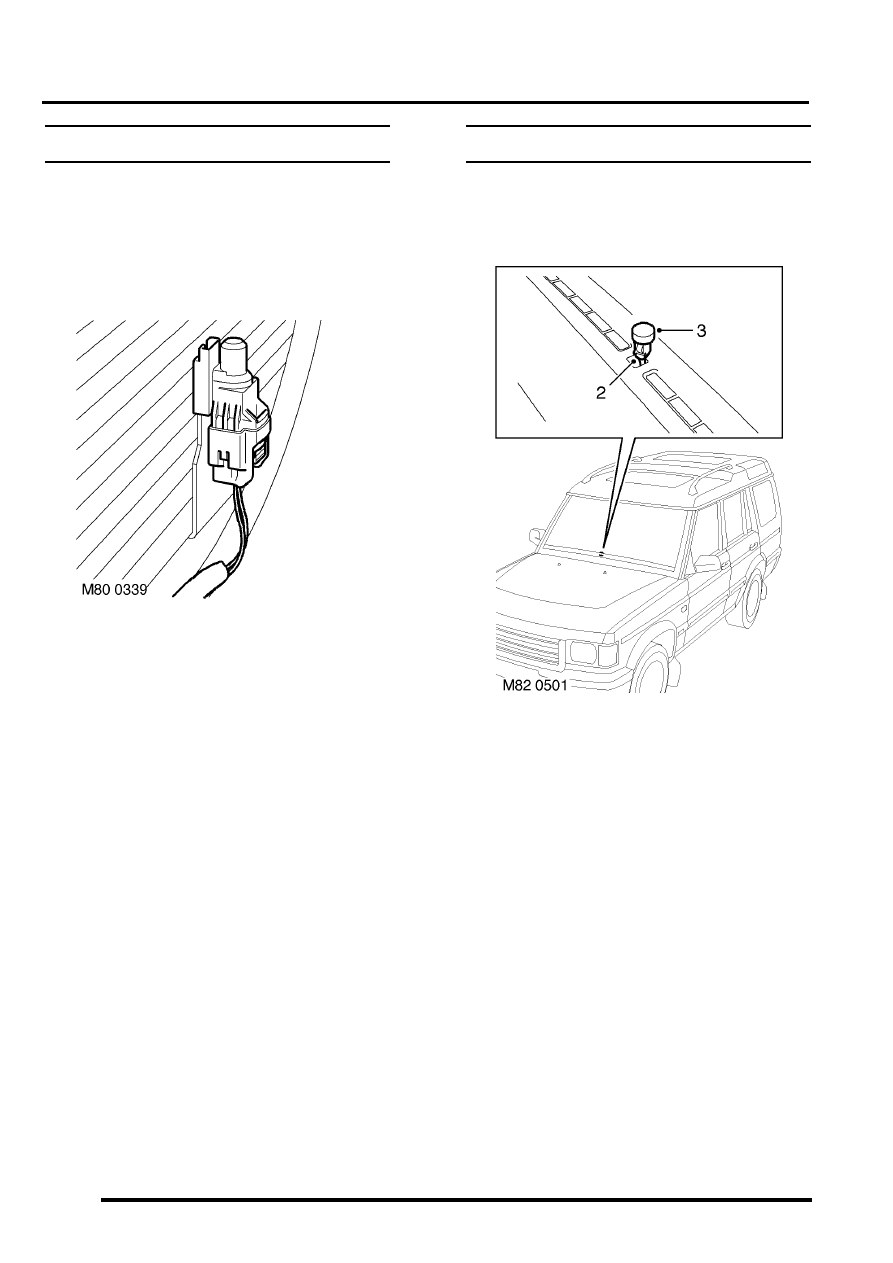

2. Release ambient air temperature sensor from

support bracket, disconnect multiplug and
remove sensor.

Refit

1. Position sensor, connect multiplug and secure

sensor to support bracket

2. Fit front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

Sensor - solar light

$% 82.20.92

Remove

1. Carefully remove solar light sensor from fascia.
2. Disconnect multiplug from solar light sensor.
3. Remove solar light sensor.

Refit

1. Connect multiplug to solar light sensor.
2. Position solar light sensor to fascia and  push to

secure.
