HEATING AND VENTILATION

REPAIRS

80-23

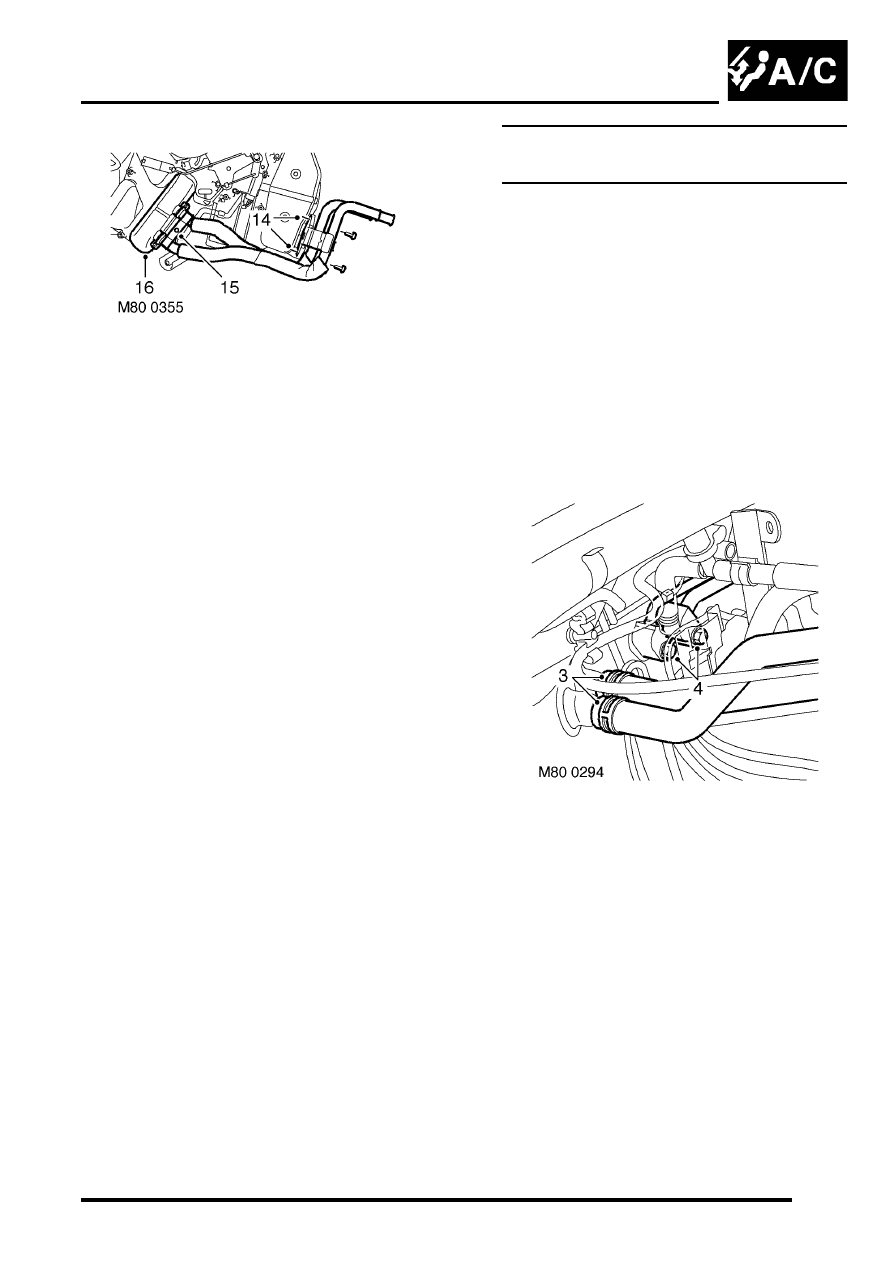

14. Remove 2 screws securing matrix pipe  bracket

to heater casing.

15. Remove screw securing pipe clamp to  heater

casing and remove clamp.

16. Carefully remove matrix from heater.

Refit

1. Fit matrix into heater casing.
2. Fit screws securing pipe bracket to  heater

casing.

3. Fit pipe clamp and secure with screw.
4. Fit heater ducts and secure with screws.
5. Position heater assembly to vehicle, ensure

heater coolant pipe grommet is correctly
located in bulkhead and secure with nuts and
bolt.

6. Fit radio coaxial cable behind  heater pipes.
7. Fit console bracket and secure with   screws.
8. Connect drain tubes to base of heater.
9. Fit blower unit to heater and secure  to body

with nuts and bolt.

10. Connect harness multiplug to blower  motor.
11. Fit facia assembly



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

12. Connect heater hoses and secure with  clips.
13. Diesel models: Fit engine cover  and secure

with bolts.

14. Refill cooling system

l



 +

 COOLING SYSTEM - Td5,

ADJUSTMENTS, Drain and refill.

l



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

Heater assembly - models with air
conditioning

$% 80.20.01.98

Remove

1. Drain cooling system.

l



 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

l



 COOLING SYSTEM - Td5,

ADJUSTMENTS, Drain and refill.

2. Evacuate air conditioning system.



 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

3. Release 2 clips securing heater hoses to

heater and release hoses.

4. Remove 2 bolts securing air conditioning  pipes

to evaporator, release pipes and  discard 'O'
rings.

CAUTION: Always fit plugs to open
connections to prevent contamination.

5. Remove fascia.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

HEATING AND VENTILATION

80-24

REPAIRS

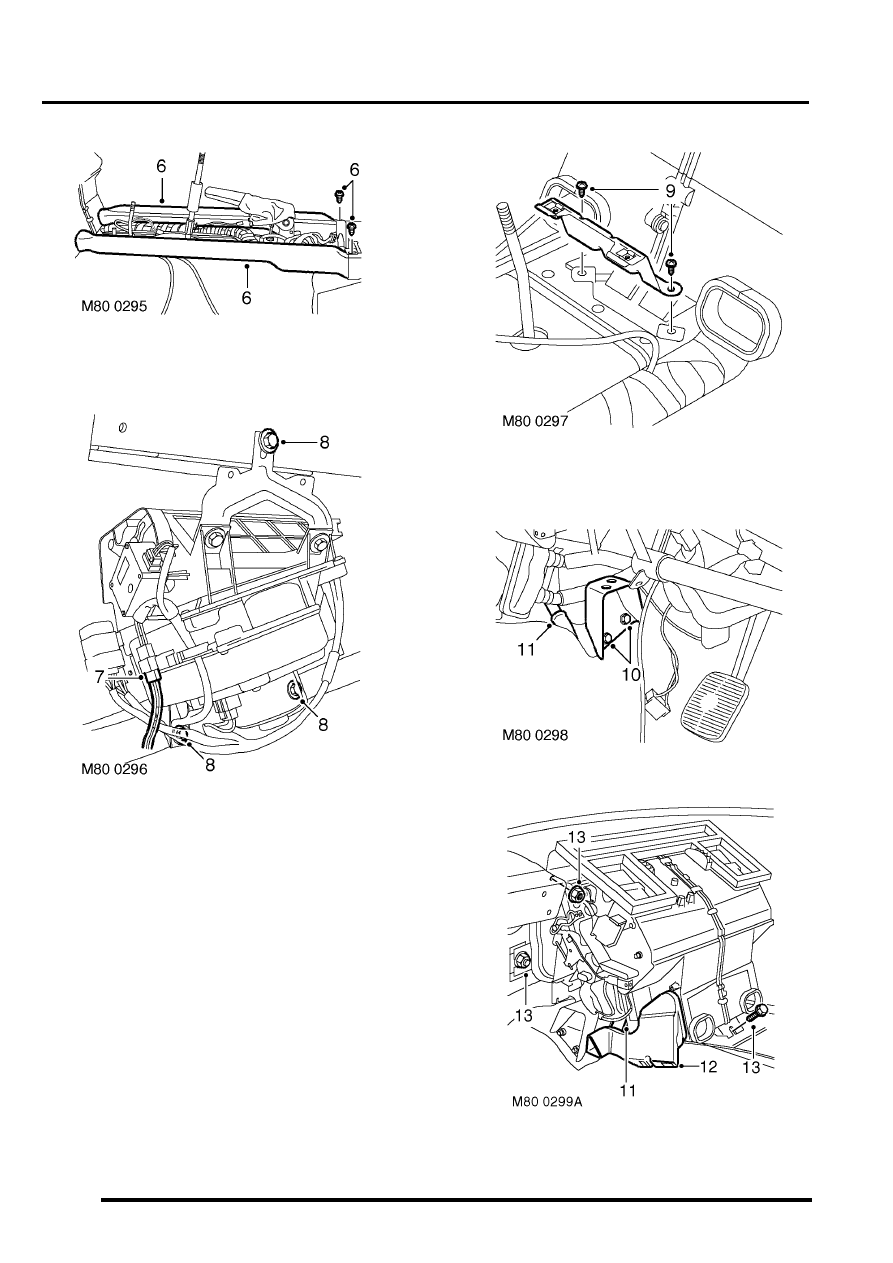

6. Remove screws securing rear heater  ducting

and remove ducting.

7. Disconnect multiplug from heater motor.
8. Remove 2 nuts and bolt securing heater  motor

assembly and remove motor assembly  from
heater casing.

9. Remove 2 screws securing centre console

support bracket and remove bracket.

10. Remove 2 nuts securing RH fascia  support

bracket and remove bracket.

HEATING AND VENTILATION

REPAIRS

80-25

11. Disconnect both evaporator drain hoses.
12. Remove front heater ducting.
13. Remove 4 nuts and bolt securing heater

assembly, release heater assembly from
bulkhead grommet and remove from vehicle.

Refit

1. Position heater assembly to bulkhead,  locate

heater in bulkhead grommet.

2. Fit nuts and bolt securing heater  and tighten to

16 Nm (12 lbf.ft).

3. Position RH fascia support bracket, fit  and

tighten nuts.

4. Fit front heater ducting.
5. Position centre console support bracket,  fit and

tighten screws.

6. Connect evaporator drain hoses.
7. Position heater motor  to heater casing, fit nuts

and bolt and tighten to   19 Nm (14 lbf.ft).

8. Connect multiplug heater motor.
9. Position rear heater ducting and secure  with

screws.

10. Fit fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

11. Using new 'O' rings, position  air conditioning

pipes to evaporator fit bolts and tighten to  5 Nm
(3.7 lbf.ft).

12. Position heater hoses and secure hose  clips.
13. Recharge air conditioning system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.

14. Refill cooling system.

l



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

l



 +

 COOLING SYSTEM - Td5,

ADJUSTMENTS, Drain and refill.

Blower assembly

$% 80.20.12

Remove

1. Remove 4 studs securing toe board and

remove toe board.

2. Remove 4 screws securing glove box,  release

catch and remove glove box.

3. Disconnect battery earth lead.

HEATING AND VENTILATION

80-26

REPAIRS

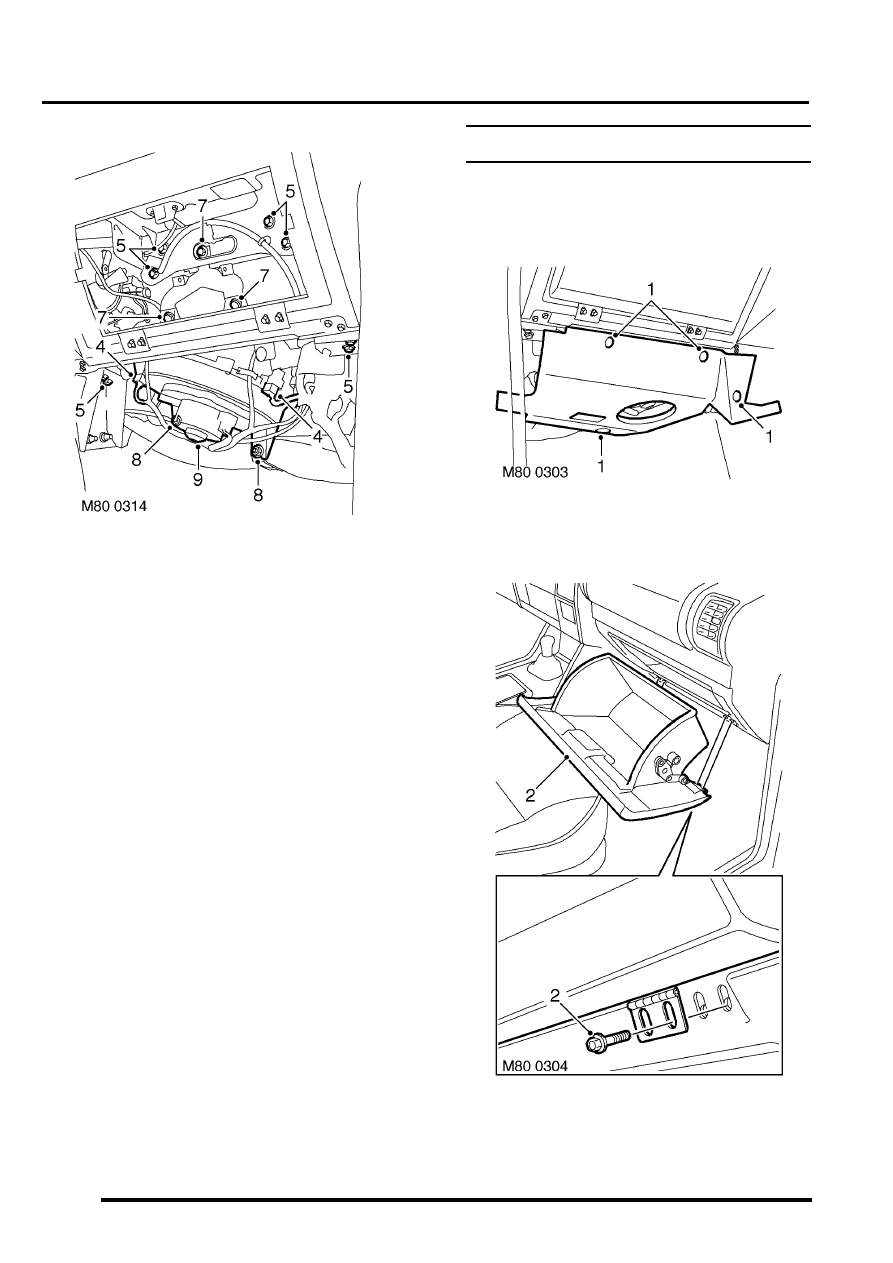

4. Disconnect multiplugs from blower motor.
5. Remove 8 bolts securing passenger side  of

fascia panel.

6. Carefully ease fascia away from bulkhead
7. Remove 3 bolts securing blower motor  support

bracket and remove bracket.

8. Remove 2 nuts securing motor assembly.
9. Release blower motor assembly from heater

and  manoeuvre from under fascia.

Refit

1. Position blower motor assembly under  fascia

and locate to heater casing.

2. Position support bracket, fit and  tighten nuts

and bolts.

3. Align fascia, fit bolt to support bracket and

tighten  to 26 Nm (19 lbf.ft).

4. Connect multiplugs to blower motor.
5. Connect battery earth lead.
6. Fit glove box, align hinges and tighten  screws.
7. Position toe board and secure with  studs.

Motor -  blower

$% 80.20.15

Remove

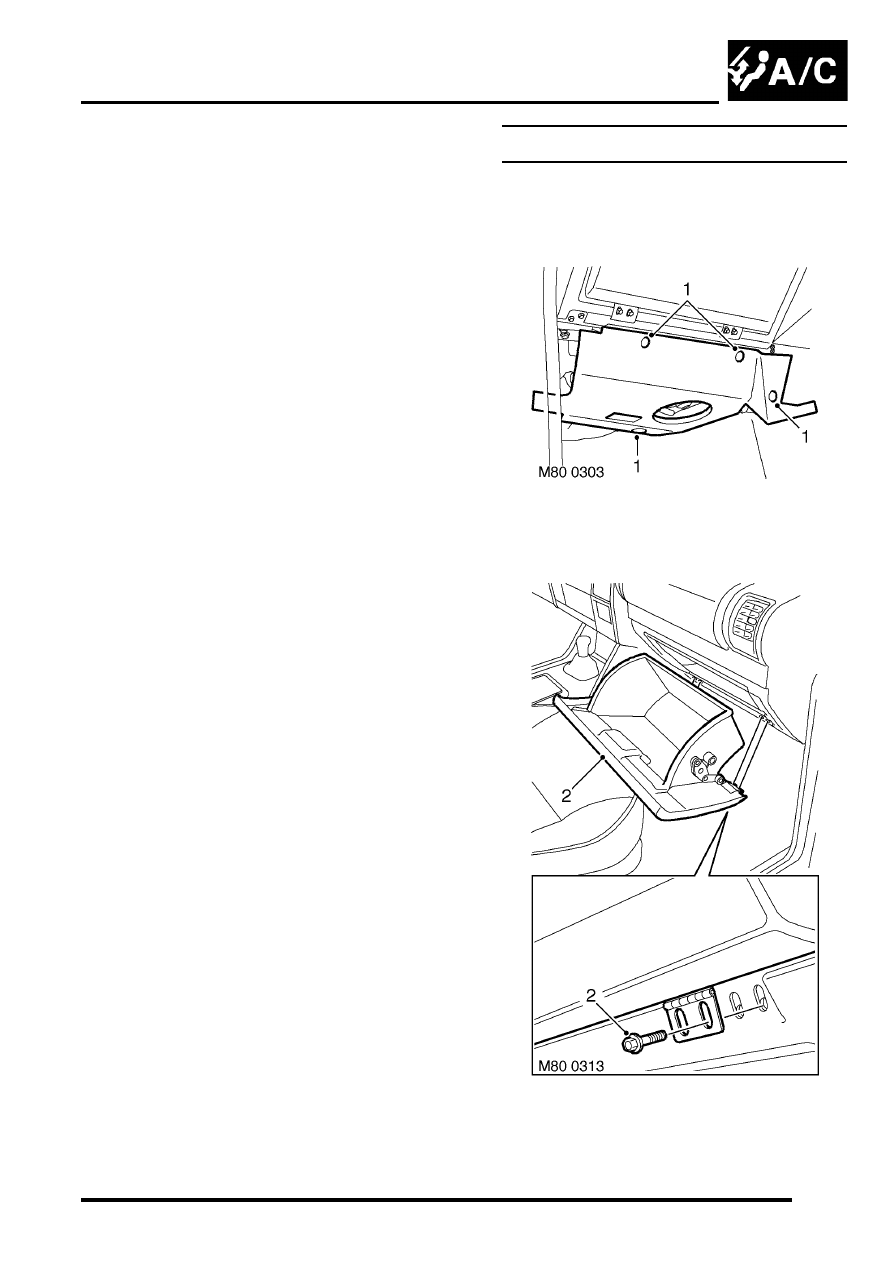

1. Remove 4 studs securing toe board and

remove toe board.

2. Remove 4 screws securing glove box,  release

catch and remove glove box.
