Discovery 2. Manual - part 667





SEATS

REPAIRS 76-5-19

10. Release clip securing lower edge of  squab

cover to seat frame.

11. Remove 2 end clips securing rear edge  of

cushion cover to seat frame.

12. Release main central clip securing  rear edge of

cushion cover to seat frame.

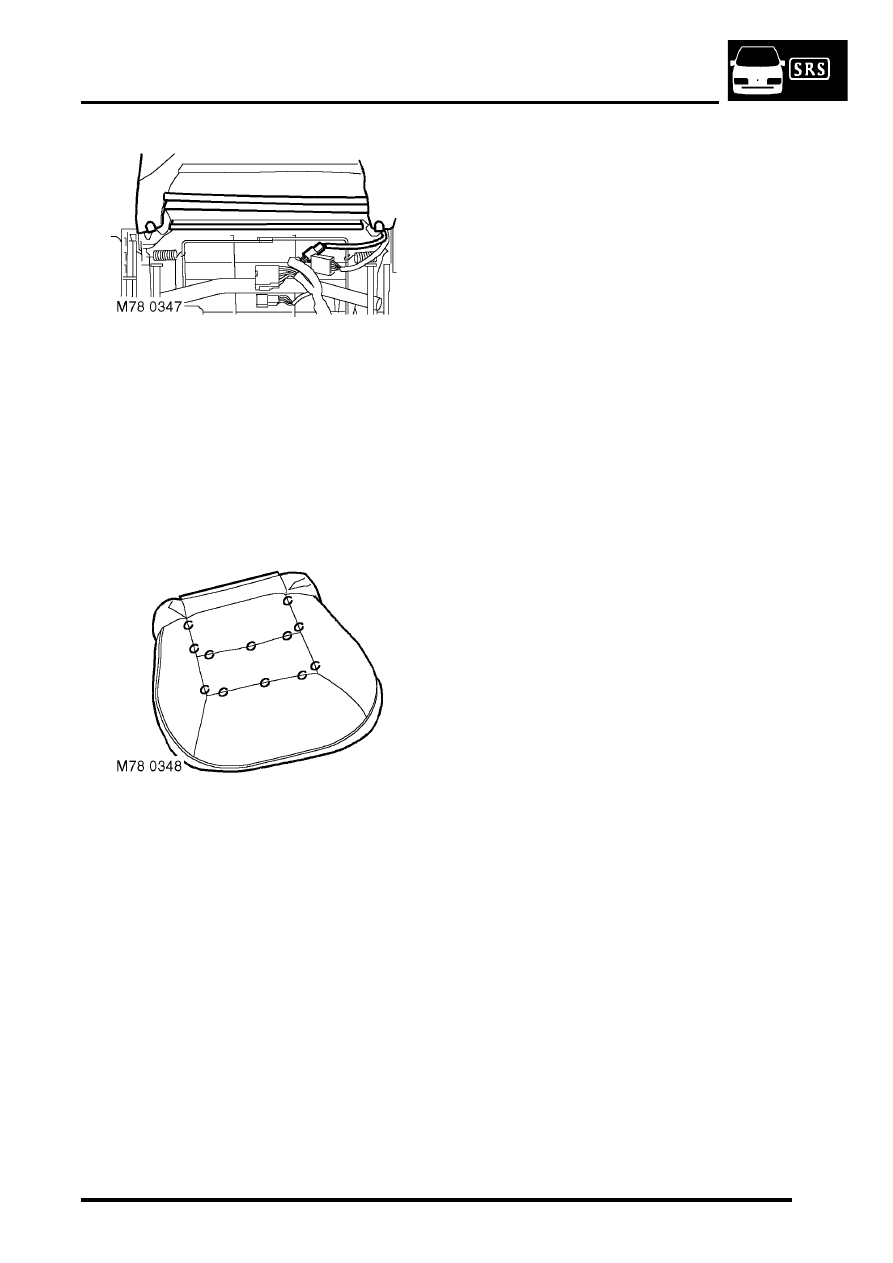

13. Models with seat heaters: Disconnect seat

heater multiplug.

14. Release bonded rear edge of cushion from

seat frame.

15. Remove seat cushion and cover assembly.
16. Release outer edges of cover from  cushion to

gain access to hog rings.

17. Remove 12 hog rings securing cover to

cushion.

18. Remove cover.

Refit

1. Fit cover to cushion.
2. Fit and clamp hog rings securing cover  to

cushion.

3. Fit outer edges of cover over cushion.
4. Fit cushion and cover assembly to seat  frame.
5. Models with seat heaters: Connect seat

heater multiplug.

6. Secure rear edge of cushion cover with  clip.
7. Fit end clips over rear edge of cushion  cover.
8. Secure lower edge of squab cover to  seat

frame.

9. Secure edges of cushion cover with  clips.

10. Secure front edge of cushion cover with  clip.
11. Position seat correct way up on work  bench.
12. Secure inner edge trim casing to seat  frame.
13. Fit outer edge trim casing to seat frame  and

secure with screws.

14. Fit front seat.



 +

 SEATS, REPAIRS, Seat - front.

SEATS

76-5-20 REPAIRS

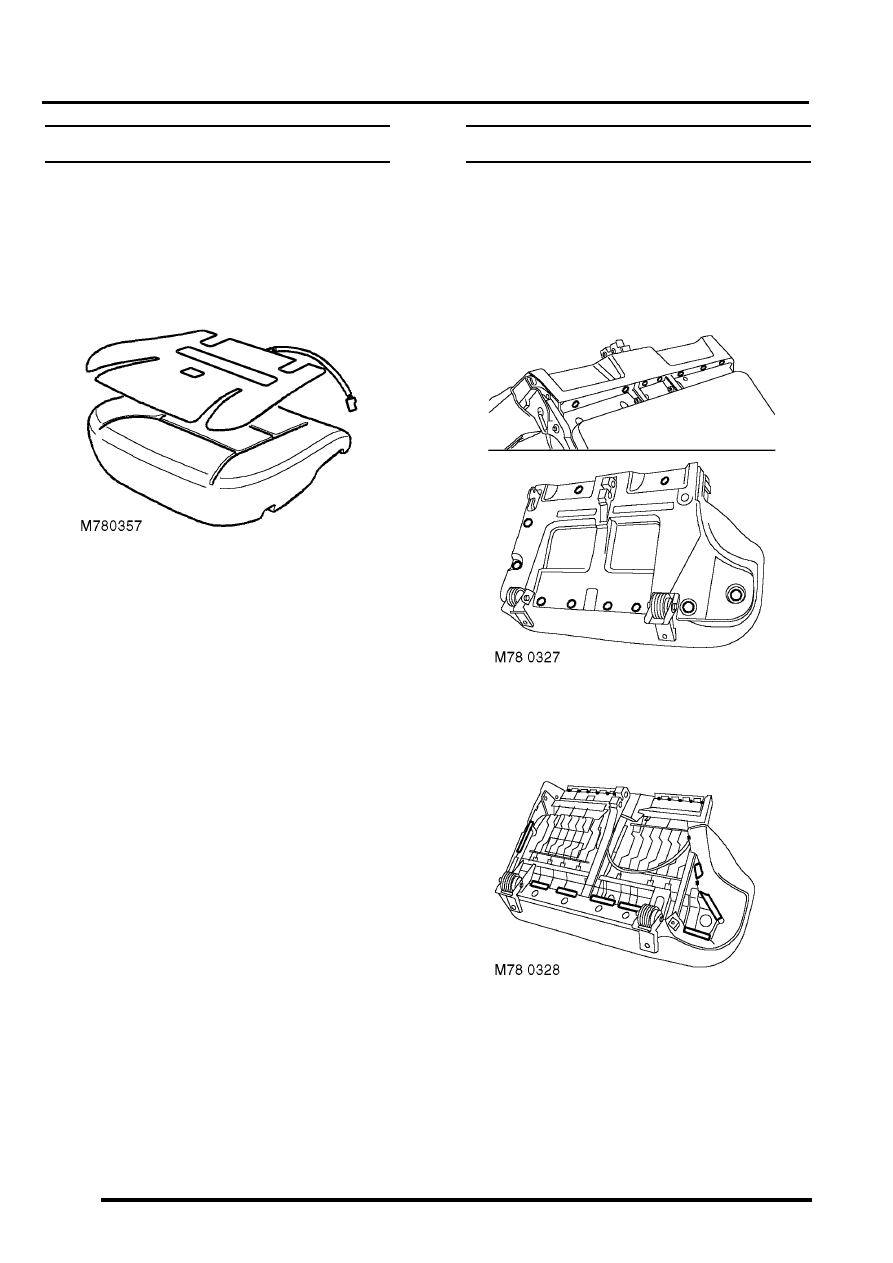

Heating element - cushion - front seat

$% 78.30.24

Remove

1. Remove front seat cushion cover.



 +

 SEATS, REPAIRS, Cover - cushion

- front seat.

2. Carefully release heating element from

cushion pad, ensuring adhesive does not  tear
cushion pad.

Refit

1. Ensure cushion pad is free of adhesive.
2. Remove adhesive cover from new heating

element, position element and secure to
cushion pad.

3. Fit front seat cushion cover.



 +

 SEATS, REPAIRS, Cover - cushion

- front seat.

Cover - cushion - rear seat

$% 78.40.04

Remove

1. Remove rear seat.



 SEATS, REPAIRS, Seat - rear.

2. Remove 17 studs securing cushion under  tray

and remove tray.

3. Release cushion from 11 hooks at rear of

frame.

4. Remove 2 spring clips securing cushion.
5. Release 8 side clips securing cushion,  release

and remove cushion assembly.

SEATS

REPAIRS 76-5-21

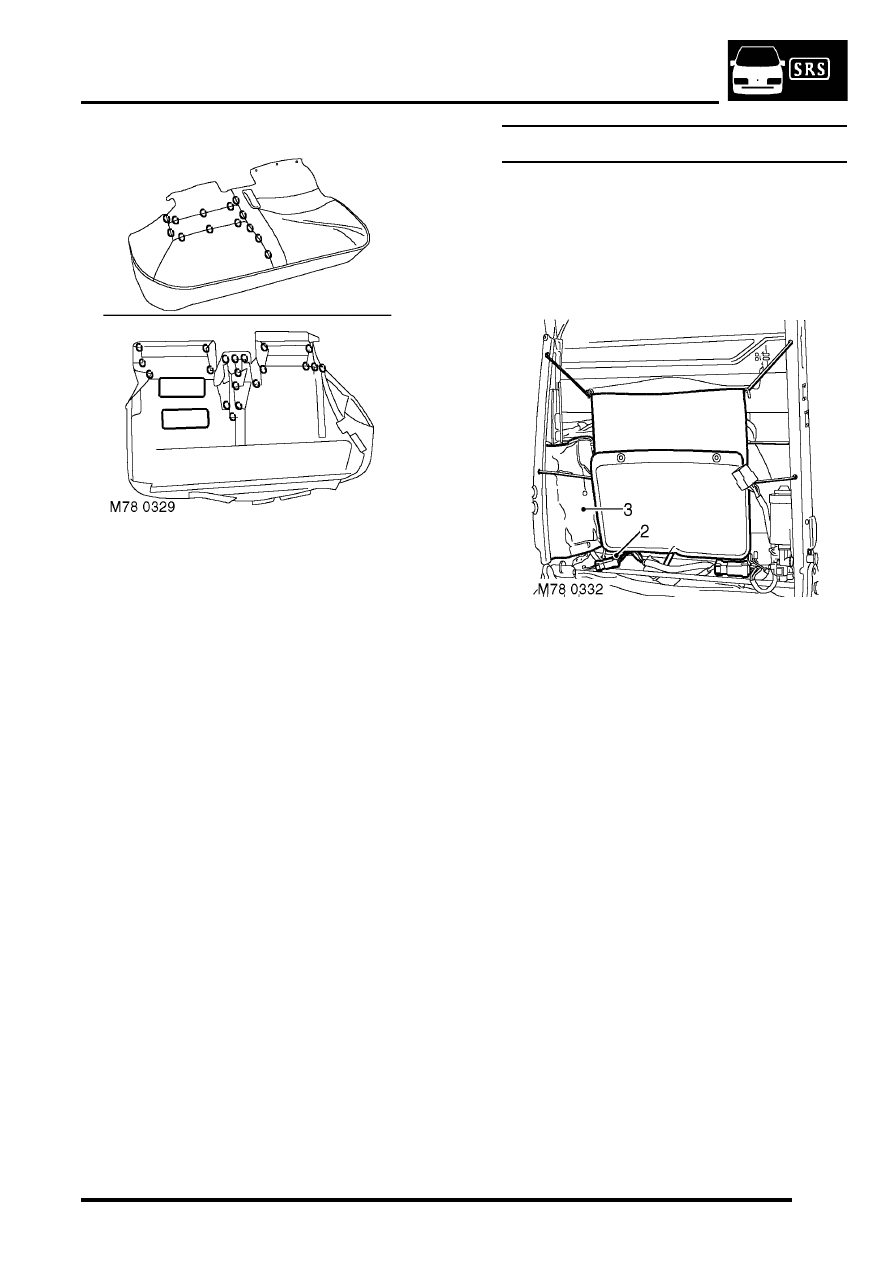

6. Push 2 retaining bars through pad.
7. Release cushion from sides of pad to  access

hog rings.

8. Remove 33 hogs rings and remove cushion

from pad.

Refit

1. Position cushion to pad and secure with  hog

rings.

2. Push retaining bars through pad and fit cover to

sides of pad.

3. Position cushion assembly to frame and

secure side clips.

4. Fit spring clips and secure to hooks at  rear of

frame.

5. Position under tray and secure with  studs.
6. Fit rear seat.



 +

 SEATS, REPAIRS, Seat - rear.

Bladder - lumbar support

$% 78.60.01

Remove

1. Remove squab cover.



 SEATS, REPAIRS, Cover - squab -

front seat.

2. Disconnect lumbar support pump multiplug.
3. Release lumbar support pump from bladder

retainers.

4. Release bladder from 8 retainers and  remove

bladder and lumbar support pump.

5. Collect bladder retainers.

Refit

1. Position bladder retainers to seat frame.
2. Position bladder and secure to bladder

retainers

3. Position pump in bladder retainers and

connect multiplug.

4. Fit squab cover.



 SEATS, REPAIRS, Cover - squab -

front seat.

SEATS

76-5-22 REPAIRS

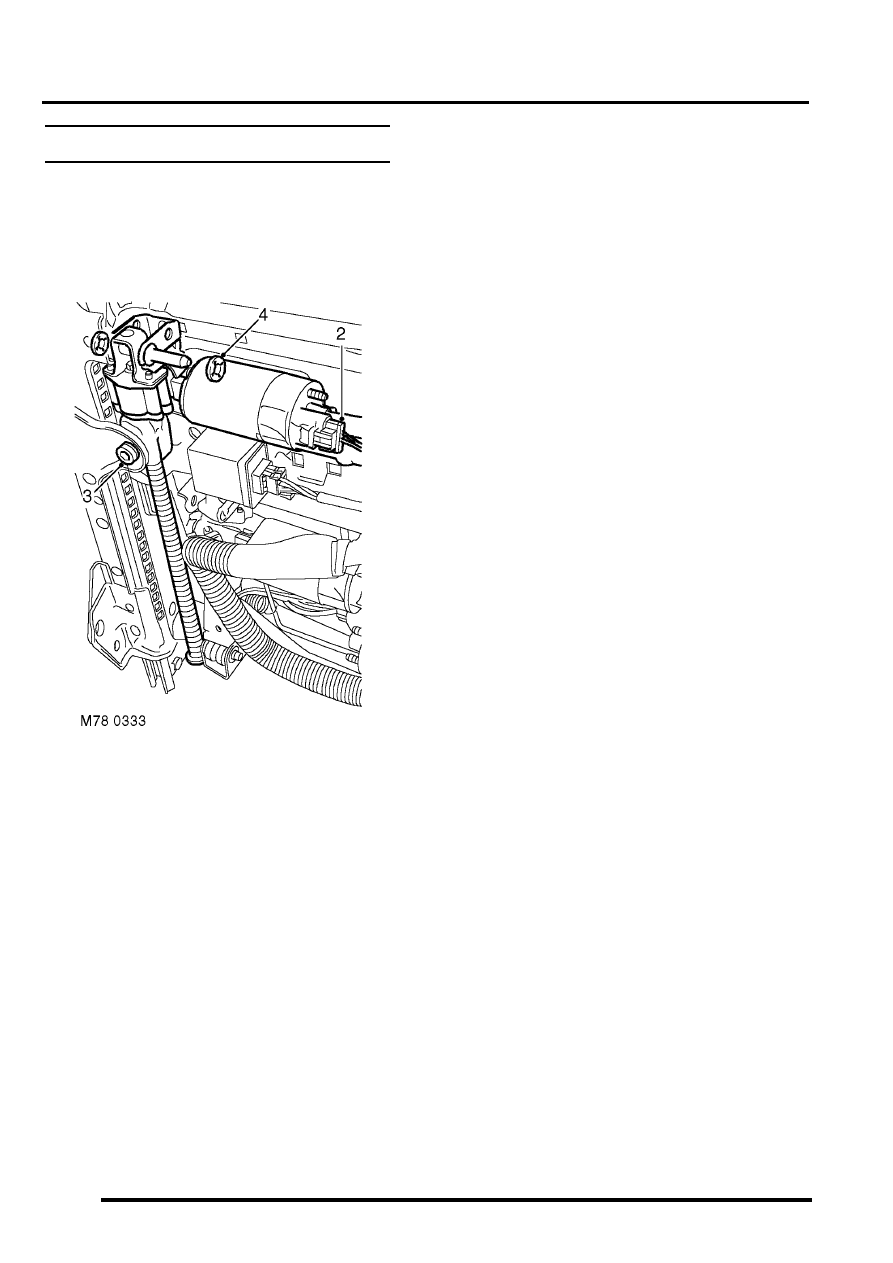

Motor - fore and aft - front seat

$% 78.70 25

Remove

1. Remove front seat.



 +

 SEATS, REPAIRS, Seat - front.

2. Disconnect multiplug from fore and aft motor.
3. Remove Allen screw securing RH screw

thread to seat frame.

4. Remove 2 retainers from RH fore and aft

gearbox roll pin. Remove roll pin.

5. Remove spacers.
6. Position RH screw thread retainer clear  of seat

frame and remove fore and aft motor.

Refit

1. Clean gearbox and motor drive tube.
2. Position motor drive tube to LH gearbox  and

align fore and aft motor to seat frame.

3. Fit new gearbox spacers, roll pin and retainers.
4. Align RH screw thread retainer to seat  frame

and secure with Allen screw.

Ensure retainer is correctly aligned or
damage may occur when seat motor is
operated.

5. Connect fore and aft motor multiplug.
6. Fit front seat.



 SEATS, REPAIRS, Seat - front.
