SEATS

REPAIRS 76-5-15

REPAIRS

Seat - front

$% 78.10.43.99

Remove

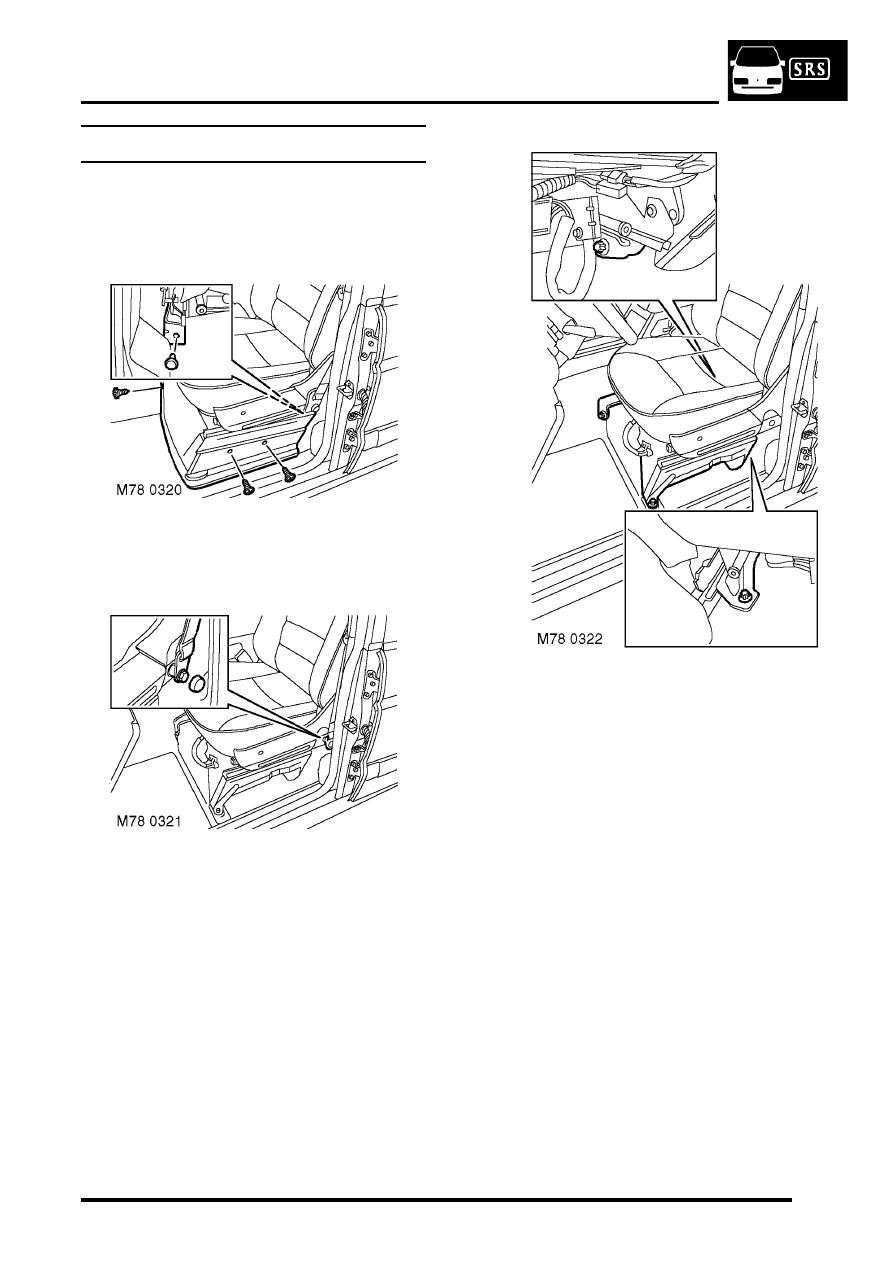

1. Disconnect battery earth lead.

2. Remove 3 screws and 1 trim clip securing

lower trim casing to seat.

3. Remove lower trim casing.

4. Remove cap from front seat belt lower

anchorage  bolt.

5. Remove front seat belt lower anchorage bolt.

6. Remove 4 Torx bolts and nut securing front

seat to floor.

7. Lean seat forward to gain access to  multiplugs.

SEATS

76-5-16 REPAIRS

8. Release pretensioner multiplug from  seat

frame and disconnect.

9. Electrically operated seats: Disconnect 2

seat motor multiplugs.

10. Remove front seat.

Refit

1. Fit front seat in vehicle.
2. Electrically operated seats: Connect seat

motor multiplugs.

3. Connect pretensioner multiplug and  secure to

seat frame.

4. Fit Torx bolts and nut securing front seat to floor

and tighten to 45 Nm (33 lbf.ft).

5. Fit front seat belt lower anchorage bolt to front

seat and tighten to 32 Nm (24 lbf.ft).

6. Fit cap to lower anchorage bolt.
7. Fit lower trim casing to seat and secure  with

screws and trim clip.

8. Connect battery earth lead.

Seat - third row

$% 78.10.45

Remove

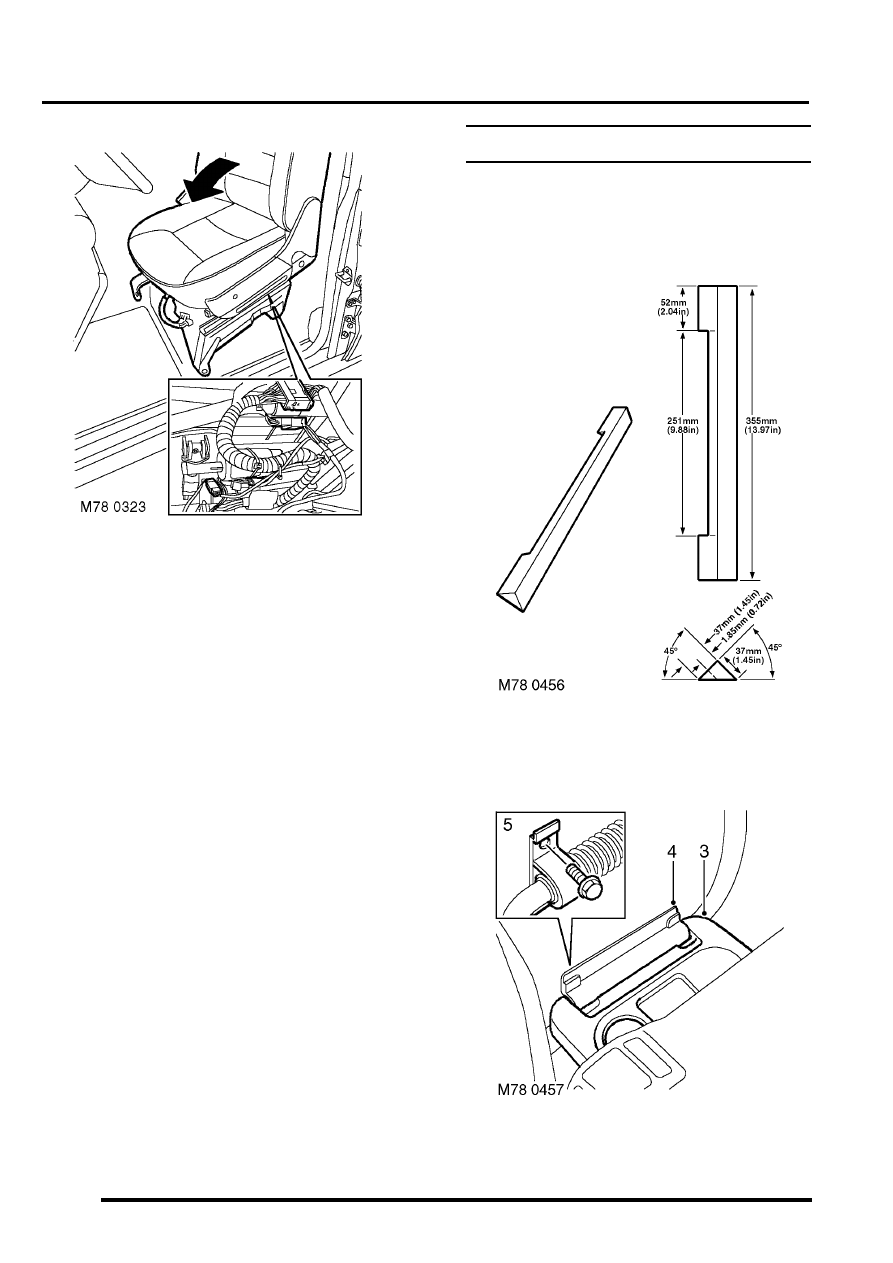

1. Manufacture a spring retainer bracket to the

dimensions given above.

2. Position third row seat in deployed position.

3. Remove the cup holder (where applicable).

SEATS

REPAIRS 76-5-17

4. Remove saddle bracket cover from lower rear

quarter to allow access to third row seat
securing bolts and nuts.

5. Remove top 2 bolts securing seat to lower rear

quarter panel.

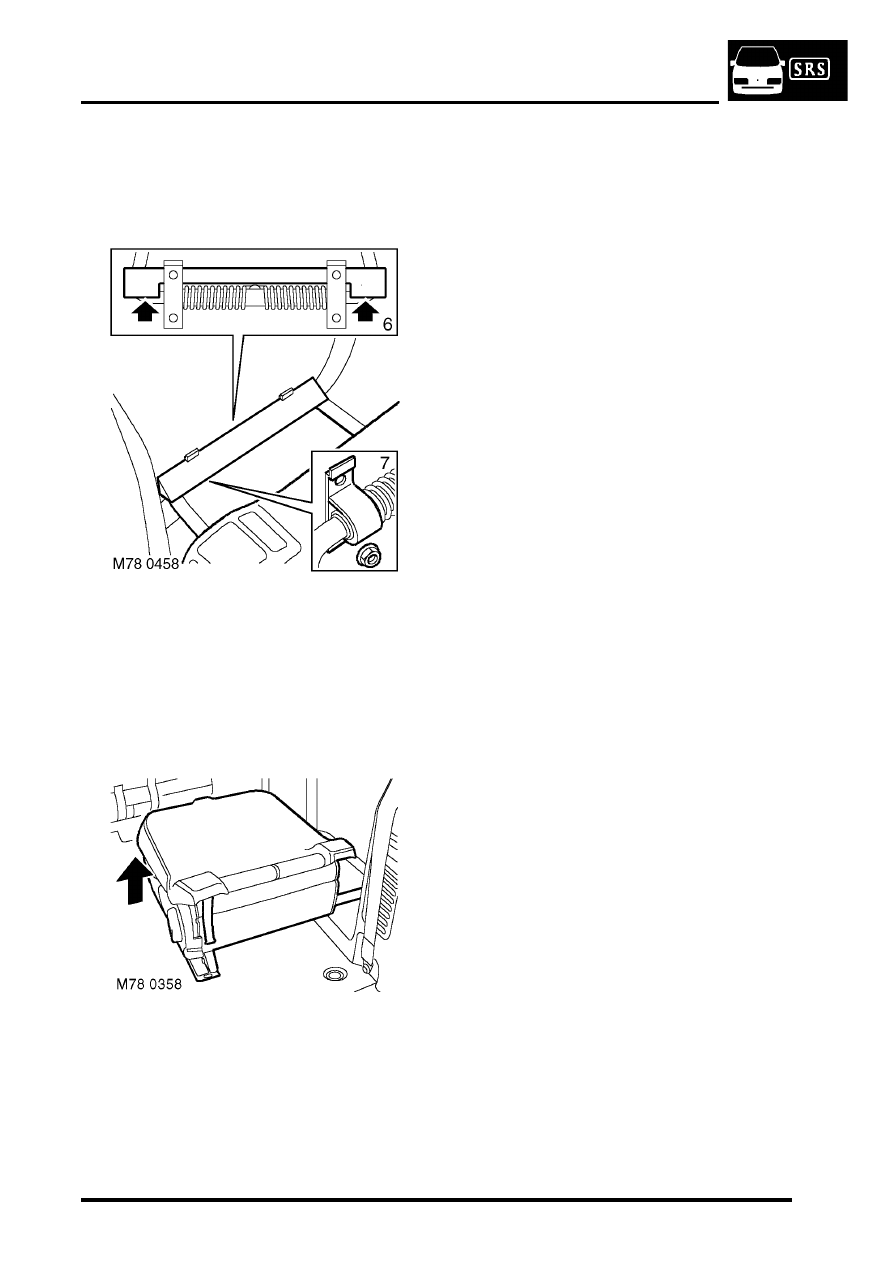

6. Position the locally manufactured retainer

bracket across the seat mounting. Ensure that
the lugs on the end of the retainer fit below the
seat mounting bar, then partially fold the seat
so that the retainer bracket is held in position.

7. Remove lower 2 nuts securing seat to lower

rear quarter panel. The action of the spring will
now hold the retainer bracket in place.

8. Remove seat.

Refit

1. Ensuring that the retainer bracket is in position

on the spring, position third row seat to its
mounting studs.

2. Fit  nuts securing third row seat to lower rear

quarter panel and tighten to 22 Nm (16 lbf.ft).

3. Remove the retainer bracket, fit  bolts securing

third row seat to lower rear quarter panel and
tighten to 22 Nm (16 lbf.ft).

4. Fit saddle bracket cover to third row seat

securing bolts, fit the cup holder (where
applicable) and stow the seat.

SEATS

76-5-18 REPAIRS

Seat - rear

$% 78.10.48.99

This procedure is applicable to both rear seats.

Remove

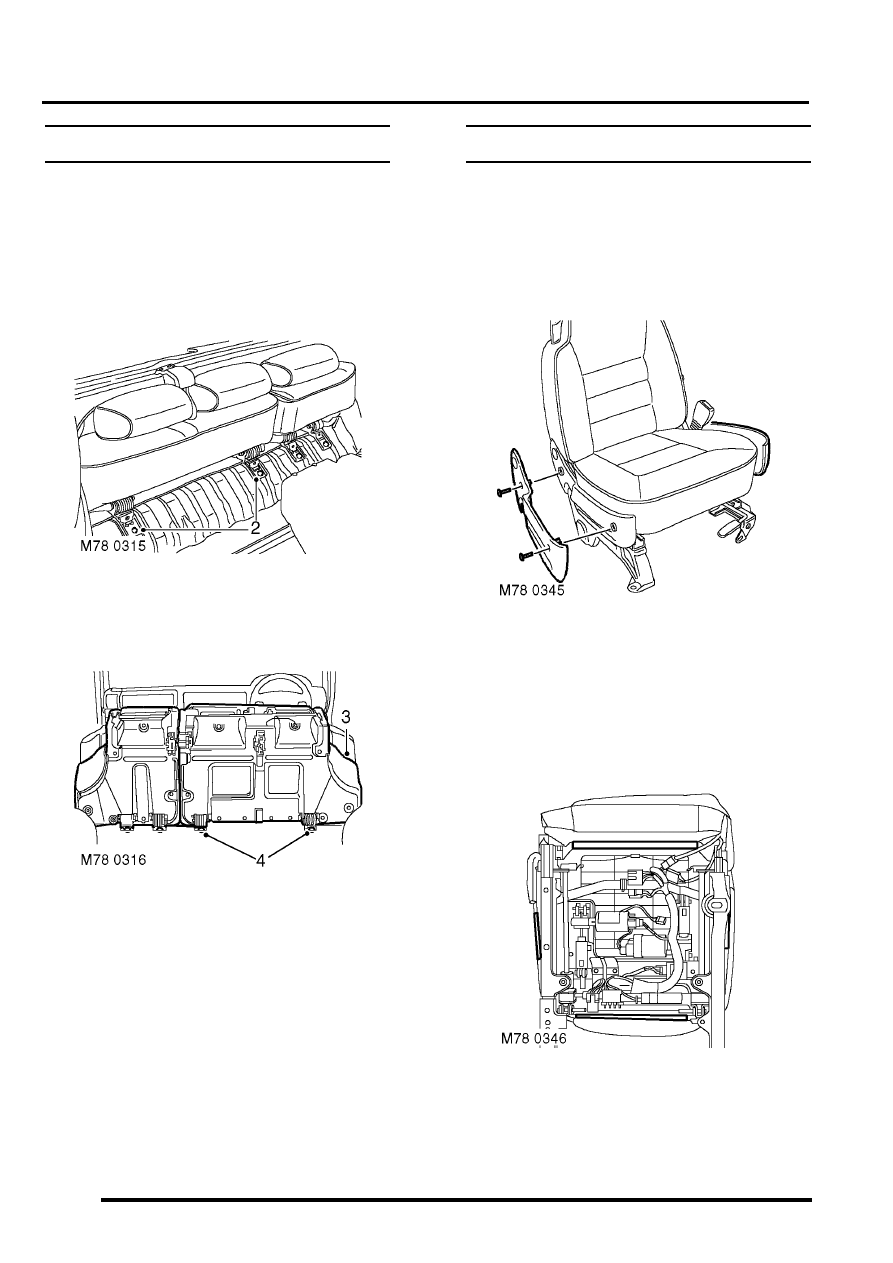

1. Carefully pull carpet away from the rear seat

base to  gain access to mounting brackets.

2. Remove 2 Torx bolts securing front of mounting

brackets to floor.

3. Fold rear seats fully forward.
4. Remove the 2 Torx bolts securing rear of

mounting brackets to floor.

5. Remove rear seat.

Refit

1. Position  rear seat  to floor in the fully folded

position. Fit Torx screws to rear of mounting
brackets and tighten to 45 Nm (33 lbf.ft).

2. Position rear seat in upright position. Fit Torx

bolts to front of mounting brackets and tighten
to 45 Nm (33 lbf.ft).

3. Position front carpet.

Cover - cushion - front seat

$% 78.30.01/81

Remove

1. Remove front seat.



 SEATS, REPAIRS, Seat - front.

2. Place seat on a suitable work bench.

3. Remove 2 screws securing outer edge trim

casing to seat frame.

4. Remove trim casing.
5. Release inner edge trim casing from seat

frame.

6. Remove trim casing.

7. Position seat upside down on table.
8. Release clip securing front edge of cushion

cover to seat frame.

9. Release clips securing side edges of  cushion

cover to seat frame.
