Discovery 2. Manual - part 659





INTERIOR TRIM COMPONENTS

REPAIRS 76-3-19

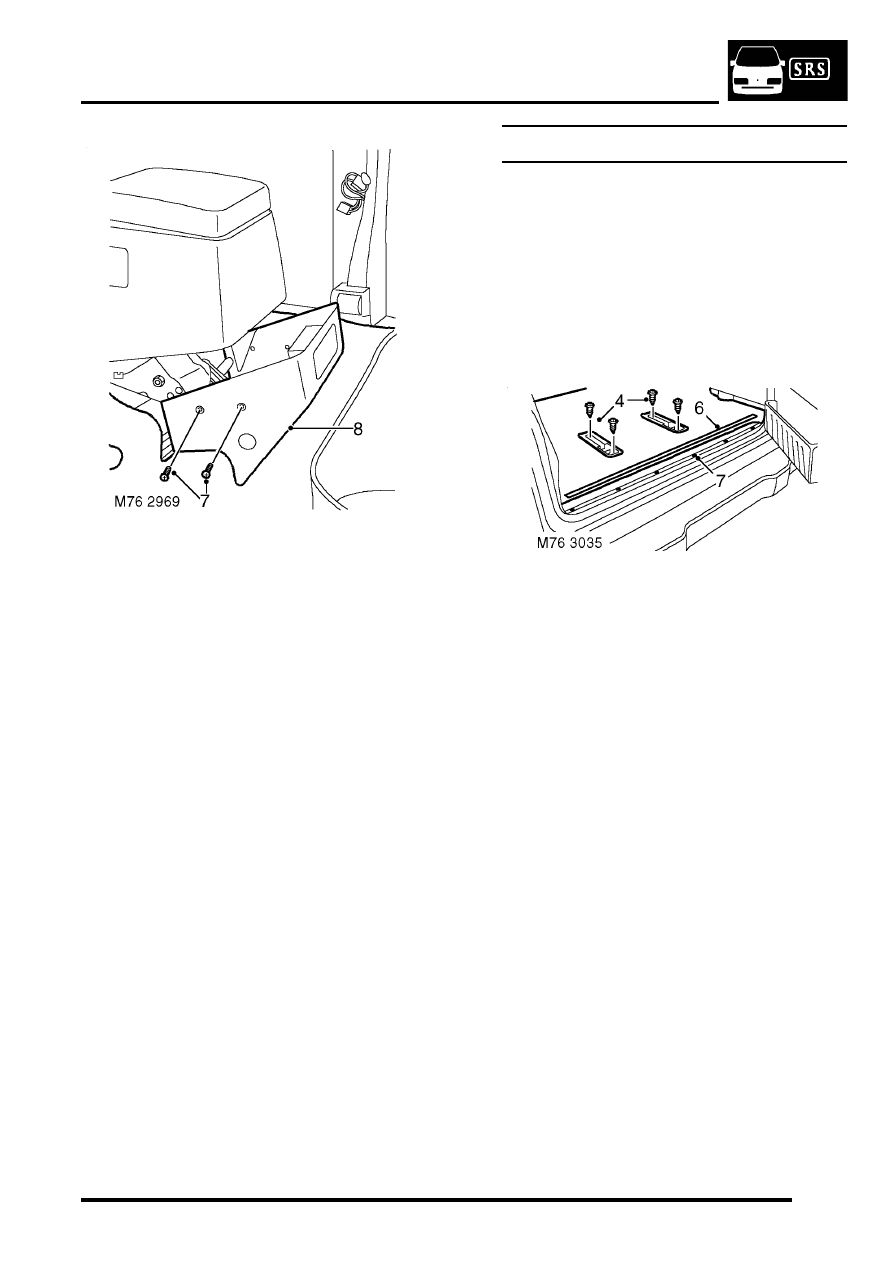

7. Remove 4 screws securing trim panel to rear of

centre console.

8. Remove trim panel.
9. Position harnesses clear of rear carpet.

10. Remove rear carpet.

Refit

1. Position new rear carpet.
2. Fit front and rear carpet retainers to floor and

secure with screws.

3. Fit finishers to front and rear carpet retainers
4. Position trim panel to rear of centre console

and secure with screws.

5. Fit lower 'B' post trim panels.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - lower - 'B' post.

6. Fit RH front seat to floor.



 +

 SEATS, REPAIRS, Seat - front.

7. Models with premium ICE: Fit power

amplifier.


 +

 IN CAR ENTERTAINMENT,

REPAIRS, Amplifier - power.

Carpet - loadspace

$% 76.49.04

Remove

1. Remove both rear seat belt lower fixings.
2. Models with third row seats: Remove both

third row seats.


 SEATS, REPAIRS, Seat - third row.

3. Remove both loadspace side trim casings.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - side - loadspace.

4. Models with third row seats: Remove 4

screws and remove both seat lower mounting
escutcheons.

5. Recline rear seats fully forward.
6. Remove finisher from loadspace carpet

retainer.

7. Remove 6 screws securing loadspace carpet

retainer to floor and remove retainer.

8. Remove loadspace carpet.

Refit

1. Position loadspace carpet to floor.
2. Position loadspace carpet retainer to floor and

secure with screws.

3. Fit finisher to loadspace carpet retainer
4. Return rear seats to their normal position.
5. Models with third row seats: Position both

third row seats lower mounting escutcheons to
floor and secure with screws.

6. Fit both loadspace side trim casings.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - side - loadspace.

7. Models with third row seats: Fit both third row

seats.


 SEATS, REPAIRS, Seat - third row.

8. Position both rear seat belt lower mountings

and secure with bolts tightened to 32 Nm (24
lbf.ft).

INTERIOR TRIM COMPONENTS

76-3-20 REPAIRS

Headlining

$% 76.64.15.21

Remove

1. Remove both 'D' post trim casings.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - 'D' post.

2. Remove both 'B' post upper trim casings.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - upper - 'B' post.

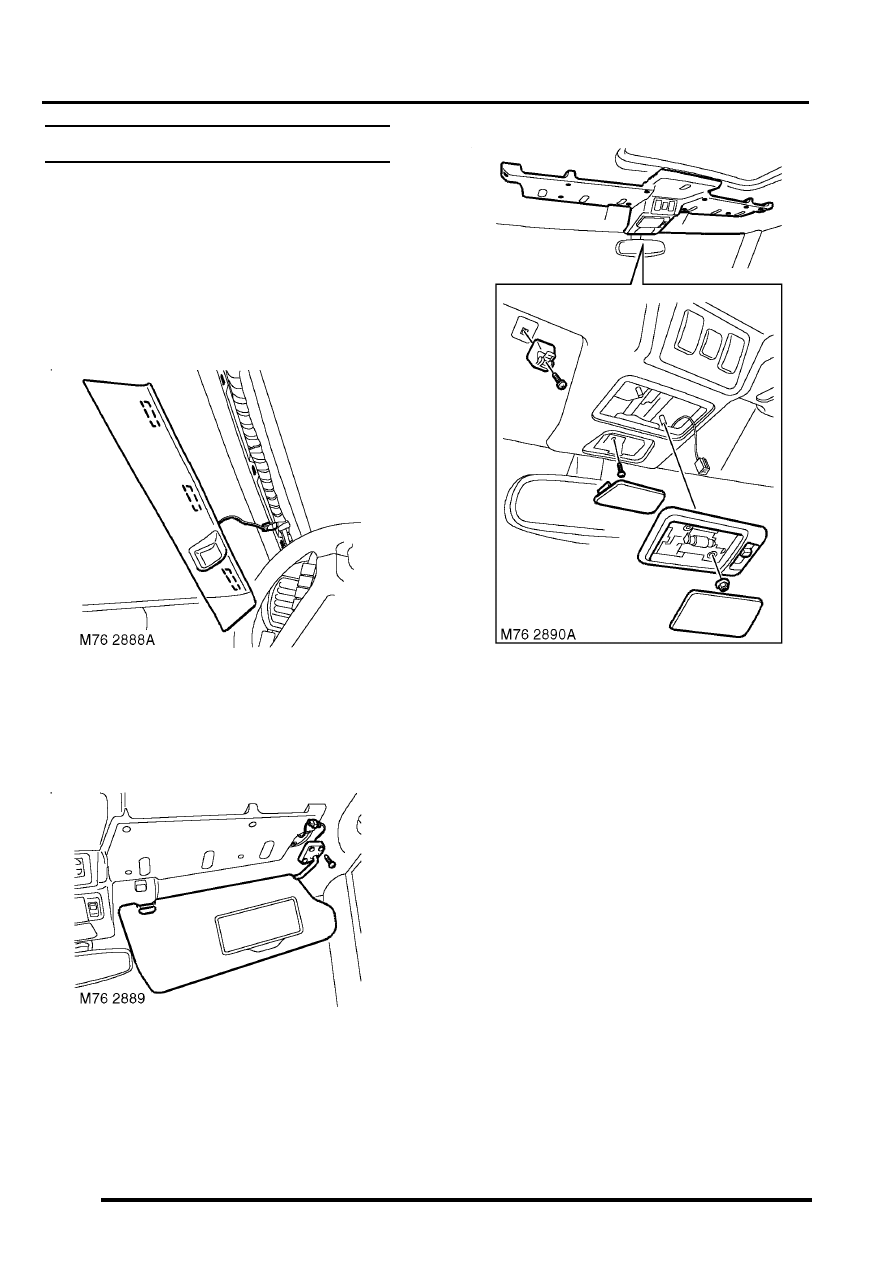

3. Release clips securing both 'A' post  trim

casings.

4. Models with premium ICE: Disconnect

multiplugs from 'A' post speakers.

5. Remove both 'A' post trim casings.

6. Remove 3 screws securing sun visor to

headlining.

7. Release sun visor from clip.
8. Disconnect multiplug from sun visor.
9. Remove sun visor.

10. Repeat process for second sun visor.

11. Remove access panel from front edge of front

stowage pocket.

12. Remove screw securing front stowage pocket

to headlining.

13. Remove lens from front interior lamp.
14. Remove 2 nuts securing front interior lamp to

headlining.

15. Disconnect multiplug from front interior lamp.
16. Remove front interior lamp.
17. Remove 10 screws securing front stowage

pocket to headlining.

18. Disconnect 3 multiplugs from sunroof switches.
19. Remove front stowage pocket.
20. Remove caps from sun visor clips.
21. Remove screws and release both sun visor

clips.

22. Remove tail door aperture upper trim casing.
23. Remove rear sunroof aperture trim.

INTERIOR TRIM COMPONENTS

REPAIRS 76-3-21

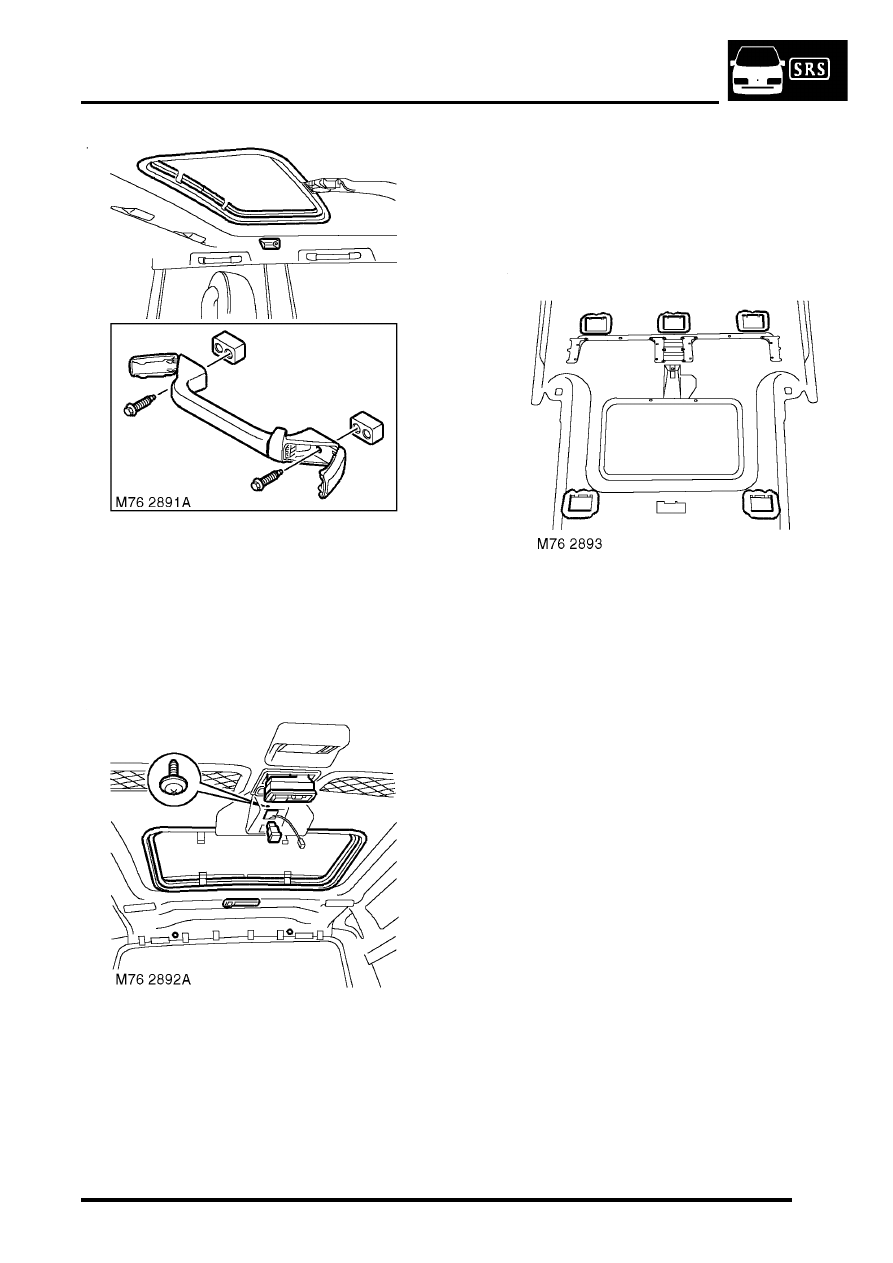

24. Remove front sunroof aperture trim.
25. Release end caps from all grab handles.
26. Remove 2 bolts securing each grab handle  to

roof.

27. Remove all 4 grab handles.
28. Models with volumetric alarm: Release front

volumetric sensor from headlining and
disconnect multiplug.

29. Models with rear A/C:

Release rear A/C control panel from

headlining.

Disconnect 2 multiplugs and 2 Lucar

connectors from rear A/C control panel.

Remove rear A/C control panel.

30. Release rear interior lamp from headlining and

disconnect multiplug.

31. Remove rear interior lamp.

32. Remove 2 clips securing rear of  headlining to

roof.

33. Release rear sunroof switch from  headlining.
34. Disconnect multiplug and remove rear  sunroof

switch.

35. Remove screw securing headlining to  roof.
36. With assistance, remove headlining.

37. Models with rear A/C:

Remove foam pads from air vents.

Release 2 rear air vents from headlining.

Release 3 central air vents from headlining.

INTERIOR TRIM COMPONENTS

76-3-22 REPAIRS

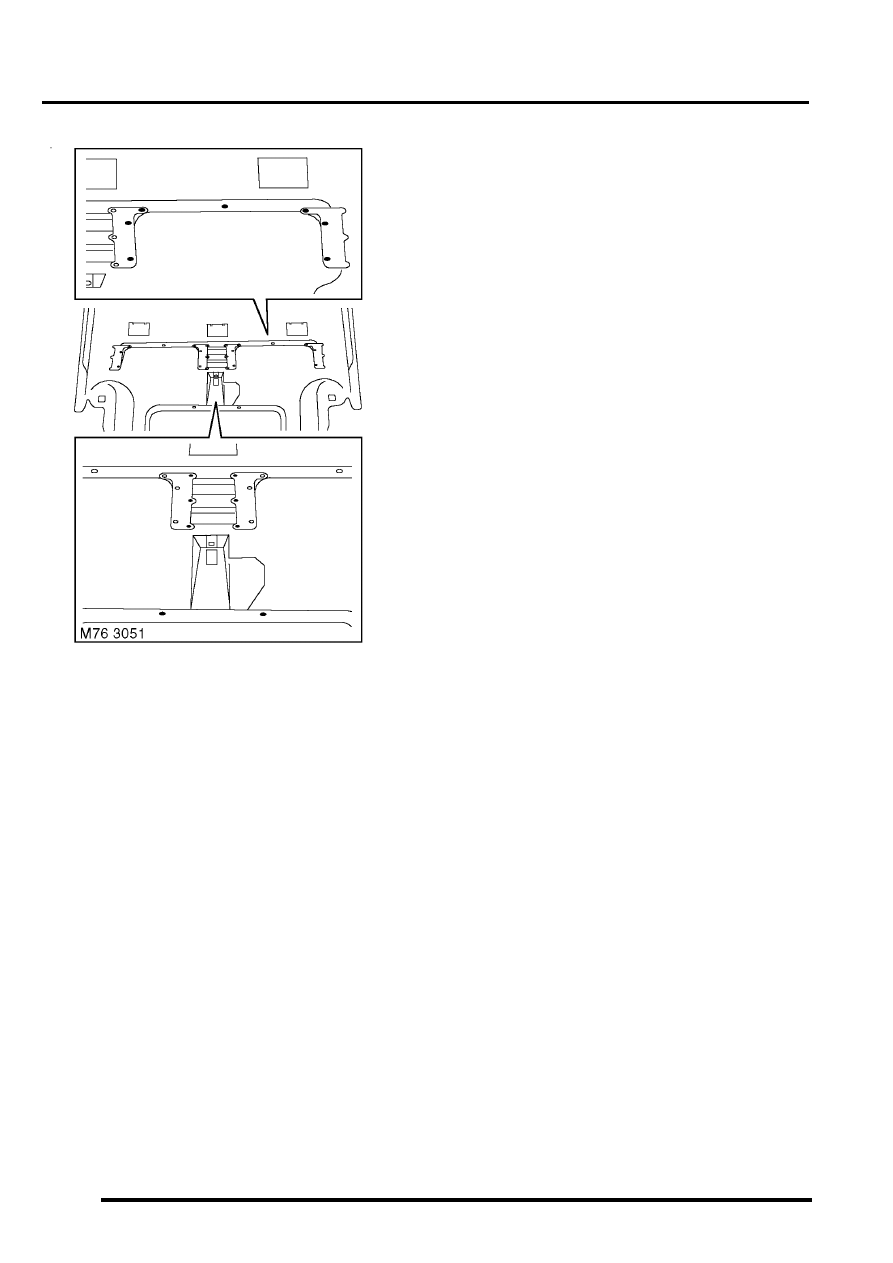

38. Remove 7 nuts securing each stowage  pocket

to headlining and collect mounting  plates.

39. Remove both pockets from headlining.
40. Remove 8 screws securing rear console to

headlining and collect 3 mounting plates.

41. Remove rear console from headlining.

Refit

1. Fit rear console and mounting plates to

headlining.

2. Fit and tighten nuts securing rear  console to

headlining.

3. Fit both stowage pockets and mounting  plates

to headlining.

4. Fit and tighten nuts securing stowage  pockets

to headlining.

5. Models with rear A/C:

Fit 3 central air vents to headlining.

Fit 2 rear air vents to headlining.

Fit foam pads to air vents.

6. With assistance, position headlining  in vehicle.
7. Fit and tighten screw securing centre of

headlining to roof.

8. Connect multiplug to rear sunroof  switch.
9. Fit rear sunroof switch to rear console.

10. Fit clips securing rear edge of  headlining to

sunroof.

11. Position rear interior lamp to headlining and

connect multiplug.

12. Fit rear interior lamp to headlining.
13. Models with rear A/C:

Position rear A/C control panel to headlining

and connect multiplugs and Lucar
connectors.

Fit rear A/C control panel to headlining.

14. Models with volumetric alarm: Connect

multiplug to front volumetric sensor and fit
sensor to headlining.

15. Fit grab handles to headlining and  secure with

bolts.

16. Fit end caps to grab handles.
17. Fit front sunroof aperture trim.
18. Fit rear sunroof aperture trim.
19. Fit tail door aperture upper trim casing.
20. Fit sun visor clips to headlining and  secure with

screws.

21. Fit caps to sun visor clips.
22. Position front stowage pocket to headlining and

connect multiplugs to sunroof switches.

23. Fit and tighten 10 screws securing front

stowage pocket to headlining.

24. Connect multiplug to front interior lamp.
25. Fit front interior lamp to headlining and secure

with nuts.

26. Fit lens to front interior lamp.
27. Fit and tighten screw securing front stowage

pocket to headlining.

28. Fit access panel to front edge of front stowage

pocket.

29. Position sun visor to headlining and  secure to

clip.

30. Connect multiplug to sun visor.
31. Fit and tighten screws securing sun  visor to

headlining.

32. Repeat process for second sun visor.
33. Models with premium ICE: Position both 'A'

post trim casings and connect multiplugs to
speakers.

34. Fit both trim casings to 'A' posts and  secure

with clips.

35. Fit both 'B' post upper trim casings.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - upper - 'B' post.

36. Fit both 'D' post trim casings.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - 'D' post.
