INTERIOR TRIM COMPONENTS

REPAIRS 76-3-11

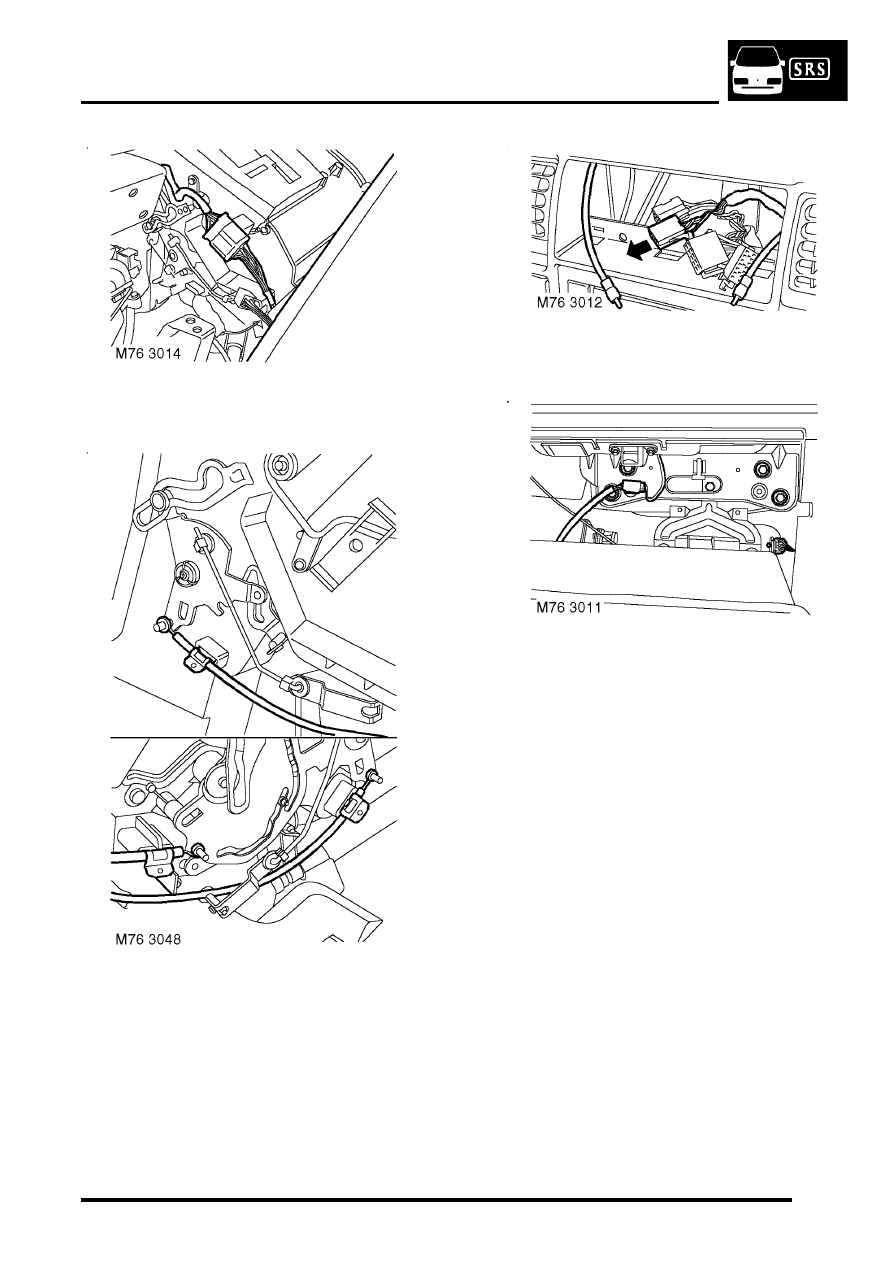

18. Models with A/C: Disconnect multiplug from

heater controls.

19. Models without A/C: Release temperature

and air distribution control outer cables from
clips on heater casing and disconnect inner
cables from levers.

20. Separate blue section from ICE multiplug.
21. Release coaxial cables from fascia panel.

22. Disconnect multiplug from passenger air bag.
23. Disconnect multiplug from blower motor.
24. Working through glove box aperture remove 2

bolts, or 4 bolts if passenger airbag module is
fitted, securing fascia to body.

INTERIOR TRIM COMPONENTS

76-3-12 REPAIRS

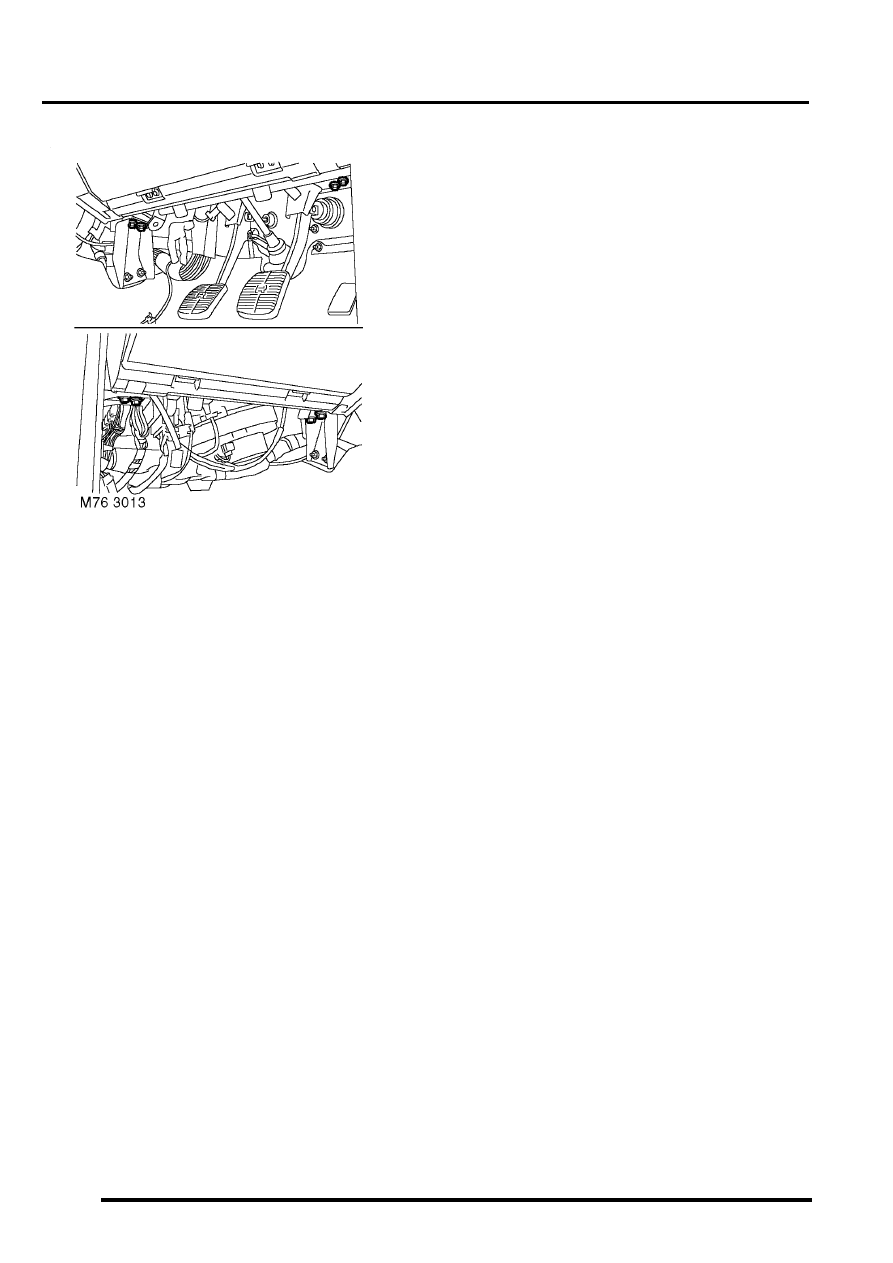

25. Remove 4 bolts securing lower edge of fascia

to mounting brackets on transmission tunnel.

26. Remove 4 bolts securing lower edge of fascia

to brackets on 'A' post.

27. With assistance carefully remove fascia from

vehicle.

28. If renewing fascia, transfer components to new

fascia as necessary.

Refit

1. With assistance carefully fit fascia and tighten

bolts securing lower edge of fascia to 26 Nm
(19 lbf.ft).

2. Tighten bolts securing fascia to body to 26 Nm

(19 lbf.ft).

3. Fit nuts securingfascia to steering column

bracket to 11 Nm (8 lbf.ft).

4. Secure coaxial cables to fascia and secure blue

multiplug to main ICE multiplug.

5. Models with A/C: Connect heater control

multiplug.

6. Models without A/C: Connect temperature

and air distribution inner cables to heater
control levers. Set temperature control knobs to
fully hot, distribution knob to demist position
and, with flap levers fully closed, secure outer
cables to clips on heater casing.

7. Connect multiplugs to blower motor and

passenger air bag (where fitted).

8. Fit glove box and secure with bolts.
9. Connect fascia harness multiplugs to main

harness and fuse box.

10. Position instrument pack and connect

multiplugs.

11. Fit instrument pack to fascia and secure with

screws.

12. Position instrument cowl and connect

multiplugs to switches.

13. Fit cowl to clips on fascia and secure with

screws.

14. Fit fascia access panel.



 INTERIOR TRIM COMPONENTS,

REPAIRS, Panel - fascia access - driver's
side.

15. Fit fascia lower closing panels and secure with

clips.

16. Fit fascia mats.
17. Fit 'A' post trim panels.
18. Fit centre console

l

For models with automatic gearbox:


 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - automatic
models.

l

For models with manual gearbox:


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - centre - manual
models.

19. Fit steering column nacelle.



 +

 STEERING, REPAIRS, Nacelle -

steering column.

20. Fit steering wheel.



 +

 STEERING, REPAIRS, Steering

wheel.

21. Fit radio cassette player.



 +

 IN CAR ENTERTAINMENT,

REPAIRS, Radio cassette player.

22. Connect battery.

INTERIOR TRIM COMPONENTS

REPAIRS 76-3-13

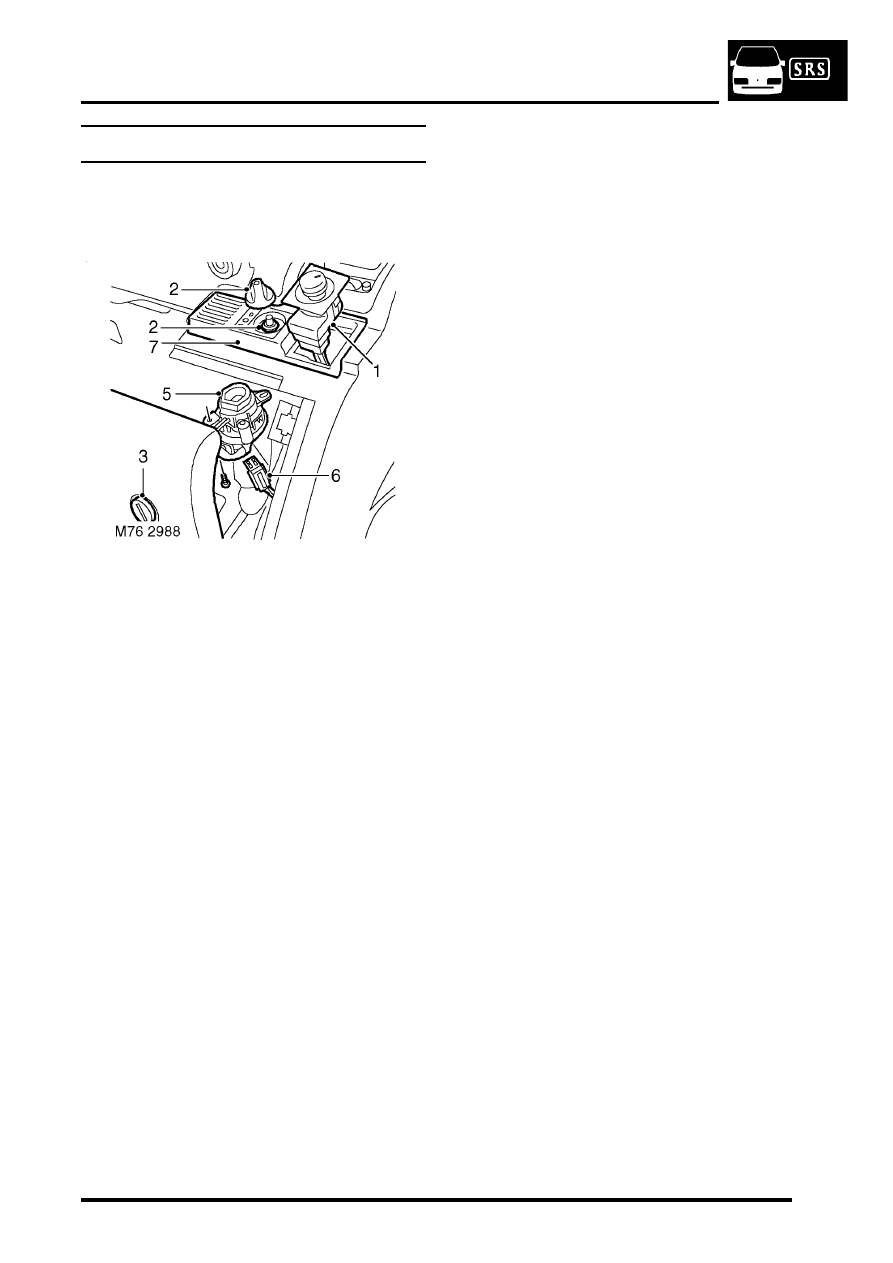

Panel - auxiliary switch

$% 76.46.38

Remove

1. Carefully remove electric exterior mirror switch

from auxiliary switch panel and disconnect
multiplug.

2. Models with headlamp levelling: Release

knob and remove nut securing headlamp
levelling switch to auxiliary switch panel.

3. Release 2 fasteners and open fascia access

panel.

4. Models with headlamp levelling: Remove

headlamp levelling switch from auxiliary switch
panel and disconnect multiplug.

5. Models with A/C: Remove 2 screws securing

in-car temperature sensor to auxiliary switch
panel.

6. Models with A/C: Disconnect multiplug from

in-car temperature sensor and remove from
auxiliary switch panel.

7. Release 2 clips securing auxiliary switch panel

to fascia and remove panel.

Refit

1. Position auxiliary switch panel to fascia and clip

into position.

2. Models with A/C: Connect multiplug to in-car

temperature sensor.

3. Models with A/C: Position in-car temperature

sensor to auxiliary switch panel and secure with
screws.

4. Models with headlamp levelling: Position

headlamp levelling switch to auxiliary switch
panel and secure with nut.

5. Models with headlamp levelling: Replace

cap and connect multiplug to headlamp
levelling switch.

6. Connect multiplug to exterior mirror switch and

fit switch to auxiliary switch panel.

INTERIOR TRIM COMPONENTS

76-3-14 REPAIRS

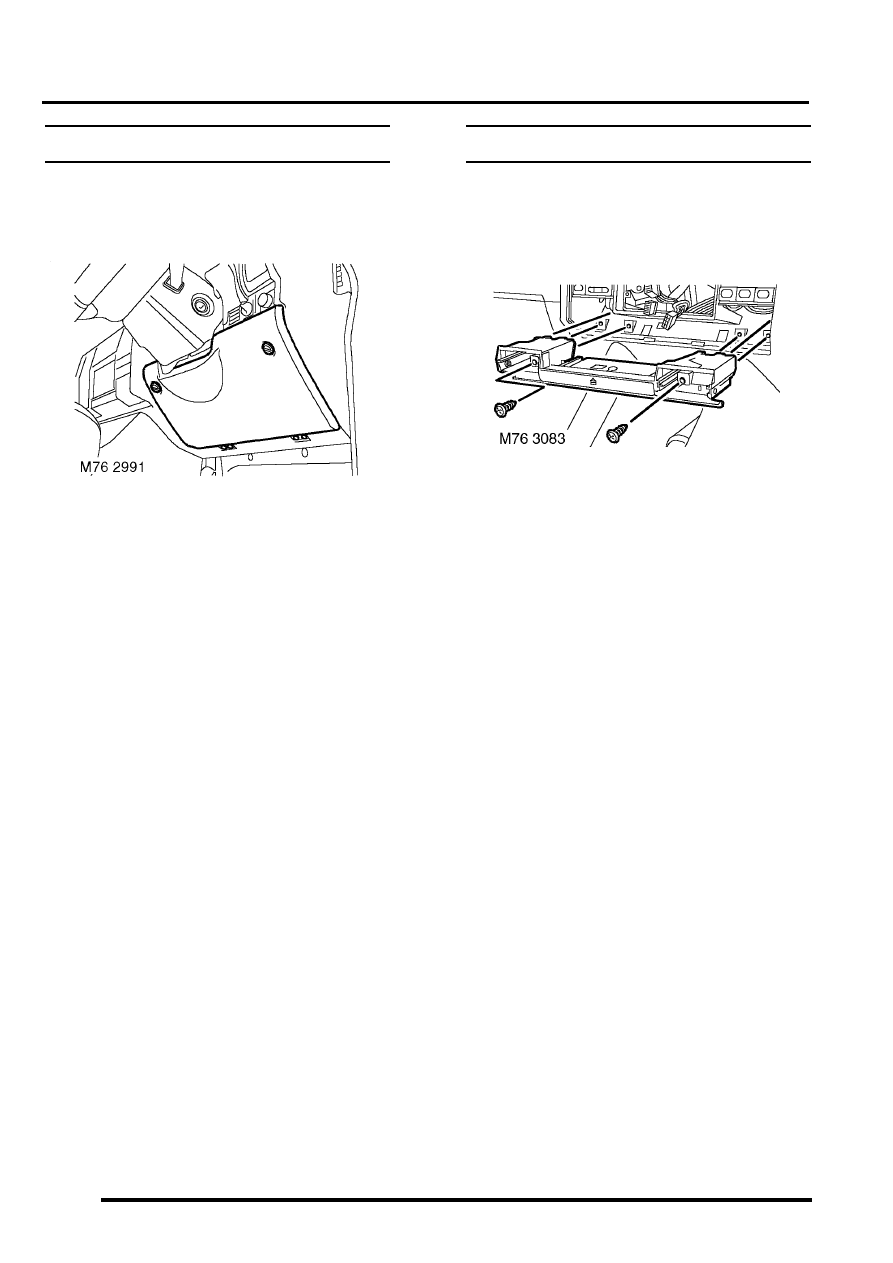

Panel  -  fascia access - driver's side

$% 76.46.40

Remove

1. Remove 4 bolts securing fascia access panel to

fascia.

2. Release 2 quarter turn screws securing fascia

access panel to fascia.

3. Remove fascia access panel.

Refit

1. Position fascia access panel to fascia and

secure with quarter turn screws.

2. Position base of fascia access panel to fascia

and secure with bolts.

Drink tray assembly - centre fascia

$% 76.46.41

Remove

1. Remove coin tray and ash tray.

2. Remove 6 screws securing drink tray assembly

to fascia.

3. Remove drink tray.

Refit

1. Position drink tray assembly to fascia and

secure with screws.

2. Fit ash tray and coin tray to drink tray assembly.
