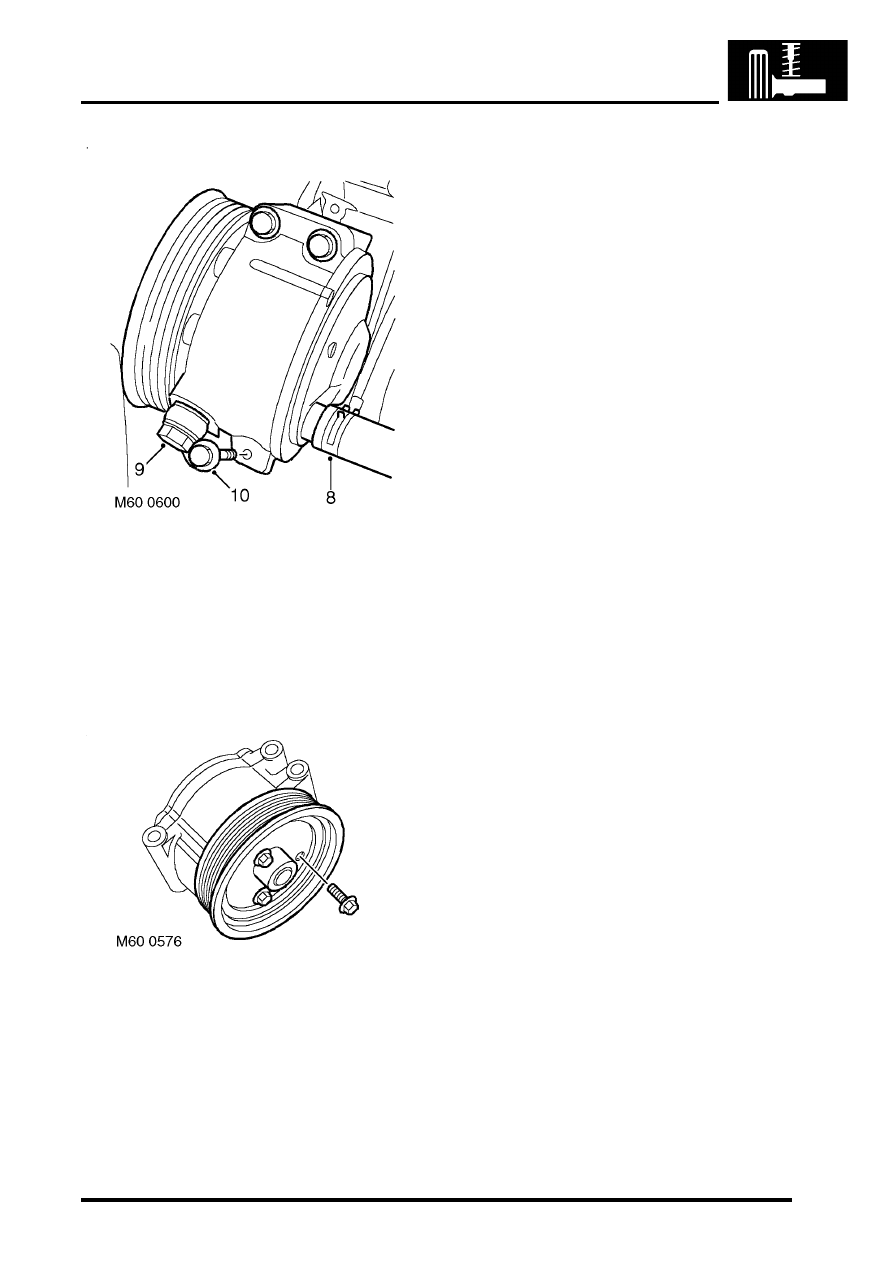

FRONT SUSPENSION REPAIRS 60-45 8. Release clip and disconnect suction hose from ACE pump. 9. Remove banjo bolt and disconnect pressure pipe from ACE pump. Discard sealing washers. CAUTION: Always fit plugs to open 10. Remove 3 bolts securing ACE pump to mounting and remove ACE pump. 11. Restrain pulley, remove 3 securing bolts and remove pulley from ACE pump. Refit 1. Clean mating faces of pulley and ACE pump. Restrain pulley and tighten bolts to 25 Nm (18 3. Clean mating faces of ACE pump and mounting. 4. Connect suction hose to ACE pump and secure with clip. 5. Ensure there is sufficient fluid in ACE/PAS reservoir to prime ACE pump. 6. Position ACE pump below level of ACE/PAS reservoir, with suction hose uppermost, and 7. Position ACE pump to mounting, fit bolts and tighten to 25 Nm (18 lbf.ft). 8. Rotate ACE pump clockwise (viewed from pulley end) until a steady flow of fluid runs from 9. Connect pressure pipe to ACE pump with banjo bolt and new sealing washers. Tighten banjo 10. Connect hose to intercooler and secure with clip. 11. Fit ACE/PAS reservoir into mounting bracket. with clip. 13. Fit mass air flow sensor to air filter and secure with clips. 14. Connect multiplugs to mass air flow sensor and ambient air pressure sensor. 15. Fit auxiliary drive belt. REPAIRS, Belt - auxiliary drive. 16. Renew ACE high pressure filter. |
