TRANSFER BOX - LT230SE

REPAIRS

41-23

REPAIRS

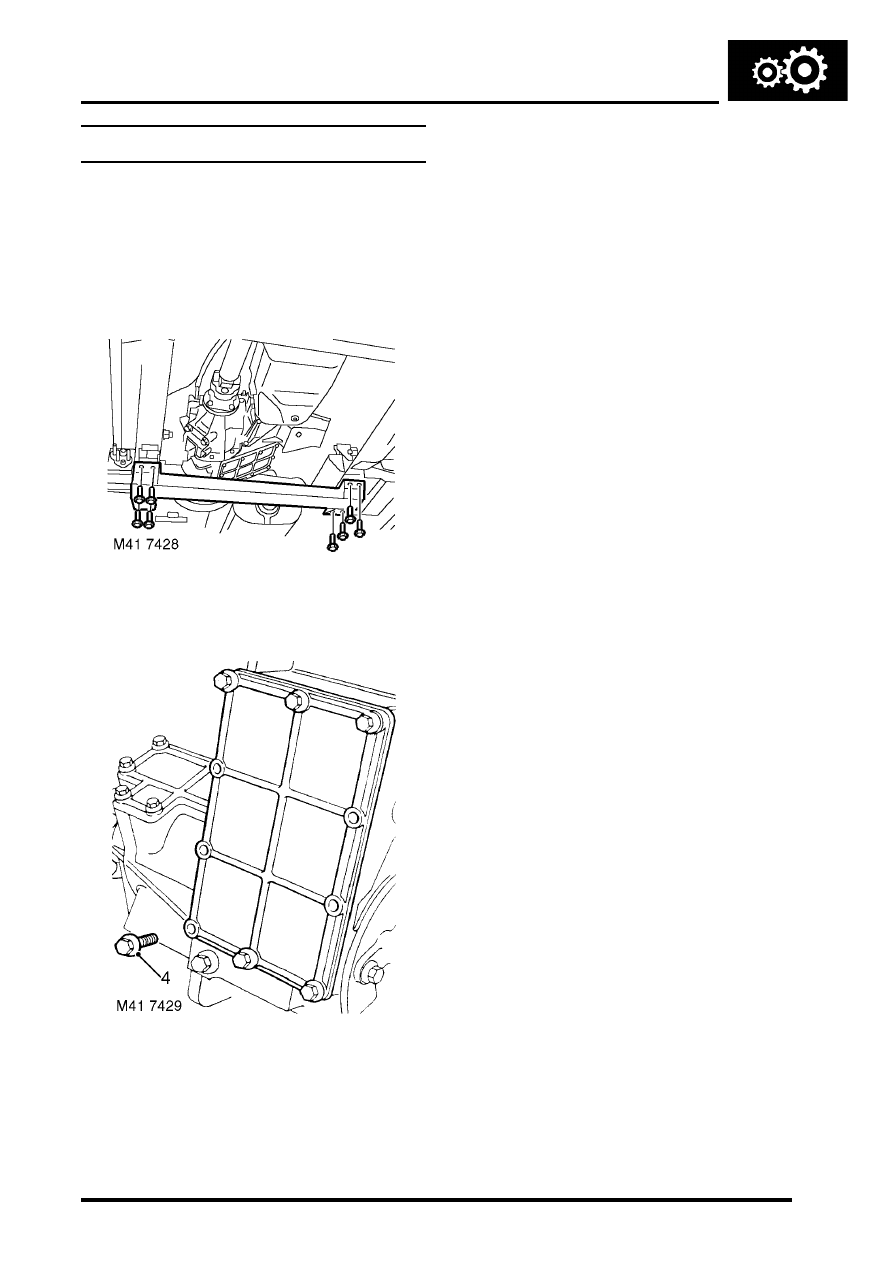

Bottom cover - transfer box

$% 41.20.06

Remove

1. Raise vehicle on ramp.
2. Drain transfer box oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

3. Remove 8 bolts securing cross member to

chassis and remove cross member.

4. Remove 10 bolts securing bottom cover to

transfer box and remove cover.

Refit

1. Clean bottom plate and mating face on  transfer

box.

2. Clean bolt threads.
3. Apply sealant, Part No. STC 3254 to bottom

plate sealing face.

4. Apply Loctite 290 to bolt threads.
5. Position  bottom plate and tighten  bolts to 25

Nm (18 lbf.ft).

6. Position  cross member to chassis  and tighten

bolts to 26 Nm (19 lbf.ft).

7. Fill transfer box with oil.



 MAINTENANCE, PROCEDURES,

Transfer box.

8. Lower vehicle on ramp.

TRANSFER BOX - LT230SE

41-24

REPAIRS

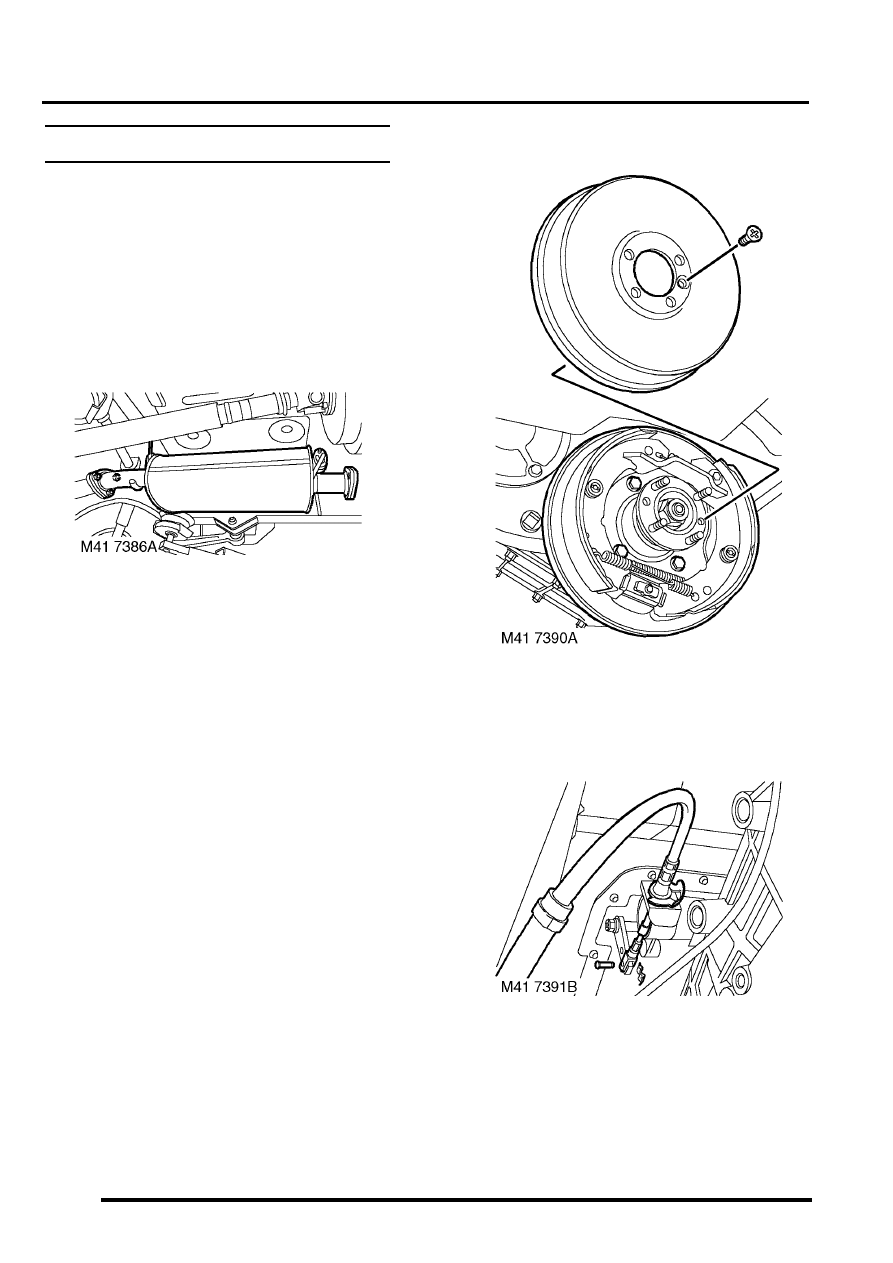

Transfer box - Diesel

$% 41.20.25.99

Remove

1. Remove front exhaust pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - Td5, REPAIRS, Pipe - front.

2. Raise vehicle on ramp.
3. Drain transfer box oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

4. Remove 3 nuts securing intermediate  silencer

to tail pipe.

5. Release silencer from mounting rubbers.
6. Remove silencer and discard gasket.
7. Remove  front propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - front.

8. Remove rear propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - rear.

9. Remove handbrake drum retaining screw and

remove  drum.

10. Remove 4 bolts from handbrake back  plate,

release back plate and tie aside.

11. Remove clevis pin securing high/low ratio

selector cable to selector lever,  remove 'C' clip
and release outer cable from abutment bracket.

TRANSFER BOX - LT230SE

REPAIRS

41-25

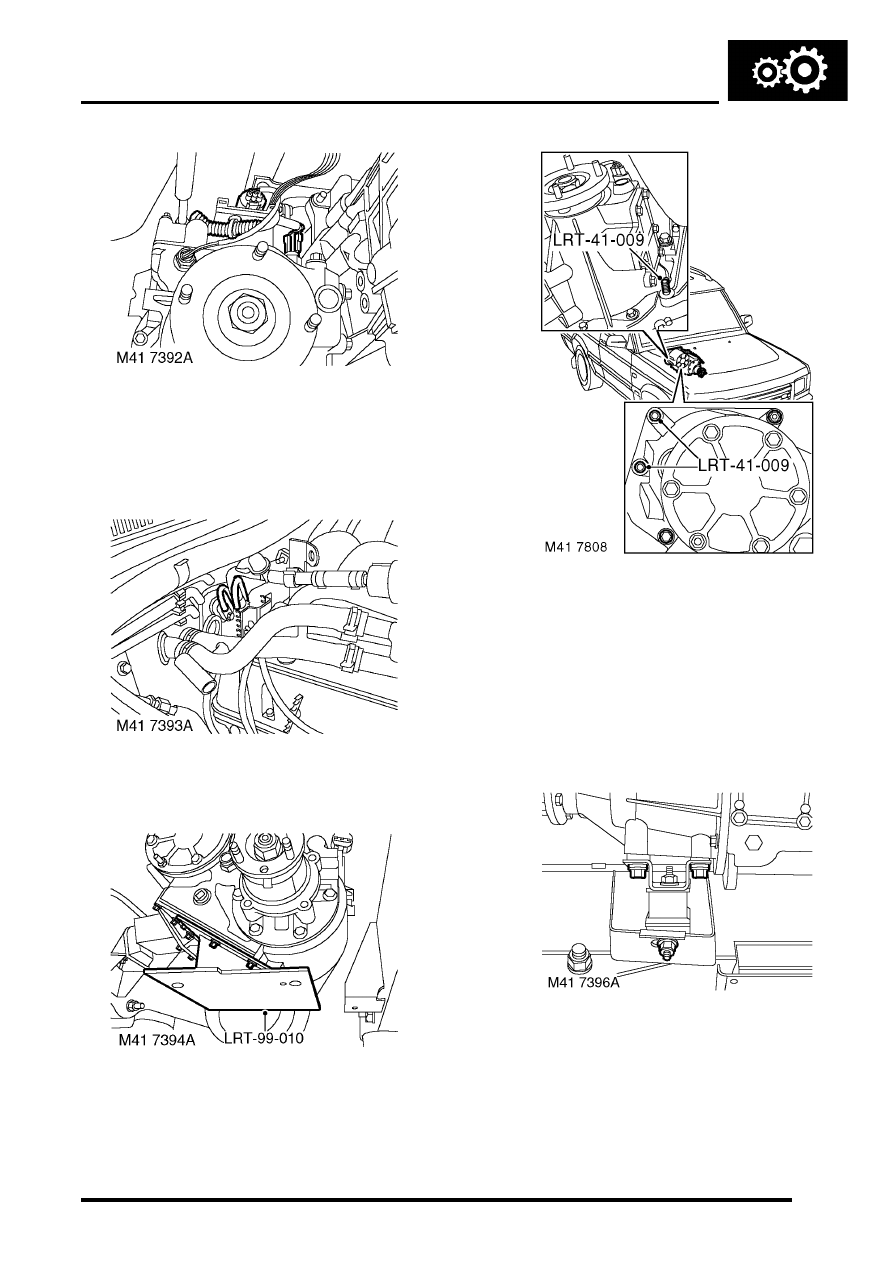

12. If fitted: Disconnect 2 Lucars from differential

lock switch and disconnect multiplug from
reverse light switch.

13. Remove cable tie and multi plug from   bracket

on transfer box.

14. Release transfer box breather pipe  from

bulkhead clip.

15. Remove 4 bolts from transfer box bottom plate,

position support plate   LRT-99-010 to transfer
box and  tighten bolts.

16. Position gearbox support jack and  secure

support plate to jack using 4 bolts.

17. Remove 3 bolts securing transfer box to

gearbox.

18. Fit 3 guide studs    LRT-41-009  through

transfer box bolt holes to support it  during
removal.

19. Remove 2 bolts and nut securing transfer box

to gearbox. CAUTION: If securing stud is
removed during this operation, it must be
discarded and a new stud fitted.

20. Position a jack to support gearbox  and engine.

21. Remove 4 bolts and nut, remove gearbox RH

mounting.

22. With assistance, remove transfer box from

gearbox.

23. Remove input shaft oil seal.



 TRANSFER BOX - LT230SE,

REPAIRS, Oil seal - input shaft.

TRANSFER BOX - LT230SE

41-26

REPAIRS

Refit

1. Fit new input shaft oil seal.



 +

 TRANSFER BOX - LT230SE,

REPAIRS, Oil seal - input shaft.

2. Clean transfer box to gearbox  mating faces.
3. Raise transfer box on jack and align to guide

studs   LRT-41-009

4. Clean transfer box to gearbox bolt threads.
5. Apply Loctite 290 to bolt and stud threads.
6. Fit and lightly tighten 2 bolts and  nut securing

transfer box to  gearbox.  If new  stud is to be
fitted, apply Loctite  290 to stud threads and
tighten to 45 Nm (33 lbf.ft)
.

7. Remove guide studs, fit and lightly tighten

remaining 3 bolts.

8. Tighten  bolts and nut by diagonal selection to

45 Nm (33 lbf.ft).

9. Position  gearbox RH mounting and  tighten

bolts to 85 Nm (63 lbf.ft).

10. Tighten  gearbox RH mounting nut  to 48 Nm

(35 lbf.ft).

11. Remove 4 bolts securing support plate to

gearbox jack.

12. Remove 4 bolts securing support plate LRT-99-

010  to  transfer box and remove plate.

13. Clean bottom plate bolt threads.
14. Apply Loctite 290 to threads of 4 bottom plate

bolts.

15. Fit  4 bolts securing bottom plate to transfer box

and tighten to 25 Nm (18 lbf.ft).

16. Position breather pipe and secure to bulkhead

clip.

17. Connect multiplug to reverse light switch.
18.  If fitted -  Connect Lucars to differential lock

switch.

19. Fit multiplug and cable tie to transfer gearbox

bracket.

20. Position high/low ratio selector cable and

secure with clevis pin.

21. Clean handbrake and mating face.
22. Position  handbrake back plate  and tighten

bolts to 75 Nm (55 lbf.ft).

23. Clean handbrake drum.
24. Fit handbrake drum and tighten  retaining

screw.

25. Fit  front propeller shaft.



 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - front.

26. Fit rear propeller shaft.



 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - rear.

27. Clean exhaust silencer and mating face.
28. Position  silencer, fit new gasket  , connect

mounting rubbers and tighten nuts  to 40 Nm
(30 lbf.ft).

29. Refill transfer box with oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

30. Fit front exhaust pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - Td5, REPAIRS, Pipe - front.
