Discovery 2. Manual - part 345





HARNESSES

REPAIRS

86-7-3

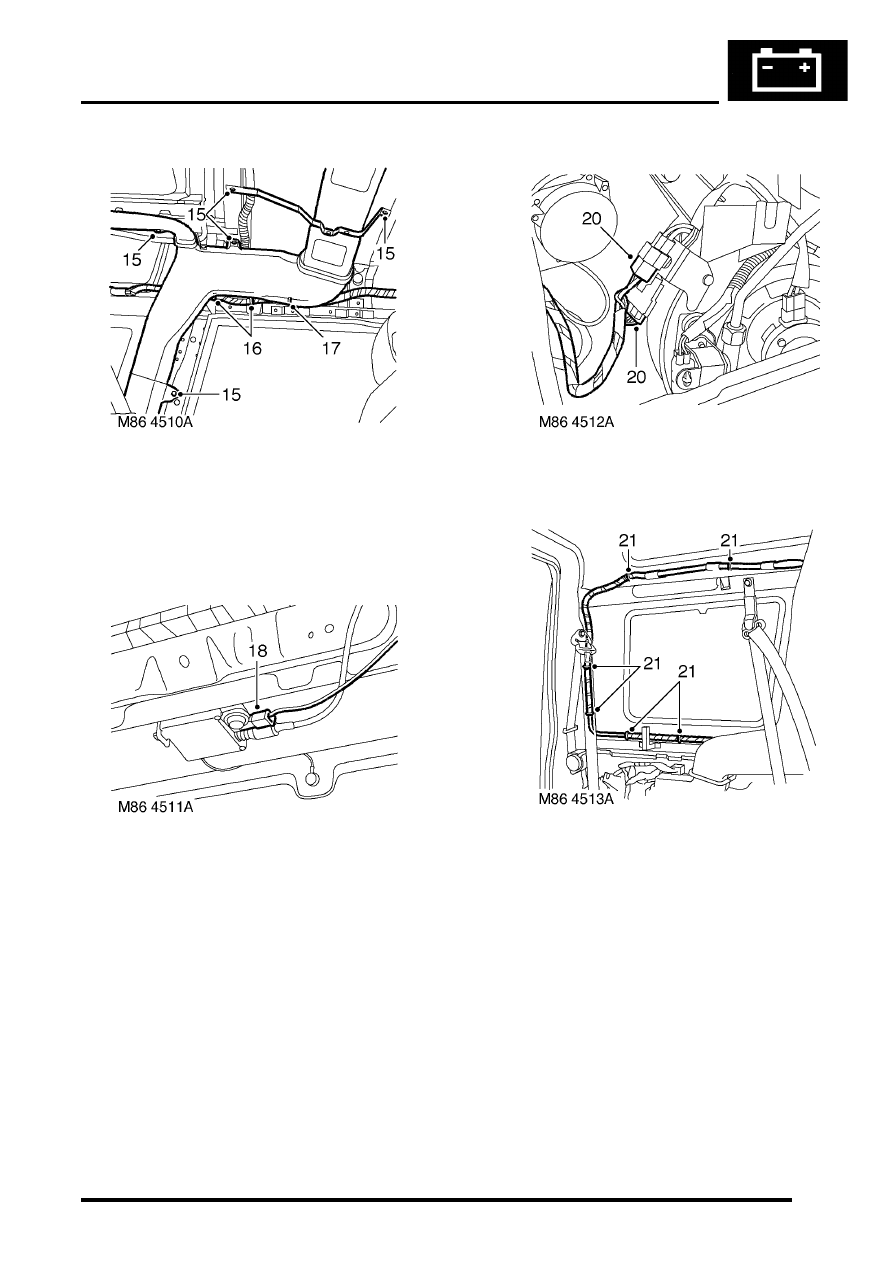

15. Drill out 4 rivets securing air  conditioning

ducting to body, release  ducting.

16. Release 2 cable ties securing harness  to LH

side of body.

17. Release retainer securing harness  to LH side

of body.

18. Disconnect Lucar  from radio aerial LH

amplifier.

19. Remove both luggage compartment trim

casings.


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - side - loadspace.

20. Disconnect 2 multiplugs from rear air

conditioning unit.

21. Remove 6 clips securing harness to LH side of

body.

22. Remove both rear tail lamps.



 +

 LIGHTING, REPAIRS, Lamp - tail.

HARNESSES

86-7-4

REPAIRS

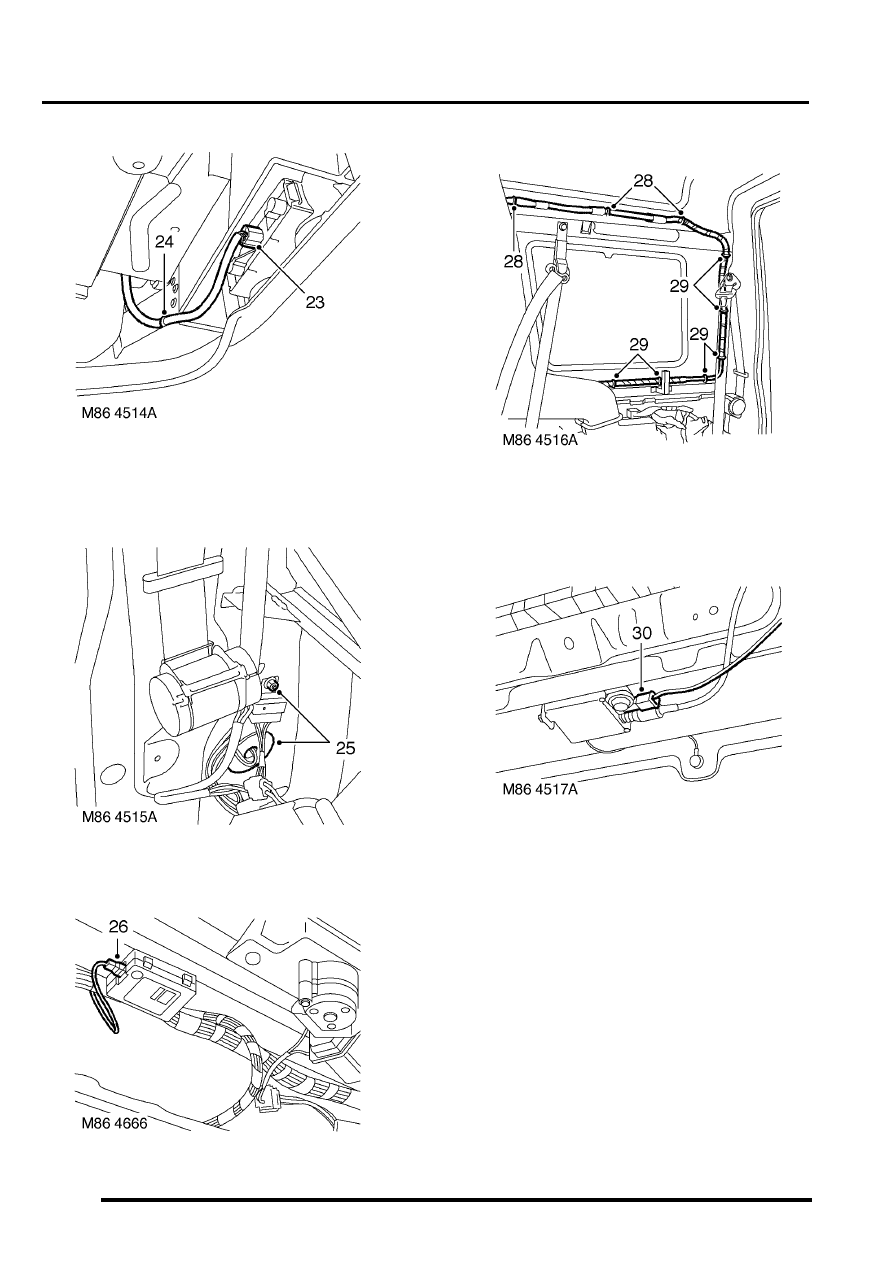

23. Disconnect multiplugs from both tail/flasher

lamps.

24. Release 2 clips securing harness to rear

bumper.

25. Remove nut securing earth header to LH 'E'

post and remove grommet from 'E' post.

26. Disconnect multiplug from RF receiver.

27. Feed harness back to air conditioning ducting.

28. Release 3 harness retainers securing harness

to RH side of body.

29. Release 6 cable clips securing harness  to

body.

30. Disconnect Lucar from RH aerial amplifier.
31. Release harness from roof and feed to  upper

'E' post.

32. Remove tail door trim casing.



 +

 DOORS, REPAIRS, Trim casing - tail

door.

33. Carefully release plastic sheet from  tail door.

HARNESSES

REPAIRS

86-7-5

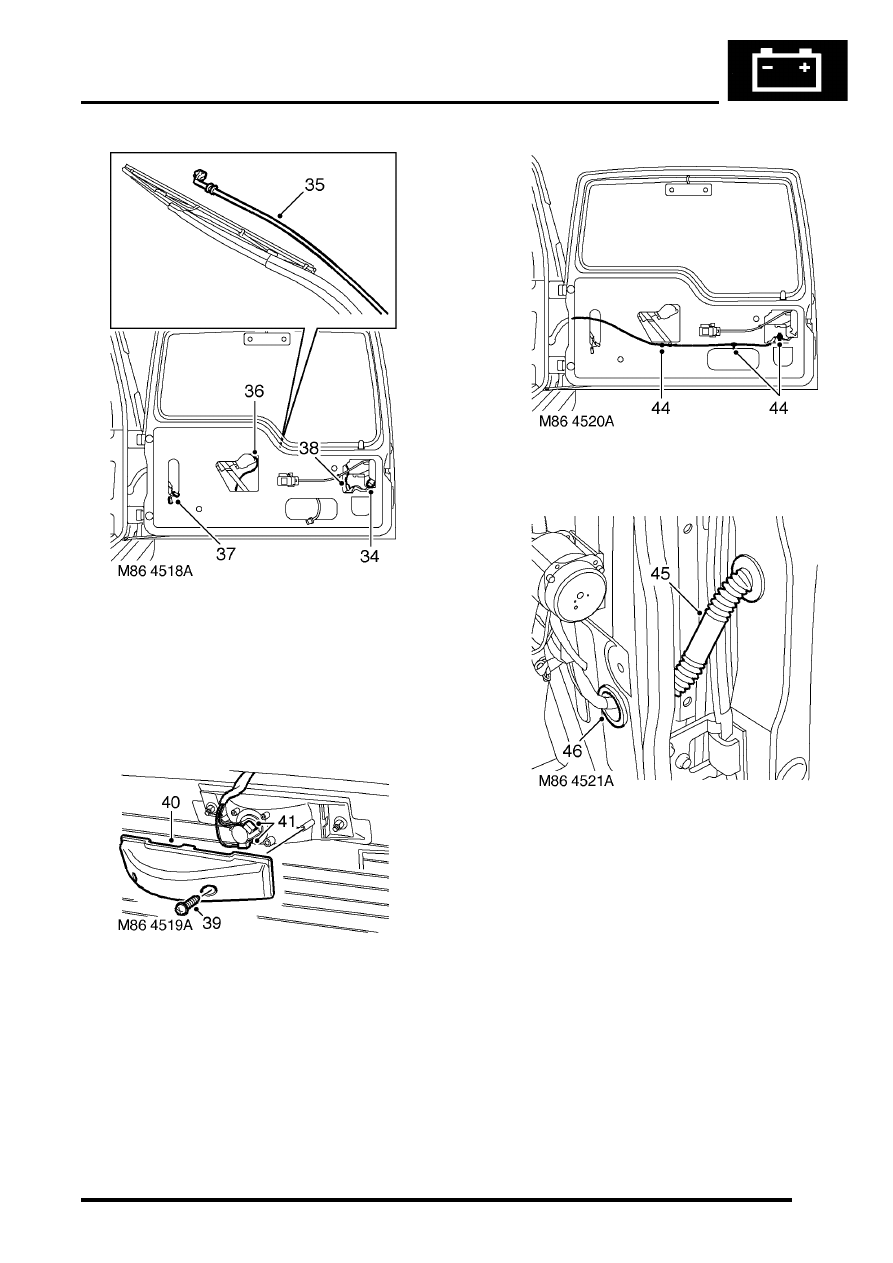

34. Disconnect multiplug from door latch.
35. Disconnect multiplug and washer tube from

rear wiper  arm.

36. Disconnect multiplug from rear wiper  motor.
37. Disconnect 2 Lucars from heated rear  window

(HRW).

38. Disconnect multiplug from number plate  lamp.

39. Remove 2 screws securing centre high

mounted stop lamp (CHMSL) cover to tail door
glass.

40. Remove CHMSL cover.
41. Disconnect 2 Lucars from CHMSL.
42. Attach draw string to  harness and  draw

harness through tail door.

43. Disconnect draw string from harness, and tape

to the tail door.

44. Release 3 clips securing harness to tail  door.

45. Release harness sleeve from door outer  edge

and feed harness through door.

46. Release grommet from 'E' post and feed  tail

door harness back to upper 'E' post.

HARNESSES

86-7-6

REPAIRS

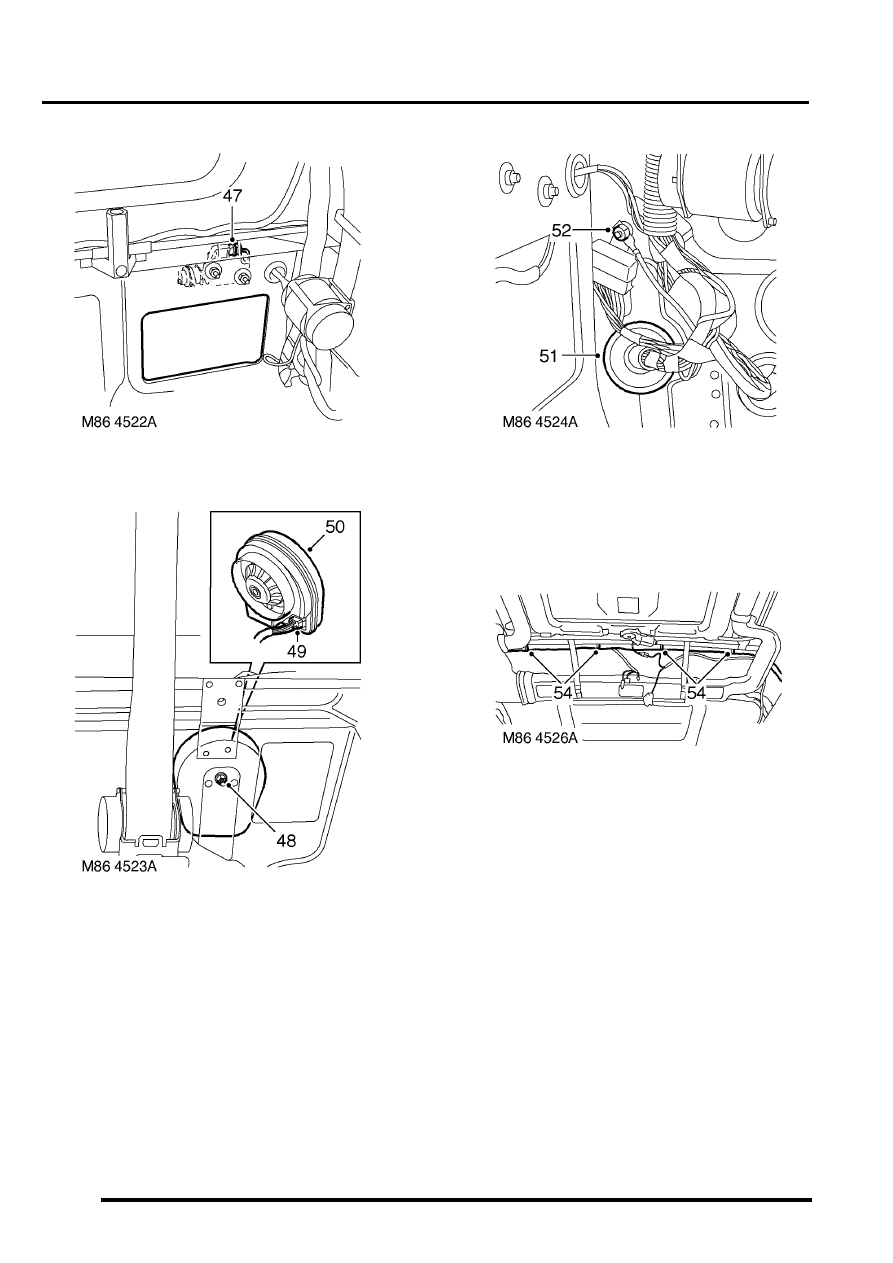

47. Disconnect multiplug from fuel flap  solenoid.

48. Remove nut securing alarm sounder to RH

lower 'E' post.

49. Disconnect multiplug from alarm sounder.
50. Remove alarm sounder.

51. Remove grommet and feed harness from  rear

bumper to upper 'E' post.

52. Remove nut securing earth headers to RH 'E'

post.

53. Feed harness to air conditioning ducting.

54. Remove 4 cable ties securing harness to centre

of roof.

55. With assistance, remove harness from  air

conditioning ducting and remove from vehicle.
