IN CAR ENTERTAINMENT

DESCRIPTION AND OPERATION 86-6-15

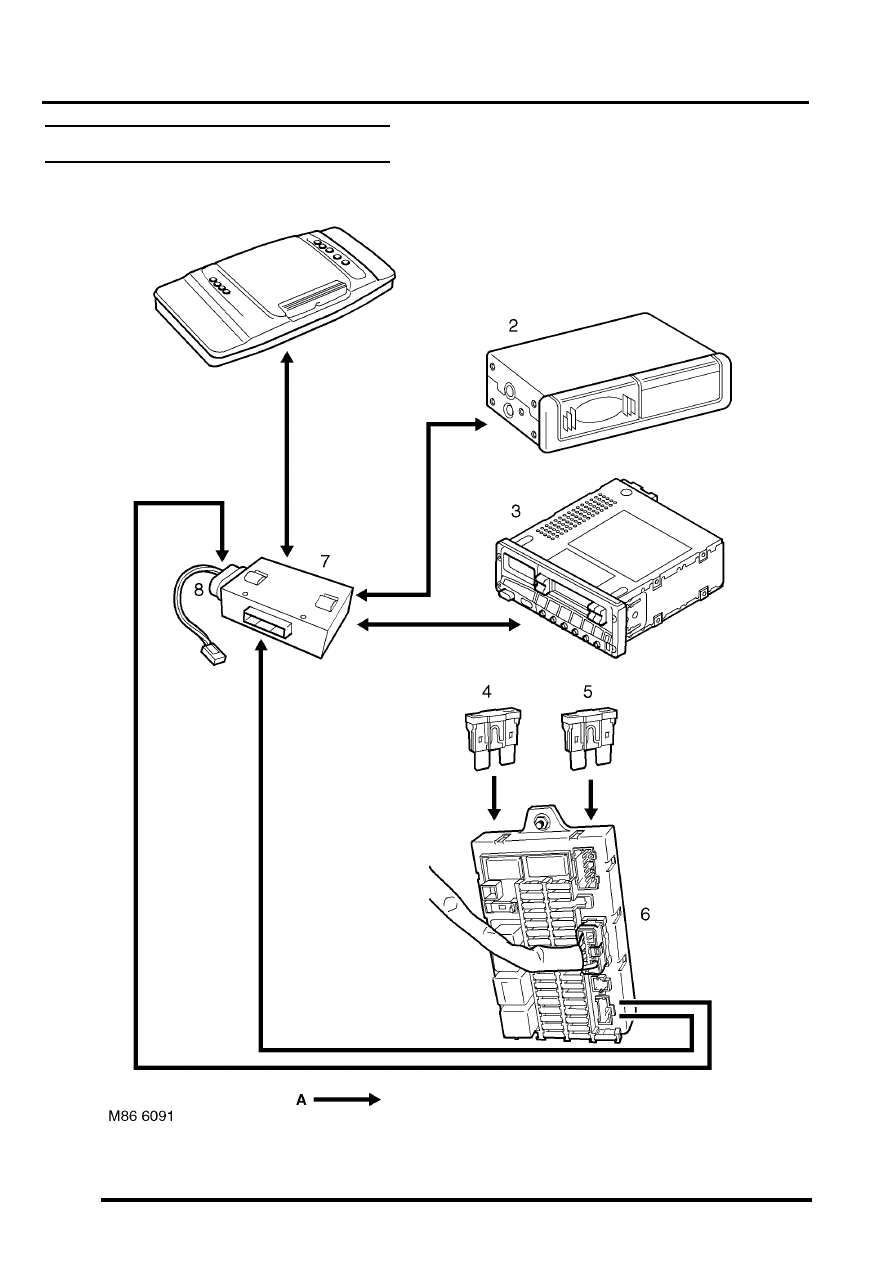

1 Overhead console assembly
2 CD autochanger
3 Radio head unit
4 Fuse 15 (20A) – Auxiliary power supply
5 Fuse 27 (15A) – Permanent battery supply
6 Passenger compartment fusebox
7 CD Switch box
8 Noise filter

IN CAR ENTERTAINMENT

86-6-16 DESCRIPTION AND OPERATION

Description

General
The DVD entertainment system can be fitted by Land Rover Special Vehicles as an original equipment system on the
Adventurer model or can be supplied as an accessory for fitment by the dealer. The system can be fitted to all
Discovery Series II models.

NOTE: The DVD system cannot be fitted to vehicles fitted with a Visteon single slot CD head unit.

The fitment of the system to vehicles manufactured before 2002 model year requires a different wiring harness and
connector plugs to vehicles from 2002 model year. Full details of components required for specific vehicles is
contained in the DVD System Accessory fitting instructions (Part No. STC 61947/61946).

The system comprises a main wiring harness, a lower wiring harness, CD switch box with integral noise filter, CD
switch harness, remote control handset and an overhead console containing the Liquid Crystal Display (LCD) monitor
and Digital Versatile Disc (DVD) player.

The system can play DVD films and display them on the LCD screen. The DVD audio can be played over the vehicle
audio speaker system or on headphones connected directly to the overhead console. The system can also function
as a second CD player. Rear seat occupants can listen to a CD in the overhead console via headphones, whilst the
remaining vehicle occupants can listen to CD's played from the CD autochanger in the normal way.
