HEATING AND VENTILATION

REPAIRS

80-31

Fuel burning heater - (FBH) - Td5

$% 80.40.01.99

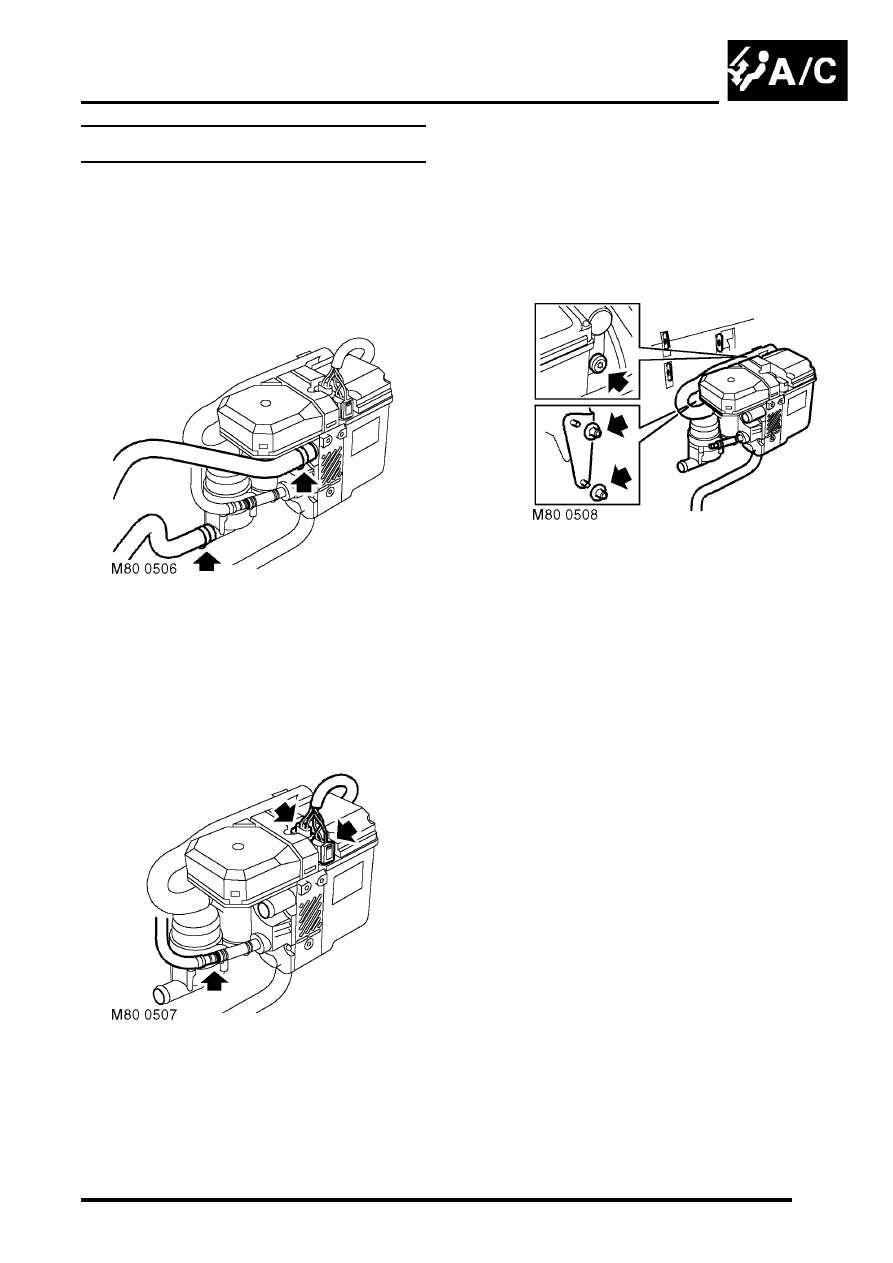

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Clamp feed and return coolant hoses at FBH.
4. Position container to collect spillage.

5. Release clips, disconnect coolant feed and

return hoses from FBH.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

6. Disconnect 2 multiplugs from FBH.

7. Position container to collect spillage and

disconnect quick release fuel pipe from FBH.

CAUTION: Before disconnecting any part of
the fuel system, it is imperative that all dust,
dirt and debris is removed from around
components to prevent ingress of foreign
matter into fuel system.

8. Remove Torx bolt securing FBH to bulkhead

mounting bracket.

9. Release and remove FBH.

10. Collect locating bushes from pegs.

Refit

1. Fit bushes to pegs.
2. Align FBH to pegs, fit Torx bolt and tighten to 25

Nm (18 lbf.ft).

3. Clean quick release connection and fit fuel pipe

to FBH.

4. Connect multiplugs to FBH.
5. Connect coolant hoses to FBH and secure with

clips.

6. Release clamps from hoses.
7. Connect battery earth lead.
8. Fit and secure battery cover.
9. Top-up cooling system.



 +

 MAINTENANCE, PROCEDURES,

Cooling system.

AIR CONDITIONING

DESCRIPTION AND OPERATION

82-1

AIR CONDITIONING

DESCRIPTION AND OPERATION

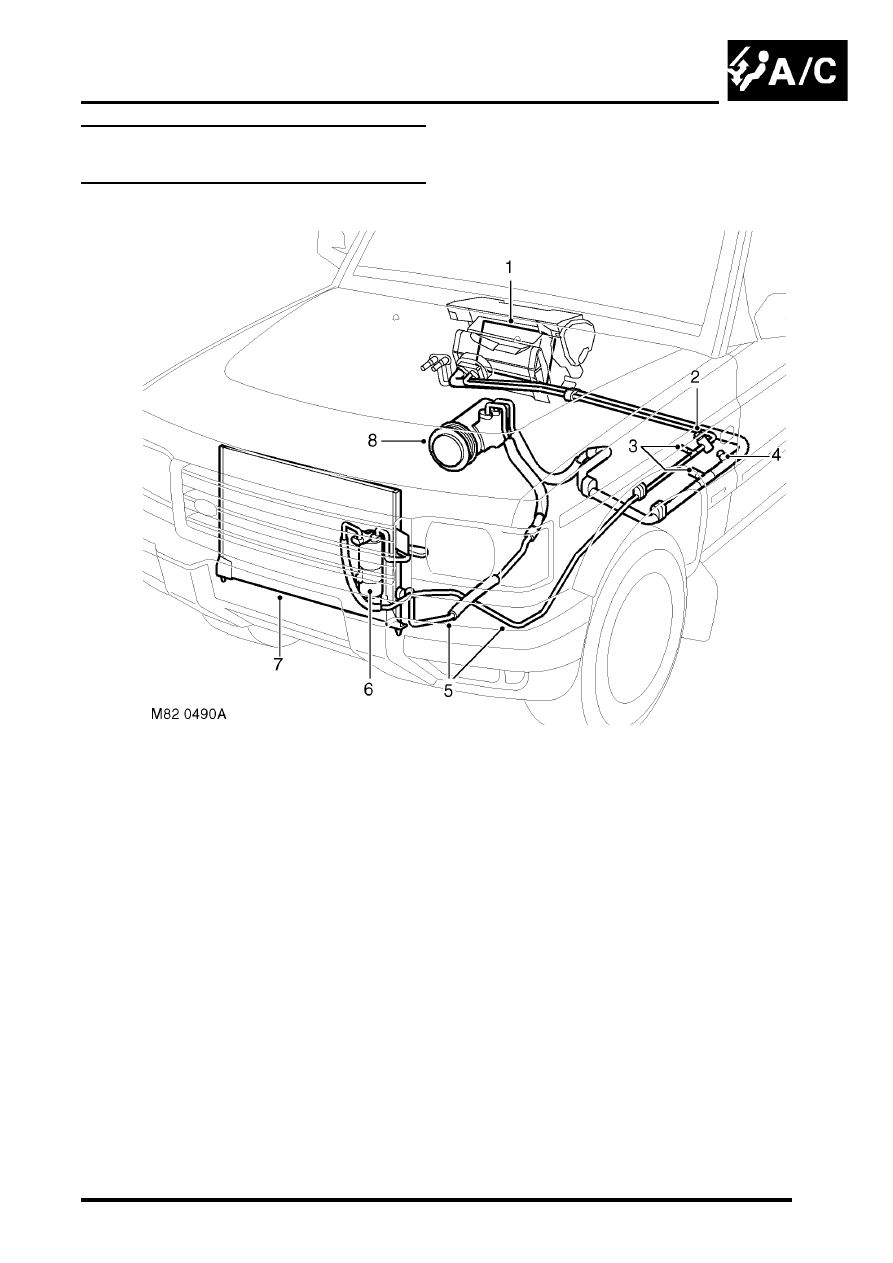

A/C refrigerant system component
layout

Diesel installation shown, V8 similar

Evaporator and thermostatic expansion valve
High pressure servicing connection
To rear A/C system (where fitted)
Low pressure servicing connection

Refrigerant lines
Receiver drier
Condenser
Compressor

AIR CONDITIONING

82-2

DESCRIPTION AND OPERATION

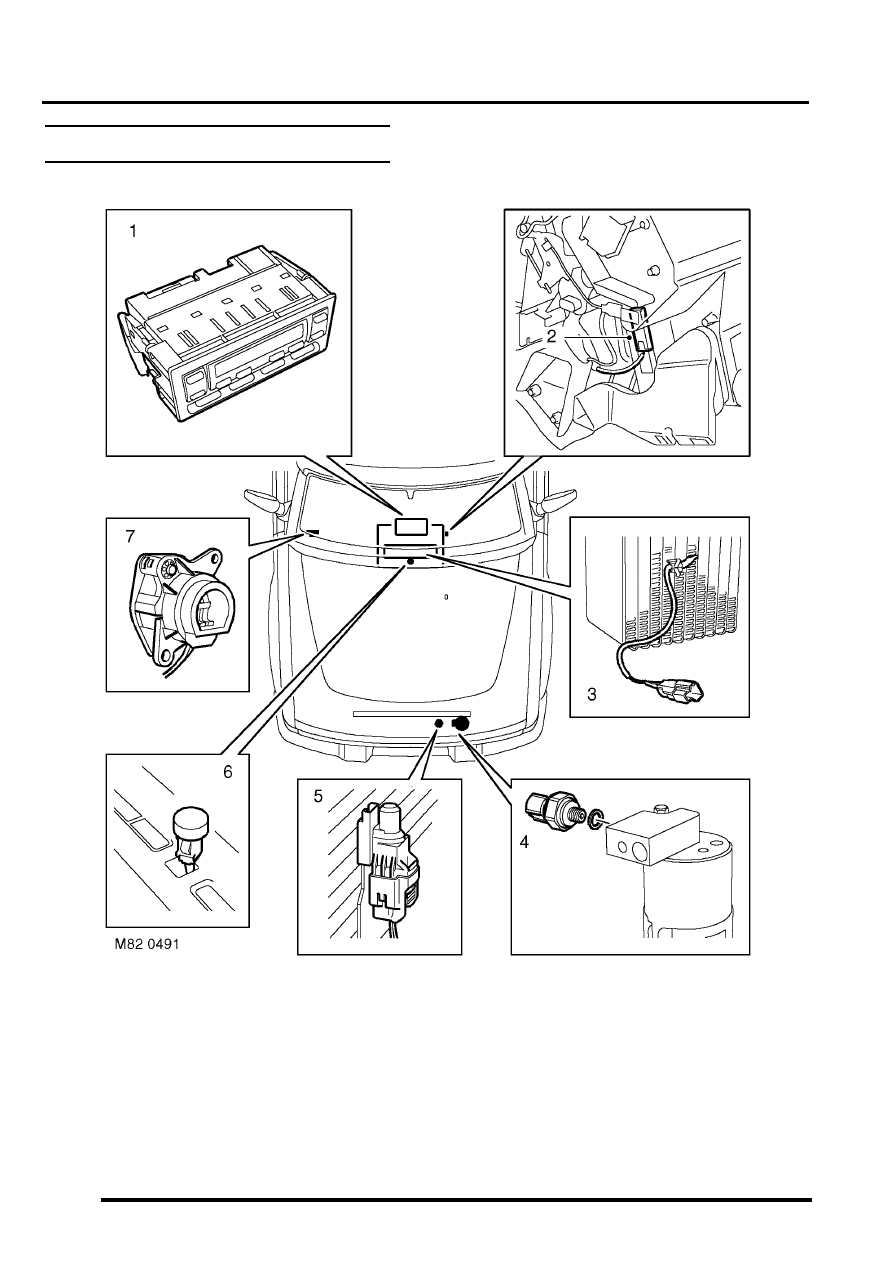

A/C control system component layout

RH drive shown, LH drive similar

Air temperature control ECU
Heater coolant temperature sensor
Evaporator temperature sensor
Dual pressure switch

Ambient temperature sensor
Sunlight sensor
In-car temperature sensor
