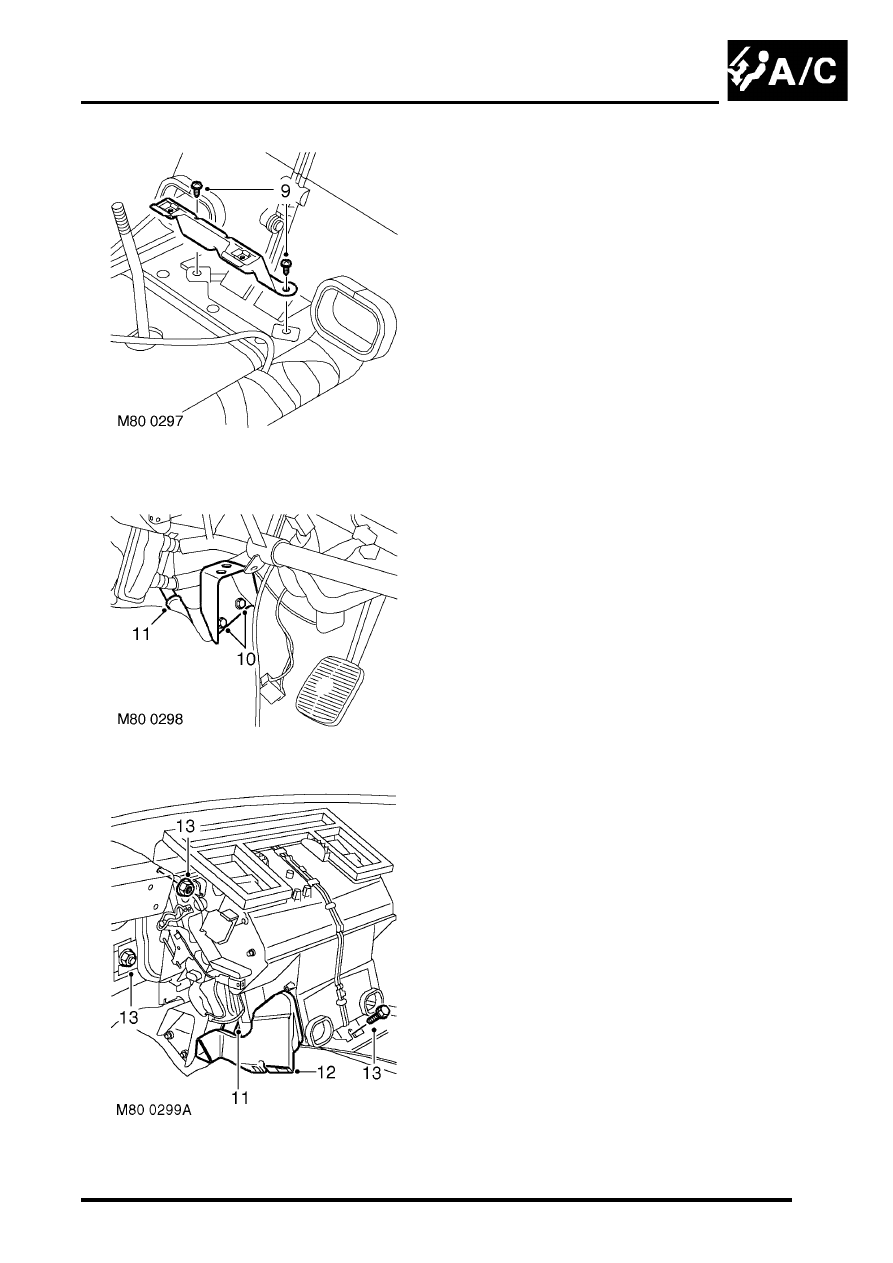

HEATING AND VENTILATION REPAIRS 80-23 8. Remove 2 screws securing console bracket to tunnel and remove bracket. 9. Release radio coaxial cable from behind heater pipes. 10. Protect the carpet from coolant spillage. 11. Remove 4 nuts and 1 bolt securing heater to body. 12. Remove heater from vehicle. footwell outlet duct to heater casing and 14. Remove 2 screws securing matrix pipe bracket to heater casing. 15. Remove screw securing pipe clamp to heater casing and remove clamp. 16. Carefully remove matrix from heater. Refit 1. Fit matrix into heater casing. casing. 3. Fit pipe clamp and secure with screw. heater coolant pipe grommet is correctly 6. Fit radio coaxial cable behind heater pipes. with nuts and bolt. 10. Connect harness multiplug to blower motor. 12. Connect heater hoses and secure with clips. with bolts. 14. Refill cooling system l ADJUSTMENTS, Drain and refill. l |
