BODY SEALING MATERIALS

MATERIALS AND APPLICATIONS

77-3-3

Terostat Sprayable Seam Sealer - bolted, spot welded and bonded panel edges;
between bonded panels; type (b) gaps between panels

Teroson

9320

Terostat 1K PU Seam Sealer (SE 20) - type (a) and (b) gaps between panels;
spot welded and bonded panel edges

Teroson

Sealing Compound - bolted, spot welded and bonded panel edges; between
bonded panels; type (b) gaps between panels

Wurths

8901001/-/6

Structural adhesives

Automotive Structural Adhesive - between bonded panels; type (a) clinch joints

08122

Two Part Structural Epoxy - between bonded and spot welded panels; type (a)
clinch joints

Ciba-Geigy

XB5106/7

Underbody sealers

Body Schutz

08861

Spray Schutz

08877

Crodapol Brushable Underbody Sealer

Croda

PV75

Terotex Underseal (CP 02)

Teroson

9320

Underbody waxes

Bodyguard (Aerosol)

08158/9

Underbody Wax

Croda

PW61

Underbody Wax

Dinol

Tectacote 205

Weld-through primers

Weld Thru' Coating

05913

Zinc Spray

09113

Zinc Rich Primer

ICI

P-565 634

Description - Usage

Supplier

Part Number

BODY SEALING MATERIALS

77-3-4

MATERIALS AND APPLICATIONS

Application equipment

Manufacturers and suppliers
Suitable application equipment is available from the following manufacturers and suppliers:

3M
Automotive Trades Group
3M UK Plc
3M House
PO Box 1
Market Place
Bracknell
Berks
RG 12 1JU

(

(01344) 858611

Cooper Pegler
Burgess Hill
Sussex
RH15 9LA

(

(014 446) 42526

SATA Spray Equipment
Minden Industrial Ltd
16 Greyfriars Road
Moreton Hall
Bury St. Edmunds
Suffolk
IP32 7DX

(

(01284) 760791

3M Body Schutz Pistol Spraygun 08996
A pistol type spraygun constructed from case and machined light alloy and designed for use with 3M screw fit Body
Schutz containers.

3M Caulking Gun MKIII 8002
A lightweight, robust metal skeleton gun designed to accept 325 mm (13 in) cartridge for dispensing sealants etc. This
gun provides rapid cartridge insertion and loading, with a quick-release lever for accurate control of material ejection
and shut-off.

3M Pneumatic Cartridge Gun 08012
Air line-fed gun for applying 3M cartridge products. Excellent for ease of application to obtain a smooth bead.
Regulator valve for additional control.

3M Pneumatic Applicator Guns
Air line-fed gun for application of 3M sachet sealers (Part Number 08006 for 200 ml and 310 ml sachet applications,
and Part Number 08007 for all size sachets including 600 ml).

Also available: Heavy Duty Manual Gun 08013.

3M Applicator Gun 08190.
For the application of 3M Structural Adhesive 08120.

3M Inner Cavity Wax Applicator Gun 08997
This equipment accepts 1-litre canisters and has a 750 mm (29.572 in) flexible tube.

The approved system is available from all 3M refinishing factors.

BODY SEALING MATERIALS

MATERIALS AND APPLICATIONS

77-3-5

Cooper Pegler Falcon Junior Pneumatic Gun (Airless)
Intended primarily for applying transit wax, this pneumatic sprayer has a 5-litre container with integral hand pump and
provides an effective means of wax spraying without the need for compressed air or additional services.

A selection of nozzles, lances, hose lengths and a trigger valve assembly with integral filter allows flexibility in use.
Additional applications include general maintenance, wax injection and paint application. Heavy-bodied materials
may also be applied. All parts are fully replaceable and a wide range of nozzle configurations is available.

SATA Schutz Gun Model UBE
The SATA Schutz Gun is approved for the retreatment of vehicle underbody areas with protective coatings as
supplied in 1 litre, purpose-designed 'one-way' containers. The screw thread fitting (female on the gun) is standard
to most Schutz-type packs.

SATA HKD1 Wax Injection Injection Equipment
This equipment is approved for carrying out cavity wax re-treatment. The SATA HKD1 set comprises a high quality
forged gun with 1-litre pressure feed container, a flexible nylon lance, a straight 1100 mm (43.307 in) steel lance and
hooked- wand lance. A quick-change coupling is provided as a standard fitting to allow lances to be easily
interchanged. Each lance has an integral, machined nozzle with specialised spray characteristics to suit the type of
box section to be treated.

NOTE: Always clean gun after use with appropriate solvent to maintain efficiency.

Specifications of Model UBE:

Air consumption

7 ft

/min (200 litres/min) @ 45 lbf.in

Weight:

23.3oz (220 grams)

BODY SEALING MATERIALS

77-3-6

MATERIALS AND APPLICATIONS

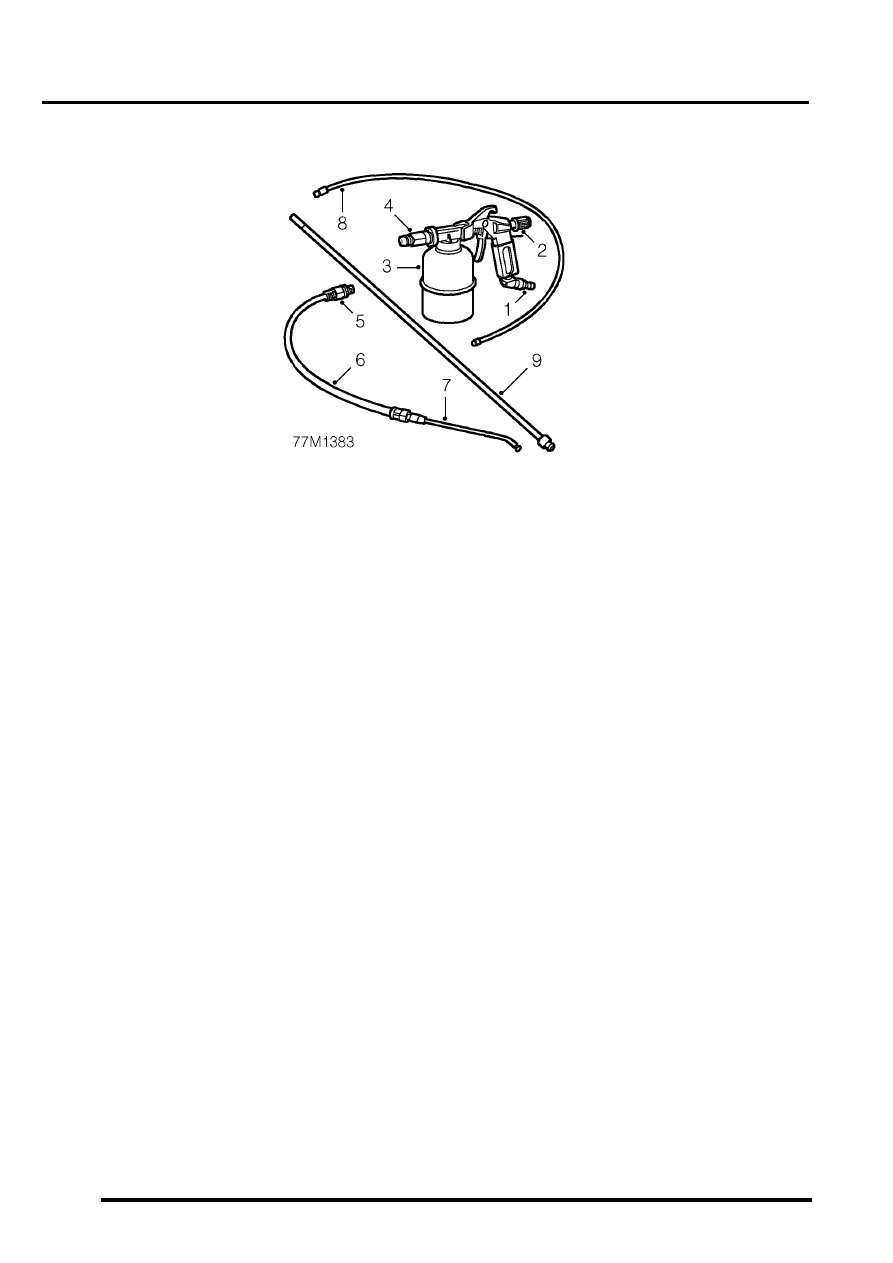

Cavity wax application equipment and techniques

1 Air inlet
2 Flow control (spray pattern adjustment)
3 Pressure cup (1 litre capacity). Maximum

pressure 140PSI (9.7 bar, 9.84 kg/cm

)

4 Gun connector
5 Lance nipple connection
6 Flexible lance

7 Rigid directional hook wand

(forward cone spray pattern)

8 Flexible nylon lance 1100 mm (43.307 in) with

360

spray pattern

9 Rigid lance 1100 mm (43.307 in) with 360

spray pattern

When re-treating wax-injected areas which have been disturbed during repairs, it is necessary to use a compressed
air spray gun with integral pressure cup and a selection of interchangeable lances.

The following points must be observed during use, according to the attachments fitted:

Use the rigid or flexible lance attachments with 360

spray dispersal when treating enclosed areas, to ensure

maximum coverage;

Where openings are restricted, use the hook nozzle to provide a more directional spray (e.g. inside narrow or
short box sections);

Spray exposed underbody surfaces directly from the gun less lance attachment and without disconnecting the
fluid coupling.

1100 mm (43.307 in) rigid lance
The nozzle on the rigid lance produces a 360

circular spray pattern combined with a forward-directed spray. Although

wax is distributed to all box section surfaces in a single stroke, effective and complete coverage is obtained in long
straight structures and box section cavities by spraying on both inward and outward strokes of the lance.

The rigid lance also provides the positional accuracy required in shaped sections, by allowing visual assessment.

CAUTION: Do not force the lance into access holes when using this attachment.

1100 mm (43.307 in) flexible nylon lance
This lance is similar in pattern to the rigid version, but provides the additional penetration required for curved sections
or in places where access is difficult. Its main limitation is a lack of positional accuracy inside box sections.

Carry out all spraying on the outward stroke of the lance. Withdraw the lance slowly to ensure sufficient coverage. Do
not withdraw the lance too quickly.

Ensure that the nylon tube of the lance is kept away from the edges of the access hole to eliminate abrasion and
extend the life of the tube. Take care to ensure that spraying ceases just before the nozzle emerges from the access
hole. To assist in this process paint the final 30 mm (1.181 in) of the nozzle with RED paint.
