PANEL REPAIRS

REPAIRS 77-2-21

REPAIRS

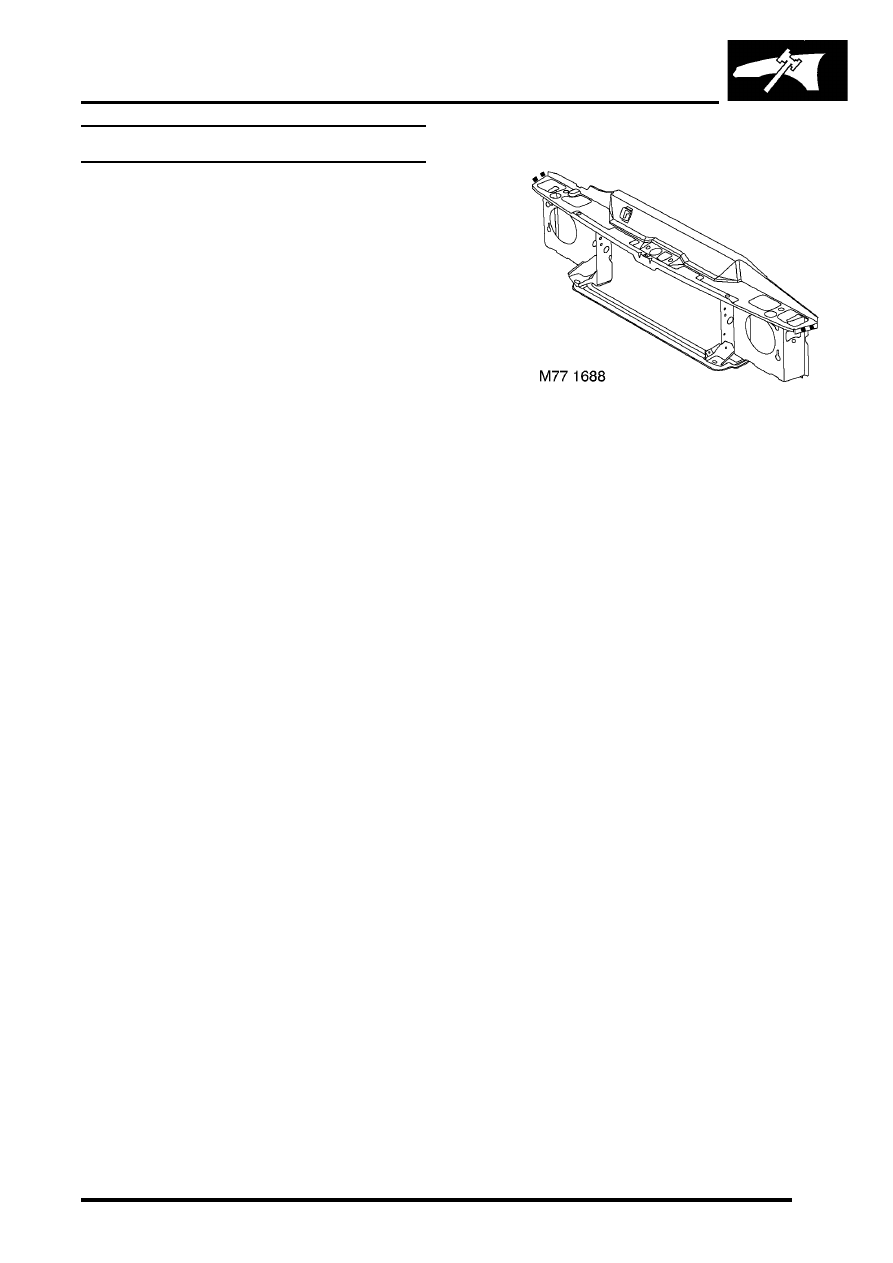

Front bulkhead assembly

Remove

1. Disconnect both battery leads, negative lead

first.

2. Disconnect leads/multiplug from alternator.
3. Remove front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front - up to 03MY.

4. Remove washer reservoir.



 +

 WIPERS AND WASHERS, REPAIRS,

Reservoir - washer - up to 03MY.

5. Models with A/C: Remove condensor.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

6. Diesel models: Remove gearbox fluid cooler.
7. Remove RH and LH headlamps.



 +

 LIGHTING, REPAIRS, Headlamp - up

to 03MY.

8. Release headlamp levelling motors and

position aside.

9. Release headlamp wiring and position aside.

10. Remove battery.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

11. Remove battery tray.
12. Remove air filter assembly.



 +

 ENGINE MANAGEMENT SYSTEM -

Td5, REPAIRS, Air filter assembly.


 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Air cleaner assembly.

13. Remove 2 earth leads from LH of front

bulkhead.

14. Remove RH horn.



 +

 ALARM SYSTEM AND HORN,

REPAIR, Vehicle horn.

15. Models with A/C: Release and remove A/C

pipes.

16. Remove RH and LH crush cans.
17. Remove bonnet release cable.
18. Support bonnet in open position
19. Remove bonnet locking mechanism.
20. Remove VIN plate.
21. Remove 2 bolts securing front bulkhead

assembly to chassis.

22. Remove centre braces.

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Fit centre braces.
2. Fit 2 bolts securing bulkhead to chassis and

tighten to 45 Nm (33 lbf.ft).

3. Fit VIN plate.
4. Fit bonnet locking mechanism.
5. Fit bonnet release cable.
6. Fit crush cans.
7. Models with A/C: Fit A/C pipes.
8. Fit RH horn.



 +

 ALARM SYSTEM AND HORN,

REPAIR, Vehicle horn.

9. Fit 2 earth leads to LH of front bulkhead.

10. Fit air filter assembly.



 +

 ENGINE MANAGEMENT SYSTEM -

Td5, REPAIRS, Air filter assembly.


 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Air cleaner assembly.

11. Fit battery tray.
12. Fit battery. Do not connect leads.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

13. Fit headlamp wiring and headlamp levelling

motors.

14. Fit RH and LH headlamps.



 +

 LIGHTING, REPAIRS, Headlamp - up

to 03MY.

15. Diesel models: Fit gearbox fluid cooler.
16. Models with A/C: Fit condensor.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

17. Fit washer reservoir.



 +

 WIPERS AND WASHERS, REPAIRS,

Reservoir - washer - up to 03MY.

PANEL REPAIRS

77-2-22 REPAIRS

18. Fit front wing.



 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front - up to 03MY.

19. Connect leads/multiplug to alternator.
20. Connect battery leads, negative lead last.

PANEL REPAIRS

REPAIRS 77-2-23

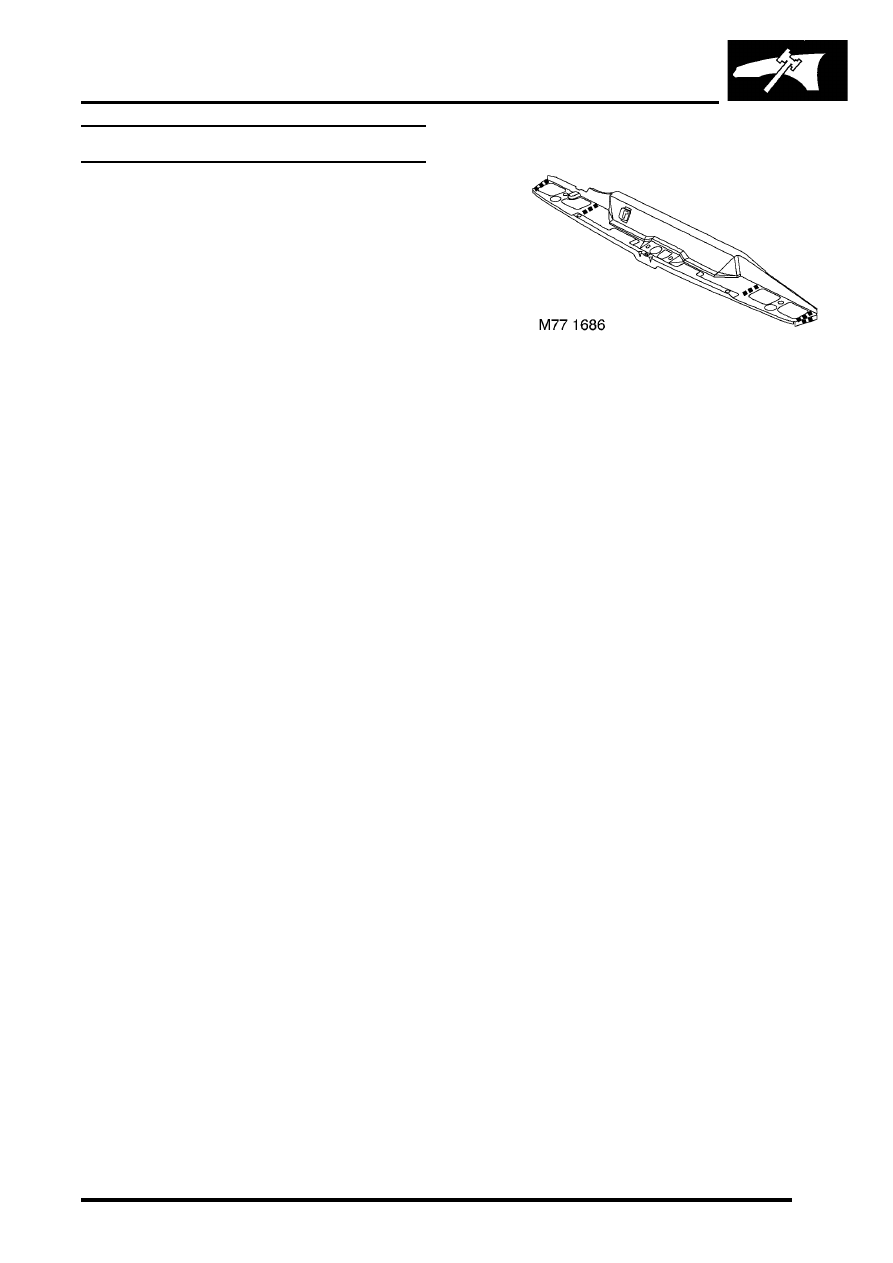

Bonnet locking platform

Remove

1. Disconnect both battery leads, negative lead

first.

2. Disconnect leads/multiplug from alternator.
3. Remove front bumper assembly.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper assembly - front.

4. Models with A/C: Remove condensor.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

5. Diesel models: Remove gearbox fluid cooler.
6. Remove RH and LH headlamps.



 +

 LIGHTING, REPAIRS, Headlamp - up

to 03MY.

7. Remove RH and LH repeater lamps.



 +

 LIGHTING, REPAIRS, Lamp - front

repeater - up to 03MY.

8. Release headlamp wiring and position aside.
9. Remove battery.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

10. Remove battery tray.
11. Remove air filter assembly.



 +

 ENGINE MANAGEMENT SYSTEM -

Td5, REPAIRS, Air filter assembly.


 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Air cleaner assembly.

12. Remove RH horn.



 +

 ALARM SYSTEM AND HORN,

REPAIR, Vehicle horn.

13. Remove bonnet release cable.
14. Support bonnet in open position
15. Remove bonnet locking mechanism.
16. Remove VIN plate.
17. Remove centre braces.

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Fit centre braces.
2. Fit VIN plate.
3. Fit bonnet locking mechanism.
4. Fit bonnet release cable.
5. Fit RH horn.



 +

 ALARM SYSTEM AND HORN,

REPAIR, Vehicle horn.

6. Fit air filter assembly.



 +

 ENGINE MANAGEMENT SYSTEM -

Td5, REPAIRS, Air filter assembly.


 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Air cleaner assembly.

7. Fit battery tray.
8. Fit battery. Do not connect leads.



 +

 CHARGING AND STARTING,

REPAIRS, Battery.

9. Fit headlamp wiring.

10. Fit RH and LH repeater lamps.



 +

 LIGHTING, REPAIRS, Lamp - front

repeater - up to 03MY.

11. Fit RH and LH headlamps.



 +

 LIGHTING, REPAIRS, Headlamp - up

to 03MY.

12. Diesel models: Fit gearbox fluid cooler.
13. Models with A/C: Fit condensor.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

14. Fit bumper assembly.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper assembly - front.

15. Connect leads/multiplug to alternator.
16. Connect battery leads, negative lead last.

PANEL REPAIRS

77-2-24 REPAIRS

Front cross member

Remove

1. Disconnect both battery leads, negative lead

first.

2. Disconnect leads/multiplug from alternator.
3. Remove washer reservoir.



 +

 WIPERS AND WASHERS, REPAIRS,

Reservoir - washer - up to 03MY.

4. Models with A/C: Remove condensor.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

5. Diesel models: Remove gearbox fluid cooler.
6. Remove RH and LH headlamps.



 +

 LIGHTING, REPAIRS, Headlamp - up

to 03MY.

7. Release headlamp levelling motors and

position aside.

8. Release headlamp wiring and position aside.
9. Remove RH horn.



 +

 ALARM SYSTEM AND HORN,

REPAIR, Vehicle horn.

10. Models with A/C: Release and remove A/C

pipes.

11. Remove RH and LH crush cans.
12. Remove 2 bolts securing front bulkhead

assembly to chassis.

13. Remove centre braces.

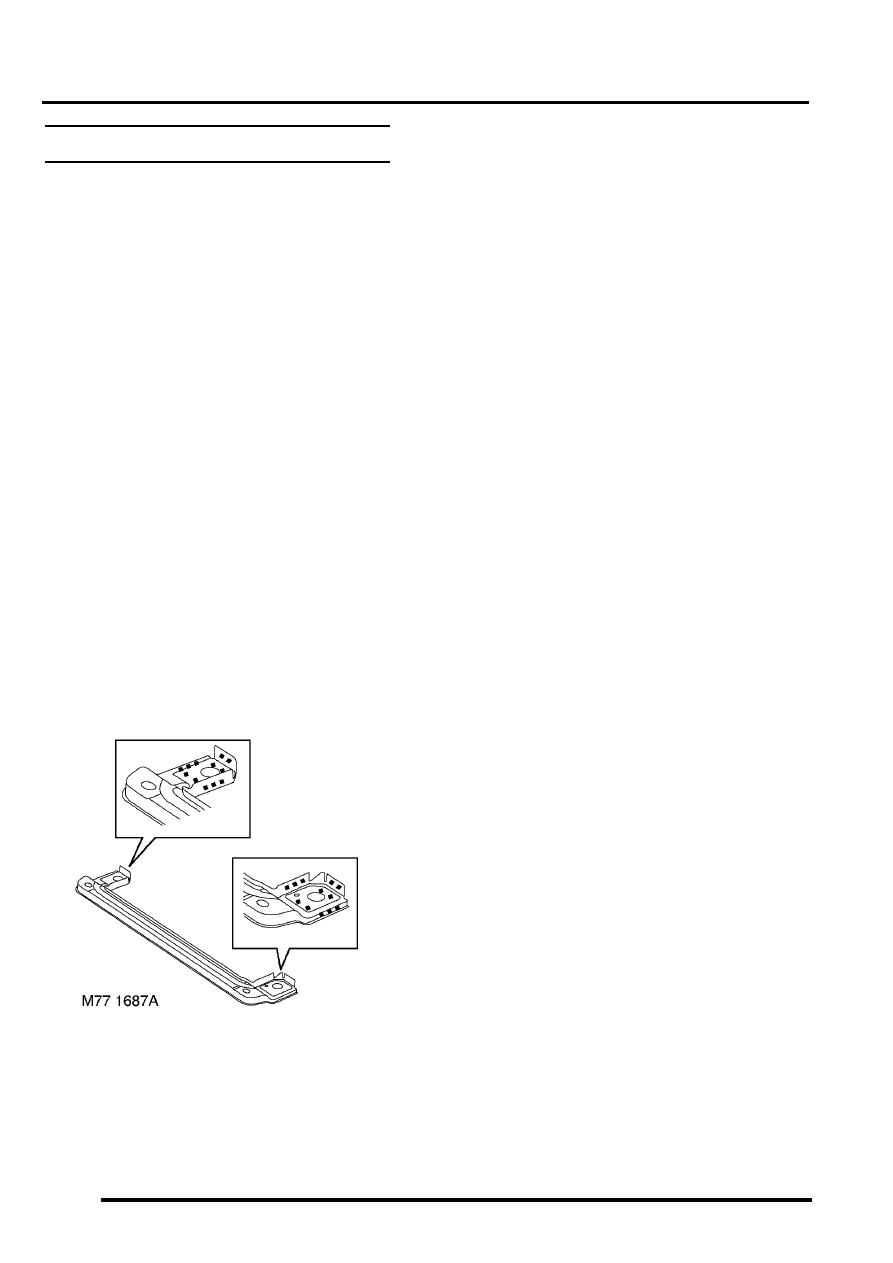

Repair

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Fit centre braces.
2. Fit 2 bolts securing bulkhead to chassis and

tighten bolts to 45 Nm (33 lbf.ft).

3. Fit crush cans.
4. Models with A/C: Fit A/C pipes.
5. Fit RH horn.



 +

 ALARM SYSTEM AND HORN,

REPAIR, Vehicle horn.

6. Fit headlamp wiring and headlamp levelling

motors.

7. Fit RH and LH headlamps.



 +

 LIGHTING, REPAIRS, Headlamp - up

to 03MY.

8. Diesel models: Fit gearbox fluid cooler.
9. Models with A/C: Fit condensor.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

10. Fit washer reservoir.



 +

 WIPERS AND WASHERS, REPAIRS,

Reservoir - washer - up to 03MY.

11. Connect leads/multiplug to alternator.
12. Connect battery leads, negative lead last.
