SEATS

REPAIRS 76-5-31

Cover - squab - RH rear seat

$% 78.90.13

Remove

1. Remove rear seat.



 +

 SEATS, REPAIRS, Seat - rear.

2. Remove centre rear seat belt.



 +

 RESTRAINT SYSTEMS, REPAIRS,

Seat belt - rear - centre.

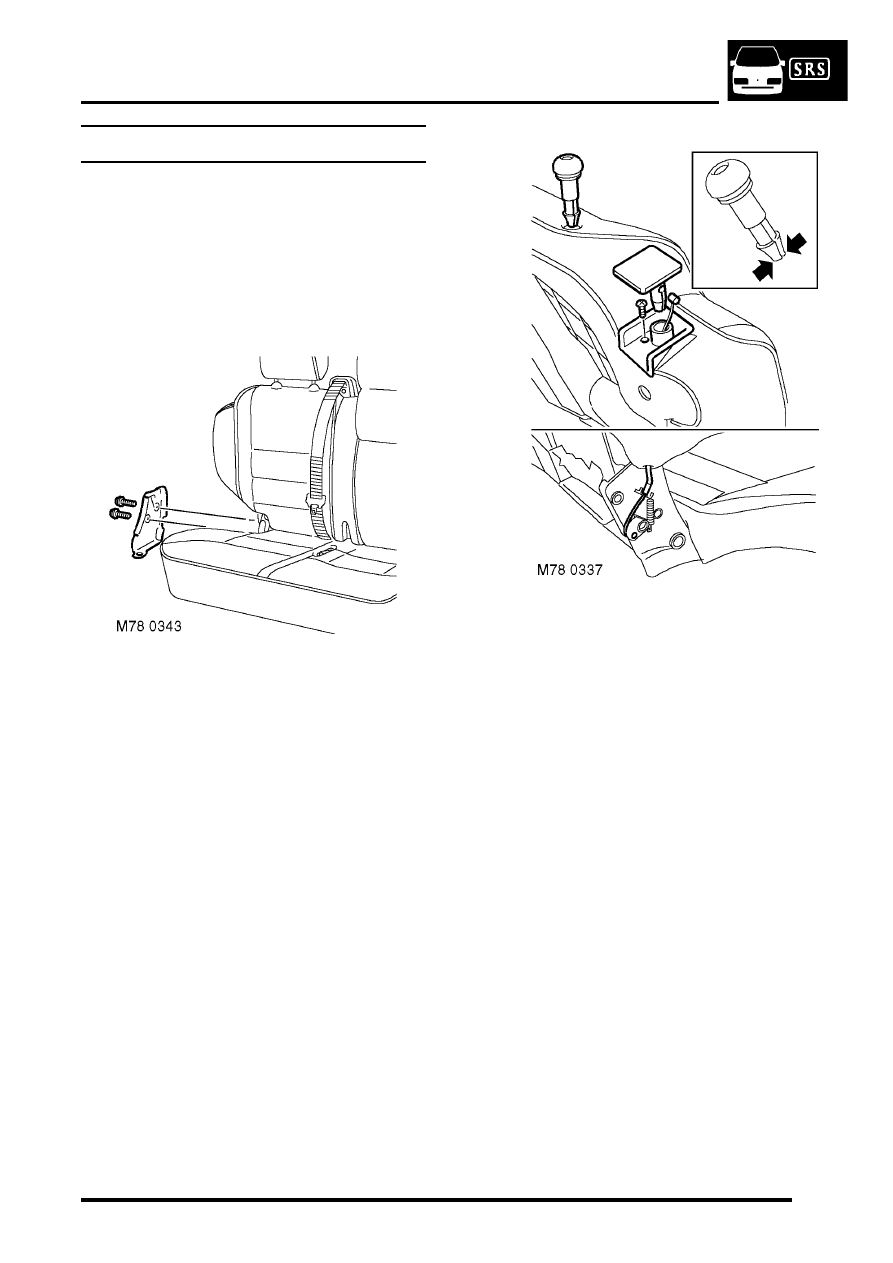

3. Remove 2 screws securing end cover and

remove end cover.

4. Remove both head restraint guide tubes.
5. Remove 2 screws securing squab release

lever, release cable and remove lever
assembly.

SEATS

76-5-32 REPAIRS

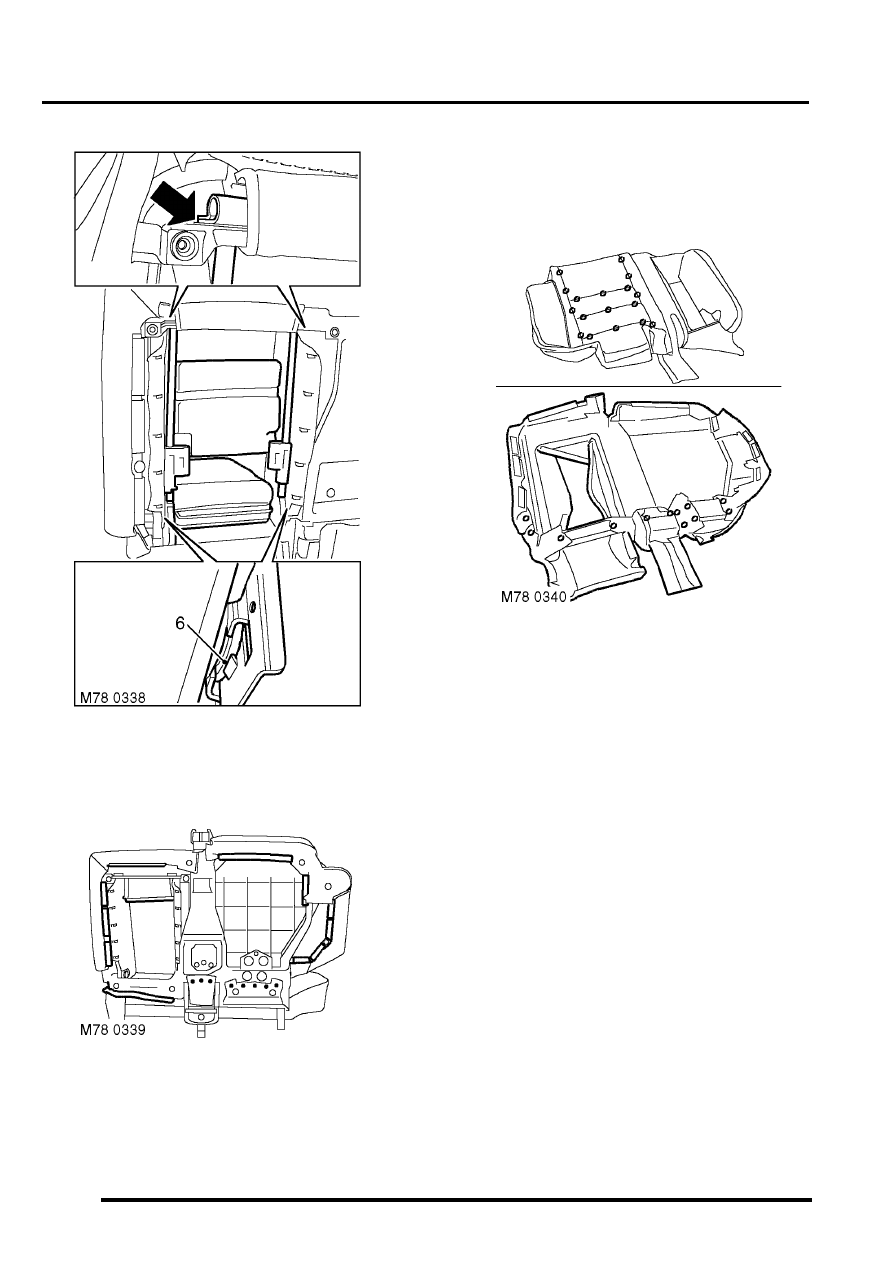

6. Release catches securing arm rest supports,

lower arm rest, release arm rest hinge catches
and remove arm rest assembly.

7. Release squab from 10 hooks in arm rest

recess.

8. Release top and bottom rap round clips  in arm

rest recess.

9. Remove 3 studs securing squab to  centre of

frame.

10. Release squab from 5 studs securing RH  side.
11. Release 9 side clips securing squab to  frame,

release and remove squab assembly.

12. Release squab from sides of pad to  access

hog rings.

13. Remove 29 hogs rings and remove squab

cover from pad.

Refit

1. Position squab to pad and secure with  hog

rings.

2. Position squab assembly to frame and  secure

side clips.

3. Secure squab to hooks at RH side and fit  studs

to centre of frame.

4. Fit top and bottom rap round clips and  hooks in

arm rest recess.

5. Fit and secure arm rest assembly.
6. Position squab release lever, connect cable

and secure with screws.

7. Fit head restraint guide tubes.
8. Position end cover and secure with  screws.
9. Fit centre rear seat belt.



 +

 RESTRAINT SYSTEMS, REPAIRS,

Seat belt - rear - centre.

10. Fit rear seat.



 +

 SEATS, REPAIRS, Seat - rear.

SEATS

REPAIRS 76-5-33

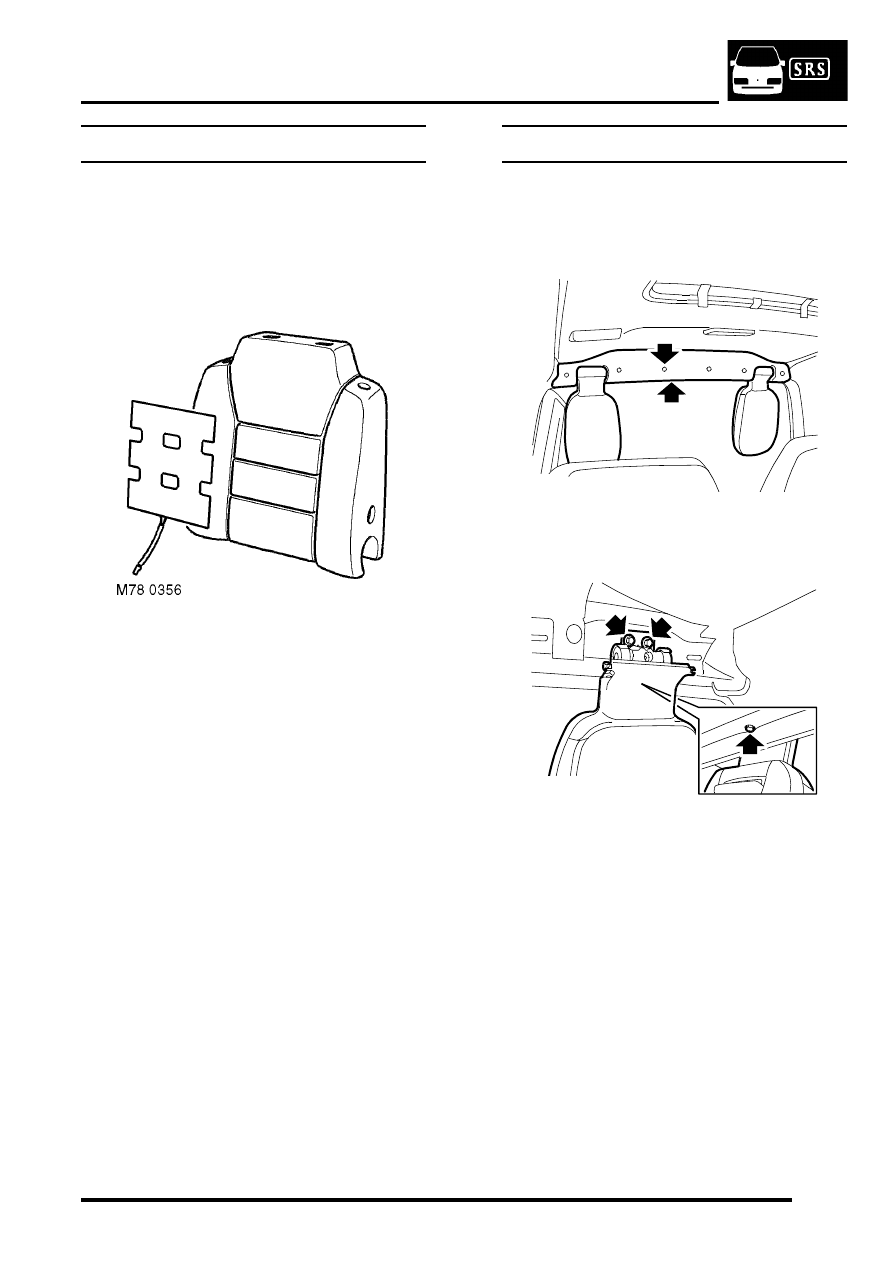

Heating element - squab - front seat

$% 78.90.36

Remove

1. Remove front seat squab cover.



 +

 SEATS, REPAIRS, Cover - squab -

front seat.

2. Disconnect heating element multiplug.
3. Carefully release heating element from  squab

pad, ensuring adhesive does not  tear squab
pad.

Refit

1. Ensure squab pad is free of adhesive.
2. Remove adhesive cover from new heating

element, position element and secure to  squab
pad.

3. Fit front seat squab cover.



 +

 SEATS, REPAIRS, Cover - squab -

front seat.

Head restraint - third row seat

$% 78.50.10

Remove

1. Fold down both third row head restaints.

2. Release upper tail gate finisher from 6 clips and

remove finisher.

3. Remove 3 bolts securing head restraint and

remove head restraint.

Refit

1. Position head restraint, fit and tighten bolts.
2. Position upper tail gate finisher and secure in

clips.

M78 0493

M78 0494
