Discovery 2. Manual - part 225





RESTRAINT SYSTEMS

REPAIRS

75-25

Air bag - steering wheel - deployment -
off vehicle

$% 76.74.16

These guidelines are written to aid authorised
personnel to carry out the safe disposal of air bag
modules when removed from the vehicle.

Deploy

It is imperative that before any work is
undertaken on the SRS system, the
appropriate information is read thoroughly.

1. Check condition of deployment tool LRT-86-

003 and associated fly leads.

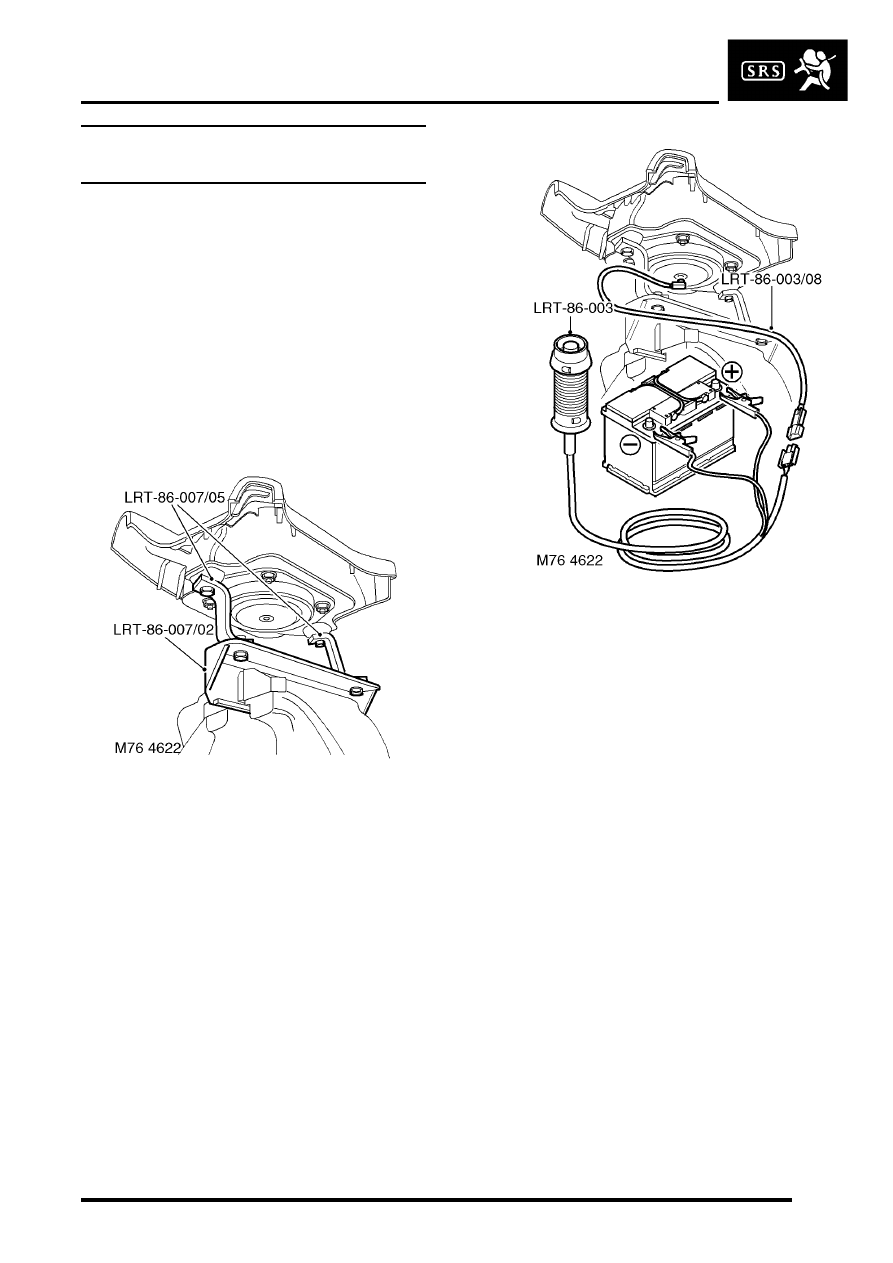

2. Position LRT-86-007/02 in vice, ensuring that

vice jaws grip tool above the bottom flange to
prevent possibility of tool being forced upwards
during detonation. Tighten vice.

3. Fit and secure 2 off LRT-86-007/05 to LRT-86-

007/02.

4. Fit and secure air bag to LRT-86-007/05.
5.
Connect deployment tool fly lead LRT-86-003/

08 to air bag.

6. Connect deployment tool LRT-86-003 to

deployment tool fly lead LRT-86-003/08.

7. Connect deployment tool LRT-86-003 to

battery.

WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the air bag
module.

8. Press deployment tool operating button to

deploy air bag module.

9. Disconnect deployment tool from battery.

WARNING: During deployment parts of the
air bag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the air bag module.

10. Disconnect deployment tool fly lead from air

bag.

11. Remove air bag module from holding tools and

place in a sealed bag, ready for disposal.

NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.

12. Wipe down holding tools with a damp cloth and

remove from vice.

13. Transport deployed air bag module to

designated area for incineration.

14. Do not re-use or salvage any parts of the

SRS system.

RESTRAINT SYSTEMS

75-26

REPAIRS

Air bag - fascia - passenger - deployment
- in vehicle

$% 76.74.17

These guidelines are written to aid authorised
personnel to carry out the safe disposal of air bag
modules when removed from the vehicle.

Deploy

It is imperative that before any work is
undertaken on the SRS system, the
appropriate information is read thoroughly.

1. Make the SRS system safe.



 +

 GENERAL INFORMATION,

Supplementary Restraint System
Precautions.

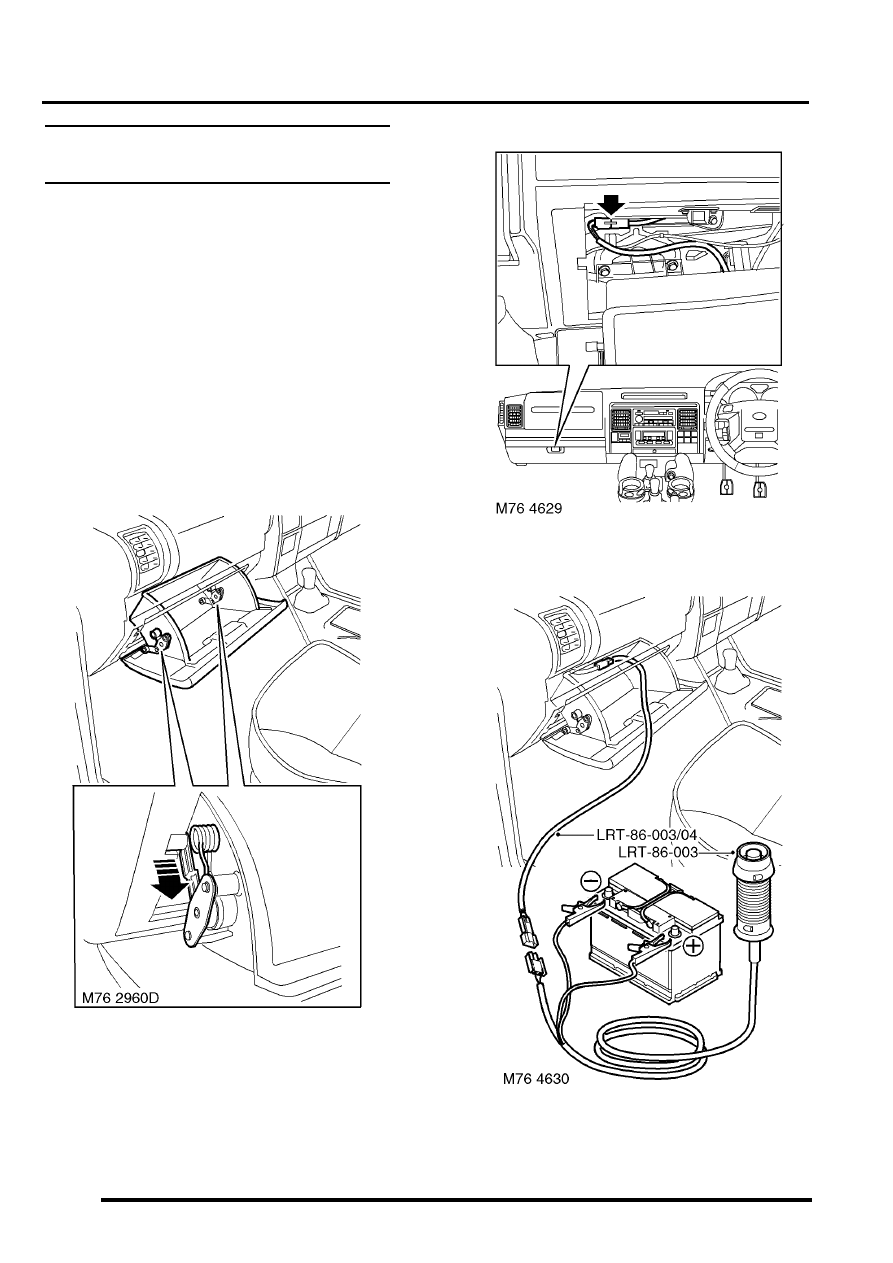

2. Release both guides supporting glove box to

fascia.

3. Lower glove box to gain access to air bag

module multiplug.

4. Disconnect multiplug from air bag module.

5. Check condition of deployment tool LRT-86-

003 and associated fly leads.

RESTRAINT SYSTEMS

REPAIRS

75-27

6. Connect deployment tool fly lead LRT-86-003/

04 to air bag.

7. Connect deployment tool LRT-86-003 to

deployment tool fly lead LRT-86-003/04.

8. Connect deployment tool LRT-86-003 to

battery.

WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the air bag
module.

9. Press deployment tool operating button to

deploy air bag module.

10. Disconnect deployment tool from battery.

WARNING: During deployment parts of the
air bag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the air bag module.

11. Disconnect deployment tool fly lead from air

bag.

12. Do not re-use or salvage any parts of the

SRS system.

NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.

Air bag - fascia - passenger - deployment
- off vehicle

$% 76.74.18

These guidelines are written to aid authorised
personnel to carry out the safe disposal of air bag
modules when removed from the vehicle.

Deploy

It is imperative that before any work is
undertaken on the SRS system, the
appropriate information is read thoroughly.

1. Check condition of deployment tool LRT-86-

003 and associated fly leads.

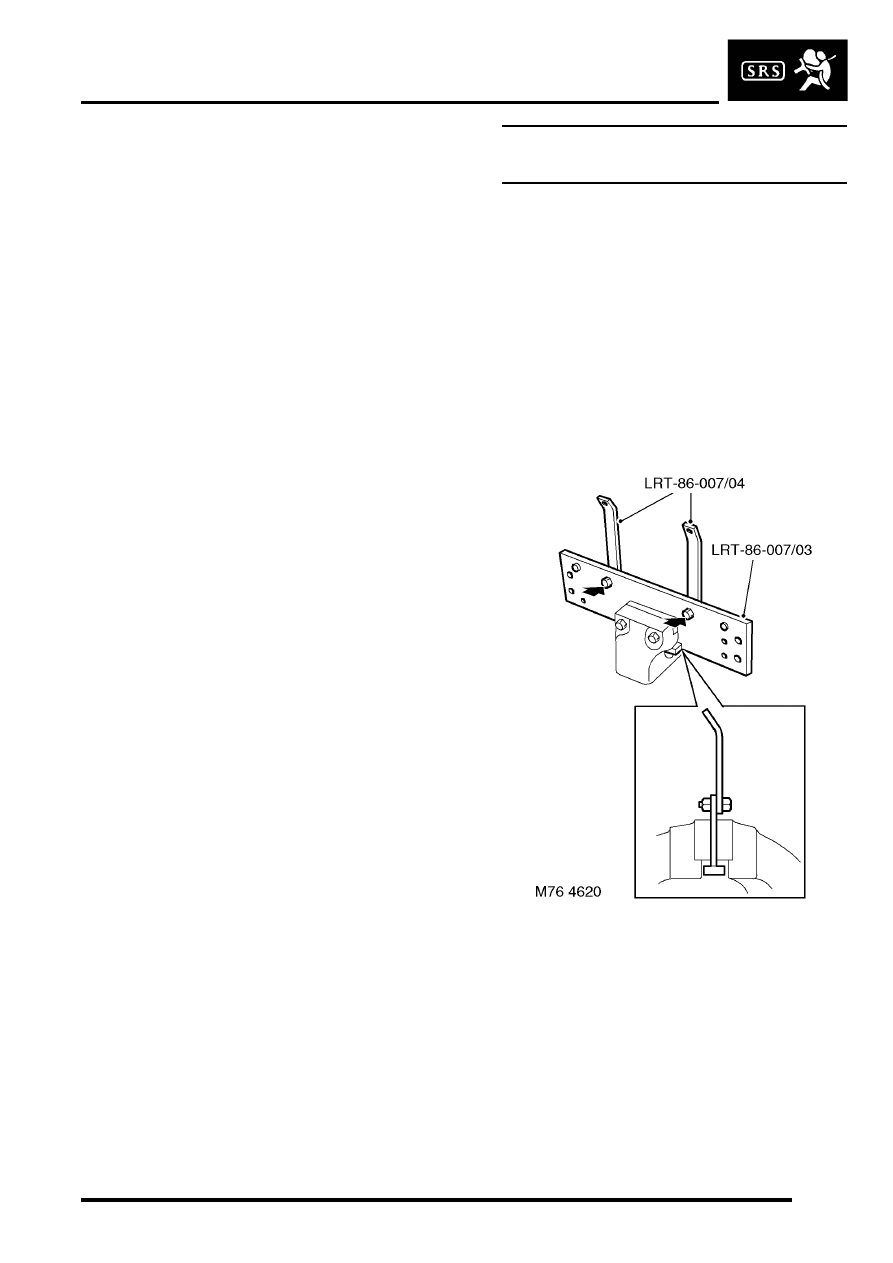

2. Position LRT-86-007/03 in vice, ensuring that

vice jaws grip tool above the bottom flange to
prevent possibility of tool being forced upwards
during detonation. Tighten vice.

3. Fit and secure 2 off LRT-86-007/04 to LRT-86-

007/03.

RESTRAINT SYSTEMS

75-28

REPAIRS

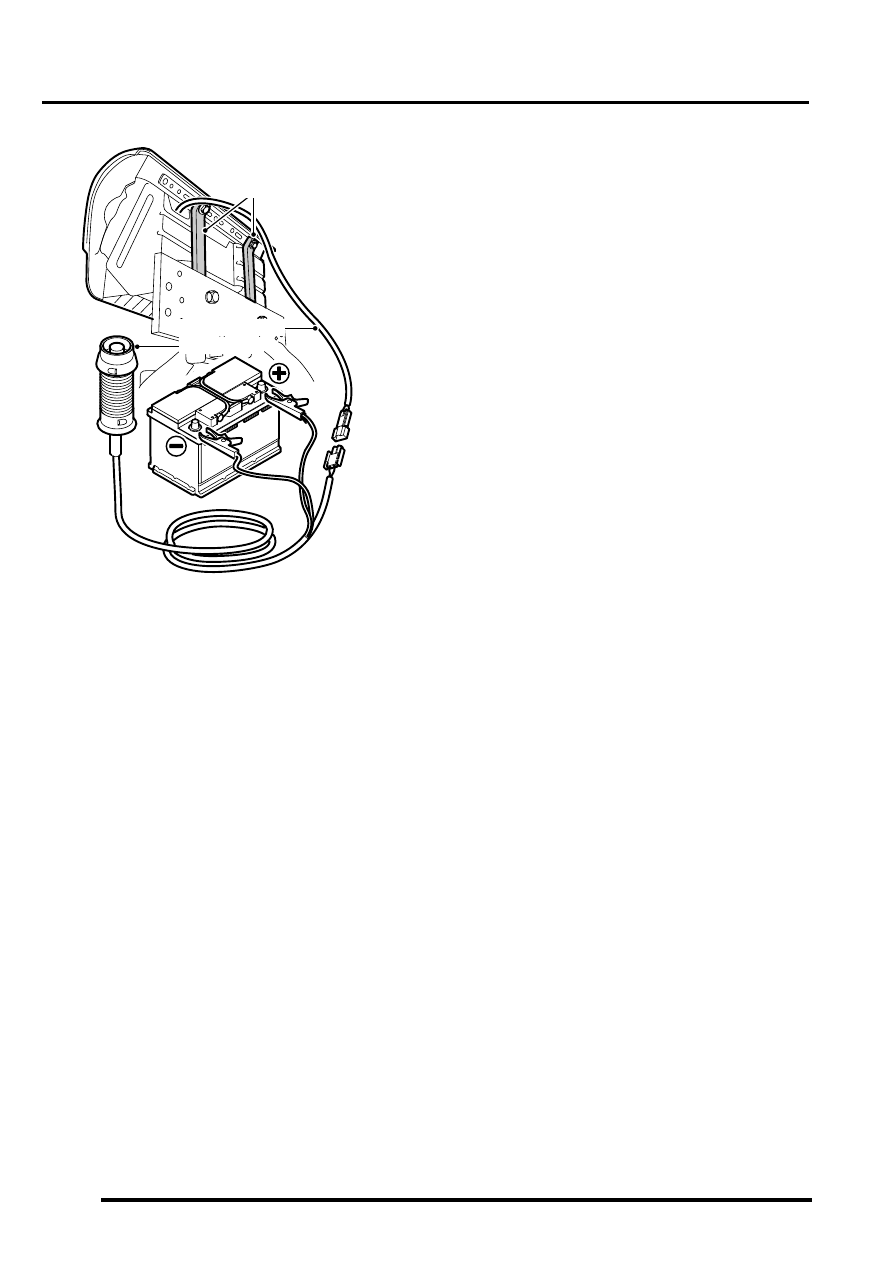

4. Fit and secure air bag to LRT-86-007/04.
5.
Connect deployment tool fly lead LRT-86-003/

08 to air bag.

6. Connect deployment tool LRT-86-003 to

deployment tool fly lead LRT-86-003/08.

7. Connect deployment tool LRT-86-003 to

battery.

WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the air bag
module.

8. Press deployment tool operating button to

deploy air bag module.

9. Disconnect deployment tool from battery.

WARNING: During deployment parts of the
air bag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the air bag module.

10. Disconnect deployment tool fly lead from air

bag.

11. Remove air bag module from holding tools and

place in a sealed bag, ready for disposal.

NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.

12. Wipe down holding tools with a damp cloth and

remove from vice.

13. Transport deployed air bag module to

designated area for incineration.

14. Do not re-use or salvage any parts of the

SRS system.

M76 4621

LRT-86-007/04

LRT-86-003/08
LRT-86-003
