Discovery 2. Manual - part 151





AUTOMATIC GEARBOX - ZF4HP22 - 24

REPAIRS

44-35

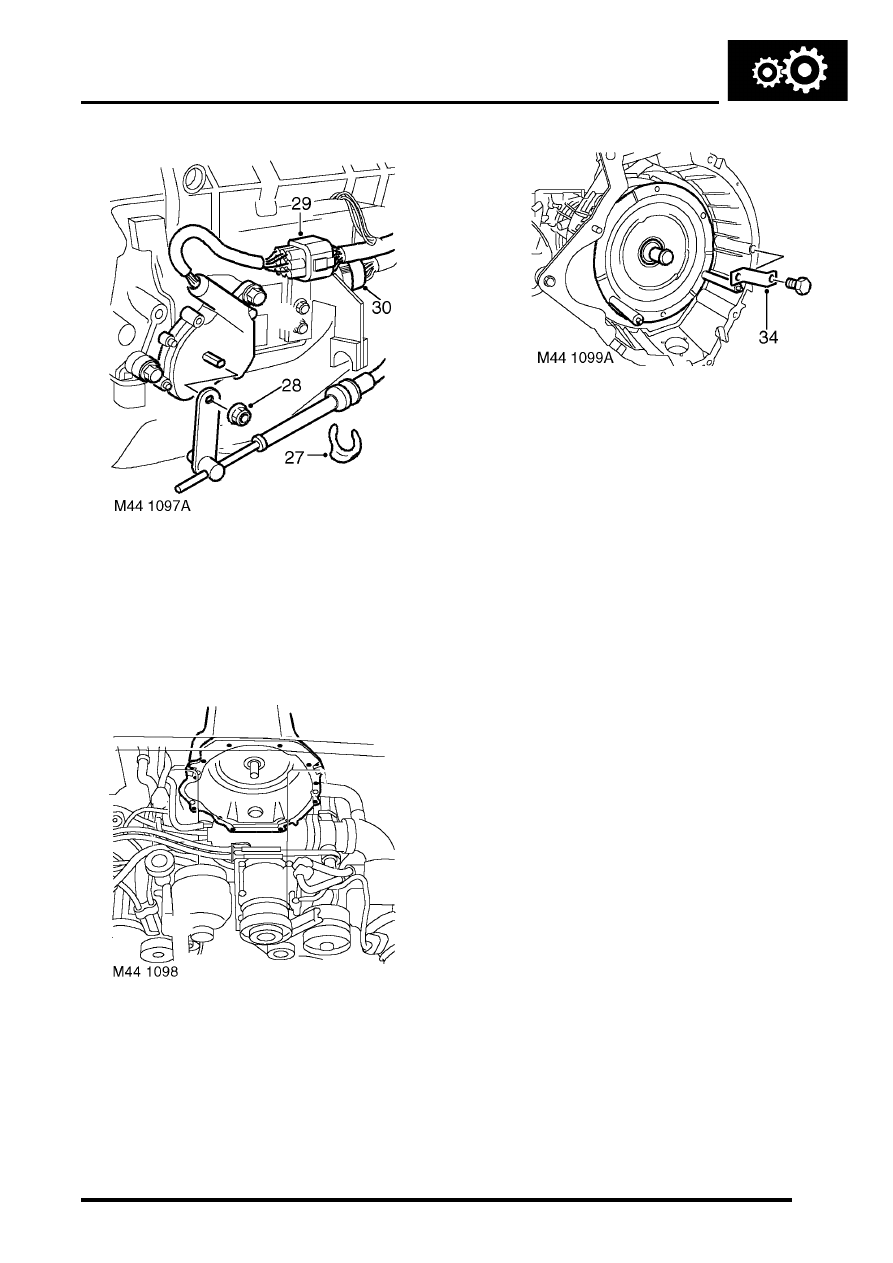

32. Remove 'C' clip securing selector cable to

gearbox bracket.

33. Remove nut securing selector lever to inhibitor

switch and release lever.

34. Disconnect multiplug from inhibitor switch.
35. Loosen gearbox multiplug locking ring and

disconnect plug.

36. Lower gearbox sufficiently to access bell

housing bolts, take care not to trap any pipes or
cables when lowering gearbox.

37. Remove 14 bolts securing gearbox to engine.
38. With assistance remove gearbox from engine.

39. Fit suitable strap to retain torque converter.

Refit

1. Clean gearbox to engine mating faces.
2. Remove torque converter retaining strap.
3. With assistance position gearbox to engine.
4. Fit gearbox bell housing bolts and tighten  to 46

Nm (34 lbf.ft)..

5. Connect multiplug to gearbox and tighten

locking ring.

6. Connect inhibitor switch multiplug.
7. If fitted: Connect and adjust differential lock

selector cable.


 +

 TRANSFER BOX - LT230SE,

ADJUSTMENTS, Cable - selector -
differential lock - adjust.

8. Position selector lever to inhibitor switch and

tighten nut to 25 Nm  (18 lbf.ft).

9. Position selector cable to gearbox and secure

with 'C' clip.

10. Clean oil pipe unions and fit new 'O' rings.
11. Position and tighten pipe unions to gearbox.
12. Position and tighten oil cooler pipe clamps.
13. Position and tighten oil cooler pipe clip to

engine sump.

14. Position  engine RH and LH rear mountings

and tighten bolts to 85 Nm (63 lbf.ft) and nuts to
85 Nm (63 lbf.ft).

15. Secure gearbox breather pipes to bulkhead

clip.

16. Up to 03 Model Year - If fitted: Connect  2

Lucars to differential lock warning lamp switch
and multiplugs to high/low ratio switch and
neutral sensor.

17. 03 Model Year onwards - If fitted: Connect

differential lock warning lamp switch multiplugs
to main harness.

18. Position cable tie and multiplug to transfer

gearbox bracket.

19. Connect high/low ratio selector cable to

selector lever and secure with clevis pin.

20. Position high/low ratio selector cable to

abutment bracket and secure with 'C' clip.

AUTOMATIC GEARBOX - ZF4HP22 - 24

44-36

REPAIRS

21. Models fitted with high/low shift interlock

solenoid: Position interlock solenoid harness
to high/low shift cable, fit sleeve around cable
and harness, secure sleeve.

22. Models fitted with high/low shift interlock

solenoid: Connect solenoid multiplug to main
harness and secure multiplug to bracket.

23. Position hand brake back plate  and tighten

bolts to 75 Nm (55 lbf.ft).

24. Fit hand brake drum and tighten screw.
25. Remove bolts securing tool LRT-99-008A  to

gearbox.

26. Rotate engine to align torque converter, fit new

bolts and tighten to 50 Nm  (37 lbf.ft).

27. Fit access plug to torque converter housing.
28. Fit rear propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - rear.

29. Fit front propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - front.

30. Fill transfer gearbox with oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

31. Fill automatic gearbox with oil.



 +

 MAINTENANCE, PROCEDURES,

Automatic gearbox.

32. Position intermediate silencer and secure to

mounting rubbers.

33. Clean silencer and tail pipe mating faces.
34. Position new gasket to tail pipe and tighten nuts

to 40 Nm (30 lbf.ft).

35. Fit exhaust front pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - V8, REPAIRS, Front pipe.

36. Position centre cross member,  fit bolts and

tighten to 26 Nm (19 lbf.ft).

37. Connect battery earth lead.
38. Fit battery cover and secure fixings.
39. Check and adjust selector cable.



 +

 AUTOMATIC GEARBOX - ZF4HP22

- 24, ADJUSTMENTS, Cable - selector.

AUTOMATIC GEARBOX - ZF4HP22 - 24

REPAIRS

44-37

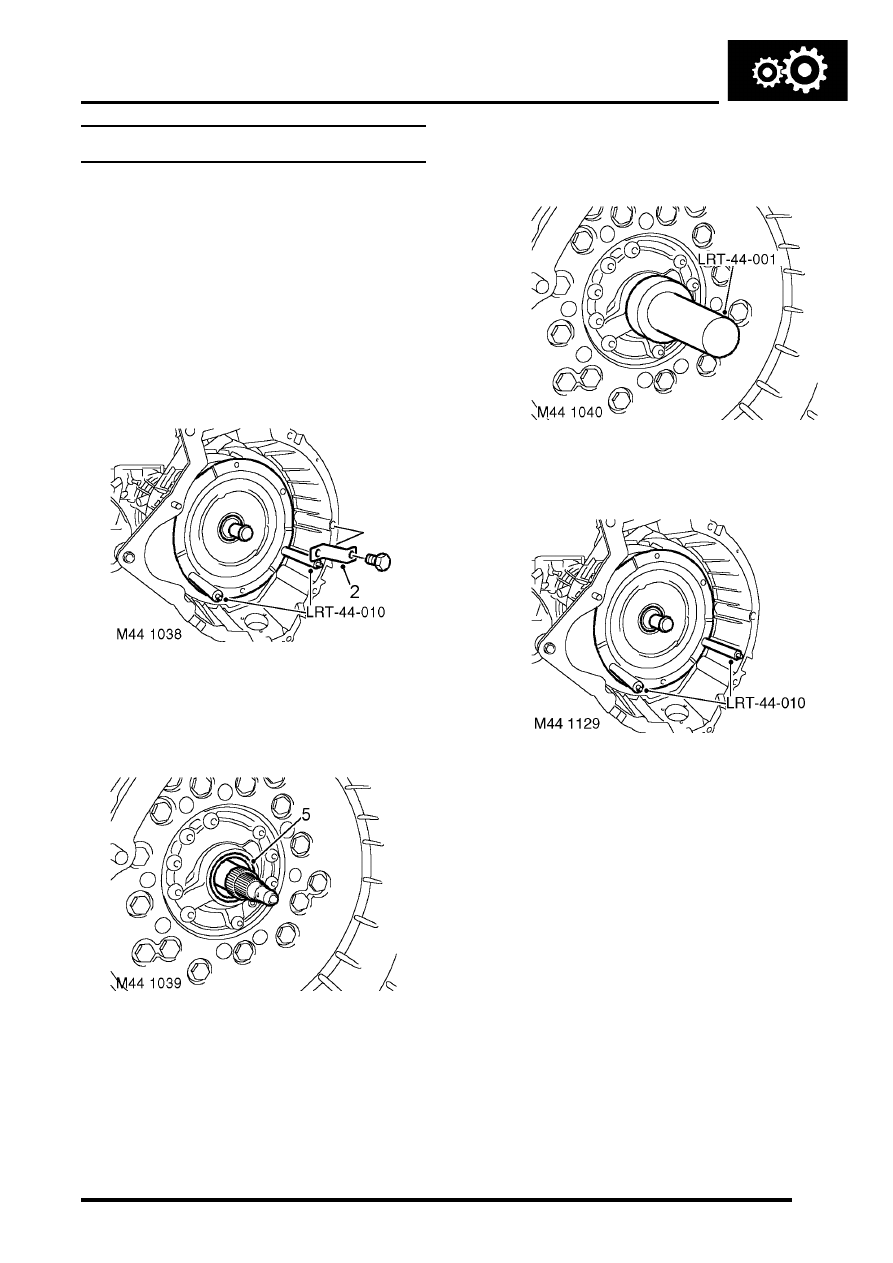

Torque converter and oil seal

$% 44.17.07

Remove

1. Remove automatic gearbox.

l



 +

 AUTOMATIC GEARBOX -

ZF4HP22 - 24, REPAIRS, Gearbox -
convertor and transfer gearbox - Diesel.

l



 +

 AUTOMATIC GEARBOX -

ZF4HP22 - 24, REPAIRS, Gearbox -
convertor and transfer gearbox - V8.

2. Remove retaining strap from torque convertor.
3. Fit tool LRT-44-010  to torque  converter and

remove torque converter from  gearbox.

4. Remove tool LRT-44-010 from converter.

5. Remove oil seal from converter housing.

Refit

1. Clean oil seal running surfaces.
2. Lubricate oil seal with transmission  fluid.

3. Fit new seal  into converter housing using tool

LRT-44-001

4. Fit tool LRT-44-010 to torque  converter.
5. Align oil pump drive and fit torque  converter to

gearbox.

6. Remove tool LRT-44-010 from torque

converter.

7. Fit torque converter retaining strap.
8. Fit automatic gearbox.

l



 +

 AUTOMATIC GEARBOX -

ZF4HP22 - 24, REPAIRS, Gearbox -
convertor and transfer gearbox - Diesel.

l



 +

 AUTOMATIC GEARBOX -

ZF4HP22 - 24, REPAIRS, Gearbox -
convertor and transfer gearbox - V8.

AUTOMATIC GEARBOX - ZF4HP22 - 24

44-38

REPAIRS

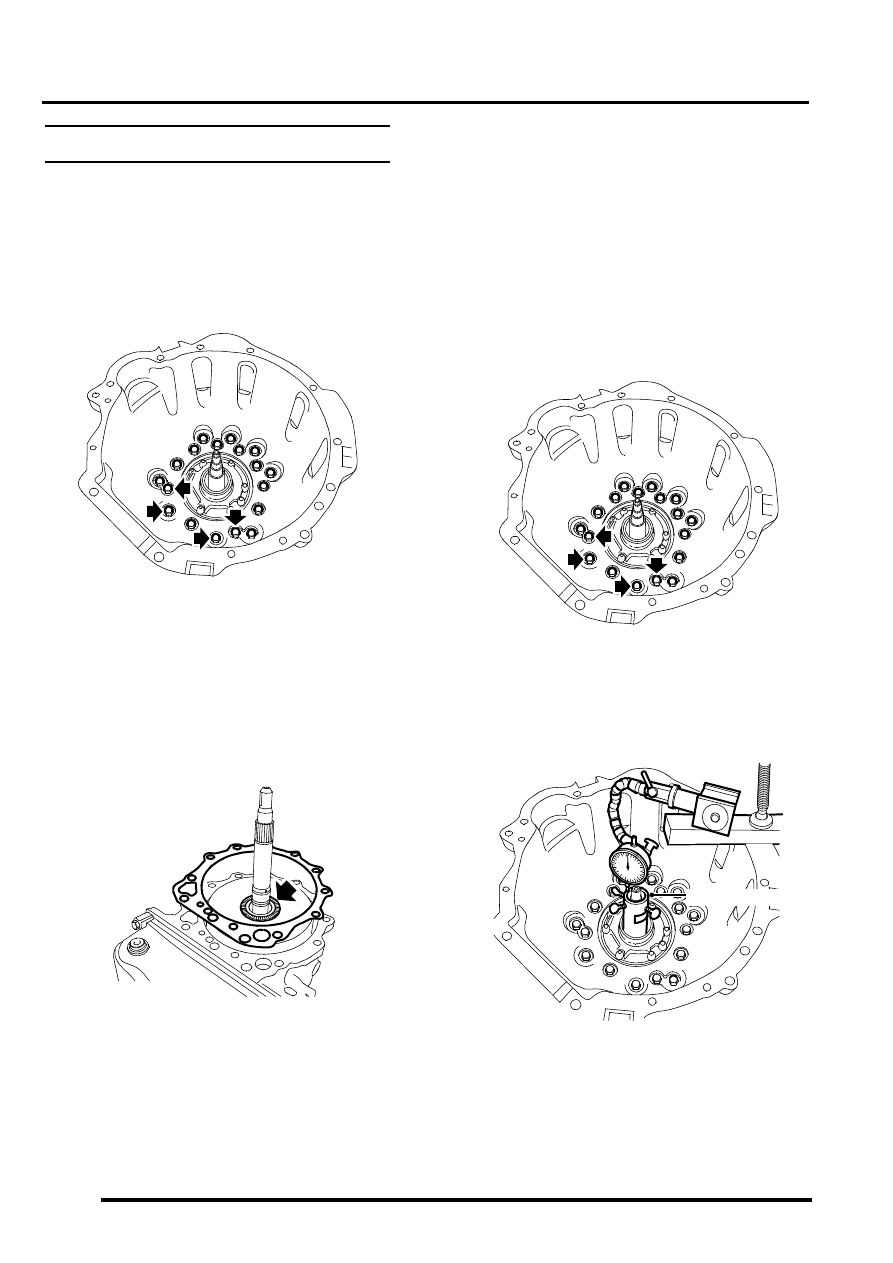

Housing - torque converter

$% 44.17.01

Remove

1. Remove torque converter oil seal



 +

 AUTOMATIC GEARBOX - ZF4HP22

- 24, REPAIRS, Torque converter and oil
seal.

2. Remove 18 bolts and plain washers securing

torque converter and intermediate plate to
gearbox casing. Note the position of the 4 bolts
that have sealant applied to the bolt threads
and 6 bolts, (outer ring), which are shorter.

3. Hold input shaft in position and carefully

remove the converter housing and intermediate
plate from gearbox casing.

4. Note the position of the Torrington race on the

forward clutch hub and the thrust washer which
will stay attached to the intermediate plate by
fluid adhesion.

5. Remove and discard intermediate plate gasket.
6. Remove thrust washer from intermediate plate.
7. Separate converter housing from intermediate

plate.

Refit

1. Clean converter housing, intermediate plate

and gearbox casing mating faces.

2. Clean bolts and plain washers and sealant from

4 bolt threads.

3. Apply Petroleum Jelly to new gasket and

position on gearbox casing.

4. Apply Petroleum Jelly to thrust washer and

Torrington race.

5. Correctly position Torrington race and thrust

washer to forward clutch hub.

6. Position intermediate plate and converter

housing to gearbox casing.

7. Apply sealant, Part No. STC 50553 to 4 longer

bolt threads and fit bolts in the positions shown.

8. Fit remaining bolts and tighten progressively in

a diagonal sequence to 46 Nm (34 lbf.ft).

9. Place LRT-44-003/1 into pump housing, tighten

screws to secure  LRT-44-003/1 to input shaft.

10. Clamp a suitable steel base to converter

housing flange.

11. Mount DTI gauge and position gauge probe

onto LRT-44-003/1 and zero gauge.

M44 1343

M44 1345

M44 1343

M44 1358

LRT-44-003/1
