AUTOMATIC GEARBOX - ZF4HP22 - 24

REPAIRS

44-31

40. Fit suitable strap to retain torque  converter.

Refit

1. Clean gearbox to engine mating faces.
2. Remove torque converter retaining strap.
3. With assistance position gearbox to  engine.

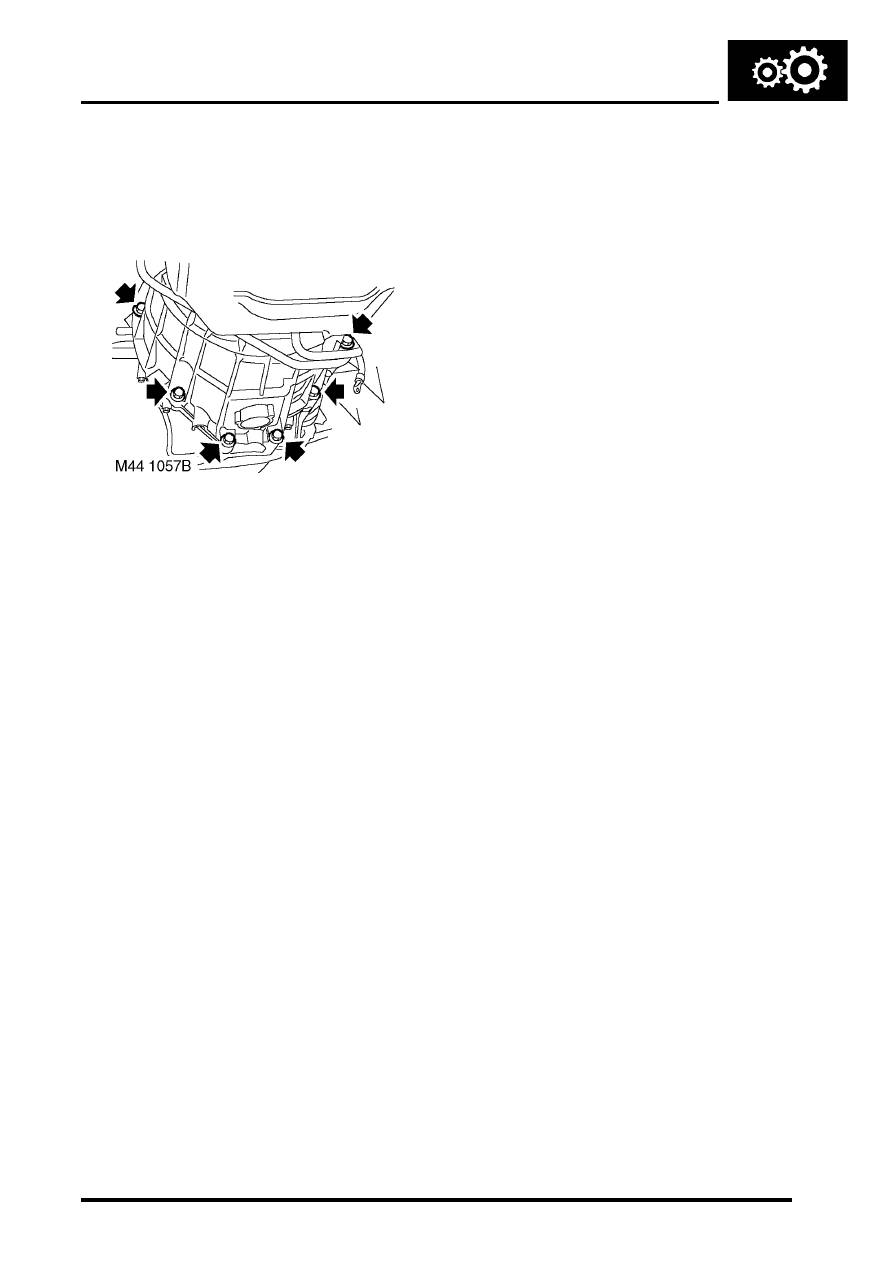

4. Fit but do not tighten six bolts securing gearbox

housing to engine.

5. Connect multiplug to gearbox and  tighten

locking ring.

6. Connect multiplug to inhibitor switch.
7. If fitted: Connect and adjust differential lock

selector cable.


 +

 TRANSFER BOX - LT230SE,

ADJUSTMENTS, Cable - selector -
differential lock - adjust.

8. Position selector lever to  inhibitor switch and

tighten nut to 25 Nm  (18 lbf.ft).

9. Position selector cable to gearbox  and secure

with 'C' clip.

10. Clean oil pipe unions and fit new 'O'  rings.
11. Position and tighten pipe unions to  gearbox.
12. Position and tighten oil cooler pipe  clamps.
13. Position and tighten oil cooler pipe  clips to

engine sump and alternator bracket.

14. Position  engine RH and LH rear mountings

and tighten bolts to 85 Nm (63 lbf.ft) and nuts to
85 Nm (63 lbf.ft).

15. Secure gearbox breather pipes to  bulkhead

clip.

16. Up to 03 Model Year - If fitted: Connect  2

Lucars to differential lock warning lamp switch
and multiplugs to high/low ratio switch and
neutral sensor.

17. 03 Model Year onwards - If fitted: Connect

differential lock warning lamp switch multiplugs
to main harness.

18. Position cable tie and multiplug to  transfer box

bracket.

19. Connect high/low ratio selector cable to

selector lever and secure with clevis pin.

20. Position high/low ratio selector cable to

abutment bracket and secure with 'C' clip.

21.  Models fitted with high/low shift interlock

solenoid: Position interlock solenoid harness
to high/low shift cable, fit sleeve around cable
and harness.

22.  Models fitted with high/low shift interlock

solenoid: Connect solenoid multiplug to main
harness and secure multiplug to bracket.

23. Position handbrake backplate and tighten bolts

to 75 Nm (55 lbf.ft).

24. Fit hand brake drum and tighten screw.
25. Remove bolts securing tool LRT-99-008A  to

gearbox.

26. Rotate engine to align torque  converter, fit new

bolts and tighten to 50 Nm  (37 lbf.ft).

27. Fit rear propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - rear.

28. Fit front propeller shaft.



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - front.

29. Fill transfer gearbox with oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

30. Fill automatic gearbox with oil.



 +

 MAINTENANCE, PROCEDURES,

Automatic gearbox.

31. Position intermediate silencer and  secure to

mounting rubbers.

32. Clean silencer and tail pipe mating  faces.
33. Position new gasket to tail pipe  and tighten

nuts to 25 Nm (18 lbf.ft).

34. Fit exhaust front pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - Td5, REPAIRS, Pipe - front.

35. Fit bolt securing closing plate to  gearbox

housing and tighten to 7 Nm (5.2 lbf.ft).

36. Fit  upper bolts securing gearbox  housing to

engine and tighten to 50 Nm  (37 lbf.ft).

37. Fit starter motor.



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - diesel.

38. Tighten remaining gearbox housing  to engine

bolts to 50 Nm (37 lbf.ft).

39. Connect battery earth lead.
40. Fit battery cover and secure with fixings.
41. Check and adjust selector cable.



 +

 AUTOMATIC GEARBOX - ZF4HP22

- 24, ADJUSTMENTS, Cable - selector.

AUTOMATIC GEARBOX - ZF4HP22 - 24

44-32

REPAIRS

Gearbox - convertor and transfer
gearbox - V8

$% 44.20.04.99

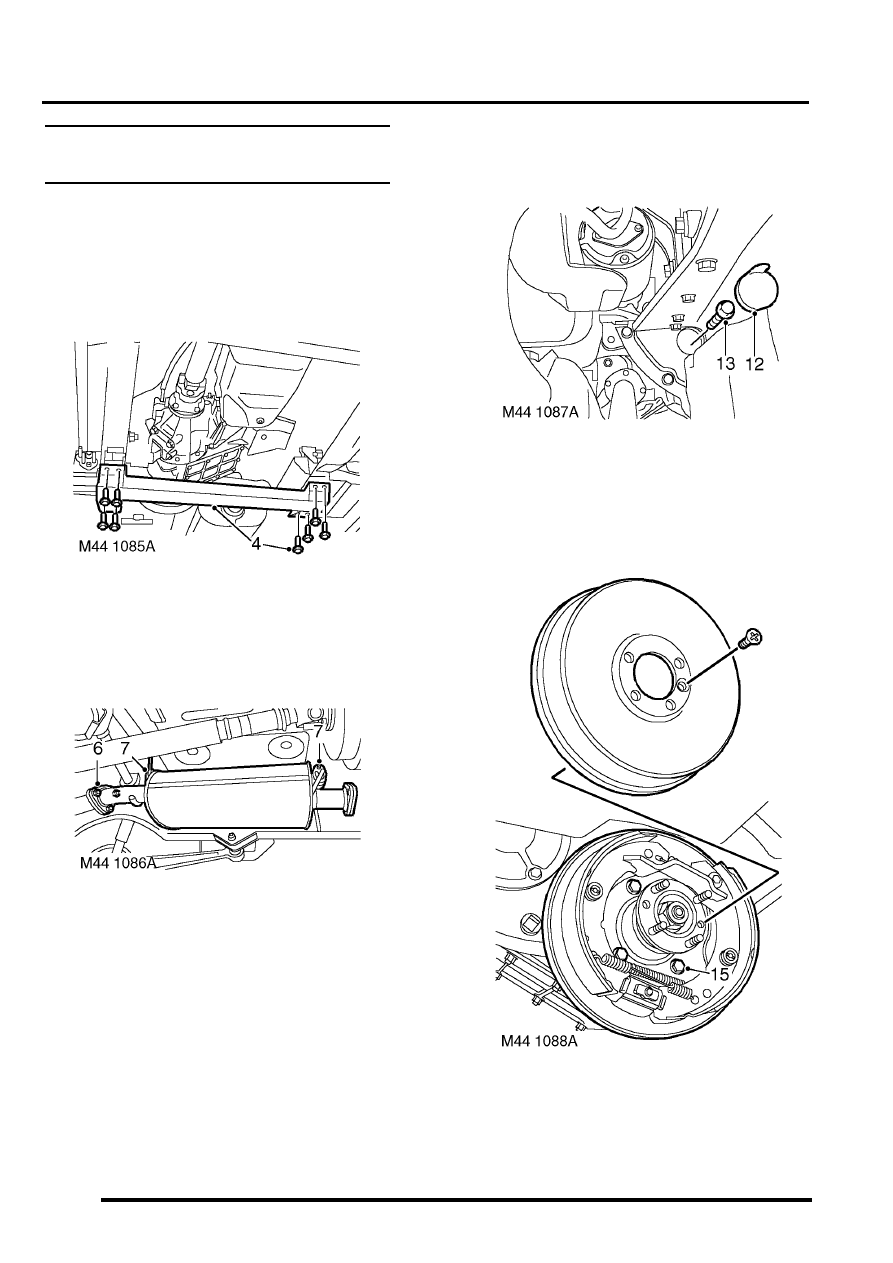

Remove

1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Raise vehicle on a ramp.

4. Remove 8 bolts securing centre cross member

and remove cross member.

5. Remove exhaust front pipe.



 +

 MANIFOLDS AND EXHAUST

SYSTEMS - V8, REPAIRS, Front pipe.

6. Remove 3 nuts securing intermediate silencer

to tail pipe.

7. Release and remove silencer from rubber

mountings.

8. Drain automatic gearbox oil.



 +

 MAINTENANCE, PROCEDURES,

Automatic gearbox.

9. Drain transfer gearbox oil.



 +

 MAINTENANCE, PROCEDURES,

Transfer box.

10. Remove front propeller shaft



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - front.

11. Remove rear propeller shaft



 +

 PROPELLER SHAFTS, REPAIRS,

Propeller shaft - rear.

12. Remove plug from torque converter housing to

access torque converter bolts.

13. Remove and discard 4 bolts securing torque

converter to drive plate.

14. Remove hand brake drum retaining screw and

remove brake drum.

15. Remove 4 bolts from hand brake back plate,

release back plate and tie aside.

AUTOMATIC GEARBOX - ZF4HP22 - 24

REPAIRS

44-33

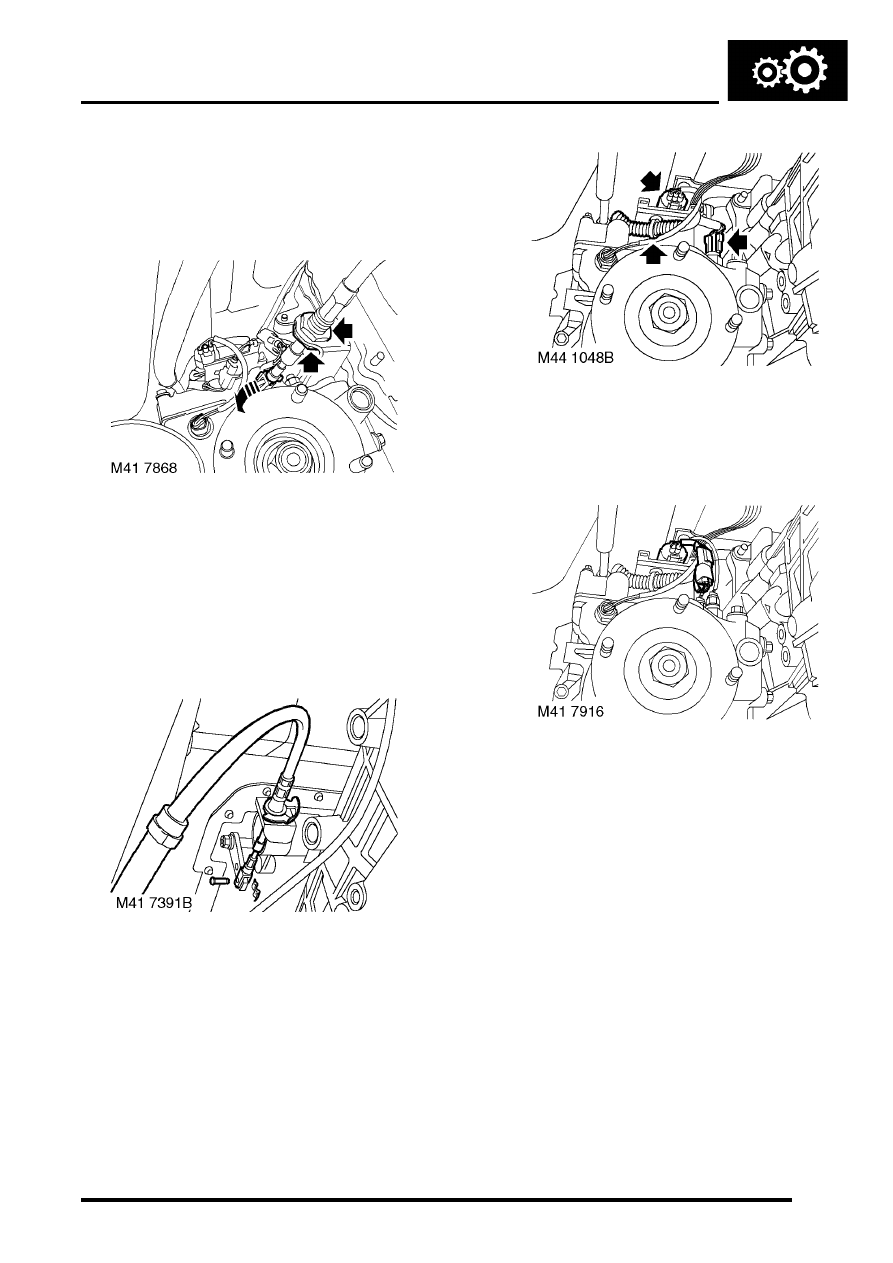

16. Models fitted with high/low shift interlock

solenoid: Release interlock solenoid multiplug
and disconnect multiplug from main harness.

17. Models fitted with high/low shift interlock

solenoid: Remove sleeve retaining rings and
remove sleeve from high/low selector cable.

18. If fitted Remove and discard clevis pin

securing differential lock selector cable to
transfer gearbox.

19. If fitted Loosen locknuts securing differential

lock selector cable to differential lock selector
cable abutment bracket.

20. If fitted Release and remove differential lock

selector cable from differential lock selector
cable abutment bracket.

21. Remove clevis pin securing high/low ratio

selector cable to selector lever,  remove 'C' clip
and remove outer cable from  abutment bracket

22. Up to 03 Model Year - If fitted: Disconnect  2

Lucars from differential lock switch and
multiplugs from high/low ratio switch and
neutral sensor.

23. 03 Model Year onwards - If fitted: Release

and disconnect both differential lock warning
lamp switch multiplugs from main harness.

24. Release transfer and automatic gearbox

breather pipes from clip at rear of cylinder
block.

AUTOMATIC GEARBOX - ZF4HP22 - 24

44-34

REPAIRS

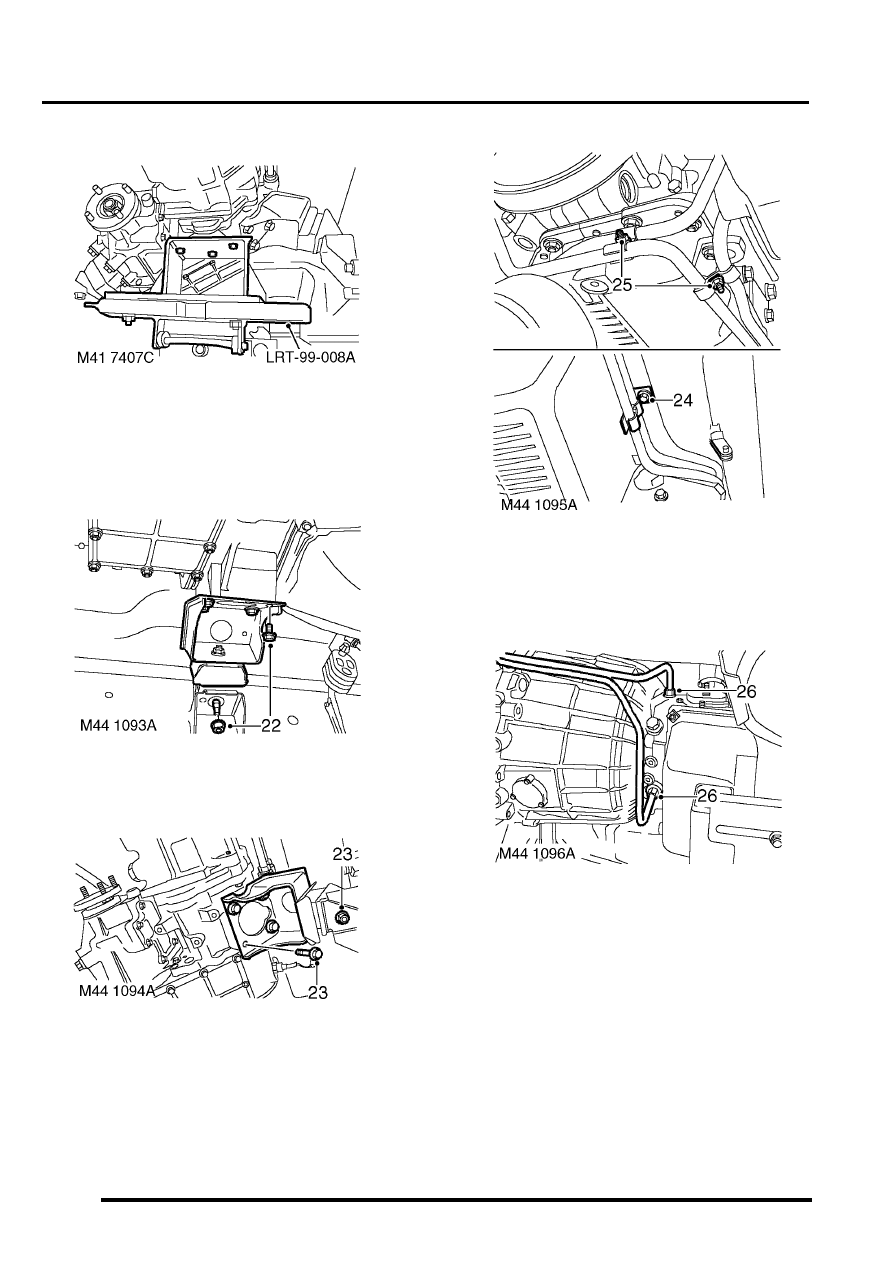

25. Position gearbox support jack and secure tool

LRT-99-008A  to support plate on jack.

26. Position a second support jack under engine

using a block between engine sump and jack to
prevent damage to sump.

27. Remove 4 bolts and nut, remove engine LH

rear mounting.

28. Remove 4 bolts and nut, remove engine RH

rear mounting.

29. Remove bolt securing gearbox oil cooler pipe

clips to engine.

30. Remove bolt and 2 nuts securing clamps to oil

cooler pipes and remove clamps.

31. Loosen gearbox oil cooler pipe unions,  release

pipes from gearbox and discard 'O' rings.

CAUTION: Always fit plugs to open
connections to prevent contamination.
