Discovery 2. Manual - part 101





COOLING SYSTEM - V8

REPAIRS 26-2-17

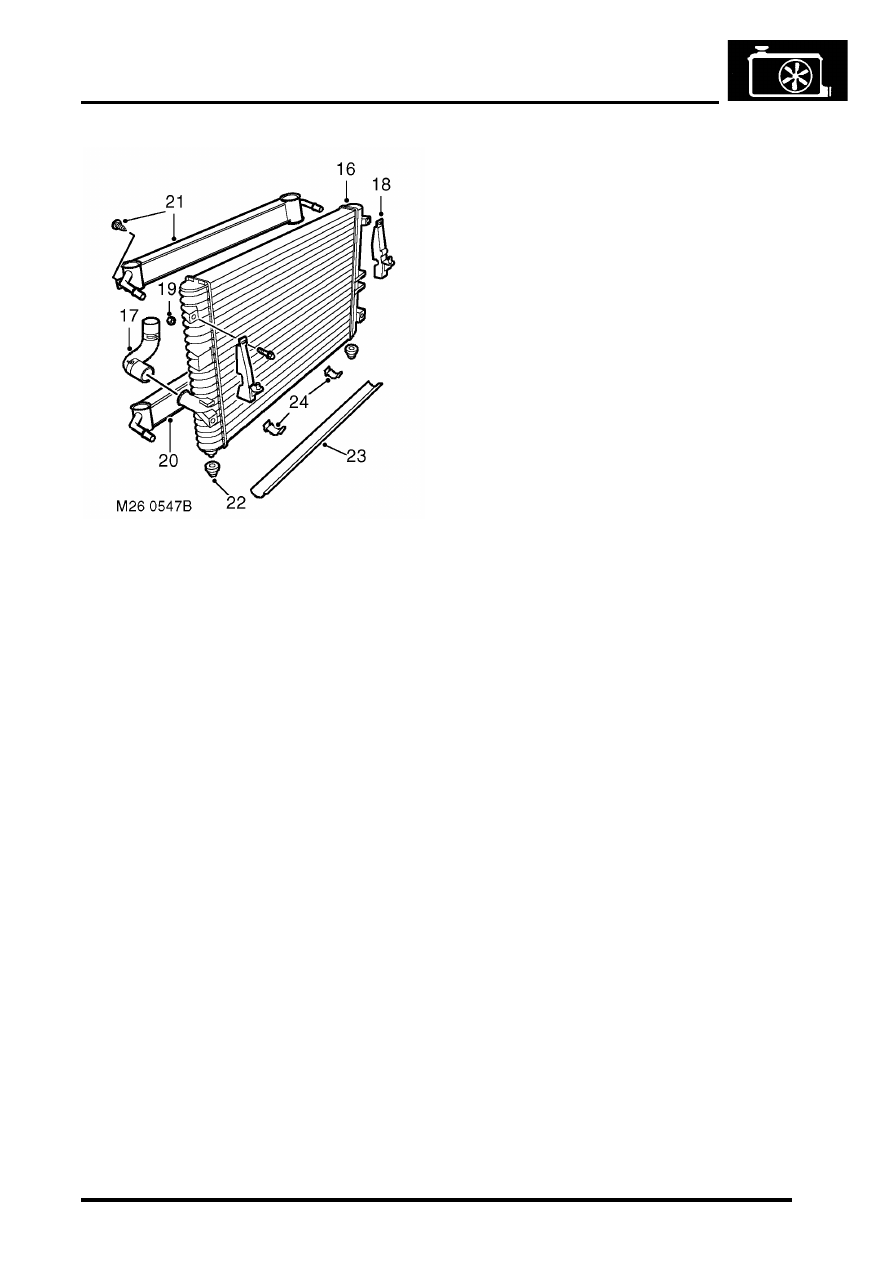

16. Remove radiator assembly.
17. Release clip and remove bottom hose  from

radiator.

18. Remove 2 bolts and remove extension

brackets from radiator.

19. Remove 2 captive nuts from radiator.
20. Remove 2 screws and remove gearbox oil

cooler from radiator.

21. If fitted: Remove 2 screws and remove engine

oil cooler from radiator.

22. Remove 2 rubber mountings from radiator.
23. Remove sealing strip from bottom of  radiator.
24. Remove 2 cowl retaining clips from  radiator.

Refit

1. Fit cowl retaining clips to radiator.
2. Fit sealing strip to radiator.
3. Fit rubber mountings to radiator.
4. Fit gearbox oil cooler to  radiator and secure

with screws.

5. If fitted: Fit engine oil cooler to radiator and

secure with screws.

6. Fit captive nuts to radiator.
7. Fit extension brackets to radiator and secure

with bolts.

8. Fit bottom hose to radiator and secure  with clip.
9. Fit radiator and engage lower mountings  in

chassis.

10. Ensure connections are clean, then secure

hoses to oil coolers.

11. Fit air conditioning condenser brackets  and

secure with screws.

12. Fit radiator upper mounting brackets  and

secure with bolts.

13. Fit LH horn and secure with nut.
14. Fit air deflectors and secure with  scrivets.
15. Connect multiplug of gearbox oil temperature

sensor.

16. Fit front grille.



 +

 EXTERIOR FITTINGS, REPAIRS,

Grille - front - up to 03MY.

17. Connect bottom hose to thermostat  housing

and secure with clip.

18. Connect top hose to radiator and secure  with

clip.

19. Connect bleed hose to radiator and  fit clip.
20. Fit lower fan cowl and secure with screws.
21. Fit viscous fan.



 +

 COOLING SYSTEM - V8, REPAIRS,

Fan - viscous.

22. Top up gearbox oil.
23. Top up engine oil.
24. Refill cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

COOLING SYSTEM - V8

26-2-18 REPAIRS

Thermostat

$% 26.45.09

Remove

1. Drain cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

2. Remove viscous fan.



 +

 COOLING SYSTEM - V8, REPAIRS,

Fan - viscous.

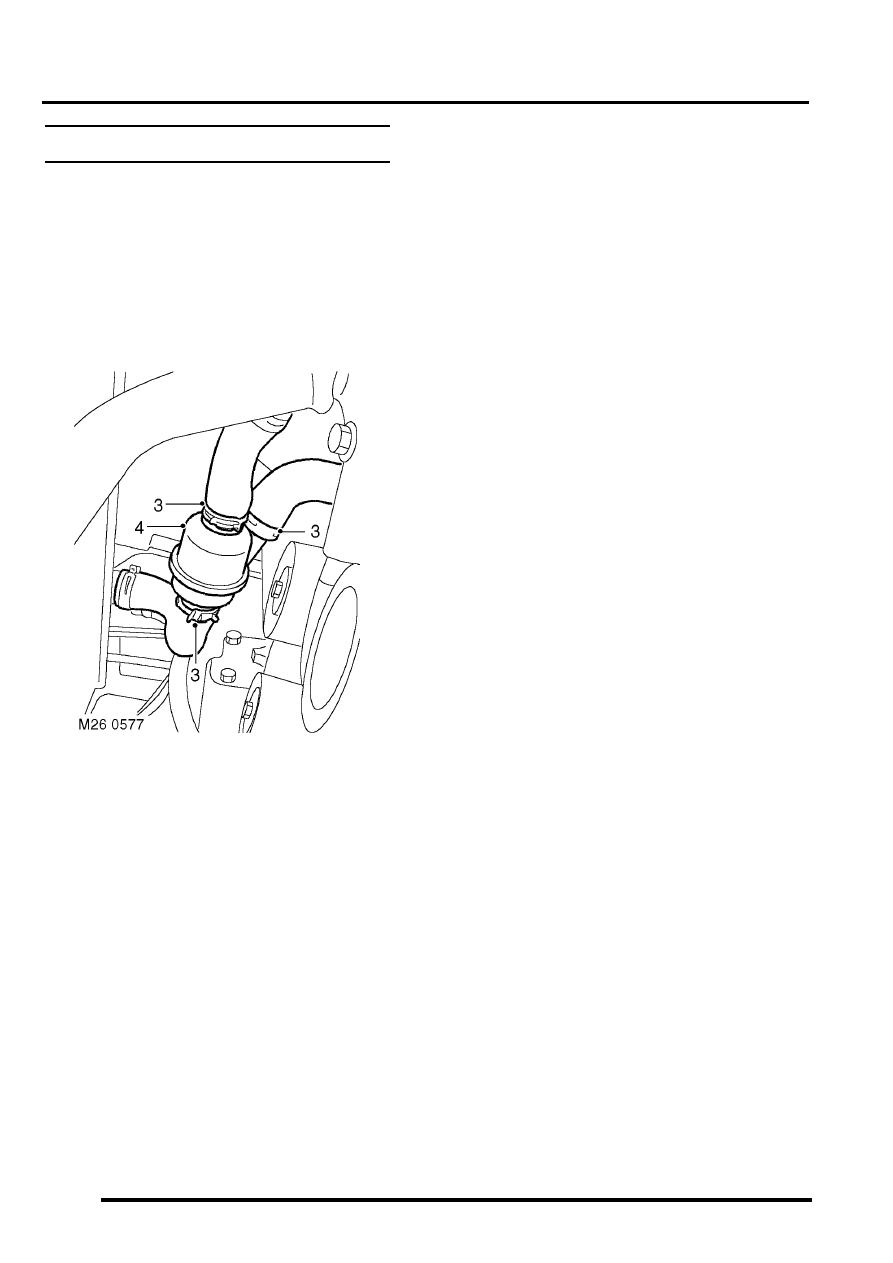

3. Release 3 clips and disconnect coolant  hoses

from thermostat.

4. Remove thermostat.

Refit

1. Position thermostat, connect hoses and secure

with clips.

2. Fit viscous fan.



 +

 COOLING SYSTEM - V8, REPAIRS,

Fan - viscous.

3. Refill cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

COOLING SYSTEM - V8

REPAIRS 26-2-19

Gasket - coolant pump

$% 26.50.02

Remove

1. Remove auxiliary drive belt



 +

 CHARGING AND STARTING,

REPAIRS, Belt - auxiliary drive.

2. Drain cooling system



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.

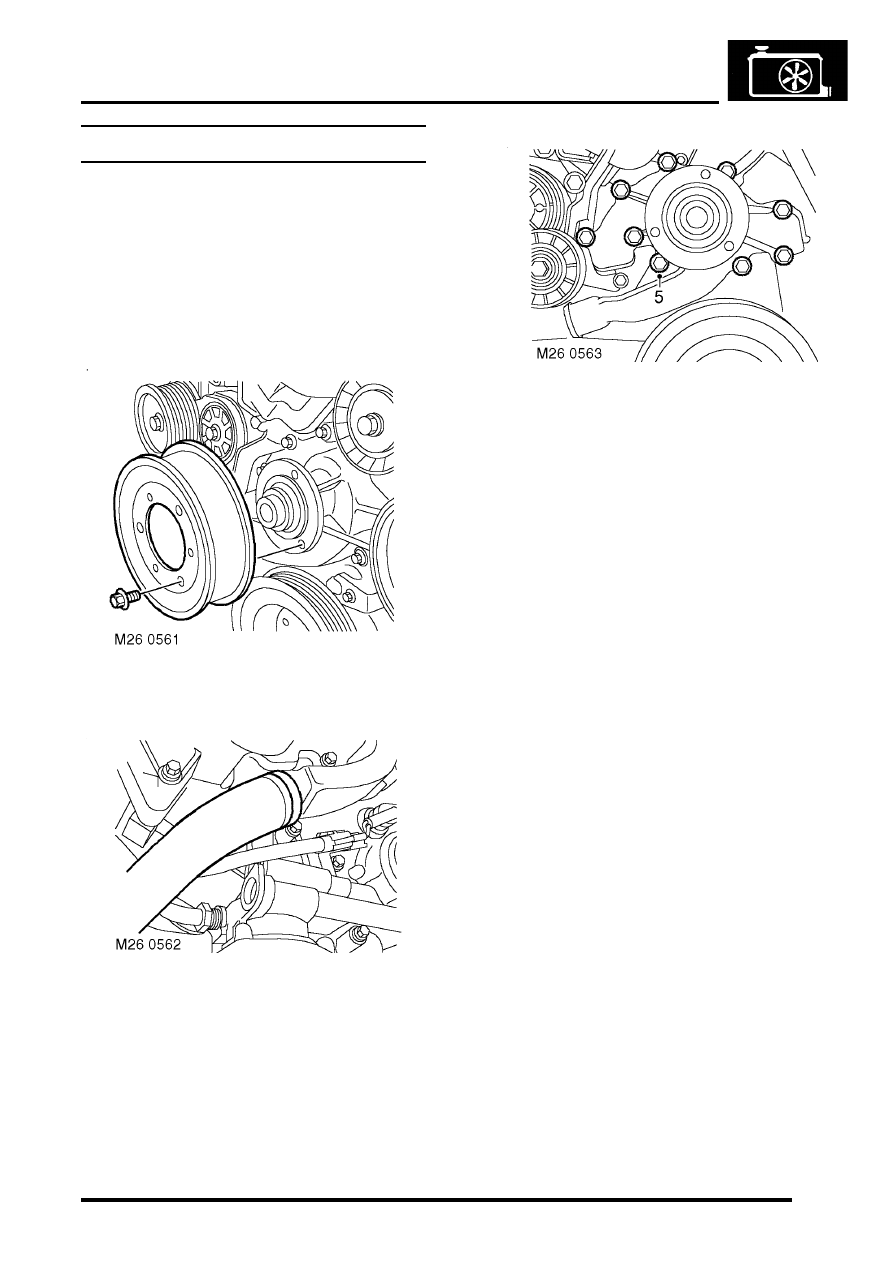

3. Remove 3 bolts securing pulley to coolant

pump and remove pulley.

4. Release clip and disconnect feed hose from

coolant pump.

5. Remove 9 bolts securing coolant pump,

remove pump and discard gasket.

Refit

1. Clean coolant pump and mating face.
2. Fit new gasket and coolant pump to cylinder

block. Fit bolts and tighten to 24 Nm (18 lbf.ft).

3. Connect feed hose to coolant pump and secure

with clip.

4. Ensure mating faces of coolant pump pulley

and flange are clean. Fit pulley and tighten
bolts to 22 Nm (16 lbf.ft).

5. Fit auxiliary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Belt - auxiliary drive.

6. Refill cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Drain and refill.
