COOLING SYSTEM -  V8

DESCRIPTION AND OPERATION

COOLING SYSTEM - V8

26-2-2

DESCRIPTION AND OPERATION

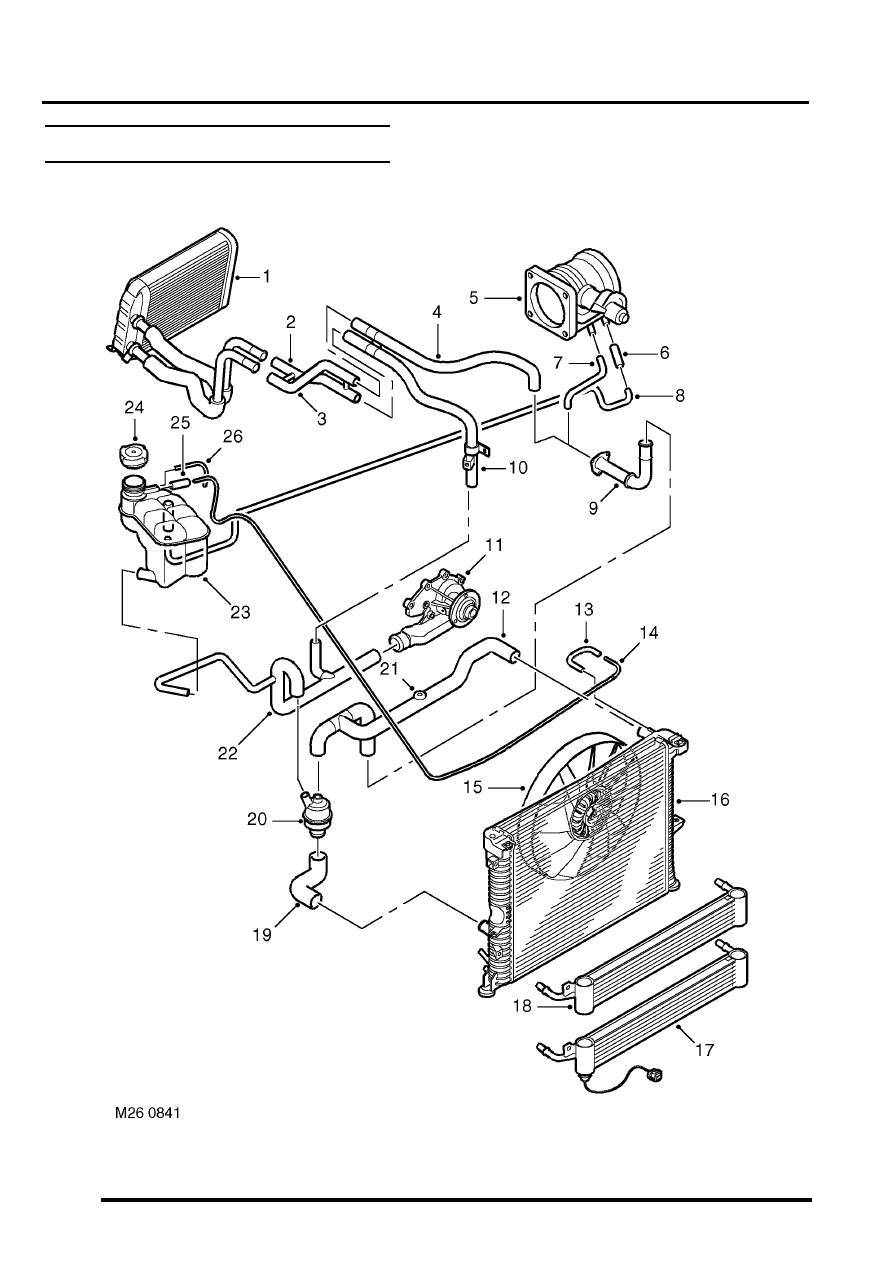

Cooling system component layout

COOLING SYSTEM - V8

DESCRIPTION AND OPERATION

26-2-3

1 Heater matrix
2 Heater return hose
3 Heater inlet hose
4 Heater inlet pipe
5 Throttle housing
6 Connecting hose
7 Throttle housing inlet hose
8 Throttle housing return pipe
9 Manifold outlet pipe

10 Heater return pipe
11 Coolant pump
12 Radiator top hose
13 Connecting hose
14 Radiator bleed pipe

15 Viscous fan
16 Radiator
17 Gearbox oil cooler
18 Engine oil cooler (Only applicable to vehicles

up to VIN 756821)

19 Radiator bottom hose
20 Thermostat housing
21 Bleed screw
22 Coolant pump feed hose
23 Expansion tank
24 Pressure cap
25 Connecting hose
26 Overflow pipe

COOLING SYSTEM - V8

26-2-4

DESCRIPTION AND OPERATION

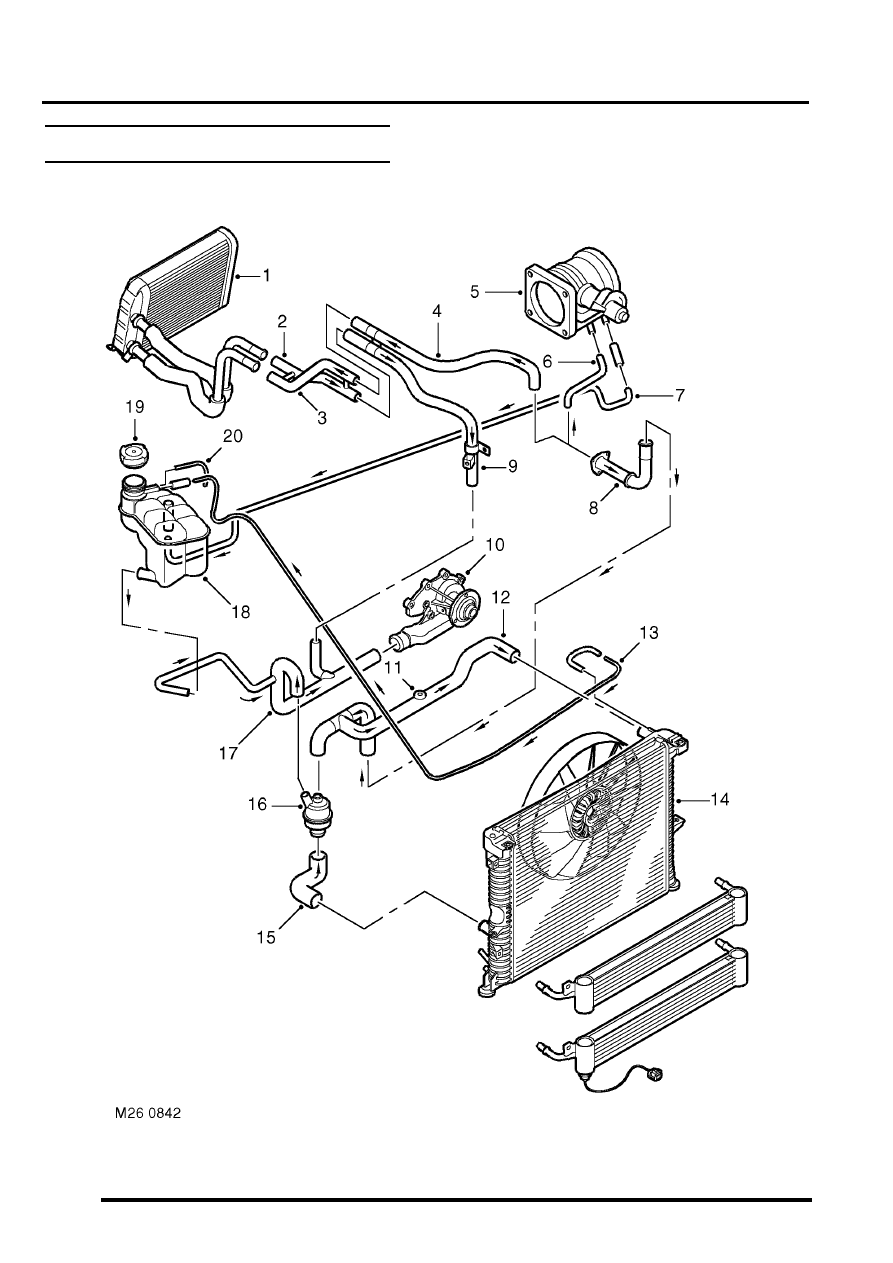

Cooling system coolant flow
