REAR SEAT SQUAB

Service repair no - 76.70.38

Remove

1. Fold the rear seat down.
2. Remove the two seat squab securing bolts.

3. Withdraw the seat squab from the seat

assembly.

Refit

4. Reverse removal procedure.

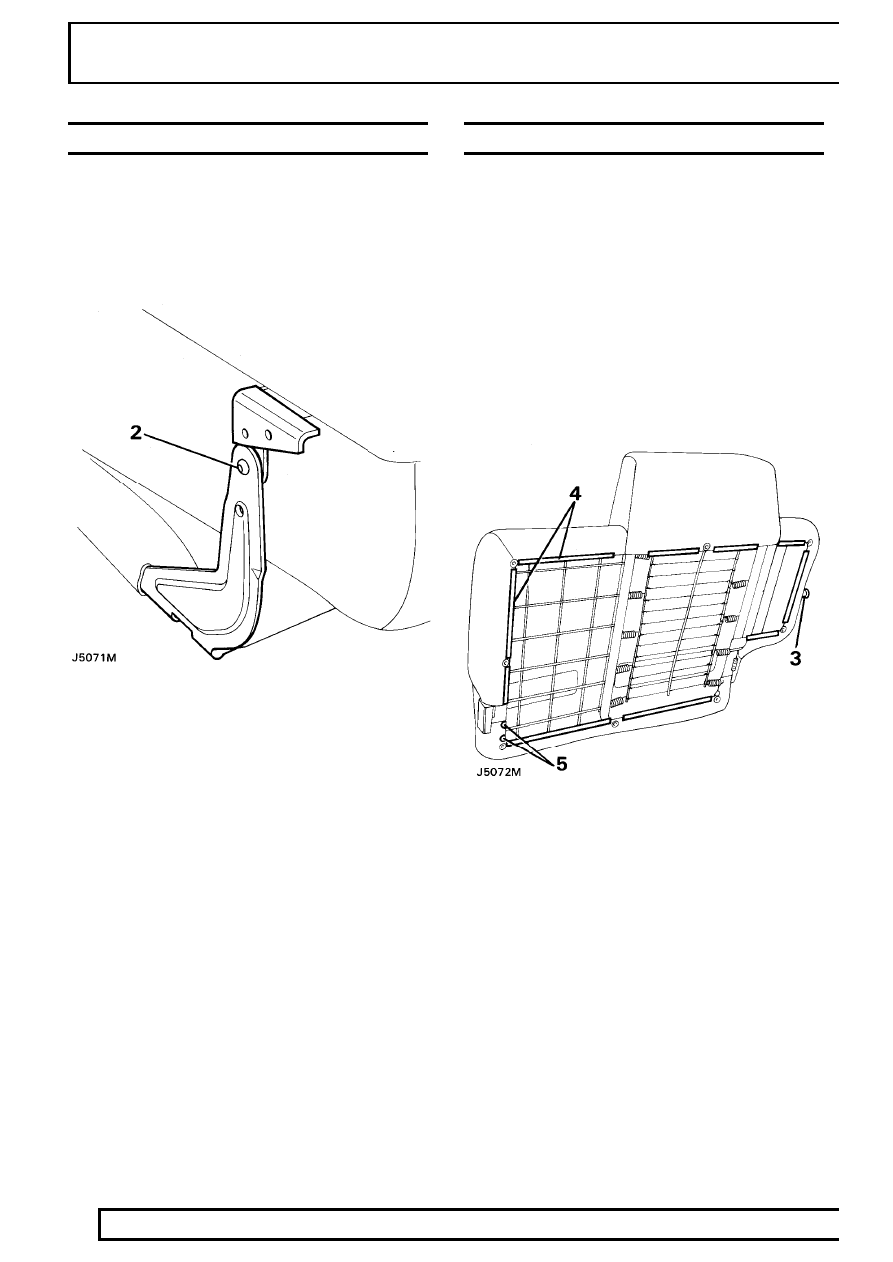

REAR SEAT SQUAB COVER

Service repair no - 76.70.79/80

Remove

1. Remove the rear seat squab from the seat

assembly and withdraw it from the vehicle.

See

this section.

2. Remove the rear seat back finisher from the

squab.

3. Remove the squab striker plate.
4. Release the squab cover from the frame.
5. Remove the securing clips and remove the

cover from the squab.

Refit

6. Reverse removal procedure.

CHASSIS AND BODY

27

REPAIR

REAR SEAT CUSHION COVER

Service repair no - 76.70.88/89

Remove

NOTE: The procedure for removing both
left and right hand seat cushions is the
same.

1. Remove the rear seat assembly from the

vehicle.

See this section.

2. Remove the seat squab.
3. Remove the seat cushion.
4. Remove the cushion base cover retaining

screws and withdraw the cover.

5. Release the seat cover securing clips at the

frame and at the seat belt aperture.

6. Remove the cover from the cushion.

Refit

7. Reverse removal procedure.

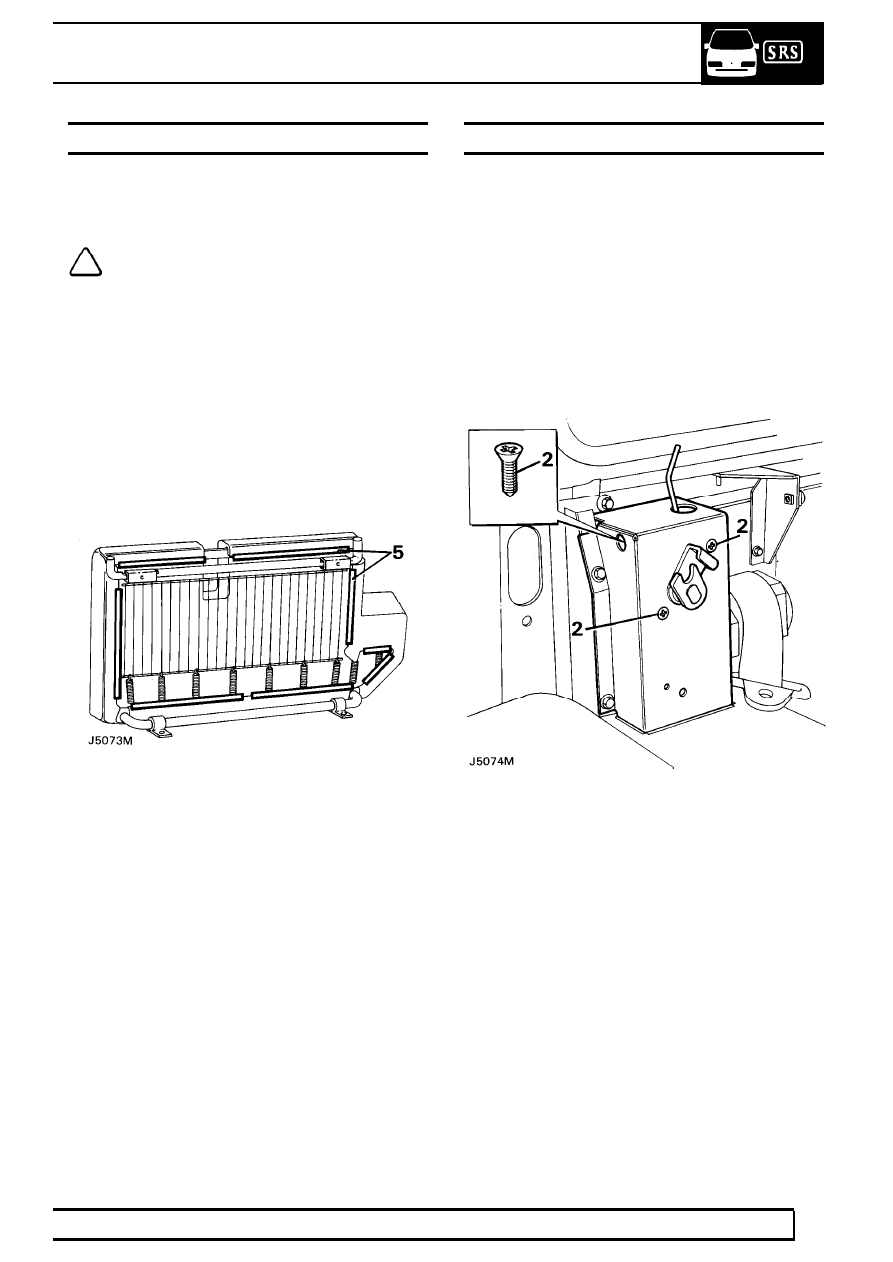

SPLIT REAR SEAT LOCKING MECHANISM

Service repair no - 76.70.51

Remove

1. Remove the front body side trim casing.

See

this section.

2. Remove the three screws securing the latch to

the tower, noting that access to the single screw
is gained through the hole in the front of the
tower.

3. Retrieve the latch from the opening at the rear of

the tower. If necessary retrieve the single screw.

4. The operating rod can be removed from the latch

by releasing it at the plastic clip.

Refit

5. Reverse removal procedure. Setting the release

button to achieve a gap of 5 - 8 mm (3/16 - 5/16
in).

76

CHASSIS AND BODY

28

REPAIR

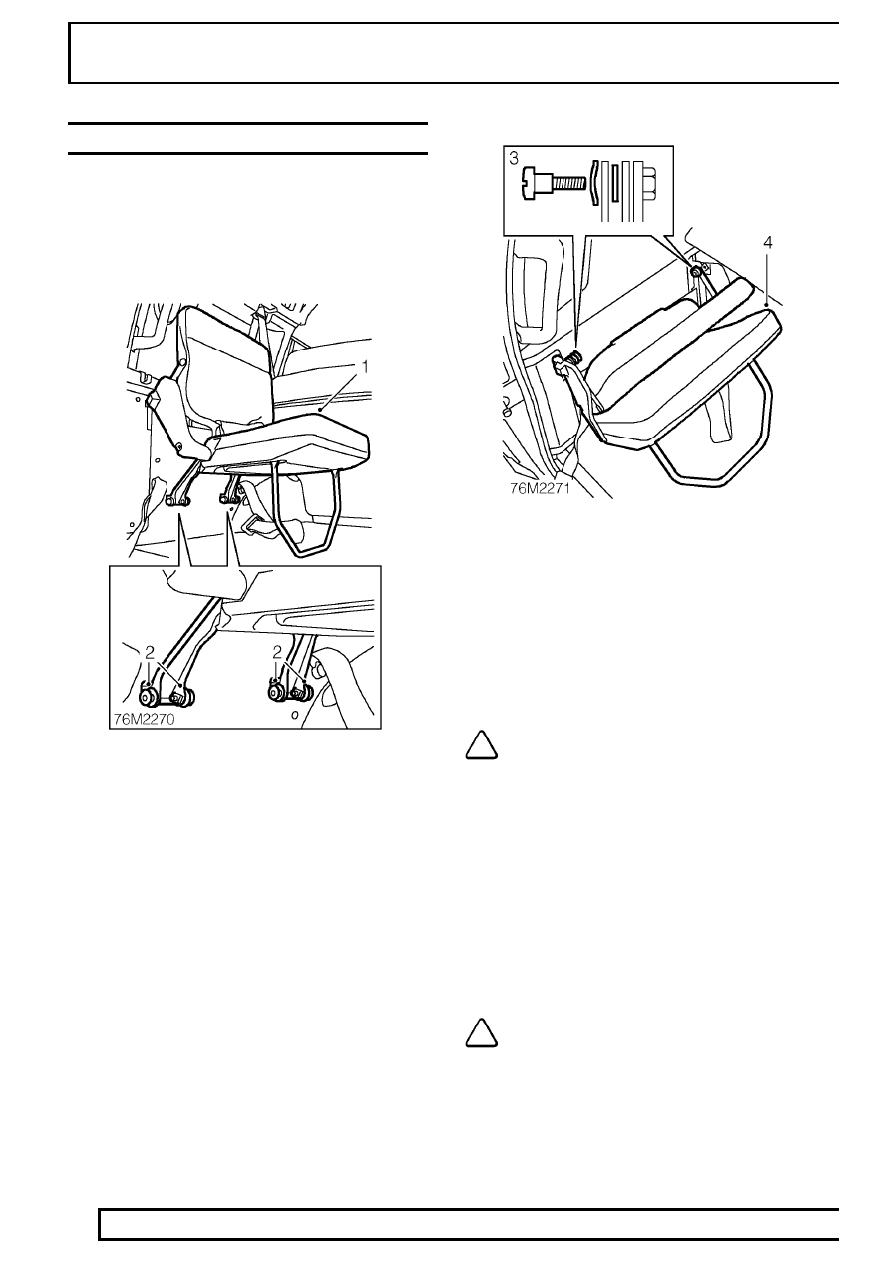

REAR FOLD DOWN SEATS

Service repair no - 76.71.23

Seat and squab

Remove

1. Locate the seat in the down position, release the

seat belt strap and buckle from their stowed
positions.

2. Remove 4 Torx screws from the lower brackets.

3. Fold the seat up and remove the 2 Torx screws

from the upper brackets. Collect 4 washers.

4. Remove seat assembly.

Refit

5. Position seat assembly, align upper brackets,

and secure with Torx screws tightened to

13 Nm

(10 lbf ft) .

NOTE: Ensure washers are fitted in their
correct positions.

6. Align lower brackets, fit Torx screws and tighten

to

13 Nm (10 lbf ft) .

7. Secure the seat belt strap and buckle to their

stowed positions.

Seat squab

Remove

8. Remove the seat assembly from the vehicle.
9. Remove the pivot bolts and washers securing

the seat squab to the frame.

NOTE: The pivot bolts, securing the seat
squab and cushion, are fitted with a wavy
washer under the head and a plain washer

between the link or bracket. Ensure that these
washers are fitted in the correct locations when
reassembling the seat.

CHASSIS AND BODY

29

REPAIR

10. Remove the pivot bolts and washers securing

the hinge links to the seat squab.

11. If necessary remove the clips securing the cover

and detach the cover.

Refit

12. Reverse removal procedure.

Seat cushion

Remove

13. Remove the seat from the vehicle.
14. Remove the seat squab.
15. Remove the pivot bolts and washers securing

the hinge bracket and detach the bracket.

16. Invert the seat base and remove the screws and

rivets securing the base cover to the base.

17. Raise the seat base cover, to gain access to the

stay pivot bolts, remove the bolts and washers
and withdraw the stay and seat base cover.

18. If necessary remove the clips and detach the

cushion cover.

Refit

19. Reverse removal procedure.

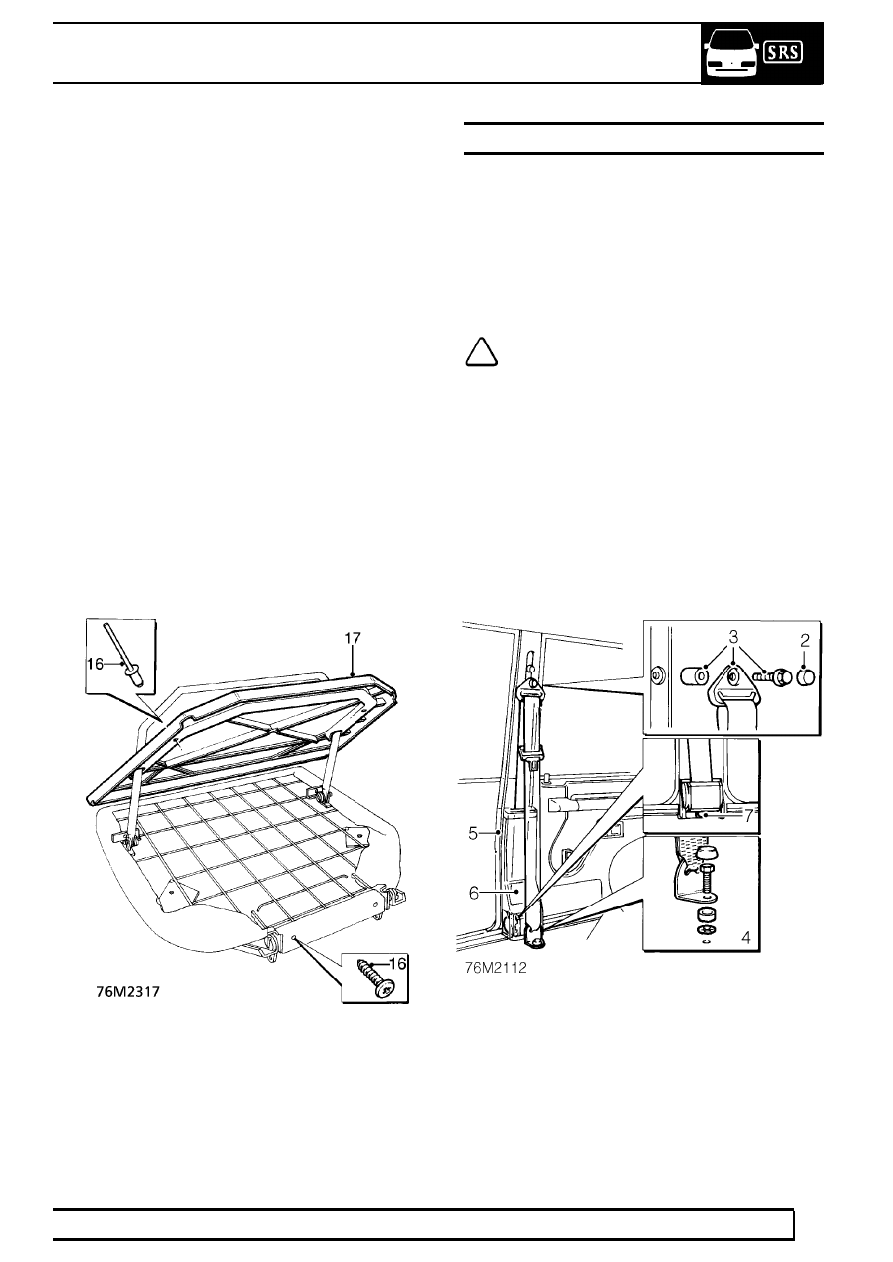

FRONT SEAT BELTS

Service repair no - 76.73.10

Remove

1. Move the front seat to the fully forward position

or tilt the seat forward (3 door vehicles).

2. Remove cover to gain access to the seat belt

upper mounting bolt.

NOTE: 3 door models have a
non-adjustable, upper mounting.

3. Remove the flanged securing bolt to release the

upper mounting and spacer.

4. Remove the cover and bolt securing the lower

mounting to the floor.

5. Detach the door seals from the ’B’ post

sufficiently to allow removal of the lower trim
panel from the post.

6. Release the seat belt from the split section at the

top of the trim panel and withdraw the panel.

7. Remove the securing bolt and detach the inertia

reel from the bottom of the ’B’ post.

5 door model illustrated
