Lock barrel and number plate light housing

Disassemble

NOTE: The lock barrel can only be
removed from its housing when the lock
barrel and number plate light housing is

removed from the door.

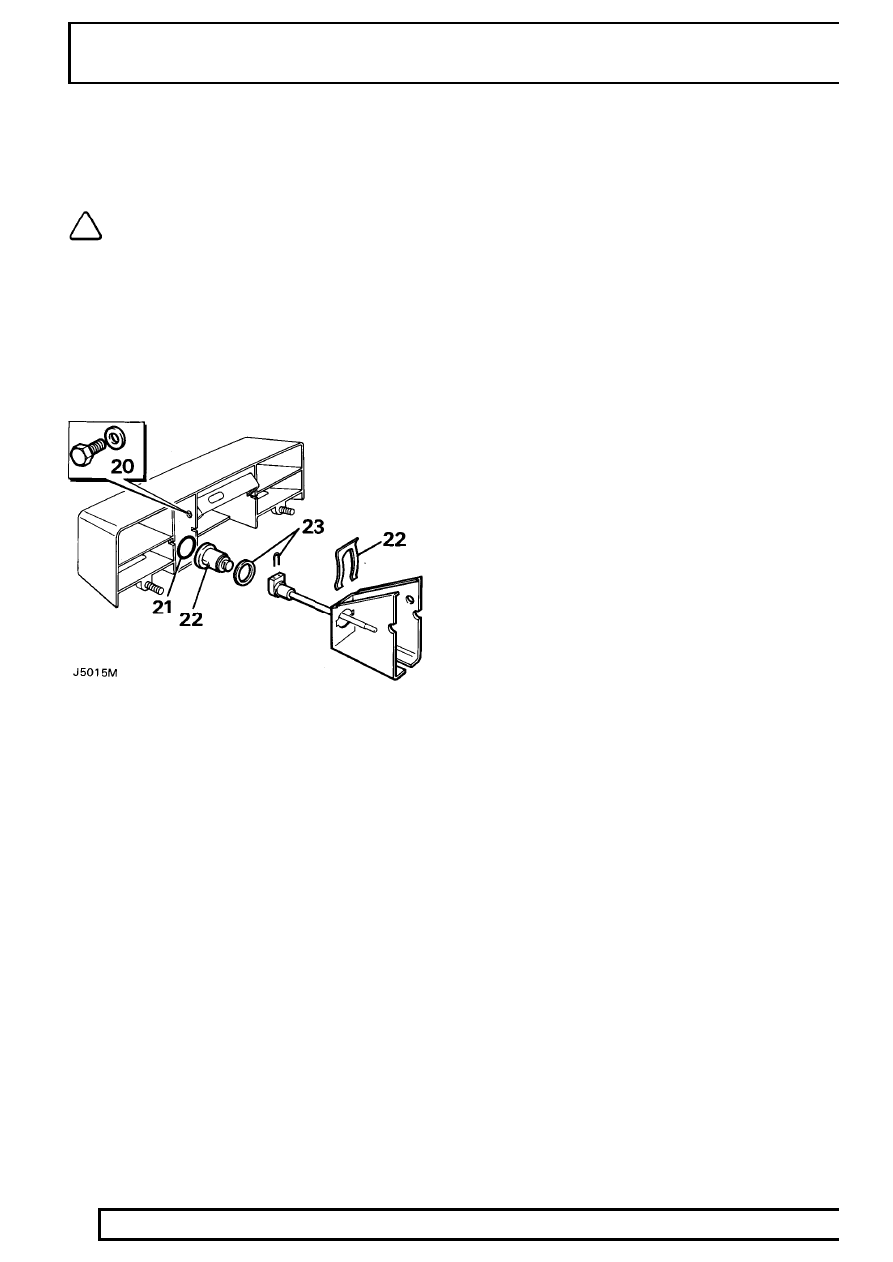

20. Remove the bolt securing the lock barrel

mounting bracket to the housing and withdraw
the assembled barrel and bracket.

21. Remove the ’O’ ring seal from inside the

housing.

22. Remove the spring clip securing the barrel to the

bracket and withdraw the barrel and stem
assembly from the bracket complete with seal.

23. Remove the ’U’ clip securing the stem to the

barrel and detach the seal from the inner face of
the barrel.

24. If the lock barrel and number plate light housing

is being renewed, remove the number plate
lights, harness and the housing mounting
bracket, from the existing housing and fit them to
the new housing.

Reassemble

25. Fit the stem to the barrel and secure with the ’U’

clip.

26. Position a new seal on the inner face of the

barrel, insert the stem and barrel into the
mounting bracket and secure with the spring clip.

27. Place a new ’O’ ring seal on the inner face of the

barrel aperture in the housing.

28. Insert the assembled bracket and barrel into its

location in the housing, taking care not to disturb
the seal, and secure with the bolt.

Refit

29. Fit the outer handle to the door and secure from

the inside with the two nuts and washers.

30. Fit the lock barrel and number plate light housing

by inserting the number plate light leads through
the aperture in the door panel and locating the
rubber grommet in the aperture. Insert the barrel
stem through the door, locate the housing on the
door panel, ensure that the seal seats correctly,
and secure with the single bolt and washer
through the logo aperture.

31. Connect the number plate light leads to the door

harness.

32. Fit the logo to the aperture in the housing.
33. Fit the fulcrum and connecting rod to the barrel

stem and secure with secure with the ’E’ clip.

34. Fit the lock and assembled outer ’Y’ lever,

secure the lock with the three screws, locate the
’Y’ lever pivot and secure with the pin.

35. Fit the connecting rod from the outer handle

lever to the outer ’Y’ lever.

36. Fit the childproof lock actuator and check that it

is functioning.

37. Insert the remote button and rod to the location

in the door.

38. Offer up the assembled inner ’Y’ lever and

bracket, attach the barrel connecting rod to the
top clip of the upper leg and the rod from the
lock to the lower clip of the upper leg.

39. Locate the barrel stem in the insert on the

bracket.

40. Secure the bracket with the four screws; fitting

the door pull mounting bracket under the heads
of the top two screws.

41. Attach the remote button and the actuator

connecting rods to the ’Y’ lever.

42. Fit the inner release handle and attach the

connecting rod to the lock.

43. Refit the vapour protective sheet, door trim panel

and door pull.

CHASSIS AND BODY

15

REPAIR

REAR DOOR CHECK STAY

Service repair no - 76.40.30

Remove

1. Remove the rear door from the vehicle.

See

this section.

2. Invert the door on a suitable protected area.
3. Remove the two securing bolts and withdraw the

check stay assembly.

Refit

4. Reverse removal procedure.

REAR COMPARTMENT LOWER TRIM PANELS

Service repair no - 76.13.03

Remove

1. Remove the fold down seat or pocket side panel,

whichever is applicable.

See this section.

2. Remove speaker by releasing screws and

disconnecting Lucars. Withdraw rear quarter trim
panel.

3. Remove the five trim panel retainers.
4. Ease the trim panel from its location, feed the

seat belts through the apertures and withdraw
the panel.

Refit

5. Reverse removal procedure.

76

CHASSIS AND BODY

16

REPAIR

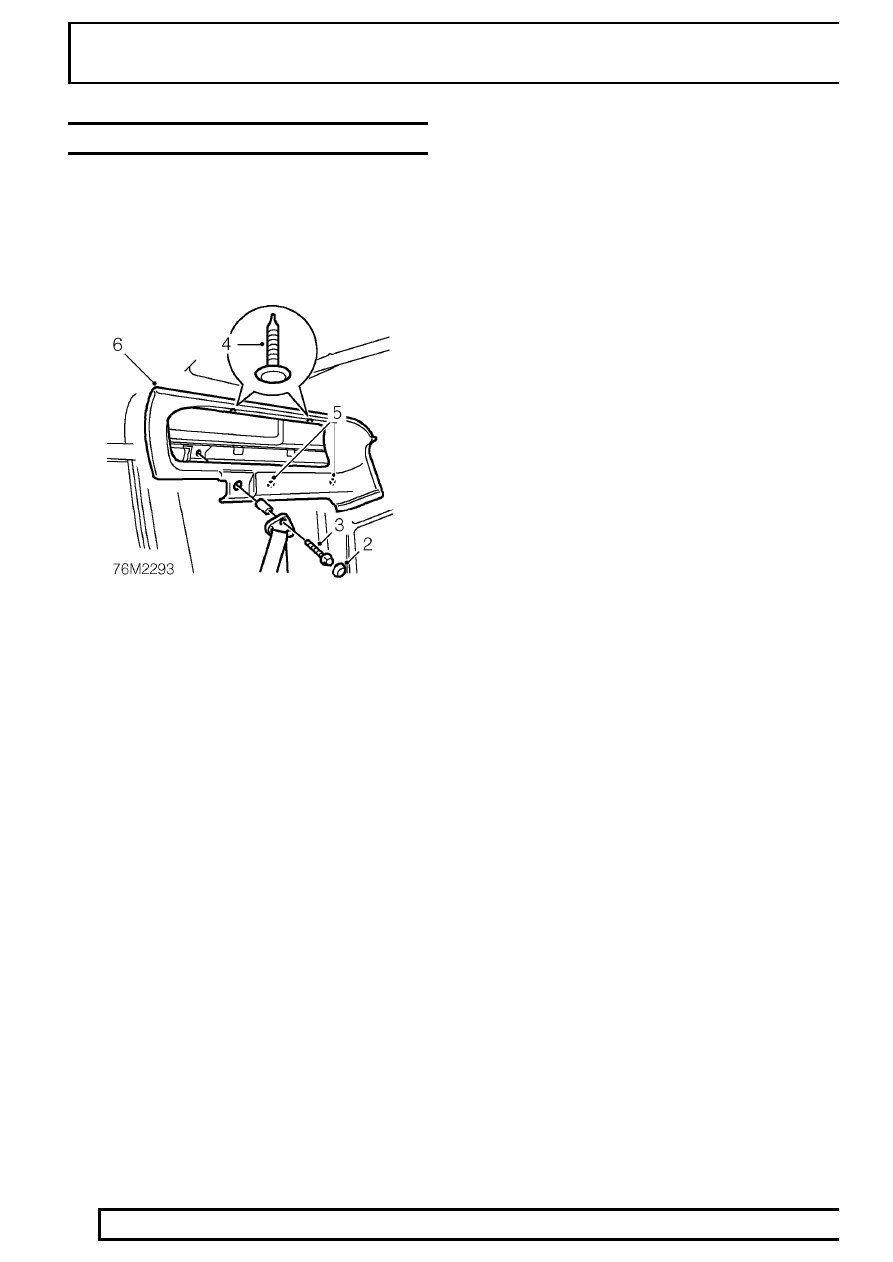

ALPINE LIGHT TRIM CASING

Service repair no - 76.13.20

Remove

1. Remove RH ’E’ post trim casing.

See this

section.

2. Remove rear seat belt anchorage retaining bolt

cover.

3. Remove bolt securing rear seat belt anchorage.
4. Remove 2 trim studs securing trim casing.
5. Release trim casing from 2 retaining studs.
6. Remove trim casing.

Refit

7. Fit and align trim casing and secure with studs.
8. Fit 2 trim studs securing trim casing.
9. Position seat belt anchorage, fit bolt and tighten

to

32 Nm (24 lbf ft) .

10. Fit cover to seat belt anchorage bolt.
11. Fit ’E’ post trim casing.

See this section.

CHASSIS AND BODY

17

REPAIR

FRONT BODYSIDE TRIM CASING

Service repair no - 76.13.01

Remove

1. Remove the grab handle.
2. Remove the rear compartment lower trim panel.

See this section.

3. Remove the alpine light trim casing.

See this

section.

4. Remove the bolts securing the upper and lower

seat belt mountings.

5. Remove the finisher from its location over the

seat belt inertia reel.

6. Remove the front seat belt guide from the upper

aperture in the casing.

7. Open the side window, remove the catch

securing screws and withdraw the catch trim.

8. Remove the side window hinge finishers.
9. Release the casing from the window rubber.

10. Release the rear seat belt from the guide

attached to the casing.

11. Fold down the rear seats and carefully ease the

casing from the fastenings.

12. Pass the front seat belt through the upper

aperture and withdraw the casing from the
vehicle.

Refit

13. Reverse removal procedure.

NOTE: Ensure that the trim material glued
to the door post is not wrinkled when the
door seal is fitted.

14. Tighten upper and lower seat belt fixings to

32

Nm (24 lbf ft) .
