STEERING

13

REPAIR

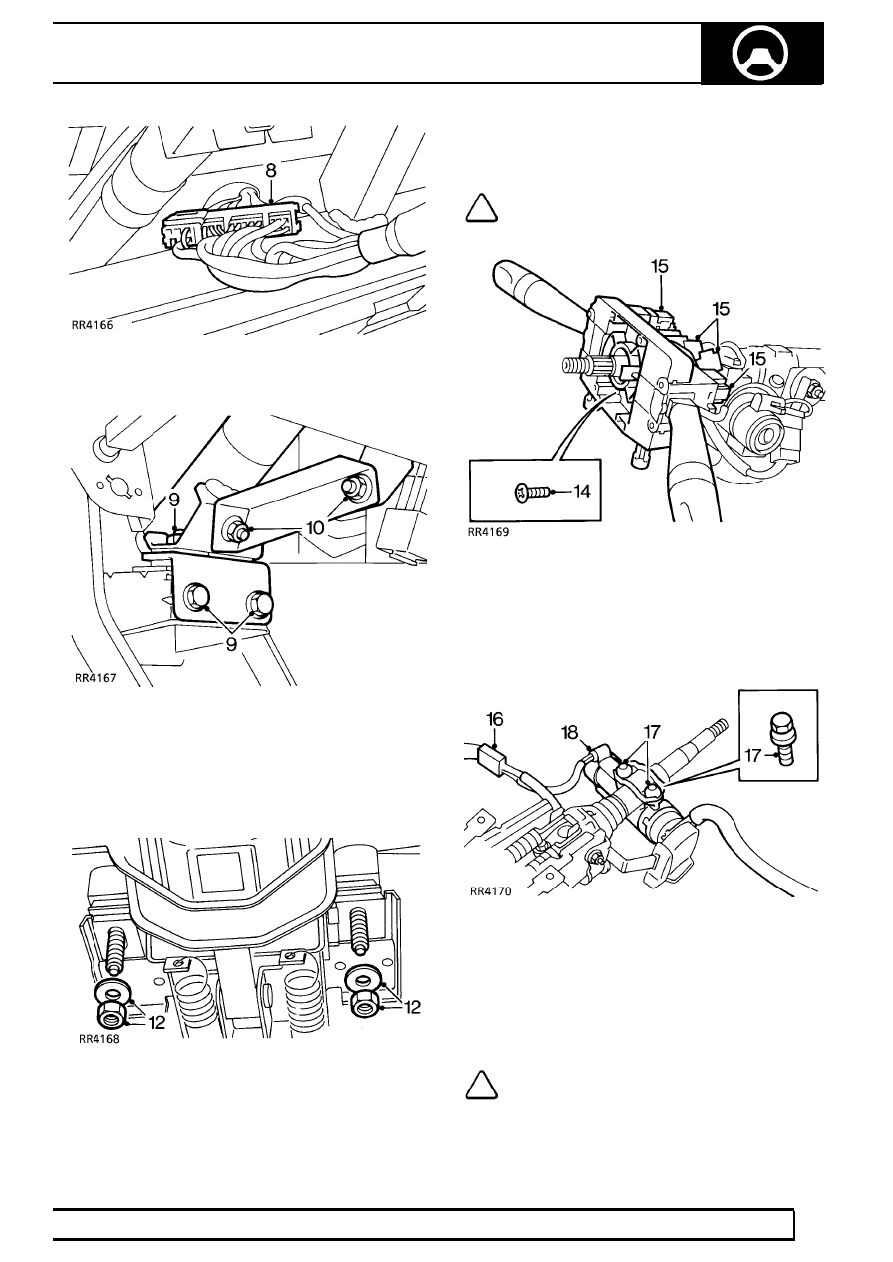

8. Disconnect ignition switch main feed multiplug.

9. Remove 4 nuts securing upper column to lower

mounting.

10. Remove 2 nuts securing lower mounting steady

bracket, remove bracket.

11. Remove pinch bolt securing upper column to

universal joint.

12. Remove 2 nuts and washes securing upper

column to upper mounting bracket.

13. Carefully manoeuvre upper column out of

footwell, recover rubber boot.

NOTE: Do not carry out further
dismantling if upper column is removed
for access only.

14. Loosen but, do not remove screw securing

column switch assembly, withdraw assembly to
gain access to multiplugs.

15. Disconnect column switch multiplugs, remove

column switch assembly.

16. Disconnect ignition switch multiplug.
17. Remove shear bolts securing steering column

lock, remove lock and saddle; discard shear
bolts.

18. Withdraw bulb holder from column lock shroud.
19. Transfer components to new upper column,

connect multiplug.

NOTE: Do not shear column lock bolts at
this stage.

57

STEERING

14

REPAIR

Refit

20. Manoeuvre upper column to position in footwell,

ensure splines in column and universal joint are
correctly engaged and rubber boot is fitted.

21. Fit but do not tighten universal joint pinch bolt.
22. Position upper column to upper mounting, fit

washers and nuts, do not tighten nuts.

23. Fit but do not tighten nuts and bolts securing

upper column to lower mounting.

24. Fit lower mounting steady bracket, fit but do not

tighten nuts and bolts.

25. Ensure upper column is aligned to mountings.
26. Tighten all nuts and bolts to

22 Nm.

27. Tighten universal joint pinch bolt to

25 Nm.

28. Connect column switch multiplug.
29. Connect ignition switch multiplugs.
30. Fit rotary coupler.

See SUPPLEMENTARY

RESTRAINT SYSTEM, Repair, Rotary
Coupler

31. Fit steering wheel.

See Steering Wheel

32. Reconnect battery negative lead.
33. Check steering column lock for correct

operation, tighten shear bolts until heads shear
off.

34. If fitted - position knee bolster, fit and tighten

screws.

35. Fit steering column shroud.

See Steering

Column Shroud

36. Fit driver’s access panel.

STEERING

15

REPAIR

STEERING COLUMN LOCK ASSEMBLY

Service repair no - 57.40.31

Remove

CAUTION: Before removing any parts of
steering linkage, it is imperative that road
wheels are positioned straight ahead.

Then steering wheel removed to prevent rotary
coupler being wound up or damaged.

CAUTION: After refitting steering linkage
parts follow correct procedure to ensure
that road wheels, steering box and

steering wheel are correctly positioned relative to
each other when in straight ahead condition. If
steering wheel requires repositioning, ensure that
drive pegs on rotary coupler are correctly
positioned before steering wheel is replaced.

This ensures drive pegs locate in their holes in
rear of steering wheel.

After final alignment connect rotary coupler
multiplug, tighten steering wheel securing nut and
fit airbag module - if fitted.

1. Disconnect battery negative lead.
2. Remove steering column shroud.

See Steering

Column Shroud

3. Release turnbuckles, lower driver’s access

panel.

4. If fitted, remove 4 screws securing knee pad,

remove bolster.

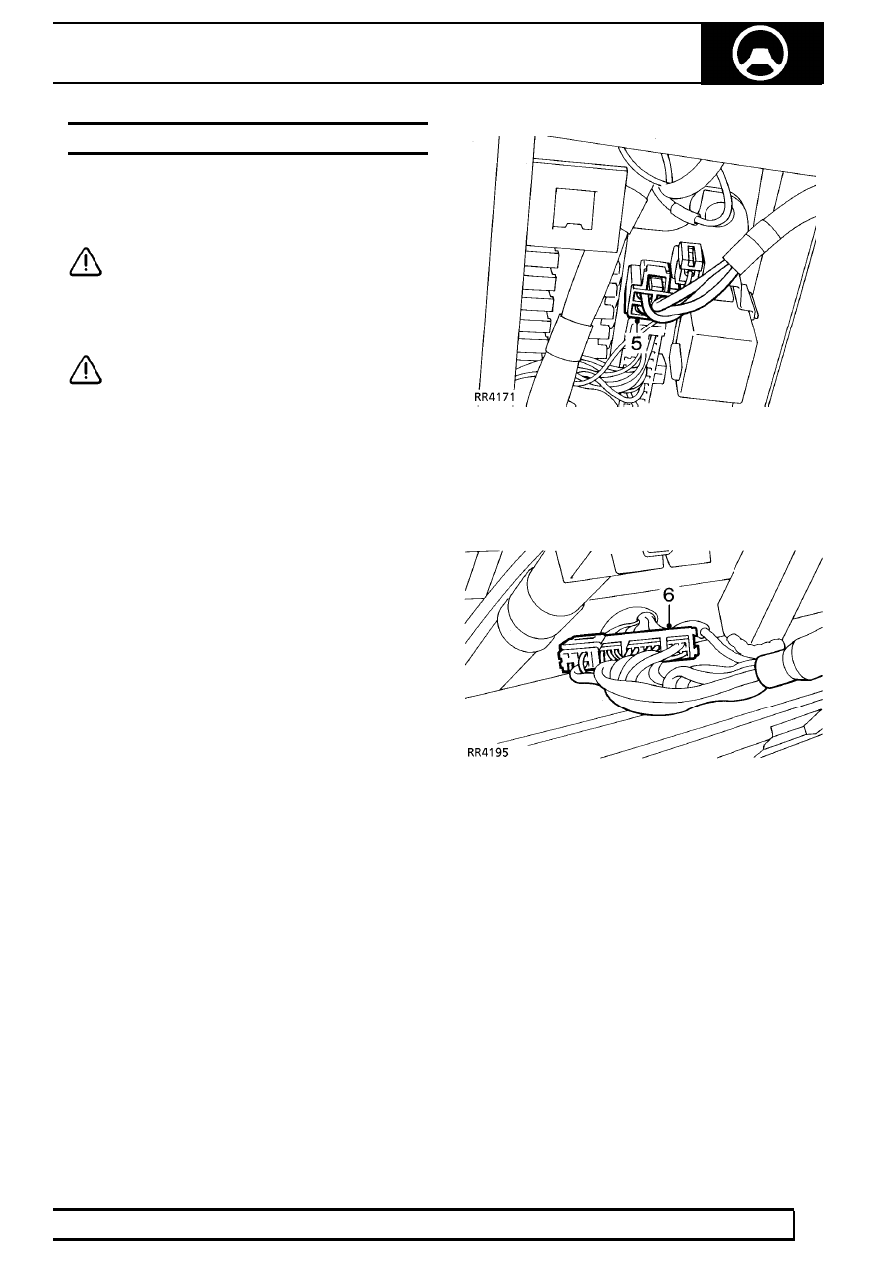

5. Disconnect ignition switch multiplug from fuse

box.

6. Disconnect ignition switch main feed multiplug.

57

STEERING

16

REPAIR

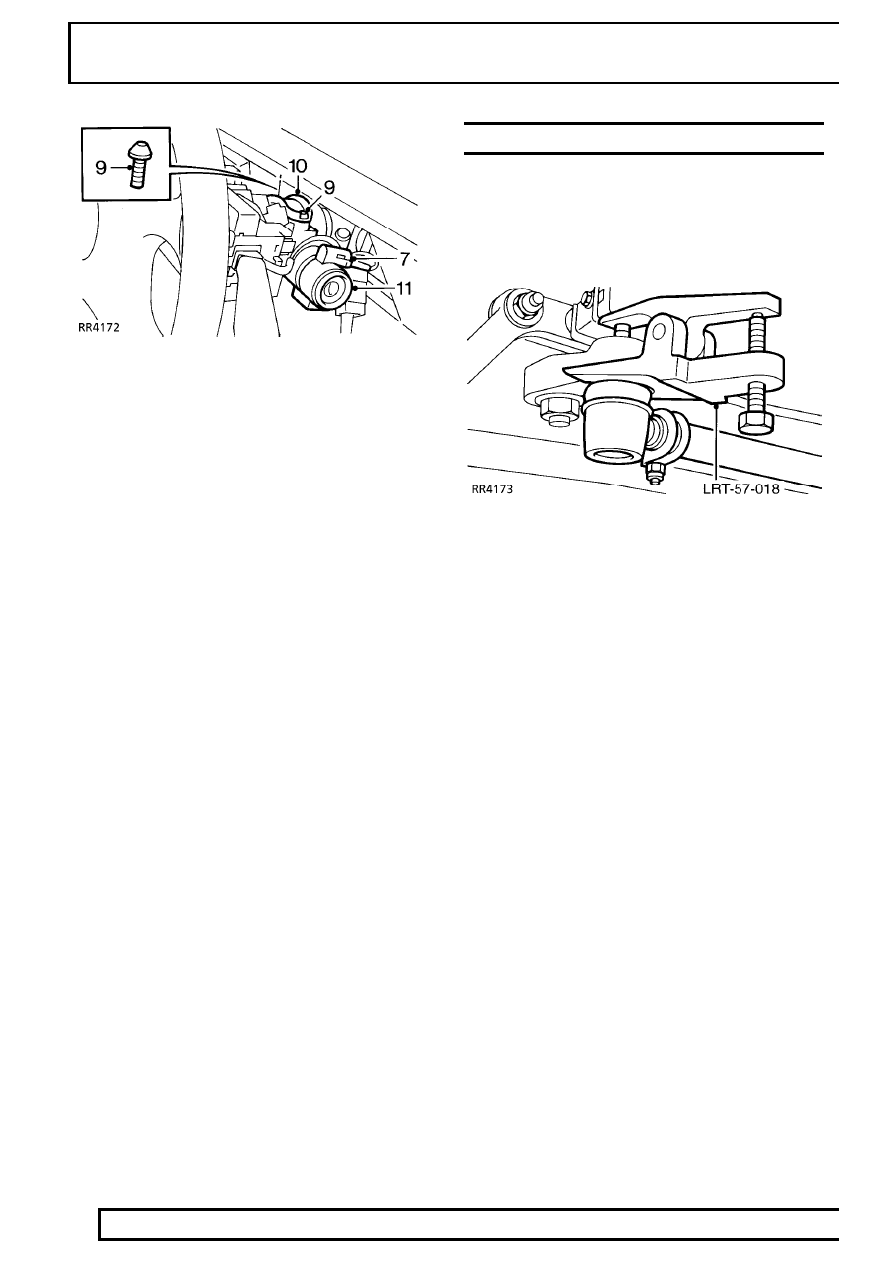

7. Remove bulb holder from steering column lock

shroud.

8. Tap head of shear bolts anti-clockwise to release

them.

9. Remove and discard shear bolts.

10. Detach saddle.
11. Remove steering column lock assembly.

Refit

12. Position steering lock saddle on column, locating

spigot in hole provided.

13. Place lower lock assembly into column.
14. Fit but do not fully tighten new shear bolts.
15. Connect multiplugs.
16. Insert bulb holder into steering column lock

shroud.

17. Reconnect battery negative lead.
18. Check steering column lock for correct

operation, tighten shear bolts until heads shear
off.

19. Fit steering column shroud.

See Steering

Column Shroud

20. If fitted - fit knee bolster, fit and tighten screws.
21. Raise driver’s access panel, secure turnbuckles.

DROP ARM

Service repair no - 57.50.14

Remove

1. Place vehicle on a hoist, or support front axle on

axle stands.

2. Disconnect drag link ball joint from drop arm,

using extractor LRT-57-018.
