Land Rover Discovery. Manual - part 42





Mpi

9

REPAIR

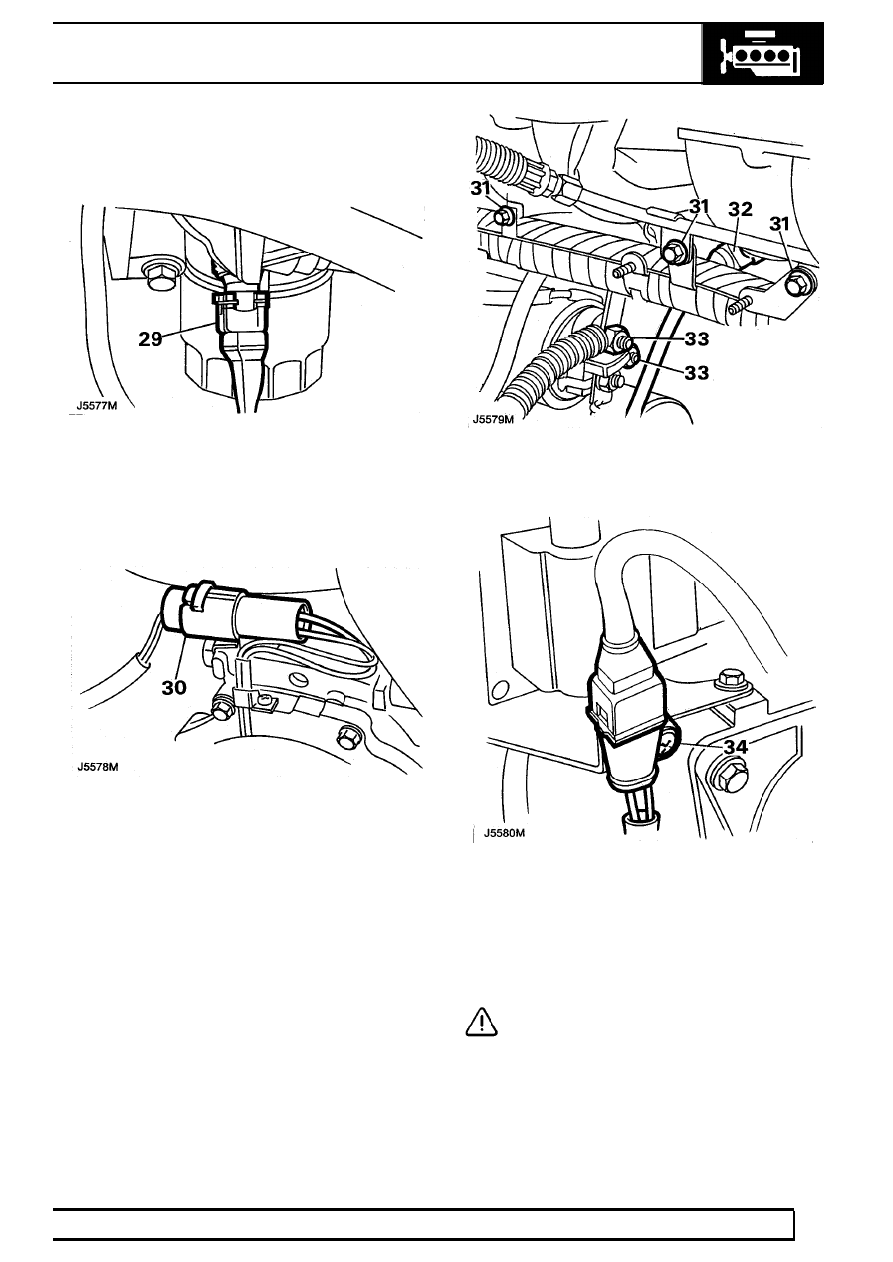

29. Disconnect oil pressure switch multiplug.

30. Disconnect air conditioning compressor

multiplug.

31. Remove 3 bolts securing engine harness to

manifold and fuel pipe.

32. Disconnect knock sensor multiplug.
33. Remove 2 nuts securing harness to starter motor

solenoid, remove harness.

34. Disconnect crankshaft sensor multiplug.

35. Disconnect fuel injection harness multiplug.

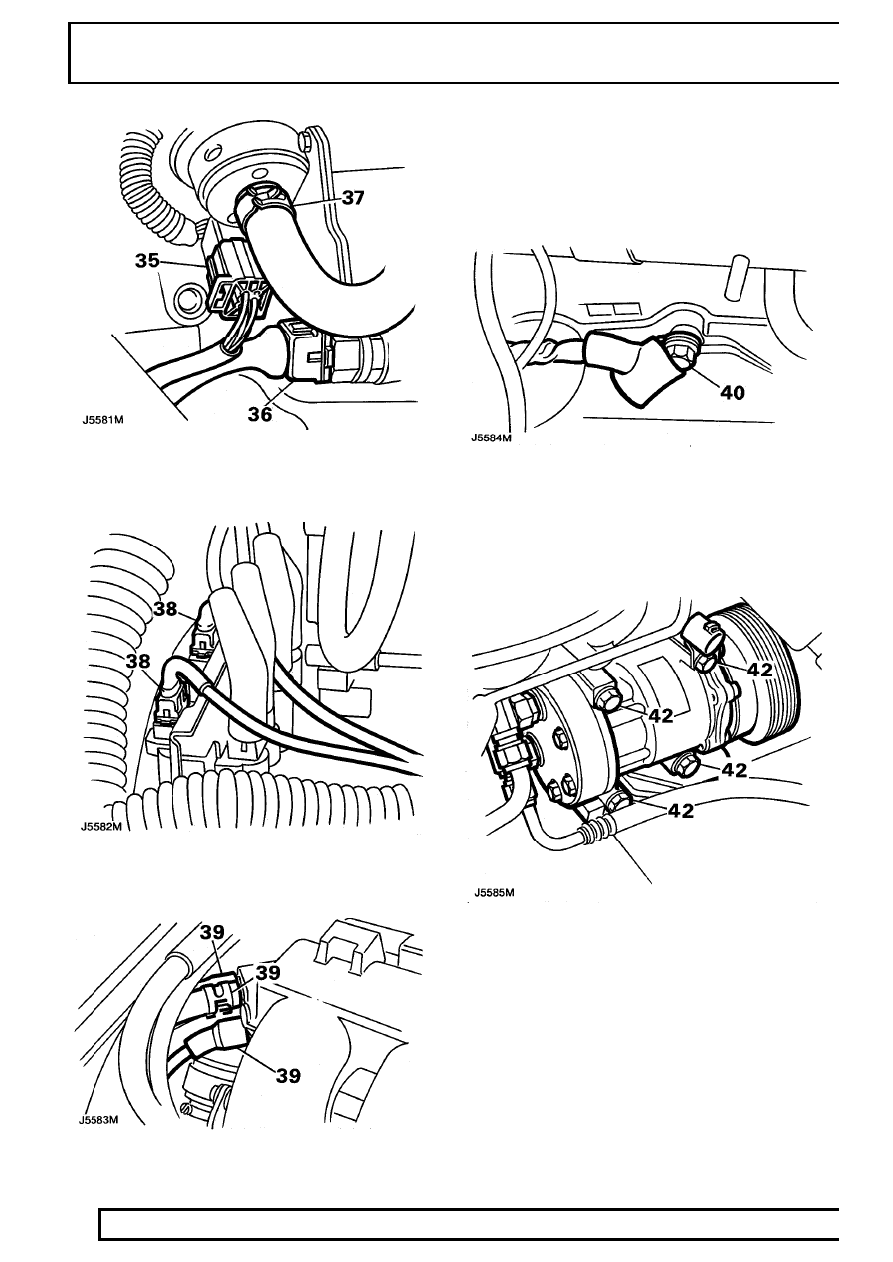

36. Disconnect inlet manifold air temperature sensor

multiplug.

37. Release clip and disconnect fuel hose from

pressure regulator.

CAUTION: Plug the connections.

12

ENGINE

10

REPAIR

38. Disconnect 2 ignition coil multiplugs.

39. Disconnect 3 vacuum hoses from manifold.

40. Release cover and remove bolt securing earth

lead to cylinder block.

41. Move earth lead aside.

42. Remove 4 bolts securing air conditioning

compressor, move compressor aside.

Mpi

11

REPAIR

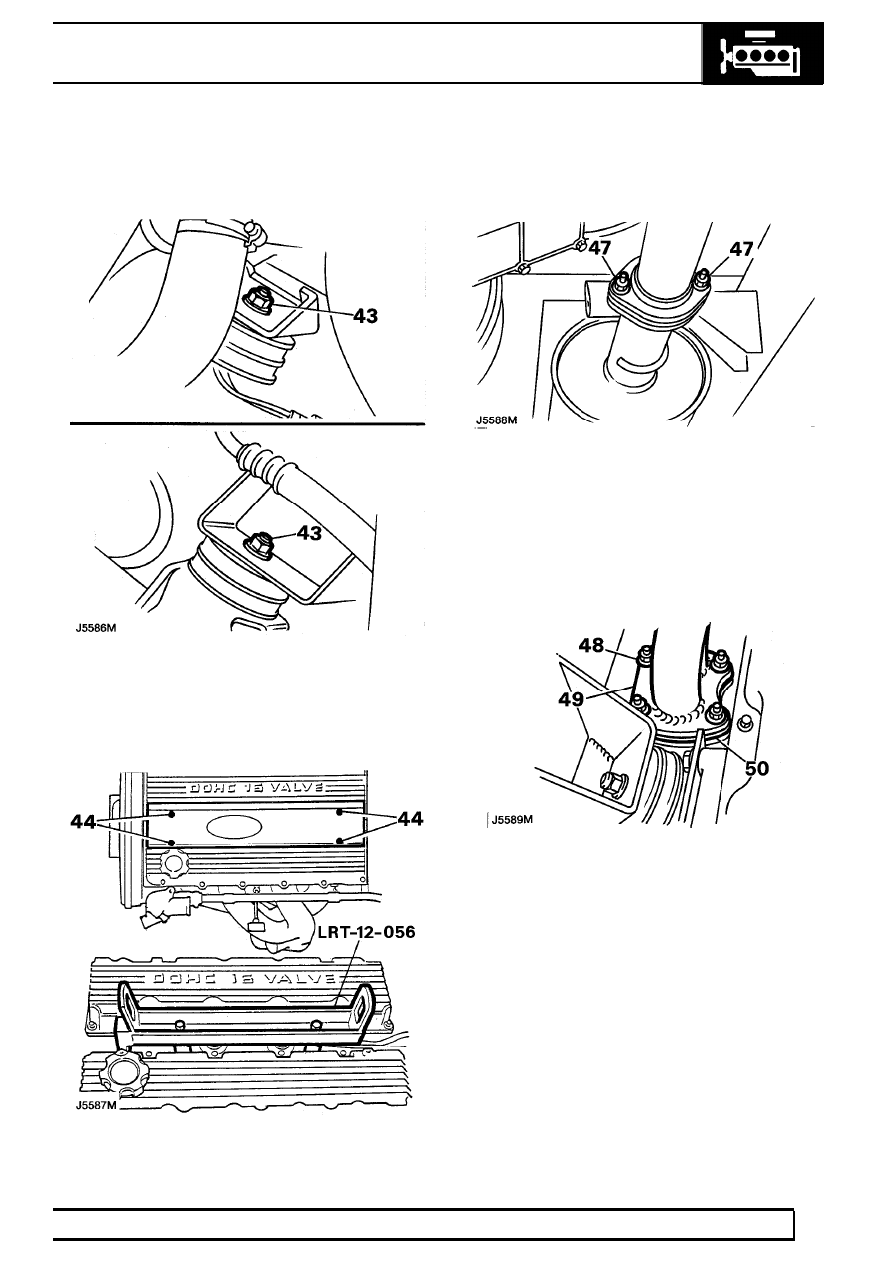

43. Remove engine mounting heat shield. Remove

upper nuts from engine L.H. and R.H.
mountings.

44. Release 4 screws and remove spark plug cover.
45. Fit tool LRT-12-056, support engine using

suitable hoist.

46. Raise vehicle.
47. Loosen 2 nuts securing downpipe to silencer.

48. Remove 4 nuts securing downpipe to exhaust

manifold.

49. Release downpipe from exhaust manifold.
50. Collect gasket.

12

ENGINE

12

REPAIR

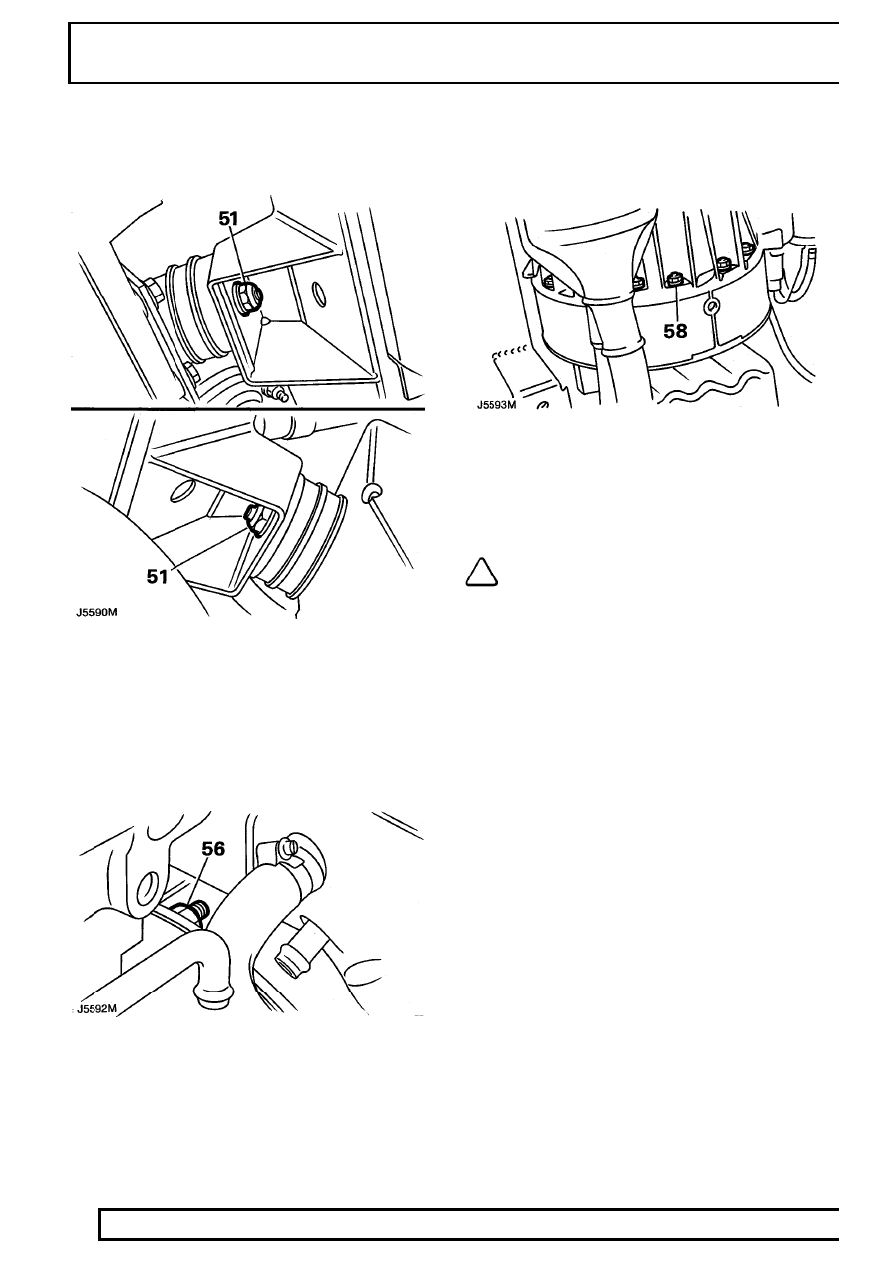

51. Remove engine L.H. and R.H. mounting lower

nuts.

52. Lower vehicle.
53. Raise engine.
54. Remove engine mountings.
55. Lower engine.
56. Remove bell housing top nut.

57. Raise engine and support gearbox.

58. Remove 12 remaining bell housing nuts.

59. Remove engine.

Refit

NOTE: For torque values.

See

Specifications, torque, Torque Values

1. Using assistance, lower engine into position.
2. Fit bell housing nuts, tighten to the correct

torque.

3. Remove gearbox support.
4. Lower engine.
5. Fit bell housing top nut, tighten to the correct

torque.

6. Raise engine.
7. Position engine mountings, partially tighten nuts.
8. Lower engine.
9. Remove hoist and chains.

10. Tighten L.H. and R.H. mounting nuts to the

correct torque. Fit engine mounting heatshield.

11. Fit new gasket to exhaust downpipe.
12. Fit exhaust manifold to downpipe nuts and

tighten to the correct torque.

13. Tighten exhaust downpipe to silencer box nuts

to the correct torque.

14. Position air conditioning compressor and secure

with bolts. Tighten to the correct torque.

15. Connect coil multiplugs.
16. Connect harness to starter solenoid and secure

with nuts.

17. Connect earth lead to cylinder block and secure

with nut.

18. Position engine harness to manifold, secure with

bolts.
